GM 6.2 Belt Diagram and Proper Installation Guidelines

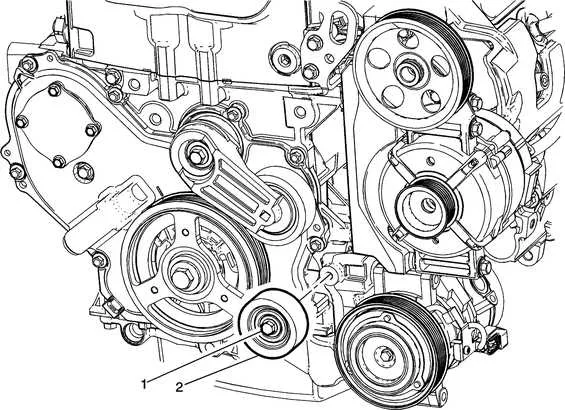

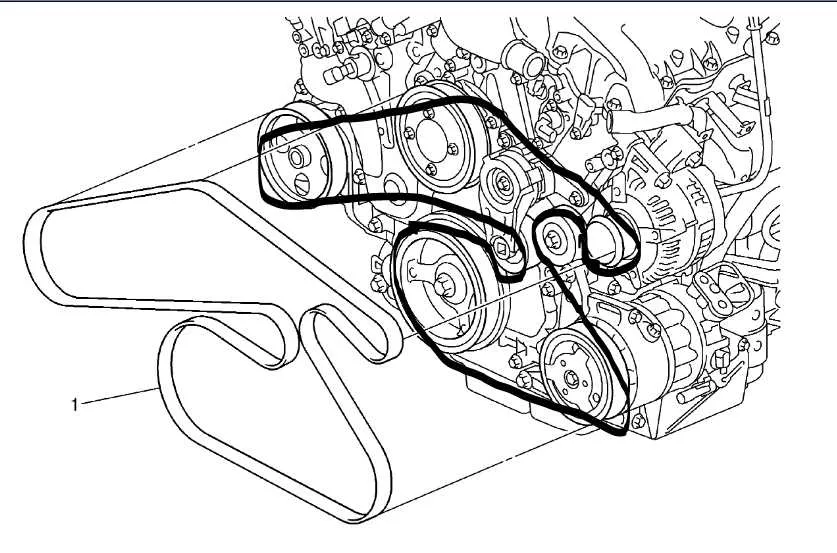

The GM 6.2 engine belt diagram plays a key role in ensuring proper belt routing for optimal engine performance. Understanding the correct alignment of serpentine and accessory belts is crucial for smooth operation and longevity of engine components.

Refer to the official GM 6.2 belt diagram when replacing or inspecting the belts. The diagram provides clear guidance on the precise positioning of each belt and its interaction with components like the alternator, power steering pump, and air conditioning compressor. This setup helps avoid overloading parts or causing premature wear.

Pay special attention to the tensioner system, which maintains appropriate tension throughout the engine’s operation. Proper tension ensures the belts stay in place and avoid slippage, which can lead to electrical or cooling system failures.

Additionally, when checking the belts, inspect for signs of wear such as cracks, fraying, or glazing. Replacing damaged belts promptly will prevent more significant issues, such as overheating or electrical malfunctions.

For anyone unfamiliar with engine components, having a clear visual reference like the GM 6.2 belt diagram will save time and avoid costly mistakes. Keep the diagram handy for quick troubleshooting and belt maintenance.

GM 6.2 Belt Diagram: Detailed Guide

The GM 6.2 engine belt diagram is key to maintaining smooth operation. It shows the correct routing for the serpentine and accessory belts, ensuring components like the alternator, power steering pump, air conditioning compressor, and water pump are properly powered. Follow these steps for proper installation:

• Inspect the belts: Check for wear and tear before attempting to install or replace the belts. Any visible cracks or fraying should lead to immediate replacement.
• Understand belt routing: The GM 6.2 engine uses a serpentine belt system. The diagram indicates how the belt loops around pulleys, with specific direction and tensioning instructions.
• Locate the tensioner: Identify the belt tensioner in your diagram. This part is essential for maintaining correct belt tension. If it is damaged or malfunctioning, replace it before installing a new belt.
• Routing steps: Start from the crankshaft pulley. Follow the diagram to guide the belt across the various pulleys. Ensure the belt is properly seated in all grooves.

Correctly routed belts reduce strain on the engine components, enhancing efficiency and lifespan. A belt that is too tight or too loose can cause unnecessary wear or even component failure. Make sure to use the appropriate tension for the GM 6.2 engine to avoid issues down the line.

• Verify proper alignment: Once installed, double-check the alignment with the belt routing diagram. A misaligned belt can cause slippage, overheating, and premature damage to components.
• Test functionality: After installation, run the engine briefly and observe the belt in motion. Listen for unusual noises and check for proper movement. If the belt appears to be moving erratically, revisit the tension and routing.

Regular maintenance and accurate belt replacement based on the GM 6.2 belt diagram help keep your engine components in top working condition. It’s a small effort that goes a long way in preventing major engine failures.

How to Read and Interpret the GM 6.2 Belt Diagram for Engine Maintenance

Focus on identifying key components in the GM 6.2 belt diagram: the serpentine belt, pulleys, tensioner, idler, and accessories. Understand the correct path of the belt and the rotation direction of each pulley. The diagram typically shows a clear layout of the belt’s route, highlighting which components it interacts with. Start by recognizing the belt’s starting and ending points. The diagram will guide you on which pulleys to align the belt around for a proper fit.

The tensioner pulley is a pivotal part of the system. It maintains the correct tension of the belt to prevent slippage. Check its placement on the diagram and verify it’s positioned correctly. A common mistake is not aligning the tensioner properly, leading to premature wear on the belt. Pay attention to any arrows or indicators showing pulley rotation–this ensures that the belt is routed in the proper direction for optimal performance.

If your diagram includes a belt tensioner with a specific release method, make sure to use the proper tool or procedure for adjustment. Some GM 6.2 belt diagrams will feature a mechanical or spring-loaded tensioner, so verify which system applies to your engine.

Use the diagram to verify that all pulleys are engaged with the belt correctly and that no pulley is skipped. Skipping a pulley or misrouting the belt can cause significant damage over time. Always double-check the routing before you finish the installation.

Regularly inspect the belt for wear. The diagram can serve as a reference point when determining whether the belt is correctly positioned and in good condition. A worn-out belt will exhibit cracks, frays, or glazing, indicating it’s time for replacement.

Common Issues with GM 6.2 Belt Setup and How to Fix Them

If you notice unusual noises or belt slippage, check the tension. A loose belt can lead to poor performance or even engine damage. Adjust the tensioner to keep the belt tight and ensure smooth operation. Ensure the belt’s teeth match the pulleys, as misalignment causes wear and tear over time.

Another issue is premature belt wear. If the belt is showing signs of cracking or fraying, it may be misaligned or defective. Inspect the alignment of all pulleys and the condition of the tensioner. If the tensioner is faulty, replace it to prevent additional damage. Replacing a worn belt on time can avoid costly repairs down the line.

Belt squeal is often caused by misalignment, improper tension, or oil contamination. Inspect the belt for oil or grease stains and clean off any contaminants. If the squeal persists, check the alignment of the pulleys and ensure the belt isn’t worn unevenly. Regularly inspecting these parts can prevent unnecessary noise and inefficiency.

Sometimes, belt slippage occurs due to a weak or failing tensioner. If the tensioner can’t maintain the proper pressure, the belt will slip. Replacing the tensioner spring can solve this issue and keep the belt in place. Make sure to replace the tensioner as a set rather than just individual components to avoid further problems.

Incorrect installation can lead to misalignment and additional wear. Double-check that all components, such as pulleys and the tensioner, are installed in the correct order. Using a diagram for your specific engine model ensures that everything is in place before you start the engine.

Step-by-Step Instructions for Replacing the Serpentine Belt on GM 6.2 Engines

Disconnect the negative battery terminal to avoid any electrical issues during the process.

Locate the serpentine belt. It runs over the alternator, power steering pump, air conditioning compressor, and water pump. Make sure you have the correct replacement belt for your specific GM 6.2 engine model.

Using a socket wrench, rotate the tensioner pulley clockwise to relieve tension from the belt. This will allow you to remove the old belt with ease. Be cautious not to overextend the tensioner, as it could damage the pulley or belt system.

Remove the old serpentine belt from the pulleys and set it aside. Before installing the new belt, compare its routing and size with the original to ensure it’s the correct replacement.

Carefully install the new belt, following the same path as the old one. Make sure the belt is properly seated in all the pulley grooves. Double-check that the belt is aligned and not twisted.

Rotate the tensioner pulley again, this time counterclockwise, to apply tension to the new belt. Ensure the belt has the correct amount of tension and sits snugly in the pulleys.

Recheck all connections to make sure everything is in place. Reconnect the negative battery terminal and start the engine. Listen for any unusual noises that might indicate improper installation.

Test the belt by manually inspecting the tension and checking if it moves smoothly through the system. If it seems loose or misaligned, shut off the engine and recheck the installation.
