Complete Fj Cruiser Belt Diagram Showing Component Placement and Routing Paths

Check the engine belt layout before performing any maintenance on your FJ Cruiser to avoid misrouting and unnecessary wear. The belt configuration varies between models equipped with standard and 4.0L engines, so referencing the correct diagram ensures proper installation.

Locate the tensioner and idler pulleys first to understand the belt path. Most FJ Cruiser engines use a serpentine belt connecting the alternator, power steering pump, water pump, and AC compressor. Identifying each component prevents accidental damage during removal or replacement.

Follow the directional flow indicated in the diagram when reinstalling the belt. Misalignment can reduce performance and trigger warning lights. Use a belt routing sticker under the hood if available, or print the diagram for easy access during installation.

Inspect the belt for cracks, fraying, or glazing before routing it. Replacing worn belts alongside correct tensioning improves engine reliability and prevents unexpected breakdowns. Keep the diagram visible while tightening the belt to verify proper engagement on each pulley.

FJ Cruiser Belt Diagram

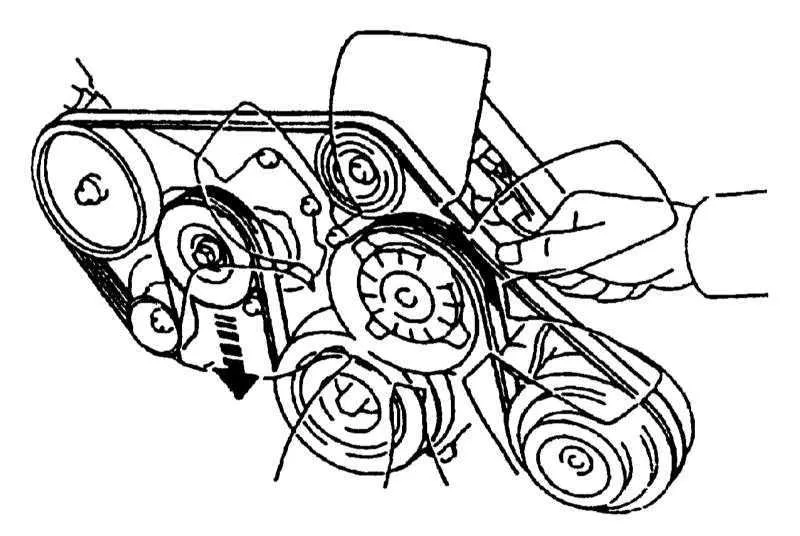

Locate the serpentine belt routing diagram on the driver’s side of the engine compartment; it clearly shows the path around the alternator, power steering pump, water pump, and crankshaft pulley.

For a 4.0L V6 FJ Cruiser, the belt wraps clockwise from the crankshaft pulley to the idler pulley, then to the alternator, water pump, power steering, and back to the tensioner. The tensioner maintains proper belt tension and allows smooth rotation of all components.

Inspect the belt for cracks, fraying, or glazing before installation. Align each pulley exactly as shown in the diagram to prevent slippage or noise. Use a wrench to release tension from the tensioner, slide the belt onto the pulleys, and gradually release the tensioner to secure the belt.

Verify alignment by manually rotating the engine two full turns. The belt should remain centered on every pulley, without twisting or skipping grooves. Replace any worn pulleys or tensioners to ensure long-term reliability.

Keep a copy of the belt diagram in your glove box. It serves as a reference for future maintenance or emergency belt replacement, saving time and preventing errors during installation.

Locating and Identifying Each Belt in the Fj Cruiser Engine

Check the serpentine belt first; it wraps around the alternator, power steering pump, and air conditioning compressor. Its routing is usually indicated on a decal under the hood.

Locate the timing belt by removing the timing cover on the front of the engine. The timing belt connects the crankshaft to the camshaft, synchronizing valve movement. Look for tensioners and idler pulleys along its path.

The accessory drive belt, smaller than the serpentine, powers the water pump and alternator on some V6 models. Identify it by tracing from the crankshaft pulley to these components.

Follow this step-by-step method to identify belts:

• Open the hood and secure the vehicle.
• Locate the crankshaft pulley at the bottom center of the engine.
• Trace each belt to its respective component: alternator, power steering, air conditioning, water pump, camshaft.
• Check for belt labeling or routing diagrams printed on nearby covers.
• Confirm tensioners and pulleys align with the manufacturer’s diagram.

Inspect each belt for cracks, fraying, or glazing. Identify by width and routing, as similar-looking belts may serve different functions.

Use diagrams specific to the Fj Cruiser’s engine variant. V6 4.0L engines have dual belts: a primary serpentine and a secondary accessory belt. 4-cylinder engines generally use a single serpentine belt with a separate timing belt behind the cover.

Mark each belt with chalk or tape before removal to avoid misrouting during reinstallation. Keep bolts and tensioners organized for easy reassembly.

Step-by-Step Belt Replacement and Routing Instructions

Loosen the tensioner pulley using a 14mm socket to release pressure on the serpentine belt. Remove the old belt carefully, noting its routing around each pulley.

Inspect all pulleys and the tensioner for wear or damage. Replace any components that show cracks, excessive play, or squeaking noises.

Route the new belt according to the diagram for the FJ Cruiser: start at the crankshaft pulley, loop it around the alternator, then move to the idler pulley, followed by the water pump and power steering pump. Ensure the belt sits fully in each pulley groove.

Pull the tensioner back to allow the belt to slip into place over the final pulley. Release the tensioner slowly to apply proper tension on the belt.

Check alignment on all pulleys. Spin the engine by hand for one full rotation to confirm smooth operation and correct positioning.

Reconnect any components removed for access, then start the engine and observe the belt running. Listen for unusual noises and verify consistent tension across all pulleys.

Troubleshooting Common Belt Wear and Alignment Issues

Inspect the belt for cracks, fraying, or glazing every 15,000 miles. Replace any belt showing deep cracks or missing chunks immediately to prevent sudden failure. Check tension with a calibrated gauge; a belt that is too loose can slip, while an overly tight belt accelerates bearing wear.

Verify pulley alignment by shining a straight edge along the pulleys. Misaligned pulleys cause uneven wear and squealing. Adjust the alternator, power steering, or idler pulleys incrementally until alignment falls within the manufacturer’s tolerance, typically less than 1/16 inch deviation.

Listen for unusual noises while the engine runs. High-pitched squeals often indicate a worn belt or misalignment. Investigate pulley bearings if the noise persists after belt replacement.

Check belt routing against the Fj Cruiser belt diagram each time a belt is replaced. Incorrect routing stresses the belt and reduces service life. Mark the old belt path before removal to avoid mistakes.

Clean pulleys and tensioners to remove oil, dirt, and debris. Contaminants increase slippage and wear. Use a lint-free cloth and mild degreaser, avoiding harsh chemicals that can damage rubber components.

Inspect tensioner spring and bearing for smooth operation. A weak tensioner fails to maintain proper tension, accelerating belt degradation. Replace tensioners showing excessive play or rough rotation.

Schedule visual inspections every 6 months or after heavy off-road use. Early detection of cracks, fraying, or misalignment prevents costly engine accessory damage and maintains smooth operation.
