Ferris 48 Inch Belt Diagram and Installation Guide

Understanding the proper belt routing for your Ferris 48-inch mower is crucial for ensuring smooth operation and avoiding unnecessary wear. Incorrect installation or worn-out belts can lead to poor performance or even damage to the mower. This guide will help you with accurate belt installation and troubleshooting.

First, identify the specific belt model required for your Ferris mower. Refer to the owner’s manual or model number to ensure you have the correct part. Using the wrong belt could cause slipping or excessive tension, reducing the mower’s lifespan.

Next, follow the belt routing diagram closely to avoid errors. Each part of the mower, from the pulleys to the drive system, plays a role in the belt’s function. An incorrect path can lead to tension imbalances, causing the mower to operate inefficiently. Carefully check the tension after installation to make sure the belt is neither too tight nor too loose.

If you experience any issues with the belt, such as slippage or premature wear, inspect the pulleys and check for any debris or damage. Regular maintenance, including belt inspection and cleaning, can prolong the life of both the belt and the mower.

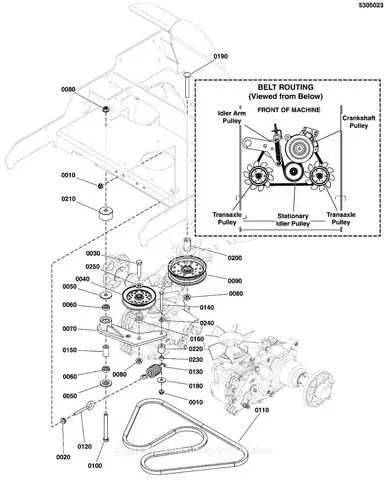

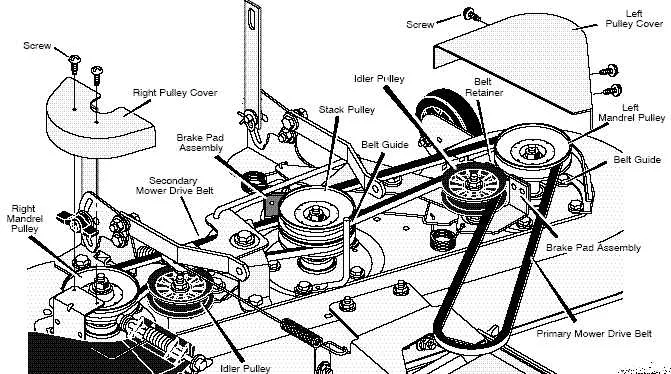

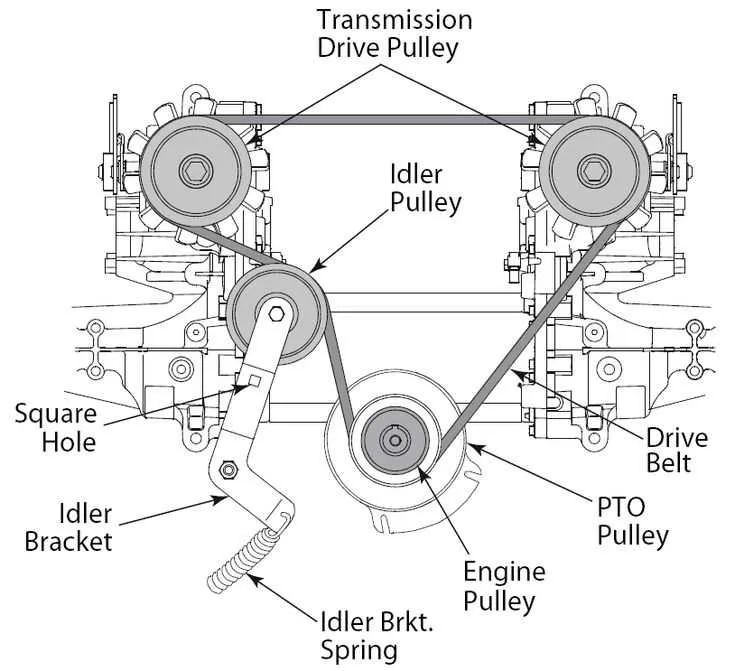

Ferris Belt Diagram 48 Inch

For proper maintenance and repair, refer to the Ferris 48-inch belt diagram. This diagram is crucial when replacing or adjusting the belts on your Ferris mower. The diagram outlines the correct routing and orientation for each belt, ensuring optimal performance and avoiding unnecessary wear. It helps in identifying the correct belt size, path, and installation points, saving time during setup or troubleshooting.

Start by locating the diagram on the underside of the mower deck or in the owner’s manual. For belt replacement, first ensure the mower is off, the engine is cool, and the battery is disconnected. Next, check the belt for any visible signs of wear such as fraying or cracking. If replacement is necessary, use a genuine Ferris part to ensure compatibility and performance.

When installing the new belt, follow the diagram step by step. Be sure to check tensioning requirements. If the belt is too tight or too loose, it can cause premature wear or improper function. Tighten the belt only enough to avoid slipping during operation, as excessive tension can strain the system.

If you’re facing difficulties with belt slipping or breaking, inspect the pulleys and idlers for alignment. Misaligned pulleys can cause uneven belt wear and damage. Ensure all components are securely in place and free of debris before testing the mower again.

Understanding the Components of the 48 Inch Ferris Belt System

The 48-inch Ferris belt system consists of several critical components that work together to ensure smooth operation. The main components include the drive belt, idler pulleys, tensioner, and the deck pulleys. Each plays a distinct role in power transmission and belt movement.

The drive belt transfers power from the engine to the cutting deck. It connects the engine’s output shaft to the primary deck pulley, enabling the blades to rotate. It’s crucial to regularly inspect the belt for wear, cracking, or fraying, as these signs indicate that the belt may need replacement.

Idler pulleys maintain proper belt tension. These pulleys keep the belt in the correct position and help prevent slippage during operation. Over time, idler pulleys can wear out, so check them for signs of damage or misalignment.

The tensioner ensures the belt remains tight enough for efficient power transfer. This component adjusts automatically to changes in belt length as it stretches over time. If the tensioner is malfunctioning, it could cause excessive slack, resulting in inefficient power delivery.

The deck pulleys direct the belt’s movement around the cutting deck. Proper alignment of these pulleys is critical for maintaining the belt’s effectiveness. Misalignment or excessive wear on the deck pulleys can cause the belt to come off track or fail prematurely.

Inspect each component regularly to ensure the belt system functions optimally. Regular maintenance and timely replacement of worn parts can extend the lifespan of the system and maintain the performance of your Ferris mower.

Step-by-Step Guide to Installing the Belt on a 48 Inch Ferris Mower

First, ensure the mower is turned off and the key is removed from the ignition. Elevate the mower using a jack or support stand to create enough space for the belt installation.

Next, locate the belt tensioner and release its tension. This will allow you to remove the old belt. Check for any signs of wear or damage on the tensioner, pulleys, and other components before proceeding.

Remove the old belt from all pulleys, starting from the drive pulley and working your way to the idler pulley. Be mindful of the belt’s routing as shown in the mower’s manual to avoid confusion during reinstallation.

Take the new belt and carefully thread it through the pulleys. Ensure it follows the correct routing path, paying attention to the direction of each pulley to prevent any misalignment.

Once the belt is in place, re-engage the belt tensioner to secure the belt. Check the tension on the belt by pressing down on it at the mid-point. It should feel firm, but not overly tight.

Finally, lower the mower back down and test the system by running the mower briefly. Listen for any unusual sounds and check if the belt remains in place during operation. Adjust tension if needed.

Troubleshooting Common Belt Issues on the 48 Inch Ferris Mower

If your Ferris mower belt is slipping, check the tension first. A loose belt is one of the most common issues. Tighten the belt to the manufacturer’s recommended specification, ensuring it’s neither too tight nor too slack. You can use a belt tension gauge to help measure the appropriate tightness.

If the belt squeals during operation, inspect for debris or dirt accumulation around the pulleys and belt. Clean both the pulleys and belt thoroughly, and replace the belt if it shows any signs of wear or cracking. Ensure the pulleys are aligned correctly to avoid uneven tension.

Another issue could be a misaligned pulley. If the mower is pulling to one side or the belt is unevenly worn, check the alignment of the pulleys. Use a level to verify they’re parallel. Realign or replace any parts that are bent or damaged.

If the belt keeps coming off during use, examine the routing of the belt against the mower’s manual diagram. An incorrect routing can cause the belt to slip off the pulleys. Re-route the belt as per the diagram and double-check for proper tension once installed.

For frequent belt breakage, inspect the bearings on the pulleys. A worn-out bearing can cause excessive friction and strain on the belt, leading to premature wear and breakage. Replace any faulty bearings to extend the life of your belt.

• Check for proper tension using a gauge.
• Clean pulleys and belts to prevent squealing.
• Ensure pulleys are correctly aligned.
• Verify the belt routing matches the manufacturer’s diagram.
• Replace worn-out bearings to reduce friction and prevent damage.
