Buick 3.8 Belt Diagram and Routing Guide for Proper Installation
For anyone working on the Buick 3.8 engine, understanding the belt configuration is key to maintaining smooth operation. A clear belt diagram will help you correctly route the serpentine belt and avoid potential issues like slippage or misalignment.
The Buick 3.8 engine uses a serpentine belt system, which drives multiple components, such as the alternator, power steering pump, and air conditioning compressor. The belt must follow a precise path to ensure each of these parts operates properly. To make your job easier, always refer to the belt routing diagram, typically found on the engine’s belt cover or in the vehicle’s service manual.
Accurate tension on the serpentine belt is just as important as correct routing. Make sure the belt is neither too loose nor too tight, as this can cause wear and tear on the components. Regular inspection of the belt for cracks, fraying, or glazing can prevent unexpected failures.
Whether you’re replacing the belt or troubleshooting a malfunction, use the diagram to double-check the alignment and make sure everything is in its proper place. A small mistake in belt routing can lead to engine misfires or loss of power, so attention to detail is key.

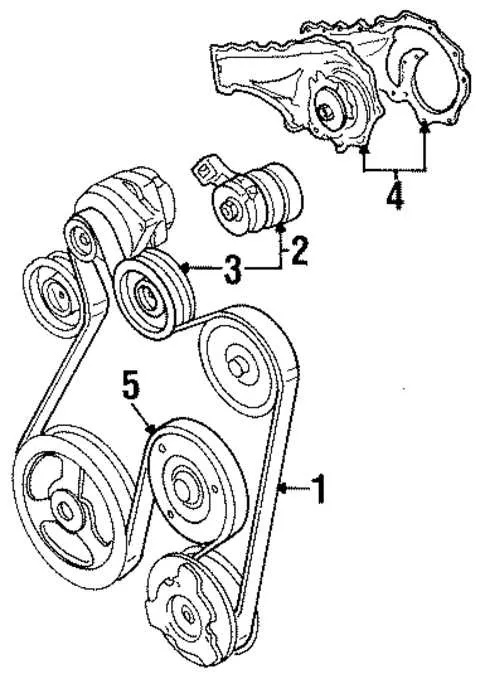

Buick 3.8 Belt Diagram
To ensure smooth operation of your Buick 3.8 engine, understanding the belt routing is key. The serpentine belt drives multiple components such as the alternator, power steering pump, and air conditioning compressor. Incorrect installation can lead to poor performance or engine damage.
Begin by locating the belt tensioner, which is typically on the passenger side of the engine. Use a wrench or ratchet to relieve tension on the belt by rotating the tensioner pulley clockwise. Once the tension is off, remove the belt and inspect it for any wear, cracks, or fraying before installing the new one.
When installing the new belt, follow the correct routing path. The belt should loop around the crankshaft pulley first, then move to the water pump, followed by the alternator. It continues around the power steering pump, the air conditioning compressor, and then the tensioner pulley. Make sure the belt sits securely in the grooves of each pulley.
Double-check the alignment of the belt and ensure it is snug but not too tight. After installing, rotate the tensioner back into place, applying pressure to maintain proper belt tension. Start the engine and observe the belt’s movement to confirm everything is working as expected.

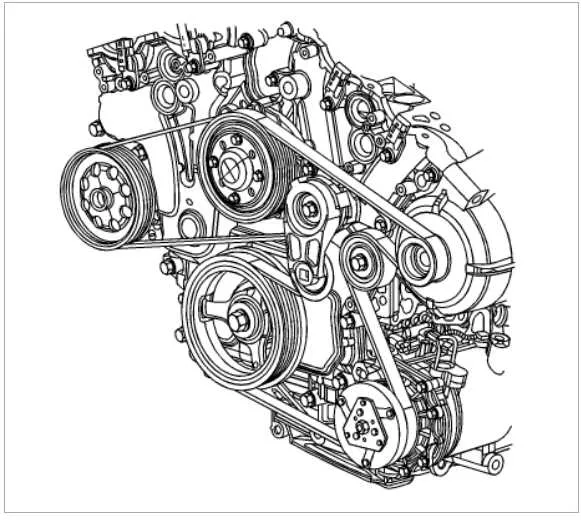

Identifying the Correct Belt Routing for the Buick 3.8 Engine
For proper belt routing on the Buick 3.8 engine, first ensure the belt is positioned around the alternator, power steering pump, water pump, and crankshaft pulley. The routing begins at the crankshaft, passing through the tensioner and idler pulleys, then wrapping around the power steering pump, alternator, and water pump pulleys before returning to the crankshaft pulley. Double-check the tensioner’s position; it should maintain correct tension on the belt. Keep the belt aligned with the pulleys to avoid premature wear or damage.
Consult the vehicle’s service manual for specific pulley configurations and routing diagrams. Make sure the belt has the correct length and type for the 3.8 engine. Misalignment can lead to squeaks or slipping, which often indicate the need for realignment or belt replacement. Regular inspection ensures smooth operation and extends the life of your engine’s components.
Common Issues with Buick 3.8 Belt Alignment and How to Fix Them
If the Buick 3.8’s serpentine belt is misaligned, it can cause squealing noises, premature wear, or even belt failure. A common issue is the misalignment of the tensioner pulley. Over time, wear or damage can cause the pulley to shift, leading to improper belt tracking. To fix this, inspect the pulley for signs of wear or corrosion. Replace the pulley if necessary, and ensure it is installed correctly and securely.
Another problem is misalignment due to a faulty idler pulley. A worn-out bearing in the idler pulley can cause the belt to travel off-center. It’s a good idea to replace the idler pulley immediately if there’s any noise or uneven wear on the belt. After installation, check that the belt sits evenly across all pulleys.
Misalignment may also result from a worn crankshaft pulley or improperly mounted accessories. To check this, inspect the crankshaft pulley for any visible damage or cracks. If any are found, the pulley should be replaced to prevent further issues. When reinstalling, ensure that the accessory components are properly aligned and tightened to avoid future misalignments.
Regular maintenance of the Buick 3.8’s belt system will prevent these issues. Checking the belt tension, inspecting pulleys, and replacing worn components will ensure a smooth-running engine and prevent unexpected breakdowns.
Step-by-Step Guide to Replacing the Serpentine Belt on a Buick 3.8
To replace the serpentine belt on a Buick 3.8, follow these steps for a smooth process. Ensure you have the correct tools, including a socket wrench, a belt tensioner tool, and the new belt before you begin.
- Locate the Serpentine Belt: Open the hood and find the serpentine belt on the engine. It loops around various components like the alternator, power steering pump, and air conditioning compressor.
- Release Tension on the Belt: Use the belt tensioner tool to relieve tension from the belt. The tensioner is a spring-loaded pulley. Rotate it clockwise to loosen the belt.
- Remove the Old Belt: Once the tension is released, slide the belt off the pulleys. Note the routing of the old belt for reference when installing the new one.
- Inspect the Components: Before installing the new belt, check the pulleys and components the belt runs on. Look for any signs of wear, such as fraying or seizing pulleys. Replace any damaged parts.
- Install the New Belt: Place the new serpentine belt over the pulleys following the exact routing of the old one. Ensure it is properly aligned with each pulley and sitting securely in place.
- Reapply Tension: Use the belt tensioner tool to restore tension to the new belt. Double-check that the belt is snug but not overly tight.
- Test the Installation: Start the engine and observe the new belt running. Ensure it operates smoothly without slipping or making noise. Listen for any unusual sounds.
Once you’ve completed these steps, you should have a correctly installed serpentine belt, ready to keep your Buick 3.8 running efficiently.
