Complete 5.7 Engine Belt Diagram and Routing Guide for Accurate Installation
Follow the 5.7 belt diagram precisely to ensure correct routing of the serpentine belt. Misalignment can lead to premature wear of the alternator, water pump, or power steering components. Check the tensioner position carefully before installing the belt to maintain optimal performance and prevent slipping.
Identify each pulley and accessory according to the diagram, including the crankshaft, alternator, water pump, and idler pulleys. Confirm that the belt sits securely in all grooves, and rotate the engine manually to verify alignment. Using a worn or cracked belt can compromise the entire system.
Maintain clear labeling of components when performing repairs or replacements. This reduces installation errors and speeds up troubleshooting. Keep the diagram accessible in the engine compartment to reference during belt changes, ensuring consistent routing and reliable operation.
Regular inspection of the 5.7 belt system helps detect early signs of wear or misalignment. Look for fraying, glazing, or uneven tension. Addressing issues promptly prevents damage to engine accessories and maintains stable engine performance over time.
Belt Diagram Practical Guide for Installation and Troubleshooting
Begin installation by identifying each pulley on your 5.7 engine. Confirm positions of the crankshaft, alternator, water pump, power steering, and tensioner pulleys before routing the belt.
Follow the specific belt path indicated in the diagram. Ensure the belt sits fully in pulley grooves without twisting. Check alignment visually and manually rotate the crankshaft one full turn to verify smooth movement.
- Inspect the tensioner for proper operation. A worn or stuck tensioner can cause slipping or noise.
- Look for cracks, fraying, or glazing on the belt. Replace the belt if any damage is present.
- Lubricate pulleys only if specified; avoid oil or grease on the belt surface.
During troubleshooting, listen for squealing or unusual vibration. Track the belt along the diagram path to locate misalignment or skipped pulleys. Tighten or replace components as needed.
- Remove the belt carefully using a wrench on the tensioner.
- Check all pulleys for wobble or resistance. Replace faulty pulleys.
- Reinstall the belt following the diagram, ensuring proper tension and alignment.
Regular inspection every 12,000 miles or 12 months helps detect wear early. Keep the belt routing diagram accessible in the engine bay for quick reference during maintenance.

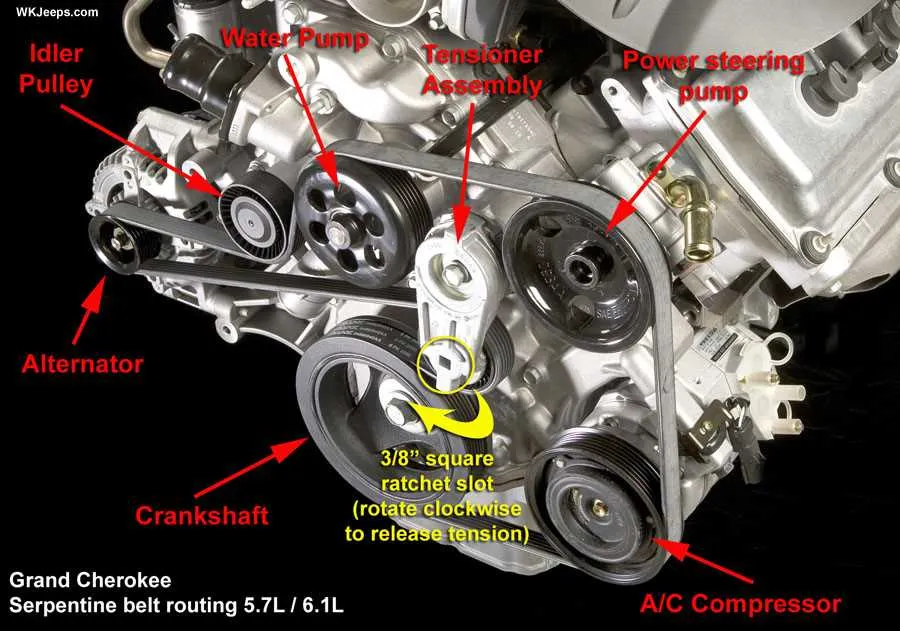

Locate and Identify All Pulleys in the 5.7 Engine
Begin by locating the crankshaft pulley at the bottom center of the engine. This pulley drives the main belt and sets the routing for all other components. Directly above, identify the water pump pulley, which typically features a smooth surface for belt alignment and connects to the cooling system.
Next, locate the alternator pulley on the upper left side of the engine. Its smaller diameter compared to the crankshaft pulley allows for increased rotational speed, ensuring proper charging of the battery. On the opposite side, identify the power steering pump pulley, often larger and positioned slightly lower than the alternator, designed to handle hydraulic pressure for steering assistance.
Spot the tensioner pulley, usually mounted on a spring-loaded arm near the center of the belt path. Check the surface for smooth rotation and proper alignment, as it maintains optimal belt tension. Identify the idler pulleys, generally positioned along belt curves to guide routing and reduce slack. These pulleys rotate freely and do not connect to any driven component.
If equipped, locate the A/C compressor pulley at the lower right side of the engine. Ensure the belt grooves match the pulley pattern and that the pulley spins freely when the compressor is disengaged. Verify each pulley for wear, alignment, and secure mounting before proceeding with belt installation or adjustments.

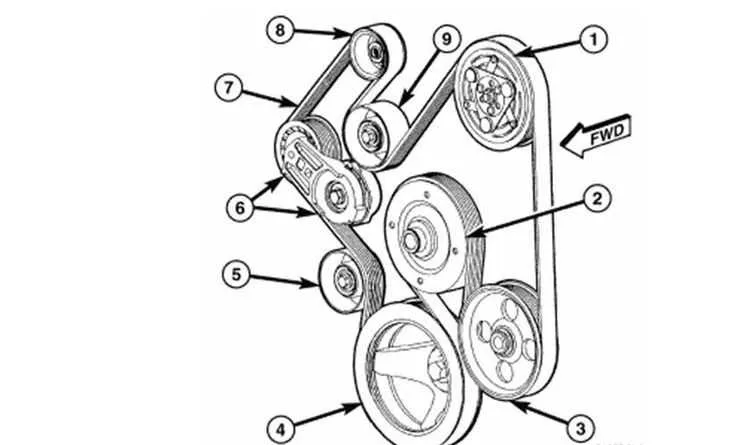

Step-by-Step Serpentine Belt Routing Instructions
Begin by locating the crankshaft pulley at the bottom center of the engine. This pulley drives the entire serpentine system and serves as the starting point for routing.
Next, route the belt around the water pump pulley, keeping the belt aligned with the pulley grooves. Ensure there is no slack and that the belt sits flush against the pulley surface.
Proceed to the alternator pulley. Loop the belt over the top of the alternator pulley, maintaining tension so the belt does not slip off during rotation.
Guide the belt around the power steering pump pulley, positioning it so that the belt enters and exits in a smooth, continuous path without twisting.
Route the belt over the idler pulley. Check that the belt maintains proper tension and is seated correctly in the pulley groove to prevent misalignment.
Move the belt to the A/C compressor pulley if equipped. Wrap the belt around the pulley in the direction of engine rotation, confirming full contact with the pulley surface.
Finally, loop the belt back to the crankshaft pulley. Use a belt tensioner tool to apply proper tension, allowing the belt to move slightly under pressure but preventing excessive slack.
Inspect the entire routing to verify the belt follows the correct path, sits squarely on all pulleys, and has consistent tension along the system. Adjust the tensioner as needed to maintain proper alignment.
Common Belt Issues and How to Correct Them
Inspect the serpentine belt regularly for cracks, fraying, or glazing on the ribs. If any damage is visible, replace the belt immediately to prevent engine accessory failure. Use a belt of the exact length and width specified for the 5.7 engine to ensure proper tension and alignment.
Listen for squealing noises during startup or acceleration. This often indicates a loose belt or worn tensioner. Adjust the tensioner according to the manufacturer’s torque specifications, and replace it if the pulley shows signs of wobble or excessive wear.
Check for oil or coolant contamination on the belt surface. Wipe the pulleys clean and replace the belt if contamination has penetrated the rubber. Contaminated belts lose grip, causing slippage and inconsistent accessory operation.
Inspect all pulleys for misalignment. Even a slightly off-center pulley can cause premature belt wear or noise. Use a straightedge to verify alignment and replace damaged pulleys or brackets to maintain correct routing.
Monitor belt tension over time. Belts that stretch excessively reduce alternator and water pump efficiency. Use a belt tension gauge to verify proper deflection, typically around 1/2 inch under moderate thumb pressure for the 5.7 engine.
Replace the belt at the recommended service interval, usually every 60,000 to 100,000 miles. Even if the belt appears intact, aging rubber becomes brittle and prone to sudden failure, which can lead to overheating or loss of electrical power.
