4.3 Vortec Belt Diagram Without AC for Proper Pulley Routing

Use a shorter serpentine belt that bypasses the air conditioning compressor when working with the 4.3 Vortec without AC. This adjustment keeps the correct rotation for the alternator, power steering pump, water pump, and crankshaft pulley without leaving excess slack.

Check the routing carefully: the belt must pass over the alternator and water pump pulleys while wrapping tightly around the crankshaft pulley. Keep the smooth side of the belt against idler pulleys and the ribbed side seated in grooved pulleys. A common belt size for this setup is K060935 (93.5 inches), but variations can occur depending on pulley configuration.

Apply steady pressure on the tensioner with a breaker bar or ratchet to install the belt. Once fitted, confirm that the belt sits flush in all grooves and that the tensioner arm holds steady without reaching its limit. Regularly inspect for fraying, cracks, or squealing noise, as these indicate alignment or tension issues that need correction.

Vortec Belt Diagram Without AC Setup

Route the serpentine belt from the crankshaft pulley directly to the water pump, then guide it over the power steering pump before looping it around the alternator. This layout eliminates the detour normally required for the air conditioning compressor.

Use a shorter belt length, typically around 70–72 inches, depending on pulley size and tensioner condition. Always check the tensioner arm angle after installation: it should rest between 30–45 degrees to maintain proper tension without overstressing the belt.

Inspect pulley alignment carefully, since skipping the AC compressor changes the belt path. A straight edge across pulleys helps verify alignment. Any offset increases the risk of squealing or premature wear.

If the belt rides too close to the edge of a pulley, reposition brackets or replace worn components. The system must run smoothly without visible belt oscillation during idle. Adjustments at this stage prevent failures on the road.

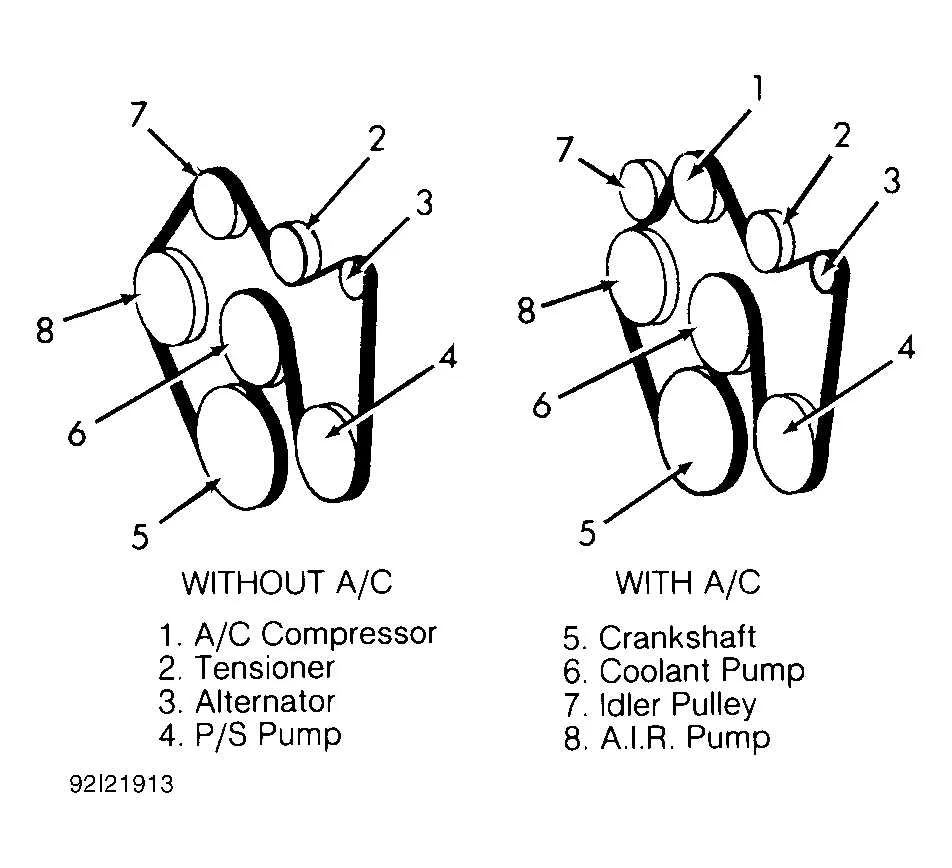

Correct Routing of Serpentine Belt on 4.3 Vortec Without AC

Use a shorter serpentine belt designed for the 4.3 Vortec without AC to avoid slack and misalignment. Route the belt from the crankshaft pulley directly to the power steering pump, then continue upward to the water pump. From there, guide it around the alternator, loop it down to the idler pulley, and finish by tensioning through the belt tensioner.

Keep the belt seated fully inside each pulley groove to prevent slipping. Verify that the smooth pulleys contact the flat side of the belt, while the ribbed pulleys contact the grooved side. Double-check tension after installation by pressing on the longest span of the belt; it should deflect only slightly under moderate pressure.

If the belt shows twisting during routing, recheck pulley sequence since one misstep causes immediate misalignment. Secure proper alignment before starting the engine, and run it briefly while inspecting for vibration or noise. Replace the belt if it squeals or rides outside a pulley track, as these signs point to incorrect routing or worn components.

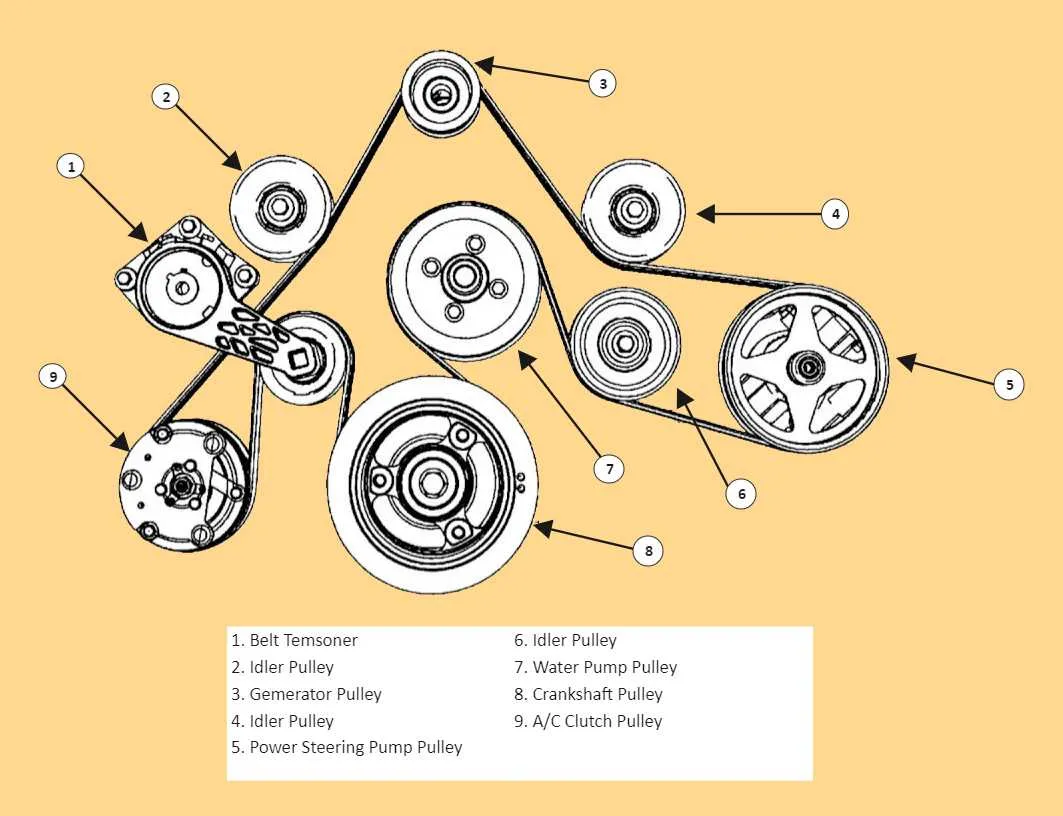

Identify All Pulleys and Components Involved in the No AC Configuration

Follow the belt path only through the components that remain active in the no AC setup. Each pulley serves a clear purpose, so confirm their order before mounting the serpentine belt.

• Crankshaft Pulley: The main drive pulley that powers the entire belt system. It must align properly with all other pulleys to prevent premature wear.
• Water Pump Pulley: Positioned directly above the crankshaft, it circulates coolant through the engine. Ensure correct rotation since the 4.3 Vortec uses a reverse rotation water pump.
• Power Steering Pump Pulley: Found on the driver’s side, it maintains hydraulic pressure for steering. Confirm smooth movement before installing the belt.
• Alternator Pulley: Located on the passenger side, it charges the battery and powers electrical systems. Inspect for free rotation and absence of wobble.
• Idler Pulley: Acts as a guide for the belt to maintain correct routing. Check for bearing noise and replace if rough.
• Belt Tensioner Pulley: Keeps proper tension on the belt. Verify spring action and pulley condition to avoid belt slippage.

With the air conditioning compressor removed, the belt bypasses that pulley and runs a shorter path across the components listed above. This layout ensures steady belt alignment and reliable operation of the cooling, charging, and steering systems.

Common Issues and Tips for Installing the Belt on 4.3 Vortec Without AC

Check the belt length carefully before installation, since belts designed for AC-equipped engines will be too long. Use a shorter belt specified for the no AC setup to avoid slack and slipping on pulleys.

Align the belt with each pulley groove precisely, especially on the crankshaft and power steering pump, because even slight misalignment can cause squealing or premature wear. Rotate the belt by hand after placement to confirm smooth tracking.

Inspect the idler and tensioner pulleys for bearing play or surface damage, as worn pulleys can cause noise or uneven tension. Replace them if you notice wobbling or rough movement while spinning.

Apply steady pressure on the tensioner when routing the belt, and confirm that the spring returns fully once the belt is seated. Weak tensioners often fail to maintain proper grip and lead to belt slip under load.

Examine the water pump direction, since the 4.3 Vortec uses a reverse-rotation pump with the serpentine belt. Incorrect routing can cause overheating because the pump will spin the wrong way.

Recheck torque on mounting bolts for the alternator and power steering brackets, as loose brackets may shift slightly and throw off pulley alignment under operation.

Run the engine briefly after installation, observe the belt movement, and listen for any squeaks or chirps. Shut down immediately if the belt walks off a pulley or shows signs of fraying at the edges.
