Complete 4.3 Engine Belt Diagram with Component Locations and Routing

4.3 belt diagram

Check the 4.3 belt diagram before adjusting or replacing belts to ensure proper routing across pulleys. Misalignment can lead to premature wear or engine performance issues.

Identify each pulley using the diagram: crankshaft, alternator, water pump, power steering, and tensioner. Mark their positions clearly to maintain correct belt path during installation.

Measure belt tension according to the diagram’s specifications. Use a tension gauge to confirm proper force on the belt, preventing slippage or excessive strain on bearings.

Follow the belt path exactly as illustrated. Avoid crossing or twisting the belt, as this can reduce lifespan and compromise smooth operation of all connected components.

After installation, run the engine briefly and observe belt movement. Verify that all pulleys rotate freely without noise or wobble, making adjustments as necessary to match the diagram’s layout.

Belt Diagram Complete Guide for Accurate Installation and Maintenance

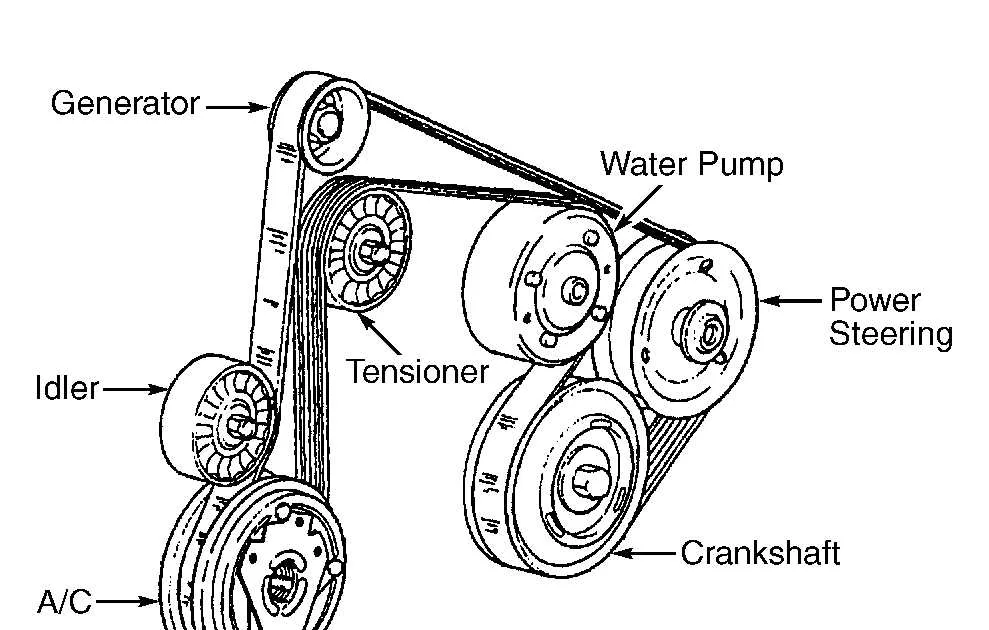

Position the 4.3 belt according to the diagram provided by the manufacturer, ensuring all pulleys align precisely. Begin with the crankshaft pulley and follow the routing sequence through the alternator, water pump, and tensioner pulley.

Check the belt for cracks, fraying, or glazing before installation. Use a tension gauge to set the correct tension, maintaining 10–15% deflection across the longest span. Incorrect tension can cause slipping or premature wear.

Rotate the engine manually twice after installation to confirm proper alignment and movement. Inspect each pulley for smooth rotation, and verify that the belt seats properly in the grooves without twisting.

Schedule inspections every 12,000 miles or 12 months. Clean pulleys with a lint-free cloth and remove any debris. Replace the belt immediately if signs of wear appear, rather than waiting for failure.

Lubricate the tensioner pivot lightly with high-temperature grease if recommended. Avoid oil or coolant contact with the belt, as these fluids accelerate degradation and reduce grip.

Record each maintenance session, noting belt replacement date and mileage. Follow torque specifications for any mounting bolts, and recheck tension after the first 100 miles of operation.

Identify All Pulleys and Correct Belt Routing

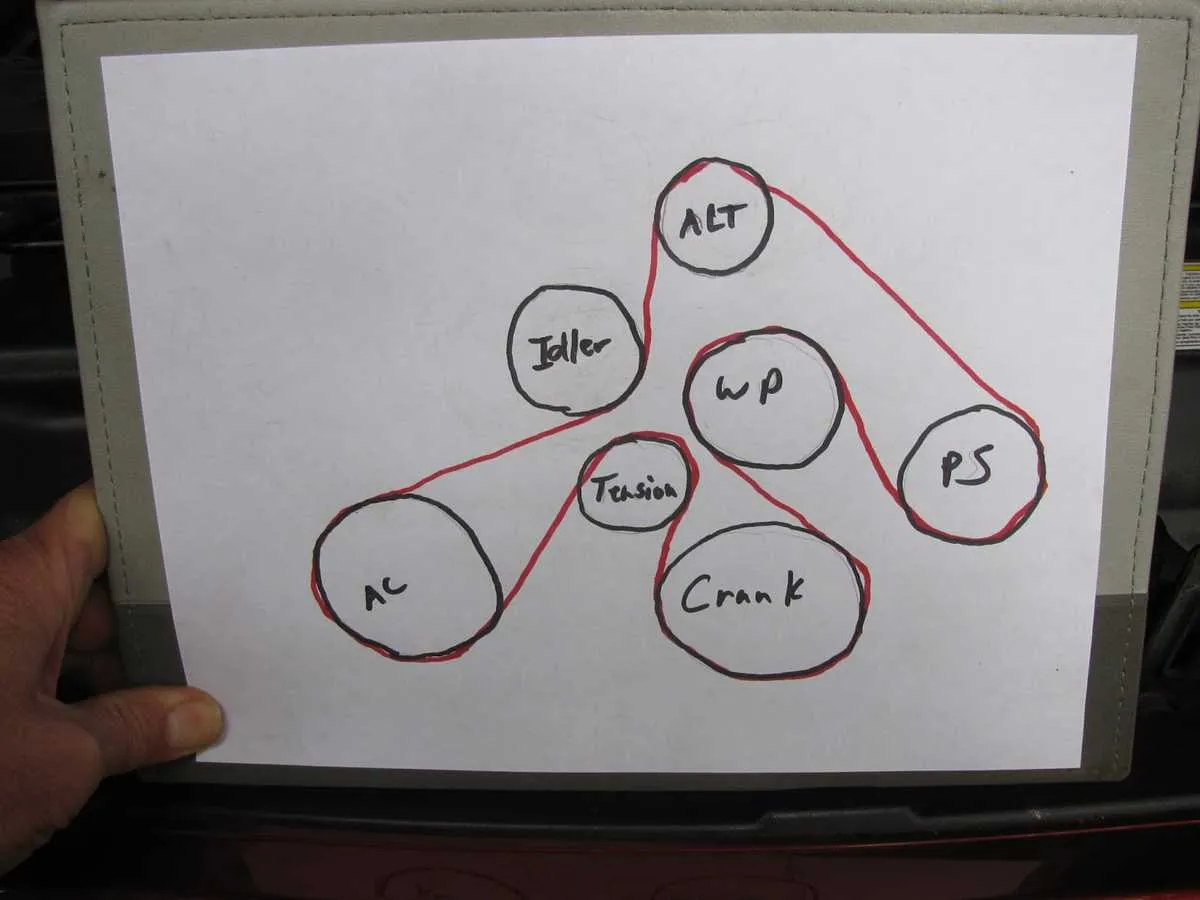

Locate the crankshaft pulley first, as it drives the entire belt system. Trace the belt path around the alternator pulley, ensuring the ribbed side aligns with the grooves. Move to the water pump pulley and confirm the belt sits flush without twisting.

Next, follow the belt to the power steering pulley, checking tension at each contact point. Route the belt over the idler pulleys, verifying that each roller spins freely and maintains proper alignment. Ensure the belt passes under the tensioner pulley correctly, allowing it to maintain consistent pressure.

Double-check the belt around the A/C compressor pulley, confirming the routing matches the 4.3 diagram exactly. Inspect every pulley for wear or misalignment, and adjust the belt path immediately if the belt rubs or rides off-center. Proper identification and routing prevent premature wear and maintain smooth operation.

Step-by-Step Serpentine Belt Replacement Process

4.3 belt diagram

Begin by disconnecting the negative battery terminal to prevent electrical hazards during the replacement.

Locate the serpentine belt routing diagram near the engine bay or in the vehicle manual to confirm proper belt path.

Use a wrench or serpentine belt tool to rotate the tensioner and relieve tension on the belt.

Slide the old belt off each pulley carefully, noting the position of each component to avoid routing errors.

Inspect all pulleys, tensioner, and idler for wear or damage, replacing any parts showing cracks, noise, or excessive play.

Route the new belt following the diagram exactly, ensuring it sits fully in each pulley groove without twists.

Apply tension by rotating the tensioner again and slipping the belt into position, verifying uniform contact across all pulleys.

Rotate the engine manually using a socket on the crankshaft pulley to confirm smooth movement and proper alignment of the belt.

Reconnect the negative battery terminal and start the engine, observing the belt operation for unusual noise, slipping, or misalignment.

Check belt tension one final time after a brief run to confirm stability and secure fit on all pulleys.

Adjust Tension and Verify Smooth Operation After Installation

4.3 belt diagram

Release the tensioner carefully to seat the serpentine belt onto all pulleys. Check that the belt sits fully in the grooves of each pulley without twisting or overlapping.

Measure belt deflection at the midpoint between pulleys. Standard deflection for a 4.3L engine belt is approximately 1/2 inch (12 mm) with moderate thumb pressure. Adjust the tensioner if deflection exceeds this range.

Rotate the crankshaft manually two full turns using a wrench on the crank pulley. Observe the belt path and alignment during rotation. Ensure it tracks correctly across all pulleys without slipping or shifting.

  • Inspect the tensioner pulley for smooth rotation and no excessive play.
  • Check accessory pulleys for wear, wobble, or resistance.
  • Confirm the belt’s ribbed side contacts all grooved pulleys uniformly.

Start the engine at idle and listen for unusual noises such as squealing or chirping. Monitor belt alignment visually to ensure it remains centered on all pulleys during operation.

If noise or misalignment occurs, shut down the engine and readjust tension or reposition the belt as needed. Repeat the manual rotation and idle test until the belt runs quietly and tracks consistently.

Document the final tension measurement and pulley inspection results for maintenance records. This ensures future checks are based on precise reference values.
