2GRFE Engine Belt Diagram and Component Layout

The 2GRFE engine, commonly used in several Toyota models, requires a precise understanding of its belt configuration for optimal performance and maintenance. The serpentine belt, timing belt, and accessory belts work together to drive multiple engine components. Regular inspection and replacement are vital to prevent issues such as belt slippage or damage that could lead to engine failure.

First, identify the key belts in the 2GRFE system. The timing belt controls the camshaft and crankshaft synchronization, while the serpentine belt powers components like the alternator, power steering pump, and air conditioning compressor. The accessory belt, depending on the model, may also be present to drive additional components like the water pump.

Next, check the alignment and tension of the belts. Proper tension ensures the belts do not slip or wear prematurely. Over-tightening can cause damage to the bearings or belt itself, while under-tightening can lead to power loss and reduced efficiency. Use a belt tension gauge to maintain proper tension and alignment according to manufacturer specifications.

Lastly, understand when to replace the belts. While serpentine and accessory belts may last between 60,000 and 100,000 miles, the timing belt should be replaced according to the manufacturer’s recommended intervals, typically around 90,000 miles. Be proactive about belt maintenance to avoid costly repairs and maintain engine performance.

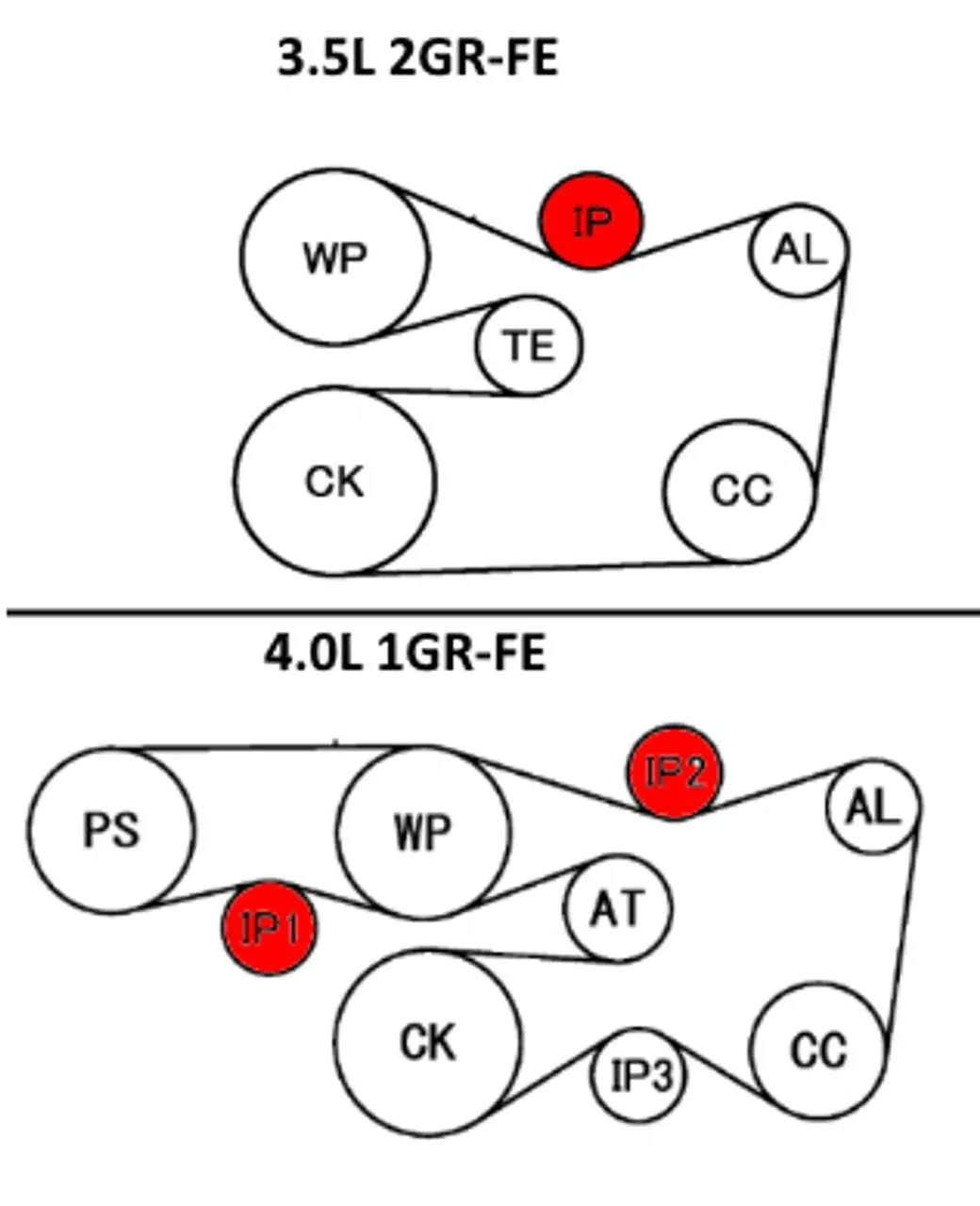

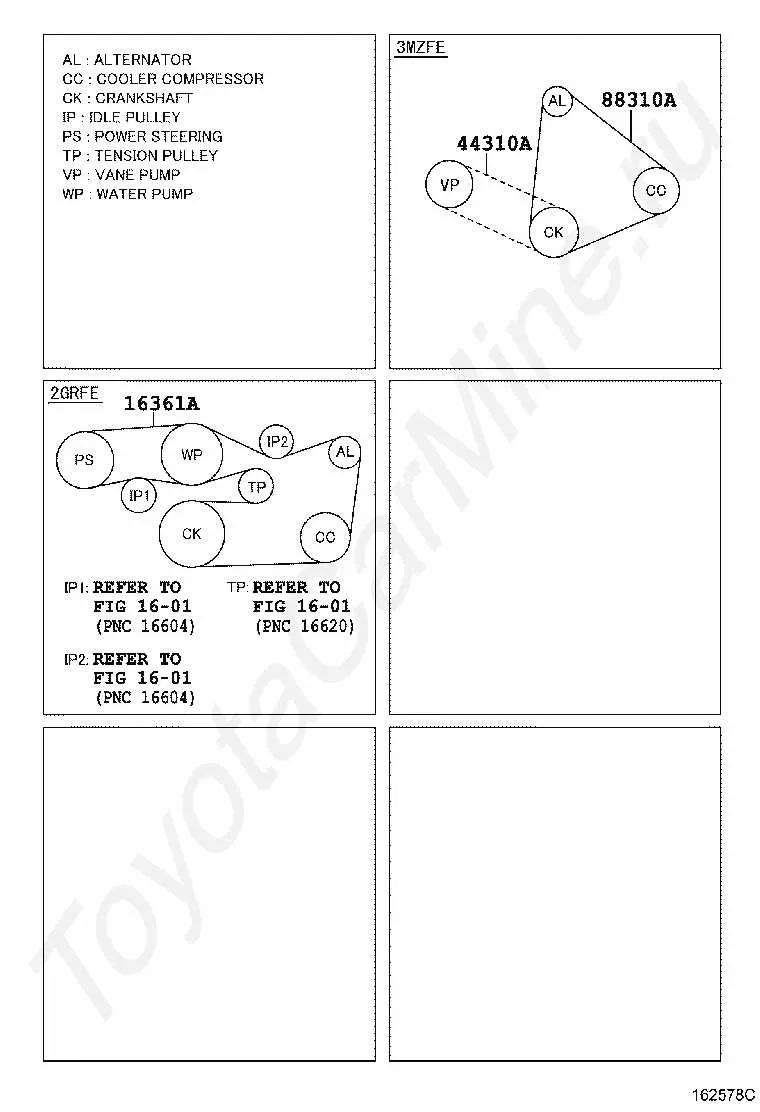

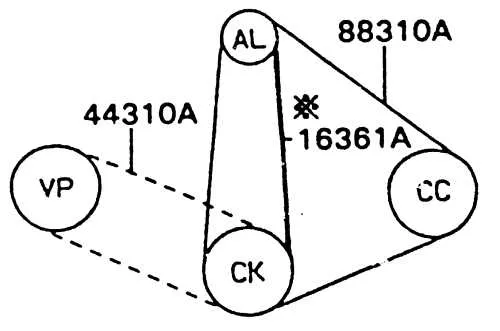

2GRFE Belt Diagram

To maintain the proper function of your engine, it’s crucial to follow the 2GRFE belt diagram precisely. The diagram shows the layout of the serpentine belt and timing belt system, indicating the correct routing and placement for each belt component. Misalignment or improper installation can lead to engine failure or loss of power. Here’s a breakdown of key steps to ensure proper installation:

• Serpentine Belt Routing: Start by identifying the tensioner and idler pulleys. The serpentine belt should loop over the crankshaft pulley, the water pump, the alternator, and the power steering pump, with correct tension applied to avoid slippage.
• Timing Belt Alignment: The timing belt must be aligned with the camshaft sprockets and crankshaft sprocket. Verify that the timing marks on the sprockets align perfectly. If these marks don’t align, engine timing will be off, leading to engine misfire or damage.
• Double-check Tension: After routing both belts, check the tension to ensure they’re not too tight or too loose. Use a tension gauge if available to measure correct tightness.

Regular inspection of the 2GRFE belt system is crucial. Look for signs of wear like cracking, fraying, or excessive looseness. If the belt shows signs of damage, replace it immediately to prevent costly engine damage.

Understanding the Layout of the 2GRFE Serpentine Belt System

The 2GRFE engine uses a serpentine belt to drive multiple accessories like the alternator, power steering pump, and air conditioning compressor. This single, continuous belt simplifies the system and reduces maintenance time compared to multiple belts.

Start by identifying the key components the belt interacts with. The serpentine belt runs around the crankshaft pulley, which provides the driving force, and is routed through a series of pulleys, including the tensioner pulley and idler pulley. The tensioner pulley maintains proper belt tension, preventing slippage and ensuring smooth operation.

Ensure the belt follows the correct routing diagram. This typically includes a path that runs from the crankshaft pulley over the alternator, power steering pump, and air conditioning compressor pulleys. Incorrect routing can cause the belt to wear prematurely or slip off during operation.

Check the belt for wear and tear regularly. Look for cracks, fraying, or signs of glazing, which indicate that the belt may need replacing. A properly functioning serpentine belt ensures that all connected accessories work efficiently, avoiding damage to the engine or components.

Common Issues in the 2GRFE Belt System and How to Diagnose Them

Examine the serpentine belt regularly for signs of wear such as cracks or fraying. This can indicate that the belt is nearing the end of its service life. If the belt is worn or damaged, it can cause inefficient operation of the engine’s accessories, leading to potential failures in components like the alternator or air conditioning compressor.

Listen for unusual noises, like squealing or chirping sounds, which often suggest that the belt is slipping or misaligned. If you hear these noises, inspect the tensioner and idler pulleys. These components might be faulty, causing the belt to lose tension, leading to slippage and potential system failure.

Check the belt tension regularly. If the belt is too loose, it can slip, affecting the power output to accessories. Use a belt tension gauge to ensure proper tension, or check if the tensioner is functioning correctly. A faulty tensioner may fail to maintain the correct tension, leading to a range of issues.

Inspect the pulleys for any signs of damage or wear. Misaligned or damaged pulleys can cause uneven wear on the belt, making it more prone to failure. Ensure that the pulleys rotate freely without resistance or wobbling, as these issues can lead to premature belt wear.

If your 2GRFE engine shows signs of overheating or inconsistent performance, consider inspecting the belt system. A loose or slipping belt can reduce the efficiency of the cooling system, affecting the engine’s overall performance. Replace any damaged components as needed to prevent further issues.

Step-by-Step Guide for Replacing the 2GRFE Serpentine Belt

1. Gather Tools and Materials: Before starting, make sure you have the necessary tools: a socket set, serpentine belt tool or breaker bar, and a new serpentine belt for the 2GRFE engine.

2. Locate the Serpentine Belt: The serpentine belt on the 2GRFE engine runs through multiple pulleys. It’s located at the front of the engine, visible from the engine bay. Identify the belt’s routing using the diagram near the engine or in the service manual.

3. Release Tension on the Belt: Use a serpentine belt tool or a breaker bar to rotate the tensioner pulley. This will relieve the tension on the belt, allowing you to remove it from the pulleys. Be cautious as the tensioner will spring back once released.

4. Remove the Old Belt: With the tension released, slip the belt off the pulleys. Start with the easiest pulley to remove the belt from, and work your way around. Take note of how the belt is routed for installation of the new one.

5. Inspect the Components: Before installing the new belt, inspect the pulleys, tensioner, and idler pulley for wear. If any components feel loose or damaged, replace them before continuing with the installation.

6. Install the New Belt: Carefully route the new serpentine belt around the pulleys, following the same path as the old one. Ensure the belt is seated properly in the grooves of each pulley.

7. Apply Tension to the Belt: Use the serpentine belt tool or breaker bar to rotate the tensioner pulley again, allowing the belt to tighten. Ensure the belt is fully tensioned and aligned on all pulleys.

8. Verify Proper Installation: Once the belt is in place and tensioned, double-check the alignment of the belt on all pulleys. Make sure the belt is not twisted or misaligned.

9. Test the Engine: Start the engine and observe the belt’s operation. Listen for any unusual noises and watch for any movement or slipping of the belt. If everything looks good, the replacement is complete.
