2018 Ford F150 5.0 Engine Belt Routing Diagram
The 2018 Ford F150 with a 5.0L engine requires precise belt routing for optimal engine performance. This diagram provides a clear view of the belt’s path, ensuring it stays in place and operates effectively. Follow these steps to prevent wear and avoid misalignment, which can lead to unnecessary repairs.
Start by checking the diagram to confirm the correct installation order. Each pulley has a designated location that supports smooth tension distribution across the belt. Make sure the belt is routed tightly around the pulleys without any slack, ensuring proper tension.
For the most accurate performance, replace the belt at regular intervals. Worn belts can cause engine overheating or even engine failure if they break or slip off. If you notice any fraying or wear, it’s time to replace the belt to maintain engine efficiency.

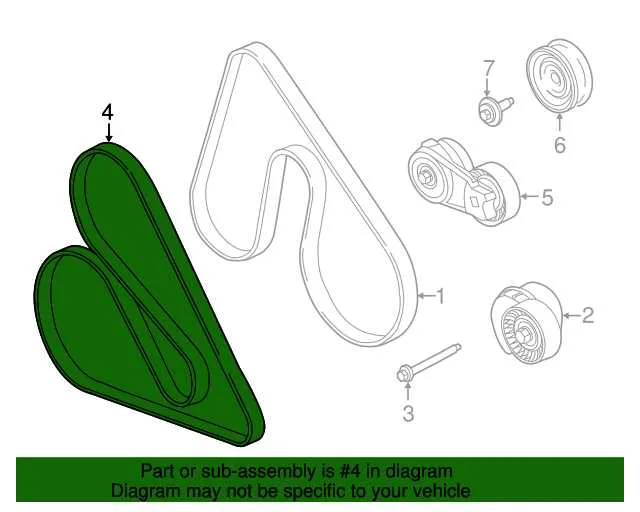

2018 F150 5.0 Belt Diagram
The 2018 Ford F150 5.0 engine uses a serpentine belt system to drive multiple components, including the alternator, power steering pump, water pump, and air conditioning compressor. Ensure the belt routing follows the exact pattern to avoid component failure or belt wear.
Start by locating the tensioner pulley. It is responsible for maintaining the correct tension on the serpentine belt. Use a wrench or ratchet to rotate the tensioner and release tension from the belt. Once the belt is loose, carefully remove it from the pulleys.
Follow the routing diagram to install the new belt, ensuring that it runs smoothly over each pulley. Pay close attention to the grooves on the belt and pulleys to ensure proper alignment. The tensioner pulley will automatically adjust the belt tension once the new belt is installed.
After installation, check the belt for proper alignment and tension. A belt that is too tight or too loose can cause premature wear or failure. Start the engine and visually inspect the belt as it runs to confirm it is operating smoothly.
Understanding the Belt Routing on the 2018 F150 5.0
To properly route the belt on a 2018 F150 5.0, first identify the components involved: the alternator, power steering pump, air conditioning compressor, and tensioner. Start by positioning the belt around the crankshaft pulley, ensuring it aligns with the grooves. Then, loop the belt around the alternator and power steering pump, ensuring a secure fit on both pulleys. The air conditioning compressor pulley should be the next point, followed by the routing over the tensioner pulley, which is crucial for maintaining the correct tension on the belt.
Next, check the belt’s path for any twists or misalignments. A smooth path is key to proper function and reducing unnecessary wear. After routing, use a tensioner tool to ensure the belt maintains the right amount of tension. It should be tight enough to prevent slipping but not so tight that it strains the pulleys. Verify the belt runs straight across each component without any obstructions or binding.
Once you’ve ensured the belt is properly routed, test the system by starting the engine and listening for any unusual noises, such as squeaking or squealing, which could indicate improper routing or tension. Check the belt for wear and replace it if any cracks or signs of excessive wear are present. Regular maintenance and checks will help ensure the longevity and efficiency of your engine’s belt system.
Common Issues with the Drive Belt System on the 2018 F150 5.0
A frequent issue with the 2018 F150 5.0 drive belt system is belt slippage, which can cause a decrease in engine performance. To fix this, inspect the belt tensioner and ensure it is functioning correctly. If the tensioner is worn or malfunctioning, it may not keep the belt tight enough, leading to slipping. Replace the tensioner if necessary.
Another common problem is belt wear. Over time, the drive belt may develop cracks or fray, especially in high-stress areas such as around pulleys. Regularly check the belt for visible damage. If you notice any signs of wear, replace the belt to prevent it from snapping and causing further damage to the engine.
Misalignment of the pulleys is also a potential issue. This can cause uneven wear on the belt, leading to noise and reduced performance. Inspect the pulleys to ensure they are properly aligned. If any pulleys appear damaged or misaligned, replace or realign them accordingly.
In some cases, the drive belt may squeak or make noise, which is often a sign of inadequate lubrication or dirt buildup. Clean the pulleys and check for any obstructions that might affect the belt’s smooth operation. If cleaning doesn’t solve the issue, consider replacing the belt or pulley components.
Finally, excessive tension on the drive belt can lead to premature wear on both the belt and tensioner. Check for correct tension periodically. If the tension is too high, adjust the tensioner or replace it if necessary.
How to Replace the Drive Belt on a 2018 F150 5.0
To replace the drive belt on a 2018 F150 5.0, follow these steps:
- Prepare the vehicle: Ensure the engine is cool and the truck is parked on a flat surface. Disconnect the negative battery cable to avoid accidental electrical shocks.
- Locate the drive belt: Open the hood and find the belt routing diagram, typically located on the radiator support or under the hood. This will help you visualize the correct path for the belt.
- Release tension: Use a wrench or ratchet to rotate the tensioner pulley counterclockwise. This will release the tension on the belt, allowing you to remove it from the pulleys.
- Remove the old belt: Carefully slip the belt off the pulleys. Take note of its routing to ensure the new belt is installed correctly.
- Install the new belt: Follow the belt routing diagram and fit the new belt over the pulleys. Ensure it sits correctly in the grooves of each pulley.
- Apply tension: Rotate the tensioner pulley clockwise to apply tension to the new belt. Double-check the belt’s positioning on all pulleys to ensure proper alignment.
- Test the installation: Reconnect the battery and start the engine. Observe the belt’s operation to confirm there is no slipping or unusual noise.
If any issues arise, recheck the belt alignment and tension. A properly installed drive belt is critical for the proper functioning of your vehicle’s accessories, including the alternator, power steering pump, and air conditioning compressor.
