2014 Ram 5.7 Engine Belt Routing Diagram for Accurate Installation and Maintenance

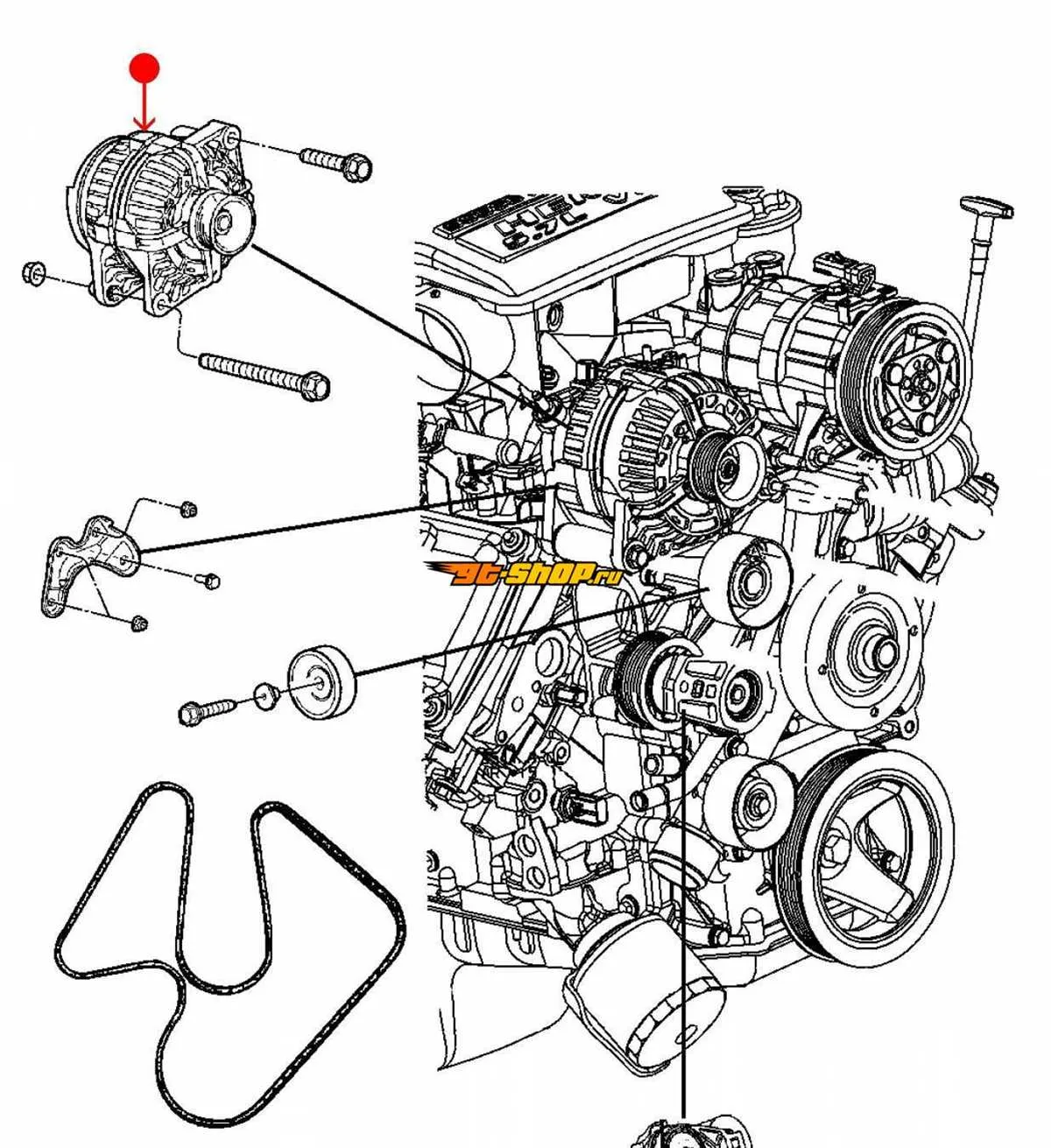

Refer to the belt diagram positioned on the driver’s side of the engine for accurate routing of the 5.7L HEMI serpentine belt. The belt wraps around the crankshaft pulley, alternator, water pump, power steering pump, and A/C compressor in a specific sequence that maintains proper tension and prevents slippage.
Inspect the tensioner pulley before installation to confirm smooth operation and correct spring pressure. A worn tensioner can cause uneven wear on the belt and generate squealing noises during engine operation. Aligning the belt along the grooves of each pulley reduces the risk of premature damage.

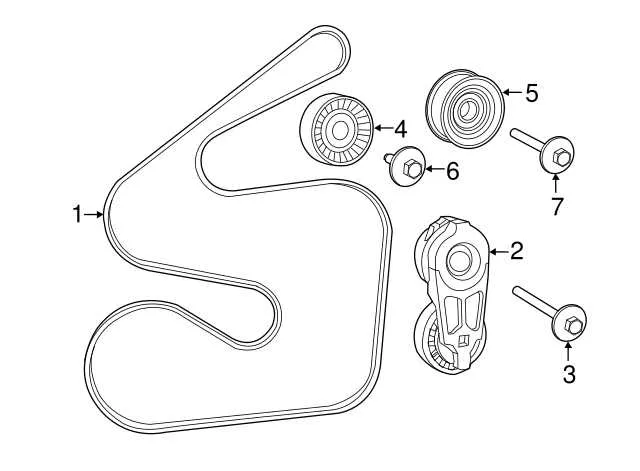

Use a diagram with labeled components to match each pulley accurately. The crankshaft pulley drives the system, while the idler pulleys maintain alignment. Confirm that each belt rib sits fully within the pulley grooves to avoid misalignment and unnecessary strain on the engine accessories.
Replace the belt if cracks, fraying, or glazing appear. Applying light engine oil or silicone spray on tensioners is unnecessary and can reduce belt friction, so keep surfaces dry. Regular inspection every 15,000 miles ensures longevity and reliable performance.
Follow the routing exactly as indicated in the manufacturer’s diagram. Any deviation may affect alternator charging, water pump circulation, or A/C operation, leading to overheating or accessory failure. Secure installation minimizes maintenance issues and keeps the engine running smoothly.
2014 Ram 5.7 Belt Diagram Guide
Align the serpentine belt with the tensioner pulley first to prevent slippage during installation. Follow the diagram specific to the 5.7L HEMI engine: the belt wraps around the crankshaft pulley, then moves clockwise to the water pump, up to the alternator, down to the idler pulley, around the power steering pump, and finally over the A/C compressor before returning to the tensioner.
Use a wrench to rotate the tensioner counterclockwise, creating slack for easy placement. Confirm that each rib of the belt sits securely in the grooves of every pulley to avoid squealing or premature wear. Inspect all pulleys for wobble or damage before securing the belt.
Check the belt routing against the factory diagram inside the engine compartment or in the owner’s manual. Tighten the tensioner and rotate the engine manually two full turns to ensure smooth tracking and no misalignment. Replace the belt if cracks, fraying, or glazing appear to maintain consistent performance.
Maintain proper tension by verifying the deflection at the longest span: it should move approximately half an inch with moderate pressure. Regular inspection every 15,000 miles or during major services extends the life of both the belt and connected accessories, reducing the risk of sudden failures.
Locating and Identifying All Pulleys on the 5.7L Engine

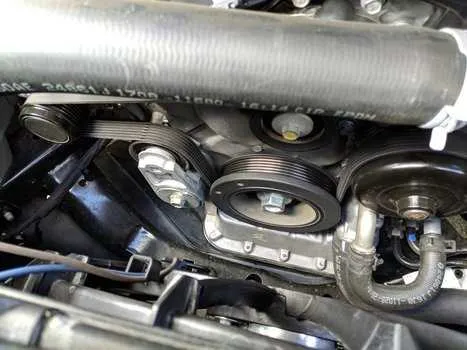

Begin at the front of the engine and identify the crankshaft pulley, located at the bottom center. This large pulley drives the serpentine belt and sets the rotation for all other components. Above it, slightly to the passenger side, find the alternator pulley, which has a smaller diameter and connects directly to the alternator body.
On the driver’s side, the power steering pump pulley sits near the top and is usually ribbed to match the belt type. Below it, the air conditioning compressor pulley is positioned close to the lower section of the engine, distinguished by its aluminum finish and slightly recessed center.
The water pump pulley aligns near the center, just above the crankshaft pulley, and has multiple mounting bolts clearly visible around its circumference. The idler pulley is positioned between the alternator and the A/C compressor, maintaining proper belt tension, while the tensioner pulley, spring-loaded, is usually near the center-right, recognizable by its smooth surface and adjustable bracket.
Trace each belt path visually and confirm pulley alignment before removing or installing the serpentine belt. Label each pulley or take a photo for reference. Double-check for any signs of wear, such as cracks or wobbling, especially on the idler and tensioner pulleys, to ensure proper function and prevent premature belt failure.
Step-by-Step Serpentine Belt Routing Instructions
Position the engine at a safe, cool state and disconnect the negative battery terminal to prevent accidental starts.

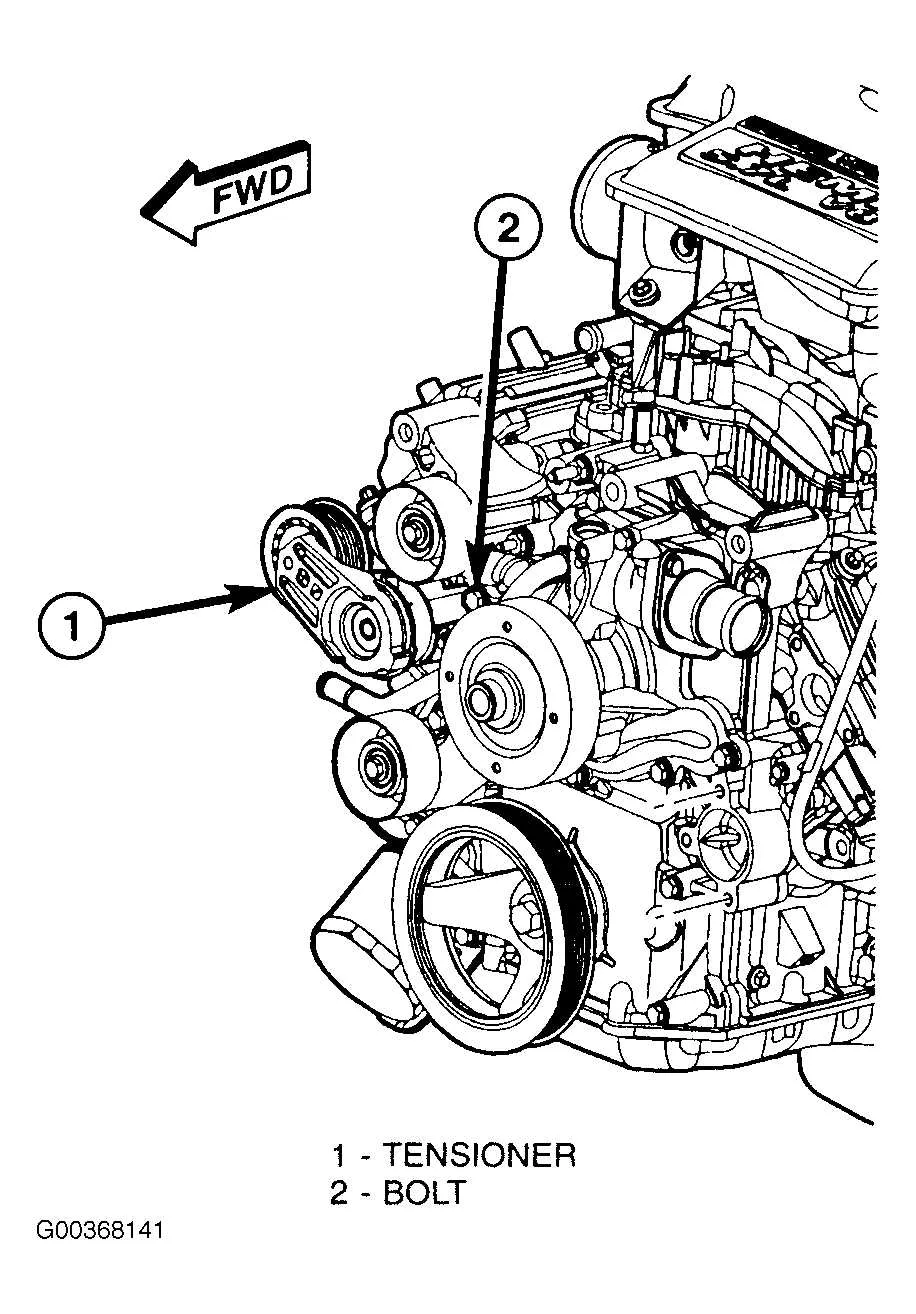

- Locate the belt tensioner on the front of the engine. Use a 3/8-inch ratchet or breaker bar to rotate the tensioner clockwise and release belt tension.
- Remove the old serpentine belt carefully, noting its routing over each pulley. Take a photo if needed for reference.
- Identify all pulleys: crankshaft, alternator, power steering pump, water pump, and air conditioning compressor. Ensure each pulley spins freely and has no visible damage.
- Position the new belt around the crankshaft pulley first, ensuring it sits in the correct ribbed grooves.
- Route the belt clockwise around the water pump pulley, then over the power steering pump pulley. Keep the belt aligned within each groove to avoid slippage.
- Loop the belt over the alternator pulley, then around the air conditioning compressor pulley if equipped. Maintain even tension across all pulleys.
- Pull the belt over the tensioner and slowly release it, allowing the tensioner to press the belt firmly into place.
- Double-check that the belt sits evenly on all pulleys and the ribs align perfectly in each groove.
- Reconnect the negative battery terminal and start the engine briefly. Observe the belt’s movement to confirm smooth operation without slipping or misalignment.
Use a belt routing diagram specific to the 2014 Ram 5.7 to verify your placement. Small deviations can cause noise or premature wear.
Troubleshooting Common Belt Alignment and Tension Issues
Check the serpentine belt for visible wear or fraying along the edges before adjusting tension. Misalignment often causes uneven wear and squealing noises. Use a straightedge or a laser alignment tool to ensure pulleys line up precisely.
Adjust the tensioner by loosening the mounting bolt slightly and rotating the tensioner to apply proper belt tension. For a 2014 Ram 5.7 HEMI, the belt should deflect about ½ inch under moderate finger pressure at the midpoint between pulleys.
Inspect all accessory pulleys for wobble or rough bearings. Even slight pulley deviation can throw off alignment and accelerate belt damage. Replace any pulleys exhibiting lateral movement or resistance when spun by hand.
Verify that all belt routing matches the factory diagram. Incorrect routing can cause premature wear and reduce alternator, AC compressor, or power steering efficiency. Confirm the belt sits fully in pulley grooves without twisting or overlapping edges.
After adjustments, start the engine and observe the belt in motion. Listen for squeaks or chirps, which indicate uneven tension or misalignment. Recheck the tensioner and pulley alignment if noise persists, and retighten all bolts to factory torque specifications.
Schedule a belt inspection every 12,000 miles or annually, whichever comes first, to catch minor issues before they escalate. Regular maintenance prevents sudden belt failure that could affect engine accessories and vehicle performance.
