2014 Mercedes E350 Serpentine Belt Diagram and Routing Guide

The serpentine belt in the 2014 Mercedes E350 plays a critical role in driving various engine components. If you notice any unusual noises or performance issues, the first step is to check the condition of the belt. A worn-out or misaligned belt can lead to power loss or failure of essential parts like the alternator, air conditioning compressor, and power steering pump.

To inspect the belt, open the hood and locate the serpentine belt routing diagram, usually found on the front of the engine bay or in the owner’s manual. This diagram will help you understand how the belt runs around the pulleys. If the belt is cracked, frayed, or loose, replacing it is crucial to avoid engine damage.

For replacement, ensure that the replacement belt matches the specifications outlined for the 2014 E350. Use a belt tensioner tool to release tension and remove the old belt, then install the new one following the exact routing. Be sure the belt sits correctly on all pulleys and is tight enough to avoid slipping.

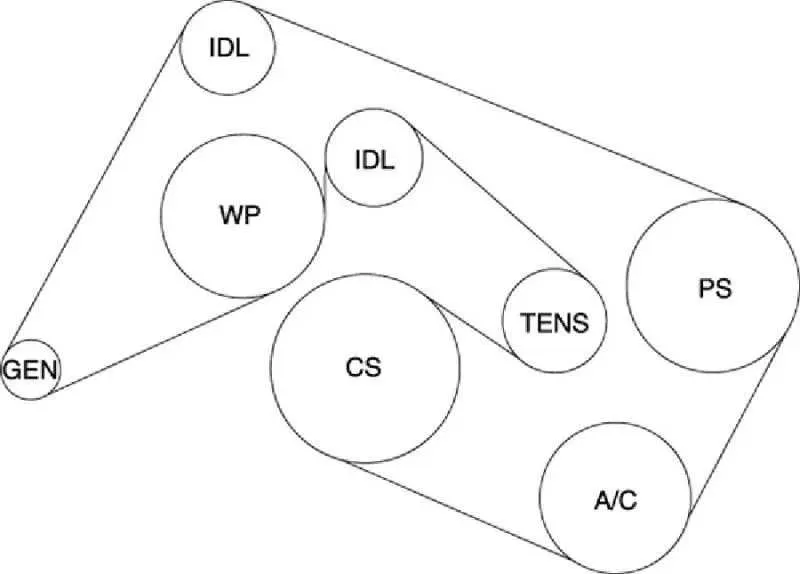

2014 Mercedes E350 Belt Diagram

The 2014 Mercedes E350 uses a serpentine belt system that drives multiple components of the engine, including the alternator, power steering pump, and air conditioning compressor. To ensure smooth engine operation, it’s important to follow the correct routing of the belt as outlined in the service manual.

Start by locating the tensioner pulley. This pulley helps maintain the proper tension on the belt, preventing it from slipping. Use a wrench to rotate the tensioner and release the tension on the belt before removing it. Always check for wear or cracks on the serpentine belt before replacing it.

When installing a new belt, ensure it follows the exact routing as shown in the diagram. The belt should be tight and secure on all pulleys. Misalignment can lead to premature wear or even damage to the engine components. Double-check the belt’s positioning on each pulley to avoid errors.

If you’re unsure about the routing or installation process, refer to the belt diagram located on the front of the engine bay or consult the vehicle’s service manual for detailed instructions. This ensures the belt is correctly aligned for optimal performance.

How to Locate and Identify the Belt Components in the 2014 Mercedes E350

Start by locating the front of the engine where the serpentine belt runs. The belt is typically situated along the engine’s accessory pulleys, which include the alternator, power steering pump, air conditioning compressor, and water pump. You can clearly see the belt passing over these components.

Next, identify the tensioner pulley. It keeps the belt tight and maintains proper tension. The tensioner pulley is usually located near the center of the belt system and can be adjusted or replaced if needed. The idler pulley is another important component, often located adjacent to the tensioner pulley, guiding the belt in its path.

It is essential to check the belt’s routing. The belt diagram for the 2014 Mercedes E350 can be found near the radiator or on the engine cover. This diagram will show you the exact configuration of pulleys and the correct path the belt should follow.

To inspect the condition of the belt, look for visible wear signs like cracking, fraying, or glazing. If any of these are present, it is time to replace the belt to avoid failure.

Once you have identified all components, ensure the belt is aligned correctly with each pulley. Misalignment can cause premature wear and reduce the lifespan of the belt and the components it powers.

Step-by-Step Guide to Replacing the Serpentine Belt in a 2014 Mercedes E350

First, ensure the engine is cool and disconnect the battery to avoid electrical issues. Use a socket wrench to loosen the tensioner pulley, which will relieve pressure on the serpentine belt. You may need to use a breaker bar for additional leverage.

Once the tension is released, remove the old belt carefully, following the routing diagram located under the hood. Pay attention to how the belt wraps around the pulleys for reinstallation.

Inspect the pulleys and tensioner for wear or damage. If they appear worn out, replace them before installing the new serpentine belt. This will prevent further damage and ensure proper function.

Install the new belt by following the routing diagram again. Make sure the belt sits correctly in the grooves of each pulley and the tensioner is aligned properly.

Use the socket wrench to tighten the tensioner and apply enough pressure to secure the belt. Double-check that the belt is properly seated on all pulleys.

Reconnect the battery, start the engine, and observe the new belt in operation. Listen for any unusual noises and check the belt’s alignment. If everything is functioning smoothly, the job is complete.

Common Belt Issues and Troubleshooting in the 2014 Mercedes E350

Slipping Belt: If you notice squealing noises or reduced performance from your vehicle, the serpentine belt may be slipping. This can happen due to worn-out belt tensioners or an improperly aligned pulley system. Inspect the belt tensioner for any visible wear or loose components. Replacing the belt or adjusting the tension can resolve the issue.

Cracked or Frayed Belt: A cracked or frayed belt can lead to belt failure and loss of accessory power. Examine the belt carefully for any visible signs of damage, such as cracks, tears, or frays. If you find any, it’s recommended to replace the belt immediately to avoid further damage to the engine’s accessories.

Worn-out Pulleys: Pulleys that are damaged or misaligned can lead to uneven wear on the belt. This can result in belt slippage or a complete breakdown. Ensure that all pulleys are spinning freely and aligned properly. Replace any pulleys that show signs of wear or damage.

Excessive Noise: A loud screeching or whining sound when the engine is running could indicate that the serpentine belt is loose or not properly aligned. Check the tension of the belt using a belt tension gauge and adjust if necessary. If the noise persists, inspect the belt for damage or wear.

Hard to Start Engine: A malfunctioning serpentine belt can cause the alternator to stop charging the battery, leading to difficulty starting the engine. If you suspect this is the case, test the alternator and inspect the belt for any signs of wear. If the belt appears fine but the alternator is not charging, consider replacing the alternator or its components.

Overheating Engine: In rare cases, a damaged belt can affect the water pump, leading to engine overheating. If the engine temperature rises quickly, inspect the belt’s condition and the water pump’s operation. Replace any worn or broken belts immediately to prevent engine damage.
