2013 Ram 5.7 Serpentine Belt Diagram and Routing Guide

If you’re working on the 2013 Ram 5.7, understanding the belt diagram is a key step for proper maintenance and repairs. This vehicle features a serpentine belt system, which drives various accessories like the alternator, power steering pump, and air conditioning compressor. A clear diagram of this setup ensures that you can replace or adjust the belt correctly, avoiding unnecessary wear or damage.

The belt routing diagram for the 2013 Ram 5.7 provides a visual reference, showing the correct path of the serpentine belt around pulleys. It helps prevent errors like improper belt alignment, which can lead to performance issues or even cause the belt to snap. Knowing the exact routing allows you to ensure the belt fits snugly on each pulley, keeping the system running smoothly.

For a more hands-on approach, the diagram will often include tensioner adjustment details, indicating how tight the belt should be. An incorrectly tensioned belt can result in premature wear or failure. Pay close attention to the specific tension specifications for your model year to ensure the best performance.

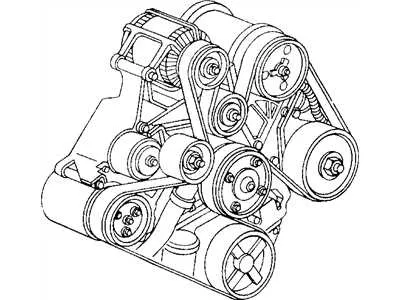

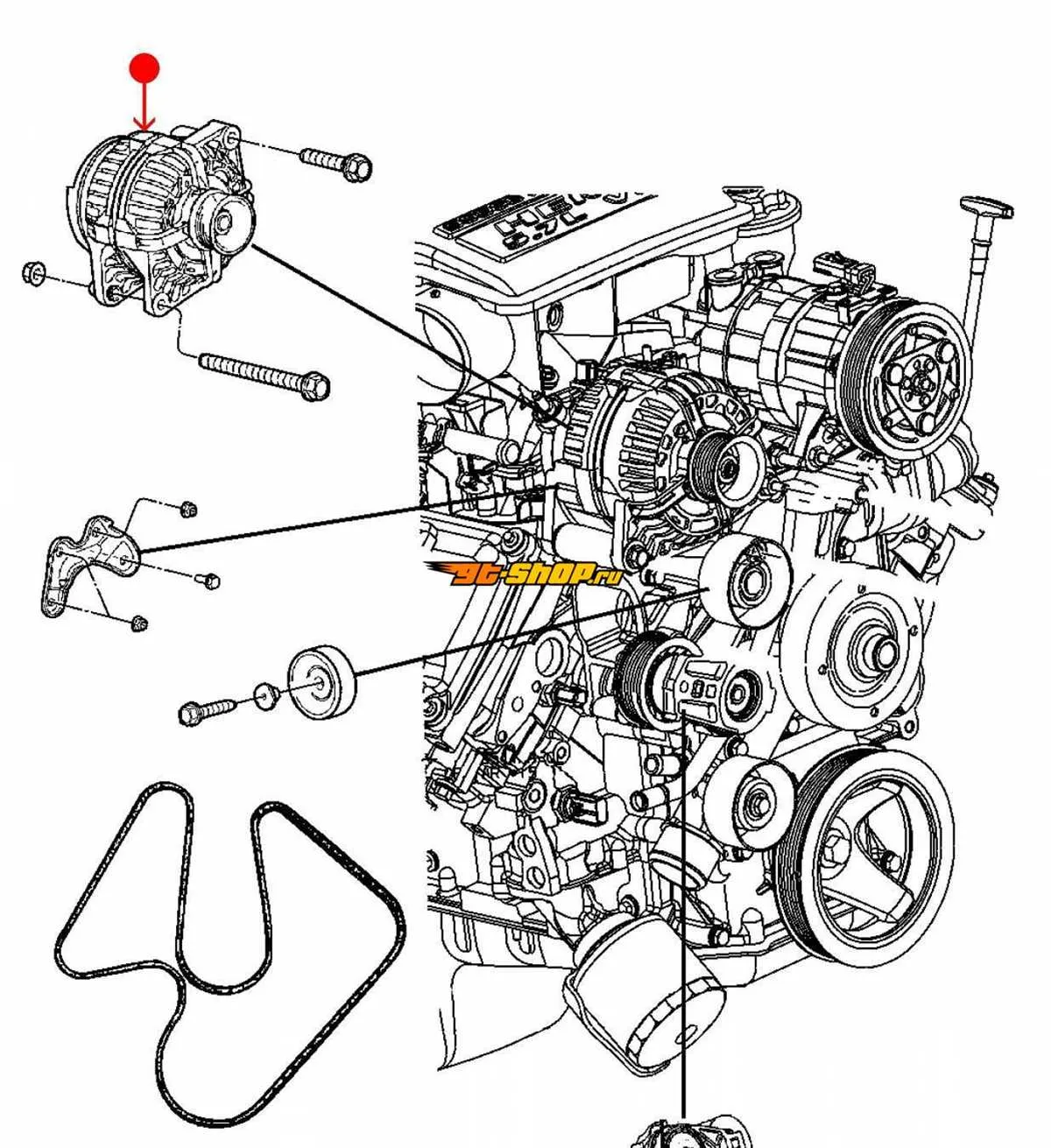

2013 RAM 5.7 Belt Diagram

The 2013 RAM 5.7 engine uses a serpentine belt to drive several crucial components such as the alternator, power steering pump, air conditioning compressor, and water pump. To ensure proper functionality, refer to the accurate belt routing diagram for your specific model.

Begin by locating the tensioner pulley on the right side of the engine. Use a wrench or belt tool to relieve tension from the belt. Once the tension is released, remove the old belt and inspect the pulleys for wear. If everything looks good, place the new belt following the correct routing pattern.

The serpentine belt path on the 5.7L engine is straightforward: it loops around the crankshaft pulley, water pump pulley, idler pulleys, and tensioner, and ends with the alternator. The belt should follow the grooves of each pulley, ensuring it is properly aligned. Pay close attention to the belt’s alignment on the power steering pump and the air conditioning compressor to prevent slippage.

After installing the new belt, check the tensioner pulley for smooth movement. A stiff or noisy tensioner can affect belt performance. Once the belt is in place, manually rotate the engine a few times by hand to confirm the belt is seated correctly.

For reference, always consult your vehicle’s service manual for any specific details, as there might be slight variations between models. Regular inspection of the belt and tensioner will help prevent unexpected failures and prolong engine component life.

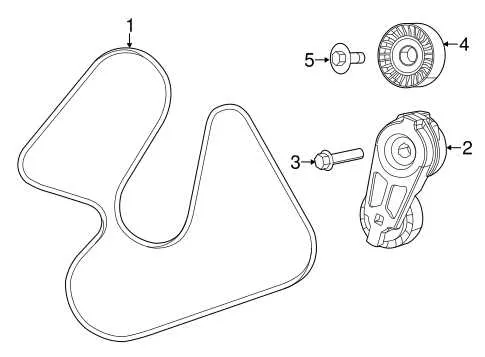

Understanding the Belt Layout and Components for 2013 RAM 5.7

The 2013 RAM 5.7 uses a serpentine belt system that powers various engine accessories. This layout includes multiple components that require attention for maintenance and replacement. Knowing the exact placement and function of each part helps prevent issues and keeps the engine running smoothly.

The serpentine belt itself is the main component, looping through various pulleys and accessories. It drives the alternator, air conditioning compressor, power steering pump, and water pump. Here’s a breakdown of the key parts in the layout:

• Crankshaft Pulley: The main driver of the serpentine belt system. It transfers power to the rest of the system.
• Alternator Pulley: Powers the alternator, which charges the vehicle’s battery.
• Water Pump Pulley: Driven by the belt, it circulates coolant through the engine to maintain optimal temperature.
• Power Steering Pulley: Provides power for the steering system, making it easier to turn the wheel.
• Air Conditioning Compressor Pulley: Powers the AC compressor, essential for the vehicle’s air conditioning system.
• Tensioner Pulley: Maintains proper tension on the serpentine belt to prevent slippage.

For smooth operation, check the belt’s condition regularly. Any cracks, fraying, or wear can cause the belt to slip, resulting in the loss of power to accessories and potential engine overheating. Always replace the belt as soon as signs of wear appear to avoid costly damage to connected components.

The layout of the 2013 RAM 5.7 serpentine belt is straightforward but requires proper routing to ensure efficiency. The diagram of the system can help confirm the correct placement of each pulley, so refer to it whenever performing maintenance or replacements.

It’s also crucial to inspect the pulleys and tensioner regularly. Over time, these components can wear out, leading to increased friction and heat, which may affect the performance of the belt. Replace these parts if necessary to maintain optimal belt function.

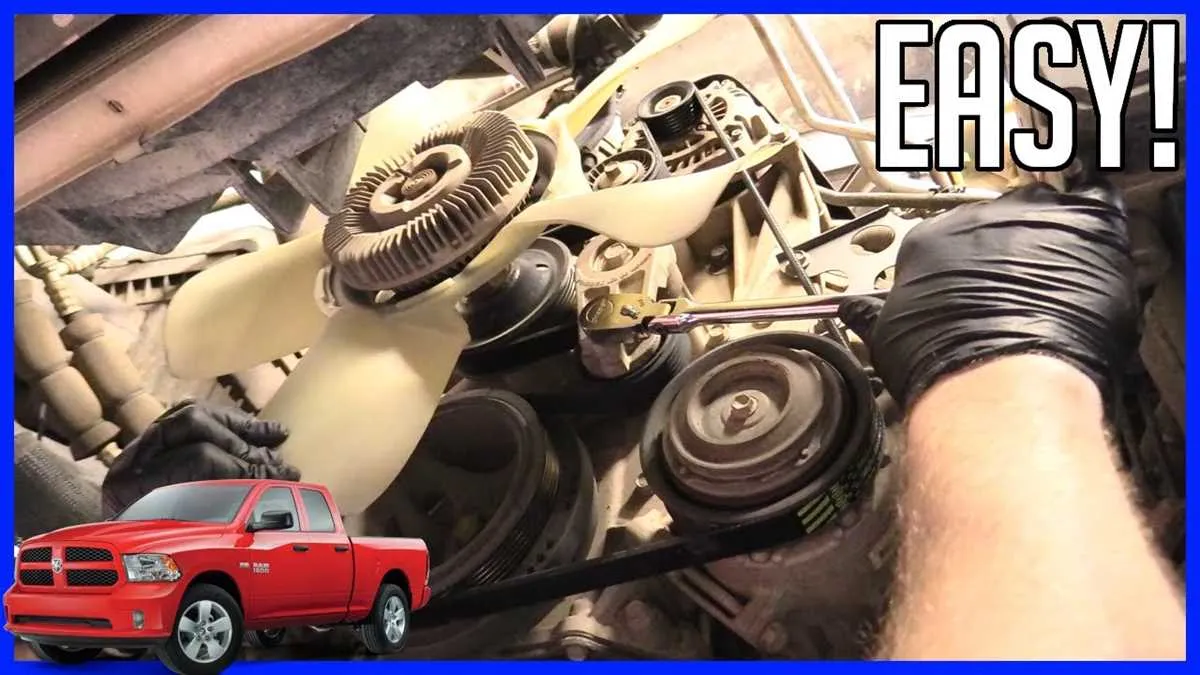

How to Replace the Serpentine Belt on a 2013 RAM 5.7

To replace the serpentine belt on a 2013 RAM 5.7, first, locate the tensioner pulley and use a ratchet wrench to relieve the tension. Turn the tensioner clockwise to loosen the belt. Once the belt is slack, remove it from the pulleys. Carefully inspect all pulleys for wear or damage before installing the new belt.

Install the new serpentine belt by following the path shown in the belt diagram specific to the 2013 RAM 5.7. Ensure the belt is seated properly in all grooves of the pulleys. After positioning the belt, rotate the tensioner again to allow the belt to fit snugly. Double-check that the belt aligns correctly on all pulleys.

Once the new belt is installed, turn the engine on and observe the belt’s operation. Listen for any unusual sounds or vibrations. If everything runs smoothly, the replacement is complete.

Troubleshooting Common Belt-Related Issues in 2013 RAM 5.7

If your 2013 RAM 5.7’s serpentine belt is slipping or making noise, start by checking for any signs of wear, such as cracks or fraying. A worn belt can cause engine performance issues, like overheating or loss of power steering. Replace the belt if it’s damaged or shows signs of deterioration.

Another common issue is a misaligned belt. Check if the belt is sitting evenly on all pulleys. If it’s misaligned, inspect the pulleys for damage or wear. Damaged pulleys often cause the belt to slip or wear prematurely. Tighten or replace pulleys as needed to restore proper alignment.

For squeaking or chirping noises, the belt tensioner might be the culprit. Over time, the spring tensioner can wear out and fail to maintain proper tension. This causes the belt to lose grip on the pulleys, resulting in noise and slipping. Replace the tensioner if it’s not maintaining the correct tension.

If the alternator or air conditioning is not working properly, check the belt for tension and condition. A loose or worn belt can prevent these systems from operating correctly. Adjust or replace the belt to restore full functionality.

Lastly, inspect the pulleys for debris or corrosion. Dirt and grime can accumulate on the pulleys, causing friction and preventing the belt from operating smoothly. Clean the pulleys regularly to keep everything running smoothly.
