2013 Ram 1500 Serpentine Belt Routing Diagram and Instructions

If you’re looking for a clear and accurate belt diagram for the 2013 Ram 1500, you’ve come to the right place. The serpentine belt system is critical for running multiple engine components, and understanding its layout is key to performing repairs or replacements. Below is a detailed guide to help you identify the correct belt routing for your vehicle.

The 2013 Ram 1500 features a 5.7L HEMI V8 engine, and the belt routing can vary slightly depending on the specific configuration. Refer to the diagram carefully to avoid any confusion during installation. Start by locating the tensioner pulley–this is often where adjustments are made to either remove or tighten the belt. It’s important to note the direction of the grooves on the belt to ensure proper alignment with all pulleys.

Be sure to check the tension on the new belt after installation. If the belt is too loose or too tight, it can cause premature wear or even damage to the engine components. Always use a manufacturer-approved belt replacement to ensure compatibility and longevity. Keep in mind that over time, belts can stretch, crack, or wear, requiring timely replacement to maintain optimal performance.

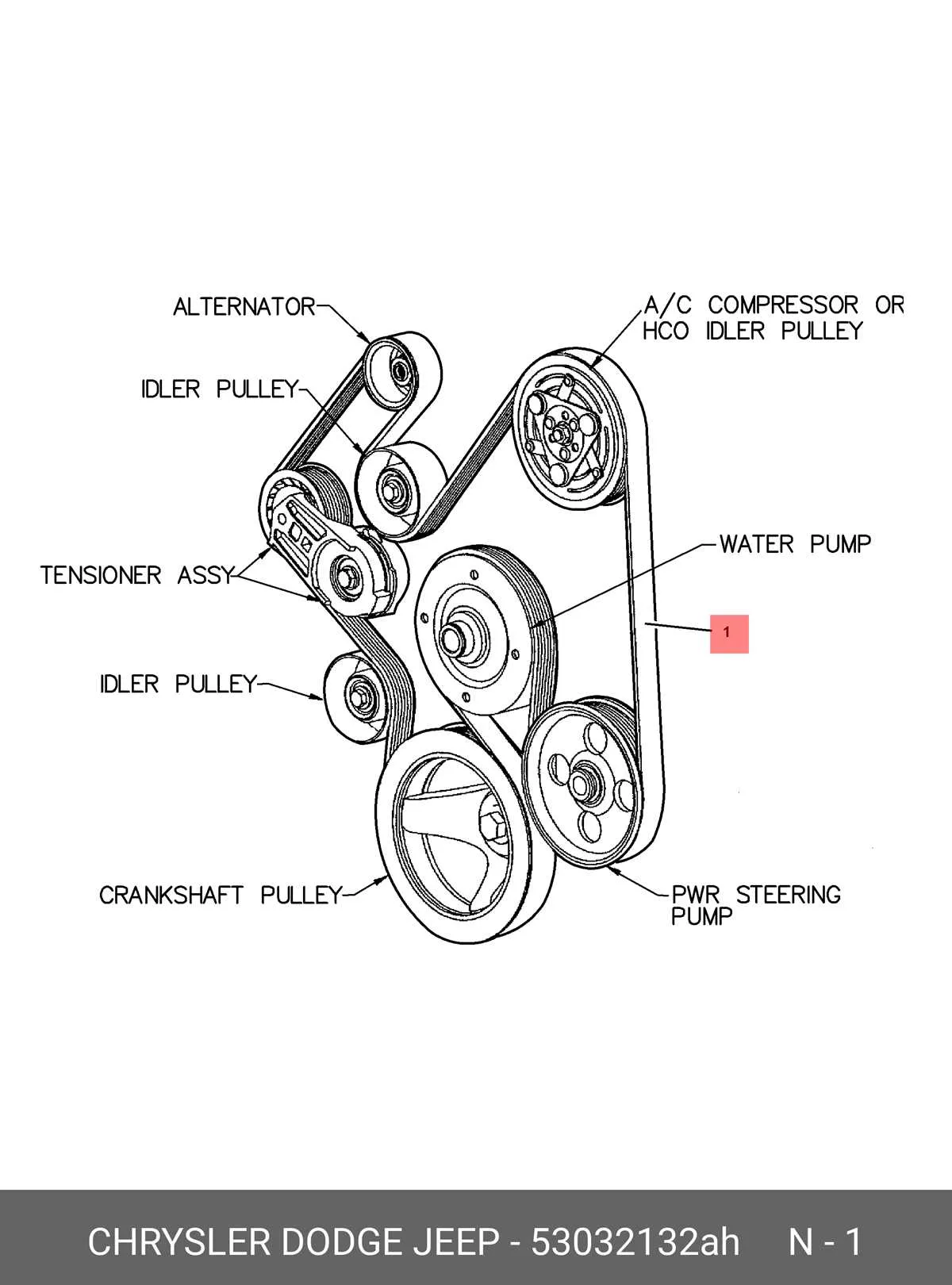

2013 RAM 1500 Belt Diagram

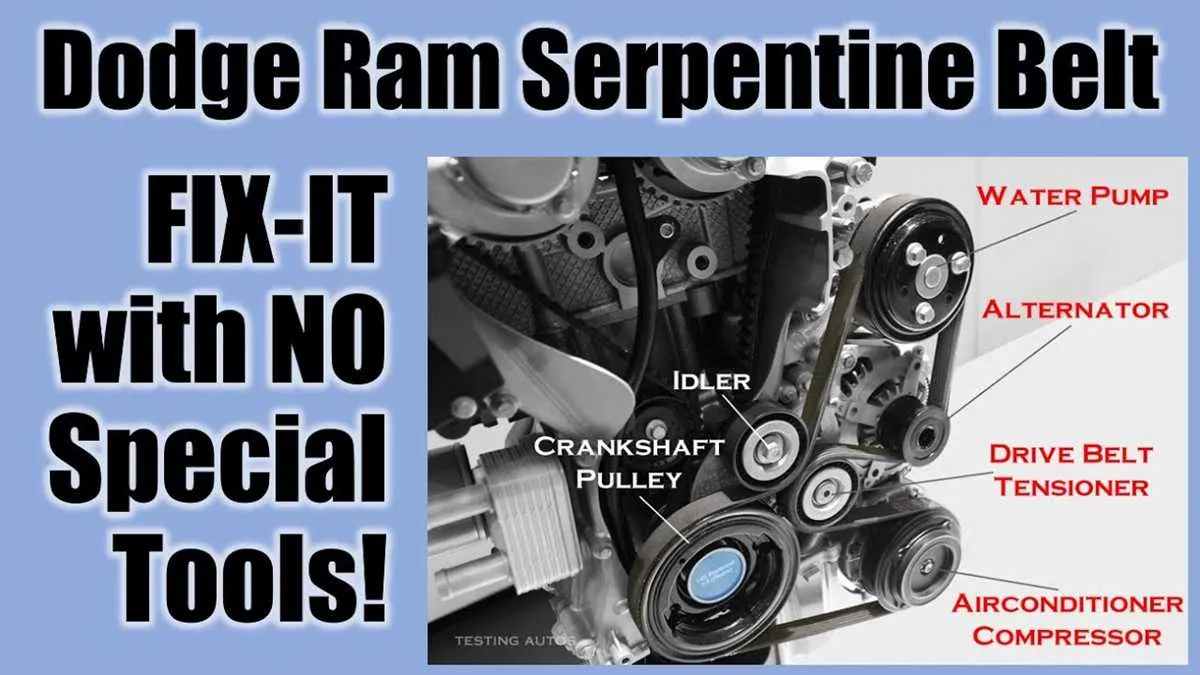

The belt diagram for the 2013 RAM 1500 is crucial for maintaining proper engine performance and ensuring that all components are running smoothly. The serpentine belt connects several vital parts, including the alternator, power steering pump, air conditioning compressor, and the water pump. A properly routed belt prevents slippage and damage to the engine system.

To replace or inspect the serpentine belt, follow this guide for the correct routing path. The belt should pass through the crankshaft pulley, the alternator, the power steering pump, the air conditioning compressor, and the idler and tensioner pulleys. The diagram indicates which pulleys provide tension, ensuring that the belt stays tight and correctly positioned during operation.

Pay attention to the tensioner pulley, which should be adjusted to maintain proper belt tightness. It’s also critical to inspect the belt for wear signs such as cracks, fraying, or glazing. If any damage is noted, replacing the belt before it fails is recommended to avoid engine damage.

Use a belt tension tool to ensure correct tension after installation. Always refer to the vehicle’s manual for specific belt part numbers and additional maintenance guidelines. This ensures you’re using the correct parts designed for your engine’s specifications.

How to Read the 2013 RAM 1500 Belt Routing Diagram

Start by locating the tensioner pulley, as it is usually the key reference point. It controls the belt’s tightness and provides the starting point for routing the belt correctly. The tensioner should be positioned near the top of the diagram.

Next, follow the main belt path from the crankshaft pulley, which is typically located at the bottom of the diagram. The belt should loop through the various components–alternator, power steering pump, A/C compressor, and idler pulleys–while maintaining the appropriate tension. Check the diagram for specific pulley shapes to make sure the belt is routed correctly around them. Pay attention to any pulleys that may require special positioning due to their size or design.

If the diagram shows multiple belts, take note of which ones are for specific accessories (like the serpentine belt vs. V-belt) and make sure to follow their designated paths. Each belt diagram is unique to the engine configuration, so ensure that you are working with the correct one for your model (e.g., with or without a radiator fan mounted on the engine).

Lastly, inspect any arrows or labels on the diagram, which often indicate belt rotation direction and other vital details for proper installation. Double-check each pulley’s placement to avoid skipping any steps.

Common Belt Issues on 2013 RAM 1500 and How to Fix Them

Worn or cracked serpentine belts can cause a variety of engine problems. If the belt on your 2013 RAM 1500 is showing signs of wear, replace it immediately to avoid further damage to components like the alternator, power steering pump, and air conditioning system.

Loose or slipping belts are another common issue. This usually happens when the tensioner weakens or fails. You’ll notice poor performance of electrical and mechanical systems, including dimming lights or a loss of power steering. A quick fix is to inspect and replace the tensioner if necessary, as well as check the belt for signs of fraying or stretching.

In some cases, squealing noises may indicate that the belt is misaligned or excessively worn. To resolve this, ensure that all pulleys are in proper alignment and replace the belt if it shows significant wear. Misalignment can also be caused by a faulty idler pulley, which should be replaced to prevent further damage.

If your belt appears damaged but isn’t showing obvious signs of wear, it might have come off due to a faulty pulley or tensioner. To fix this, inspect the pulleys and ensure they are rotating smoothly. Tighten or replace any loose pulleys to keep the belt in place.

For persistent issues, it’s a good idea to inspect the belt routing diagram to ensure everything is assembled correctly. A belt that has been routed improperly can cause excessive wear and even breakage.

Regular maintenance of your belt system will keep your RAM 1500 running smoothly and prevent costly repairs down the line.

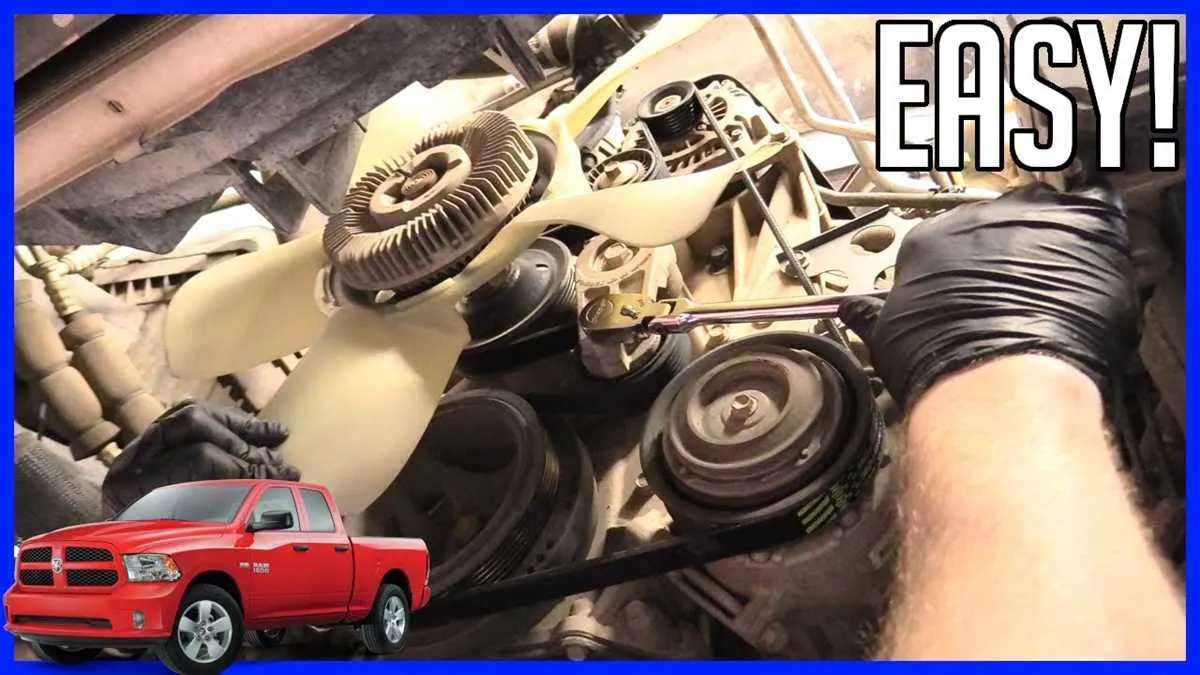

Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 RAM 1500

Start by parking your truck on a flat surface and engaging the parking brake. Make sure the engine is off and completely cool before you proceed.

Gather the necessary tools: a serpentine belt tool or a 3/8-inch drive ratchet, a socket wrench, and a new serpentine belt suitable for the 2013 RAM 1500. It’s also helpful to have gloves and safety glasses for protection.

Locate the serpentine belt. On the 2013 RAM 1500, it runs around several pulleys: the alternator, power steering pump, water pump, and A/C compressor. Refer to the belt diagram in your vehicle’s manual or under the hood to ensure proper routing for the new belt.

1. Find the tensioner pulley. This is the spring-loaded pulley that keeps the belt tight. Use your serpentine belt tool or a ratchet to rotate the tensioner counterclockwise. This will loosen the belt and allow you to remove it.

2. Slide the old belt off the pulleys. Keep the tensioner pulled back while you remove the belt to prevent the tensioner from snapping back into position.

3. Compare the old belt with the new one. Ensure the new belt is the correct length and matches the part numbers. Also, check for any noticeable wear on the pulleys while the belt is off.

4. Install the new serpentine belt by following the belt routing diagram. Start by placing the belt on the pulleys one at a time, starting from the bottom-most pulley and working your way up. Be sure the belt sits correctly in the grooves of each pulley.

5. Once the belt is positioned correctly, rotate the tensioner pulley again to create enough slack to fit the belt around it. Slowly release the tensioner to apply tension to the belt.

6. Double-check the belt’s alignment and make sure it’s properly seated on all pulleys. You should be able to gently pull on the belt and feel some resistance.

7. Start the engine and observe the belt in action. Listen for any unusual noises and verify that the belt is running smoothly around the pulleys. If the belt appears to slip or make noise, double-check its routing and tension.

8. Dispose of the old belt properly and clean up your workspace.
