2013 Ram 1500 5.7 Serpentine Belt Diagram and Routing Guide
To correctly install or replace the serpentine belt on your 2013 Ram 1500 with a 5.7L engine, refer to the belt diagram for proper routing. This ensures that all components, including the alternator, power steering pump, and air conditioning compressor, operate smoothly. A clear understanding of the belt routing will help avoid misalignments and potential damage to the engine components.
Start by locating the tensioner pulley. This pulley is responsible for keeping the belt tight. Using a ratchet or belt removal tool, release tension from the belt before removing it. It’s essential to inspect the belt for any signs of wear, such as cracks or fraying, as replacing a damaged belt at the earliest opportunity can save you from further engine complications.
Once the old belt is removed, carefully follow the diagram to ensure the new belt follows the correct path. Pay close attention to the direction the belt should face, as some belts are directional. After positioning the belt, release the tensioner to ensure it holds the belt tightly in place. Double-check the alignment of all pulleys and belts before starting the engine to prevent any operational issues.

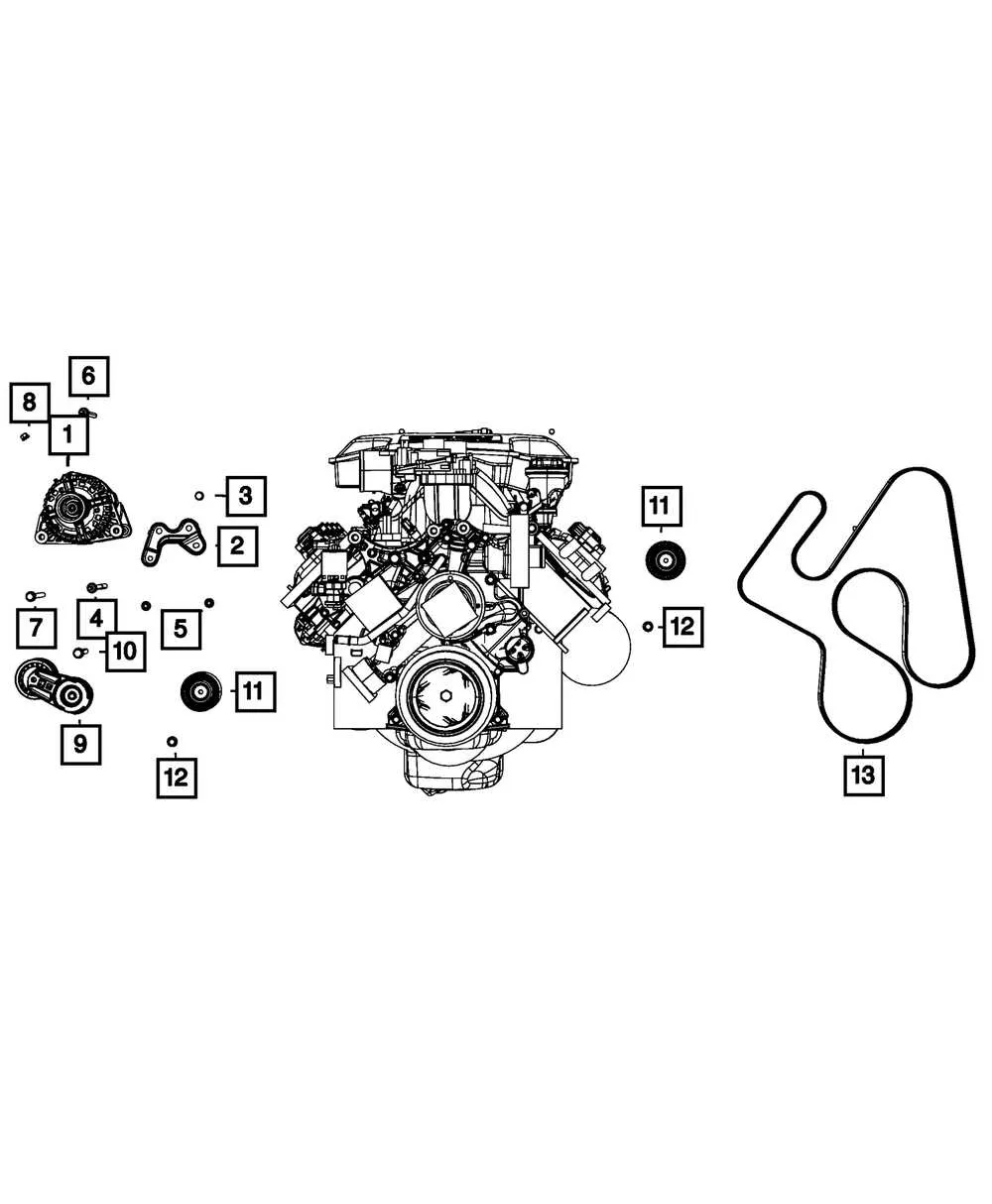

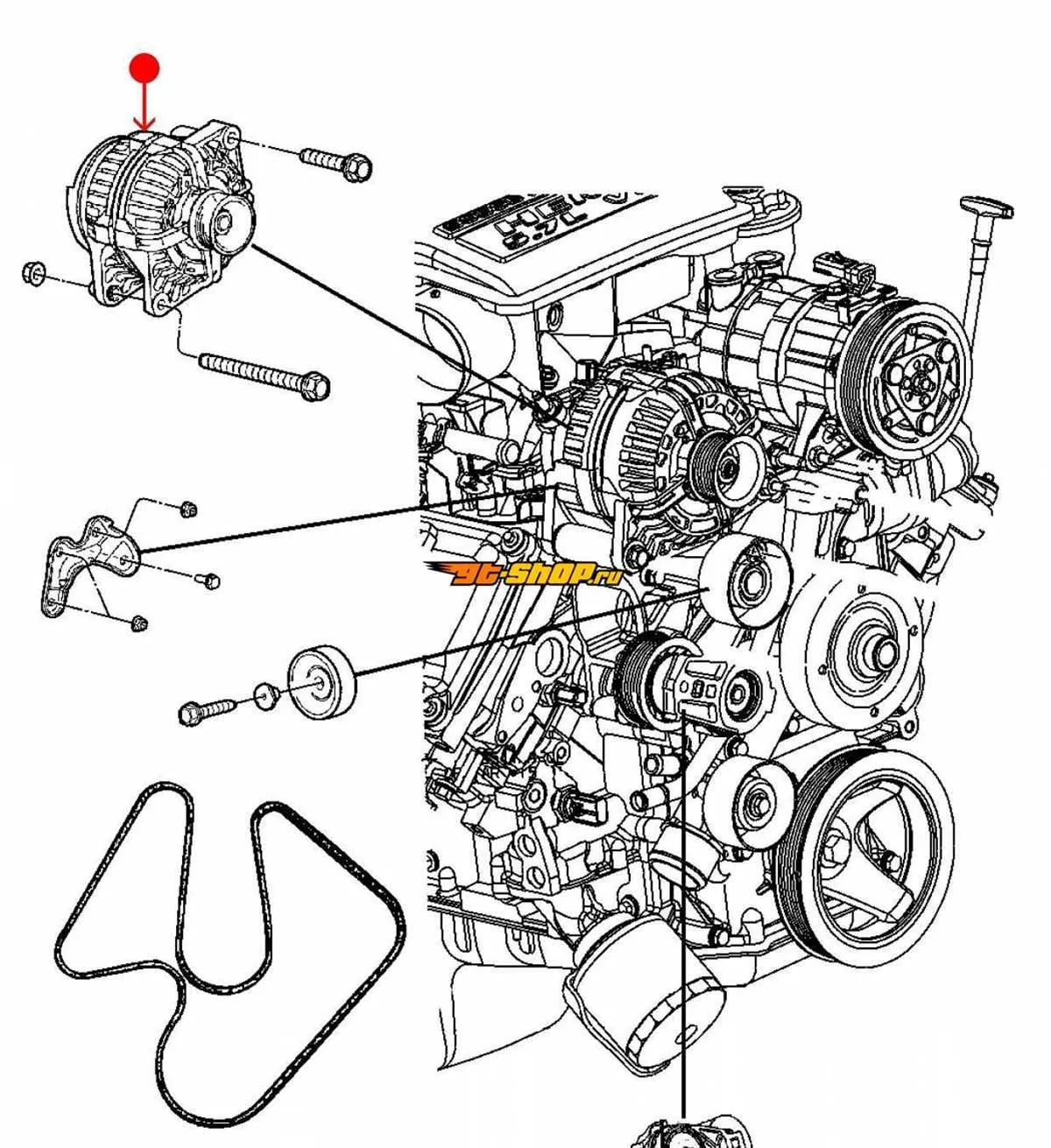

2013 Ram 1500 5.7 Belt Diagram
To correctly replace or inspect the serpentine belt on your 2013 Ram 1500 5.7, first ensure you have the appropriate tools, including a serpentine belt tool or a 3/8-inch drive ratchet. Locate the belt routing diagram typically found near the radiator or on the engine bay, which shows the path of the belt around pulleys and tensioners. This diagram is crucial for proper reinstallation after belt replacement or maintenance.
The 5.7L engine in the 2013 Ram 1500 uses a serpentine belt that drives multiple components such as the alternator, power steering pump, air conditioning compressor, and water pump. It’s important to check the belt for wear, cracks, or fraying to prevent unexpected failures. If the belt shows signs of damage, it should be replaced immediately. Ensure that the new belt matches the correct length and size for optimal fit and performance.
When reinstalling the serpentine belt, use a belt tensioner tool to relieve tension on the old belt and remove it safely. Install the new belt according to the diagram, making sure it is aligned properly with all pulleys. Once in place, verify that the belt is tight and that all components rotate smoothly. Recheck the belt after a short test drive to ensure proper operation and alignment.
How to Read the 2013 Ram 1500 5.7 Belt Diagram
To accurately interpret the 2013 Ram 1500 5.7 belt diagram, focus on understanding the belt routing and the key components it powers. The diagram is divided into sections that illustrate how the serpentine belt is routed around pulleys and driven accessories.
Begin by identifying the main pulleys: the crankshaft pulley, the alternator pulley, the power steering pulley, and the air conditioning compressor pulley. These components play crucial roles in the engine’s operation. The diagram will show the exact path the belt takes to ensure these parts function properly.
Look for directional arrows on the diagram. These indicate the direction of belt travel. Pay attention to how the belt crosses over each pulley, as any deviation in routing can lead to improper belt tension or even belt failure.
The tensioner pulley is often highlighted in the diagram as it keeps the correct tension on the belt. If this pulley is worn or faulty, the belt may slip or break. Make sure to check its condition when inspecting the diagram.
If the belt diagram includes multiple belts (such as a secondary belt for accessories), the diagram will clearly distinguish them with separate paths and labels. Always verify that each belt is correctly routed before installation.
Finally, ensure the diagram matches the configuration of your engine. If modifications have been made to the engine or accessories, the belt routing may differ from the standard configuration shown in the diagram.
Troubleshooting Common Belt Issues in the 2013 Ram 1500
If the serpentine belt in your 2013 Ram 1500 shows signs of wear or damage, it’s important to address the issue before it leads to engine failure. First, inspect the belt for cracks, fraying, or glazing. A glazed surface indicates the belt is slipping, which can result in poor performance of the alternator, water pump, or air conditioning system.
Next, check the tension of the belt. A loose belt can lead to insufficient power transfer to critical components, while an overly tight belt may cause premature wear on the pulleys and bearings. If the belt tension seems off, it could be an issue with the tensioner pulley. Replacing a faulty tensioner is often necessary to restore proper belt function.
Unusual noises, such as squealing or chirping, are common signs of a worn-out belt or misaligned pulley. Inspect the pulleys for debris or damage. Ensure that the pulleys are correctly aligned, as misalignment can cause the belt to wear unevenly. If any pulleys appear damaged, replacing them can prevent further belt issues.
Lastly, check for oil or coolant leaks around the belt. Leaks can cause the belt to degrade quickly. If there is leakage, address the root cause–whether it’s a faulty gasket or seal–before replacing the belt to avoid future issues.
Step-by-Step Guide for Replacing the Serpentine Belt in 2013 Ram 1500
Begin by gathering the necessary tools: a new serpentine belt, a socket wrench, and a belt tensioner tool.
- Locate the serpentine belt on the front of the engine. It should run across multiple pulleys.
- Using the belt diagram specific to your vehicle, identify the routing of the belt. Ensure that the new belt follows the same path.
- Use a socket wrench to relieve tension on the belt by rotating the tensioner pulley. This will allow you to remove the old belt.
- Carefully slide the old belt off the pulleys and remove it from the engine compartment.
- Compare the old belt with the new one to ensure they are the same size and type.
- Position the new serpentine belt over the pulleys, starting from the lowest point. Ensure it aligns properly with each pulley groove.
- Once the new belt is in place, use the belt tensioner tool to apply tension to the belt. Verify that the belt is snug and properly aligned.
- Check that the belt is not twisted and sits correctly on all pulleys.
- Start the engine and listen for any unusual noises. The new serpentine belt should run smoothly without any slippage or squealing.
- Double-check the belt’s alignment after the engine has been running for a few minutes. If everything looks good, you have successfully replaced the serpentine belt.
