2013 Chevrolet Impala 3.6 Belt Routing Diagram

To properly maintain your 2013 Impala 3.6 engine, understanding the serpentine belt diagram is a must. This diagram shows the exact routing of the serpentine belt, ensuring smooth operation of key components like the alternator, power steering pump, and air conditioning compressor.

First, locate the diagram on your vehicle. In most cases, you’ll find it on the radiator support or near the engine bay. If it’s missing or unclear, you can use the factory service manual or online resources for the exact routing.

Next, inspect the belt for any signs of wear. If you notice cracking, fraying, or any other visible damage, replacing the belt should be your priority. A damaged serpentine belt can lead to failure of critical components, so timely replacement is key.

Be sure to check tension. A belt that’s too loose or too tight can cause issues. If you’re uncertain about the belt’s condition or tension, it might be worth consulting a professional mechanic for an inspection.

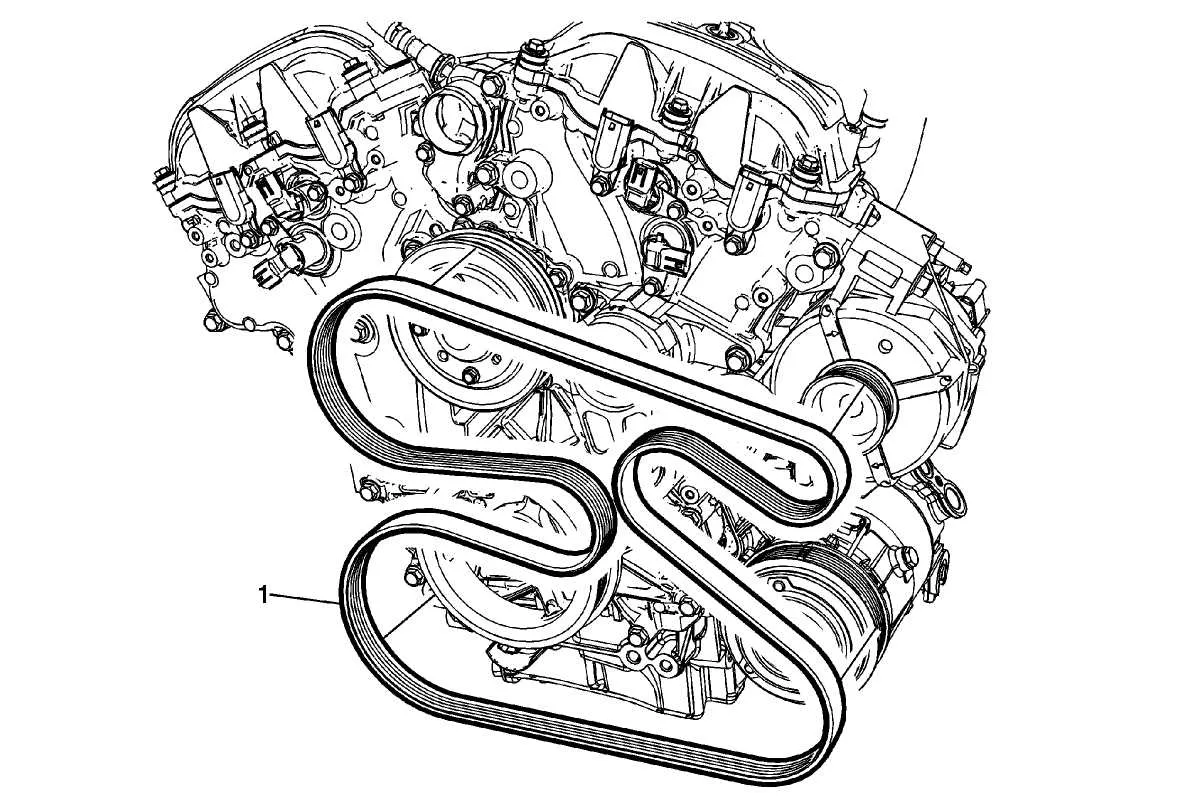

2013 Impala 3.6 Belt Diagram

To properly install or replace the serpentine belt on the 2013 Impala 3.6, follow the belt routing diagram closely. This vehicle uses a single serpentine belt that powers various components such as the alternator, power steering pump, air conditioning compressor, and water pump. Incorrect installation can lead to damage or failure of these parts.

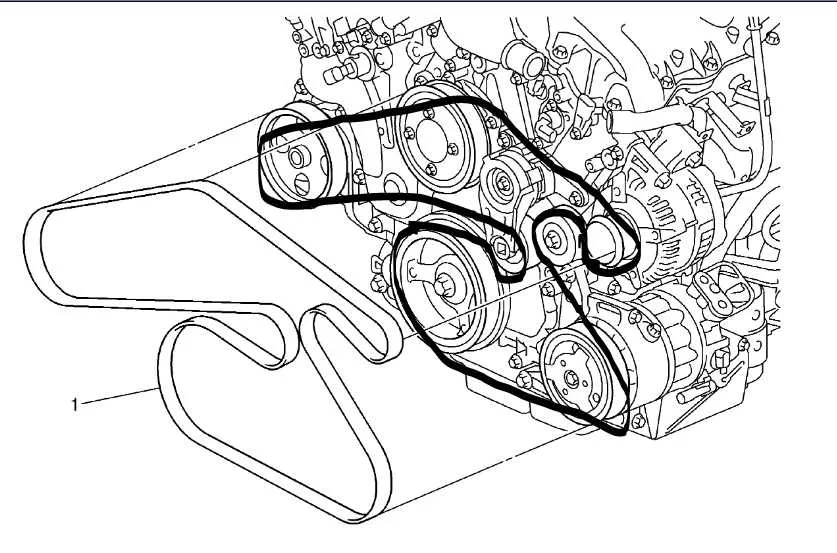

The routing starts from the crankshaft pulley, passing over the tensioner pulley, then looping around the alternator, air conditioning compressor, and power steering pump. The belt then returns to the crankshaft pulley. Ensure the belt is securely placed in all grooves and that the tensioner is applying the correct pressure to avoid slippage or excessive wear.

If you are replacing the belt, it’s a good idea to inspect other components like the pulleys and tensioner. Worn pulleys or a malfunctioning tensioner can cause premature belt failure. Keep the new belt tight, but not overly stretched. If the belt is too tight, it could strain the engine components, while too much slack will reduce performance.

Refer to the vehicle’s manual for any specific instructions or torque specifications. It’s recommended to check the belt’s condition regularly to avoid unexpected failures while driving.

How to Read the 2013 Impala 3.6 Belt Diagram

Begin by locating the belt routing diagram. You’ll usually find it on the radiator support, near the front of the engine bay, or in the owner’s manual. This diagram shows the correct path for the serpentine belt that drives the alternator, power steering pump, AC compressor, and other components.

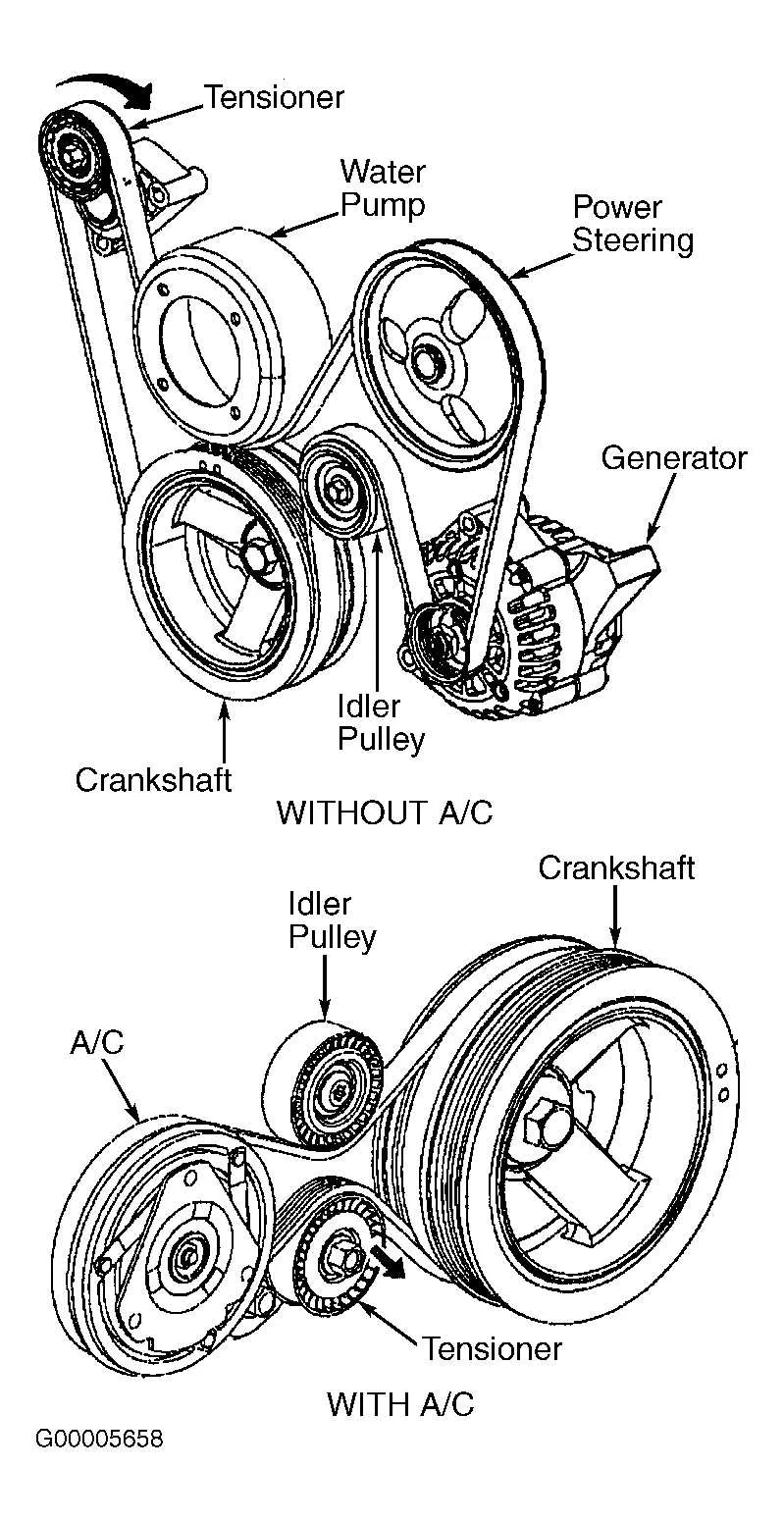

Start by identifying the components in the diagram: each pulley is labeled, showing which one is driven by the belt. The main components to focus on include the crankshaft pulley, idler pulleys, tensioner, and accessory pulleys.

The crankshaft pulley is typically located at the bottom of the engine and serves as the starting point for the belt routing. The belt will wrap around this pulley before moving to other components like the alternator, power steering, or water pump. Make sure the belt follows the path as shown on the diagram without skipping any pulleys.

The tensioner pulley adjusts the tension of the belt to keep it tight. This pulley usually sits on a spring-loaded arm. Pay attention to the direction of movement and ensure the belt has proper tension; it shouldn’t be too loose or too tight. If the belt seems loose, you may need to adjust the tensioner.

As you move along the diagram, take note of any idler pulleys, which help guide the belt around the engine. These pulleys don’t drive any components, but they support the belt’s movement. Follow the diagram to confirm the belt runs smoothly around these idlers.

Finally, make sure the belt doesn’t cross or overlap any components incorrectly. The diagram should be a clear, direct route. If you notice any deviation from the diagram, the belt could slip or wear out prematurely.

Once you’ve confirmed the correct routing, double-check the tightness and alignment. The belt should sit snugly on each pulley, and you should feel slight resistance when rotating it by hand.

Common Belt Installation Mistakes in the 2013 Impala 3.6

Ensure the belt is routed correctly according to the factory diagram. A common mistake is misaligning the belt around the pulleys. Double-check that the belt matches the pattern shown in the manual. Misrouting leads to unnecessary wear and can cause the belt to slip off during operation.

Don’t skip tensioning the belt. A loose belt will slip and result in poor performance or even damage to the components it drives. Always verify the proper tension after installation. If the tensioner is worn or malfunctioning, replace it before installing a new belt.

Inspect the condition of the pulleys. Worn pulleys can cause the belt to squeak, wear unevenly, or even break. Rotate the pulleys by hand to check for roughness or play. If any of the pulleys seem damaged or noisy, replace them before reinstalling the belt.

Never reuse a stretched or damaged belt. A belt that has been improperly installed or shows signs of wear should be replaced to avoid further damage to the engine components. Always use a new belt for optimal performance.

Check that the belt is properly seated in all grooves of the pulleys. An improperly seated belt can quickly lead to belt misalignment, and this increases the risk of the belt slipping off or damaging the surrounding components.

Verify that the serpentine belt is the right size and type. Using an incorrect belt size or model can cause improper fitment, reducing the lifespan of the belt and related components.

Troubleshooting Belt Issues in the 2013 Impala 3.6

Start by inspecting the serpentine belt for visible wear, cracking, or glazing. These are common indicators of belt issues. If the belt appears damaged, it’s time for a replacement. A worn belt can slip or snap, leading to engine performance problems.

If the belt looks fine but you still hear squealing noises, check the tension. A loose belt can create noise and reduce the effectiveness of the components it drives. The tensioner might need adjustment or replacement if it’s not maintaining proper tension.

Next, ensure that all pulleys are aligned and free of debris. Misalignment can cause uneven wear, leading to belt failure. Spin each pulley by hand to check for smooth rotation. Any stiff or noisy pulleys should be replaced.

Don’t overlook the idler pulley and tensioner pulley. These parts can wear out over time, causing the belt to slip. If you notice an issue with either, replace them immediately to avoid further damage to the belt.

If your belt squeals after a replacement, it might be a sign of an improper installation. Ensure the belt is routed correctly according to the diagram, as an incorrect routing can put excessive strain on the components.

For further troubleshooting, inspect the alternator and power steering pump for smooth operation. Any irregularities in these components could indicate deeper mechanical issues that affect belt function.
