2013 GMC Acadia 3.6 Belt Diagram and Routing Guide

The belt system in the 2013 GMC Acadia 3.6 is crucial for engine operation, driving several key components like the alternator, power steering pump, and air conditioning compressor. If you’re replacing the drive belt or troubleshooting any belt-related issues, it’s important to follow the correct routing and ensure all components are properly aligned. Failure to do so could lead to premature wear or system malfunctions.

Start by inspecting the condition of the belt. Any signs of cracks, fraying, or visible wear mean it’s time for a replacement. The belt tension should also be checked to ensure it’s neither too tight nor too loose. An incorrectly tensioned belt can cause slipping or excessive strain on the pulleys.

The 2013 GMC Acadia 3.6 uses a serpentine belt, which is routed around several pulleys. You’ll need to identify each component the belt interacts with, such as the crankshaft pulley, alternator, and power steering pump, before starting the installation process. Refer to the manufacturer’s diagram for the exact routing to avoid errors.

If you’re uncertain about the installation, consider using a tensioner tool to adjust the belt properly after placement. Once the belt is installed, rotate the engine manually to ensure the belt runs smoothly and there are no unusual noises.

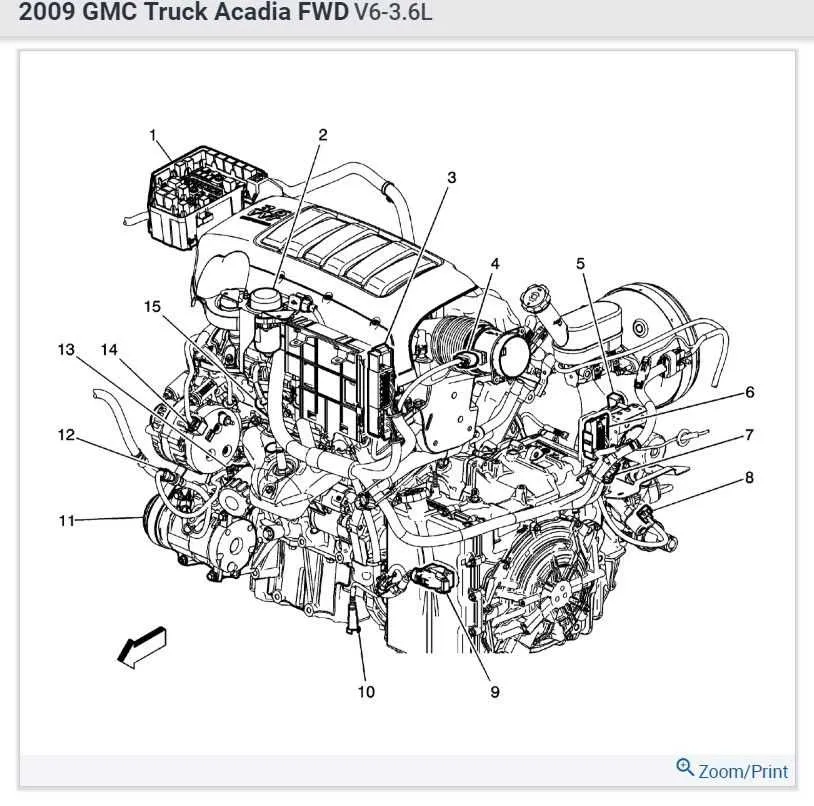

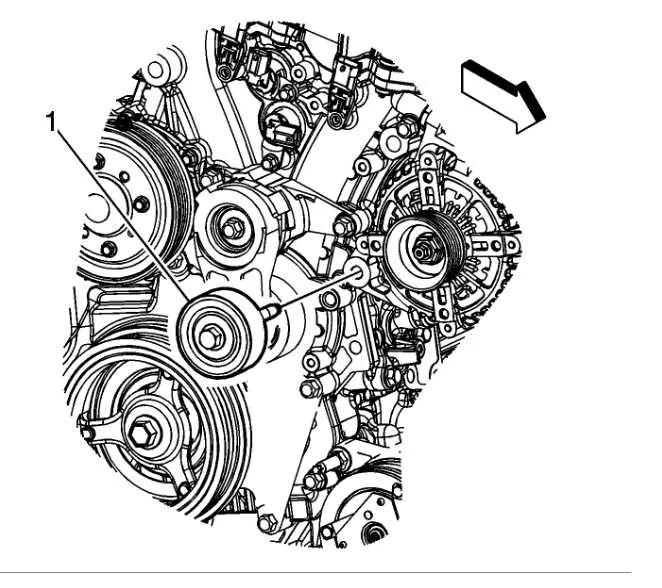

2013 GMC Acadia 3.6 Belt Diagram

The 2013 GMC Acadia 3.6 uses a serpentine belt system to drive various components such as the alternator, power steering pump, and air conditioning compressor. Correct routing and tensioning are crucial for optimal performance and longevity of the system. Start by ensuring the belt follows the correct path around the pulleys, as shown in the factory service manual. An incorrect routing can cause excessive wear or even belt failure.

Pay close attention to the tensioner pulley, which maintains the proper tension on the belt. Over time, this pulley can wear or malfunction, leading to belt slippage or damage. Inspect the belt for signs of cracking, fraying, or glazing. If any of these issues are visible, it’s time to replace the belt.

When replacing the belt, always check the alignment of the pulleys. Misaligned pulleys can cause uneven wear on the new belt and lead to premature failure. A belt tool or ratchet wrench can be used to relieve the tension on the tensioner, making it easier to remove and install the new belt.

Refer to the diagram in your service manual to verify the proper routing for the serpentine belt. Incorrect routing or a loose belt can cause issues like overheating or insufficient power supply to vital components, which could lead to engine performance problems.

Understanding the Belt Layout in the 2013 GMC Acadia 3.6

The 2013 GMC Acadia 3.6 has a serpentine belt system that powers various components in the engine. This layout is critical for ensuring that parts like the alternator, power steering pump, water pump, and air conditioning compressor function correctly. Here’s a breakdown of the belt routing and its components:

• Alternator: Located on the passenger side, the belt drives the alternator, keeping the battery charged.
• Power Steering Pump: Positioned near the front, it ensures smooth steering by pumping fluid to the steering mechanism.
• Water Pump: The belt keeps the water pump operational, circulating coolant to regulate engine temperature.
• Air Conditioning Compressor: It is driven by the belt to maintain cooling within the cabin by circulating refrigerant.

The belt routing follows a specific path that starts from the crankshaft pulley, passing around the idler pulley and tensioner, before wrapping around these components. The tensioner ensures proper belt tension, preventing slippage or premature wear. A proper belt routing diagram is necessary for reinstalling the belt after any maintenance or replacement.

To avoid any potential damage to the system, it’s important to regularly inspect the belt for signs of wear, such as cracks, fraying, or stretching. Replacing the belt at regular intervals, as indicated by the manufacturer, will help maintain optimal performance of your Acadia.

Step-by-Step Guide to Replacing the Serpentine Belt

Begin by ensuring the engine is cool and disconnect the negative battery terminal to prevent any electrical issues. Locate the serpentine belt on the front of the engine and inspect its condition before removal.

Use a wrench or a serpentine belt tool to rotate the tensioner pulley. This will release the tension on the belt. Carefully slide the belt off the pulleys, taking note of its routing for reinstallation.

Before installing the new belt, verify that it matches the old one in terms of size and routing. Refer to the diagram if needed to ensure the correct path. Place the new belt around the pulleys, starting from the bottom and working your way up, following the exact route of the old belt.

Once the belt is in place, rotate the tensioner again to allow the belt to sit properly on all pulleys. Check that the belt is aligned and correctly tensioned. Reconnect the negative battery terminal and start the engine to confirm proper operation of the new belt.

If the belt is not aligned or there are any signs of slippage, remove it and adjust it until it sits properly. Double-check the routing and tension before finishing the job.

Troubleshooting Common Belt Issues in the 2013 GMC Acadia 3.6

If you notice a squealing noise coming from the engine bay, it might indicate a loose or worn serpentine belt. First, check the belt for any visible cracks, fraying, or glazing. Replace the belt if any damage is found. A worn-out belt can cause it to slip, leading to poor performance and potential damage to the components it drives.

If the belt appears in good condition but still slips, inspect the tensioner. A faulty tensioner can fail to apply enough pressure on the belt, causing it to slip. Replacing a worn or faulty tensioner will resolve this issue.

Another issue to look out for is the belt coming off its pulleys. This can happen if one of the pulleys is misaligned, damaged, or seized. Rotate the pulleys by hand to ensure they move freely. If any pulley resists movement or feels rough, it may need to be replaced.

If the serpentine belt continues to wear out prematurely, consider checking the alternator, power steering pump, or air conditioning compressor. Overloading or malfunctioning components can put undue stress on the belt, leading to faster wear.
