2012 Ram 2500 Serpentine Belt Diagram and Routing Guide
If you’re looking to replace or inspect the serpentine belt in your 2012 Ram 2500, the first step is to understand the correct routing. The serpentine belt drives key components like the alternator, power steering pump, and air conditioning compressor. Refer to the diagram for precise positioning to ensure smooth engine performance.

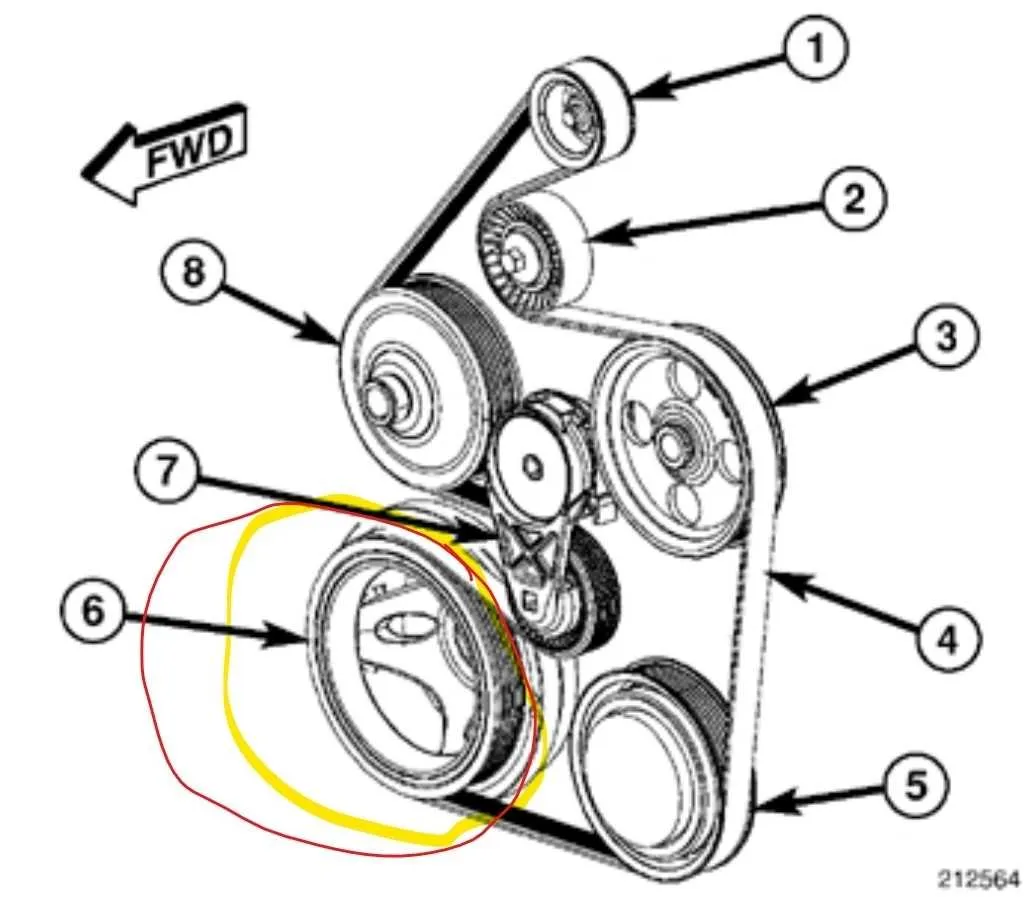

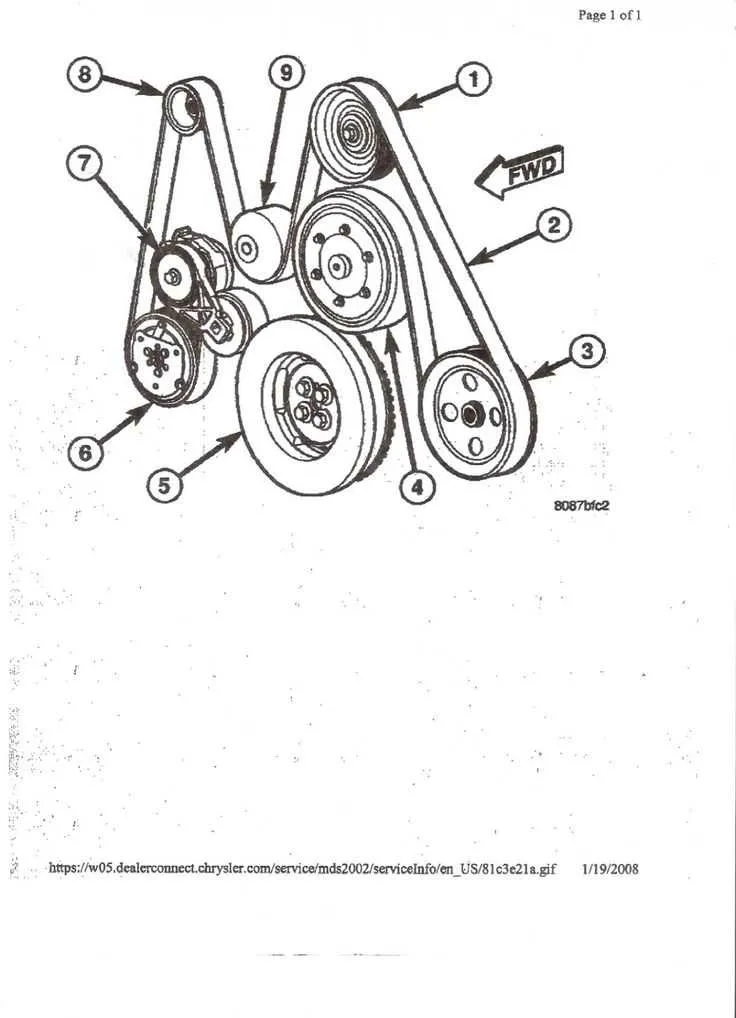

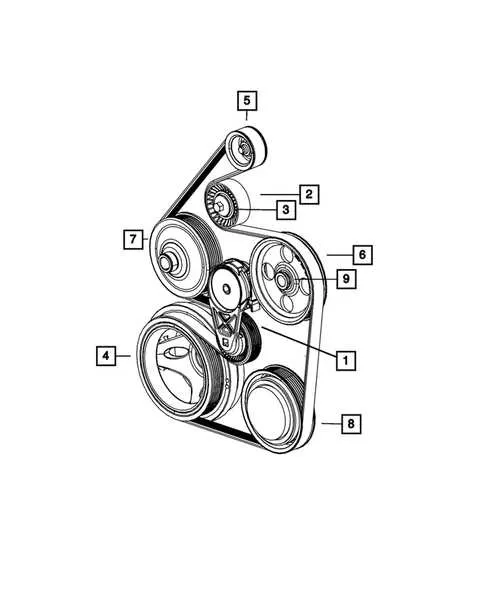

The diagram shows the belt path starting from the crankshaft pulley and wrapping around various components. Pay attention to the tensioner’s location, as it is responsible for keeping the belt tight. If you notice any cracks or fraying on the belt, it’s a clear sign it needs replacement. Make sure to inspect the pulleys for wear, too.
For a quick reference, the 2012 Ram 2500 typically uses a 6-rib serpentine belt with specific routing details. If you’re unsure about the replacement procedure or if the belt feels too loose, consulting the manual or a professional mechanic can help you get back on the road in no time.
2012 Ram 2500 Belt Diagram
The serpentine belt on your 2012 Ram 2500 is vital for driving multiple accessories like the alternator, power steering pump, and air conditioning compressor. For easy replacement and maintenance, follow the correct routing path shown in the belt diagram.
To begin, locate the diagram typically found on the radiator support or near the engine bay. The belt should be routed over the alternator pulley, under the tensioner, and around the power steering pump. Ensure the belt is properly aligned with each pulley groove to avoid slipping or wear.
If you’re replacing the serpentine belt, first relieve tension from the belt by rotating the tensioner pulley with a wrench. Once loosened, remove the old belt and install the new one by following the same route as shown in the diagram. Double-check the belt’s alignment before tightening the tensioner pulley back in place.
Keep the belt in good condition to avoid potential issues. Inspect it regularly for signs of wear, such as cracks, fraying, or glazing. A worn-out belt can result in engine overheating, loss of power steering, or failure of the air conditioning system.
For any adjustments, always use the correct belt size as specified in the vehicle’s manual. Incorrect sizing could lead to improper fitment, causing strain on the engine components or belt failure.
How to Identify and Replace the Serpentine Belt on a 2012 Ram 2500
The serpentine belt on your 2012 Ram 2500 plays a crucial role in powering various engine accessories like the alternator, power steering, and air conditioning. A worn or damaged belt can cause these components to malfunction, leading to engine performance issues. Here’s how to identify and replace it.
Identifying a Worn Serpentine Belt
- Check for visible cracks, fraying, or worn edges. These are signs the belt needs replacing.
- Listen for squealing noises, especially during engine startup or when turning the steering wheel. This often indicates a slipping or damaged belt.
- Examine the belt for any signs of glazing or shiny spots, which suggest excessive heat or wear.
Tools You’ll Need
- Socket wrench with the correct size socket
- Serpentine belt tool or breaker bar
- New serpentine belt
- Flashlight (for better visibility)
- Owner’s manual (for specific routing diagram)
Steps to Replace the Serpentine Belt
- Locate the serpentine belt tensioner. Use a socket wrench or serpentine belt tool to relieve tension by rotating the tensioner in the direction specified in your owner’s manual.
- Carefully remove the belt from the pulleys once the tension is released.
- Before installing the new belt, compare it with the old one to ensure they are the same size and length.
- Check the belt routing diagram in your owner’s manual or on the engine bay for proper installation. Make sure the new belt follows the same path as the old one.
- Install the new belt by slipping it over the pulleys, starting from the longest route and ending with the tensioner pulley.
- Once the belt is in place, use the tensioner to apply pressure and keep the belt tight. Double-check the belt’s alignment on each pulley to ensure it’s properly seated.
- Start the engine and check for any unusual noises or slipping. Ensure that the belt is running smoothly and that all components are functioning correctly.
When to Replace the Serpentine Belt
- Every 60,000 to 100,000 miles, depending on the manufacturer’s recommendation and driving conditions.
- If you notice a decrease in engine performance or hear unusual sounds from the engine area.
- If the belt shows signs of wear, such as cracking or fraying.
Replacing your serpentine belt is a simple and affordable way to prevent more significant engine problems down the road. Be sure to check it regularly to keep your 2012 Ram 2500 running smoothly.
Understanding the Routing of the Accessory Drive Belts on a 2012 Ram 2500
The accessory drive belts on a 2012 Ram 2500 are vital for powering components like the alternator, power steering pump, air conditioning compressor, and water pump. The belt routing on this vehicle is designed for reliability and efficiency. Knowing the exact layout is key for troubleshooting and maintenance.
The serpentine belt system uses a single belt to drive multiple accessories, reducing complexity and weight. The path starts from the crankshaft pulley and loops around the alternator, air conditioning compressor, power steering pump, and tensioner pulley. It ends at the water pump pulley. The system incorporates an automatic tensioner that keeps consistent tension on the belt, ensuring optimal performance.
To replace or inspect the belt, first release the tension using a wrench or socket on the tensioner pulley. This will provide slack, allowing you to remove the belt and check for signs of wear. Ensure the new belt follows the exact same path to avoid misalignment, which could lead to premature wear or failure of accessories.
If the belt seems to slip or squeal, it might be a sign of improper routing, a worn-out tensioner, or a stretched belt. Regular inspection of the belt’s condition and proper tensioning can extend the lifespan of both the belt and the accessories it powers.
Troubleshooting Common Issues with the Belt System in a 2012 Ram 2500
If the serpentine belt on your 2012 Ram 2500 is slipping or squealing, inspect the belt for signs of wear. Cracks, fraying, or a shiny surface indicate that the belt needs replacing. Make sure it is properly aligned on all pulleys–misalignment can cause premature wear and failure.
Check the tensioner. A faulty or worn-out tensioner may not maintain the correct belt tension, leading to slippage. If the belt is loose or you notice rattling sounds, it’s likely time to replace the tensioner.
Inspect the pulleys and other components the belt drives. Seized or damaged pulleys can create unnecessary friction, leading to belt wear. Spin each pulley by hand to check for smooth rotation. If any pulleys are difficult to rotate or noisy, replace them as needed.
If the belt squeaks or makes a high-pitched sound, it could be due to moisture or debris on the belt. Clean the belt and the surrounding pulleys to remove any contaminants. If the noise persists, consider replacing the belt with a new one that has a fresh surface.
Check the alignment of the alternator, power steering, and other accessories. Misalignment can put additional strain on the belt, causing it to wear out faster. Ensure that all components are securely mounted and that their pulleys are in proper alignment.
If the belt has been replaced recently but continues to slip, ensure that the correct part was installed. Some aftermarket belts may not fit as precisely as OEM parts, causing issues with fitment and performance. Always double-check the part number against your vehicle’s specifications.
