2012 Mazda 3 Serpentine Belt Diagram and Routing Guide
If you’re working on your 2012 Mazda 3 and need a clear guide for the belt system, you’ve come to the right place. The diagram below will help you identify the correct routing for the serpentine and timing belts, ensuring everything runs smoothly. Knowing the proper belt layout is key to avoiding engine damage and ensuring that all components receive the power they need.
The serpentine belt in the 2012 Mazda 3 powers several important components, including the alternator, power steering pump, and air conditioning compressor. In the event that the belt slips, breaks, or wears out, it can result in a loss of power to these systems. A quick visual check against the belt diagram can help you catch potential issues early.
When replacing or adjusting the belts, always double-check the tension. If the belt is too tight or loose, it could cause excessive wear on the pulleys or affect engine performance. Make sure you’re using the correct belt type and size, as the wrong specifications can lead to premature failure or operational issues.
Referring to the belt diagram will save you time and prevent unnecessary errors. It’s a simple but effective way to ensure that your vehicle runs at its best, with all the components operating efficiently. Follow the guide, and you’ll be back on the road in no time.

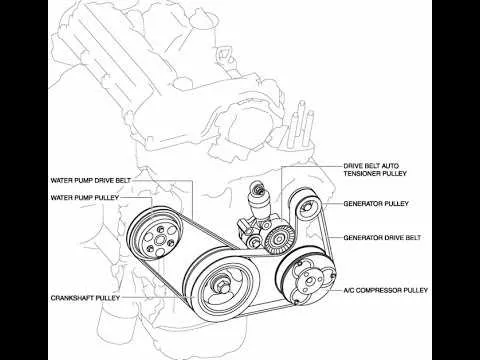

2012 Mazda 3 Belt Diagram
For a 2012 Mazda 3, ensure proper belt routing by referring to the engine belt diagram specific to your vehicle model. The belt system includes the serpentine belt and, depending on the engine type, additional timing belts. The serpentine belt drives multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump.
When inspecting or replacing the serpentine belt, start by removing the tensioner’s pressure. Locate the belt tensioner and use a wrench to release the tension. This will allow you to remove the belt with ease. Pay attention to the belt’s condition; look for signs of wear, cracks, or fraying. A damaged belt could cause engine overheating, loss of power steering, or AC failure.
Ensure the belt is routed correctly, following the grooves of each component. Misrouting can lead to inefficient engine performance or component damage. The diagram shows the path of the belt over pulleys, highlighting the necessary sequence for proper alignment. Double-check the belt’s tightness once it’s installed to prevent slipping.
If your vehicle has a timing belt (for non-SKYACTIV engines), it must be replaced at regular intervals to avoid engine damage. Refer to the manufacturer’s maintenance schedule for precise timing and belt specifications. Timing belt failure can lead to severe engine complications.
Consult your vehicle manual for specific details about your engine variant and belt configuration to ensure you’re using the correct diagram and replacement parts. Always use original equipment manufacturer (OEM) belts for best results.
How to Locate the Timing Belt on a 2012 Mazda 3
To find the timing belt on a 2012 Mazda 3, you need to focus on the front side of the engine. The timing belt is located behind the timing cover on the engine block.
Here’s a step-by-step guide:
- Park the vehicle on a flat surface and engage the parking brake.
- Open the hood and secure it in place.
- Locate the engine cover and remove it by unfastening the bolts. This will expose the top portion of the engine.
- Identify the timing belt cover, which is a black plastic or metal cover that shields the timing belt. It sits between the engine block and the accessories (like the alternator).
- Use a wrench or socket set to remove the bolts securing the timing belt cover. Set the cover aside.
- With the timing cover removed, you’ll now see the timing belt. It is a long rubber belt running along the front of the engine, connecting the crankshaft and camshaft pulleys.
For easy access, you might need to remove additional components, like the serpentine belt or the alternator, depending on your specific engine configuration. Refer to your car’s service manual for any model-specific steps.
Checking the timing belt condition can help you determine if it’s time for a replacement. If the belt appears worn, cracked, or frayed, it should be replaced to prevent engine damage.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 Mazda 3
To replace the serpentine belt on your 2012 Mazda 3, gather a 15mm socket wrench, a new serpentine belt, and a jack (optional). Start by disconnecting the negative terminal of the battery to avoid any electrical issues.
Next, locate the serpentine belt. It’s usually on the front of the engine, wrapping around pulleys for various accessories like the alternator, AC compressor, and power steering pump. Identify the tensioner pulley, which will allow you to release tension from the belt.
Using a 15mm socket, position the wrench on the tensioner pulley bolt. Rotate the wrench counterclockwise to relieve tension on the belt. Once loose, slide the old belt off the pulleys and remove it.
Before installing the new belt, check the routing diagram, often found under the hood or in the owner’s manual. Compare the new belt to the old one to ensure proper length and size.
Install the new serpentine belt by following the routing path exactly. Make sure it sits properly in the grooves of each pulley. Be cautious not to skip any pulleys or cause the belt to slip out of alignment.
After the belt is in place, rotate the tensioner pulley again with your socket wrench to allow the belt to tension properly. Double-check the belt’s positioning to ensure it runs smoothly and securely across all pulleys.
Reconnect the battery’s negative terminal and start the engine. Listen for any unusual noises or vibrations that could indicate a misalignment. If everything runs smoothly, the replacement is complete.
For added safety, inspect the belt periodically for wear and tear. A properly installed serpentine belt keeps your engine running efficiently and avoids unnecessary repairs.
Understanding the Tensioner and Pulley System in the 2012 Mazda 3 Belt Layout
The tensioner and pulley system in the 2012 Mazda 3 is crucial for maintaining proper belt alignment and function. The belt system relies on precise tension to prevent slippage, ensure smooth operation, and reduce wear. The tensioner is a spring-loaded device that automatically adjusts the tension of the serpentine belt, while pulleys guide the belt around various engine components.
The tensioner itself is mounted on the engine block and works by applying consistent pressure to the serpentine belt. Over time, the tensioner may lose its ability to maintain proper tension, leading to belt noise or premature wear. If the tensioner is not functioning properly, the belt can become too loose, leading to slippage and potential damage to critical engine components like the alternator, power steering pump, and water pump.
The pulleys in the system help direct the serpentine belt over key components. The idler pulley ensures the belt runs smoothly without unnecessary friction, while the alternator and crankshaft pulleys deliver power to the respective parts. Any damage to a pulley, such as wear or misalignment, can affect the entire belt system and result in the belt either jumping off or failing to turn specific components.
For maintenance, regularly inspect the tensioner for signs of wear or rust, as this can indicate problems with tension regulation. Also, check the pulleys for smooth rotation. If any pulley is stiff, noisy, or damaged, it’s time to replace it to avoid causing further damage to the system.
In short, the tensioner and pulleys must function together in harmony to keep the belt properly tensioned and the engine components running efficiently. Neglecting this system can lead to engine complications, expensive repairs, and reduced vehicle performance.
