2011 Honda Pilot Belt Diagram and Routing Guide

If you’re looking to troubleshoot or replace the belt system in a 2011 Honda Pilot, understanding the belt diagram is crucial. The diagram provides an overview of the belt routing and is essential for correctly installing and maintaining the engine’s serpentine belt. Start by locating the diagram, which is often found under the hood, near the radiator or on the engine cover. If it’s missing, you can usually find the exact diagram in the vehicle’s service manual or online resources.

Make sure to check the tension of the serpentine belt before any replacement. The belt should be tight enough to avoid slipping but not so tight that it causes undue strain on the pulleys. Use the correct tools, such as a belt tension gauge, to confirm that the tension is within manufacturer specifications.

While replacing the belt, also inspect the pulleys, idler arms, and tensioner for any signs of wear or damage. These components play a crucial role in the belt system’s functionality. If you notice any unusual wear, replacing these parts at the same time can prevent further issues down the road.

After installation, double-check the belt routing and ensure that the belt runs smoothly over all pulleys. A proper fit will reduce noise and vibration, leading to a longer-lasting belt system. Follow the manufacturer’s specifications to ensure your 2011 Pilot runs at its best.

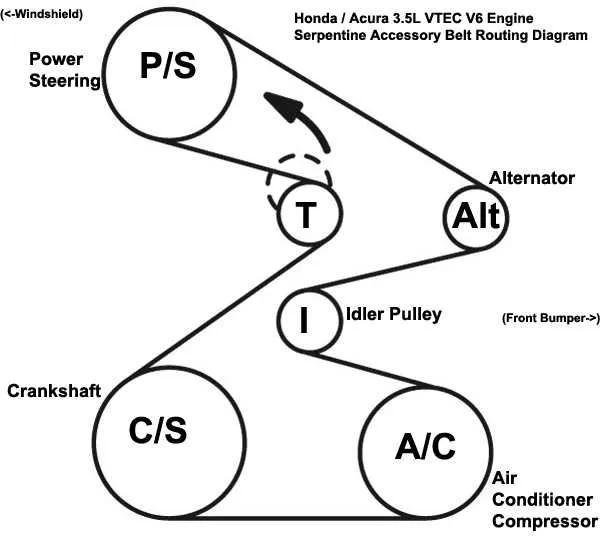

2011 Pilot Belt Diagram

The 2011 Honda Pilot belt diagram is a critical reference for replacing or inspecting the vehicle’s serpentine belt system. Ensure that the belt routing follows the diagram closely to avoid any operational issues. The diagram typically shows the path the serpentine belt takes around the engine’s pulleys, including the alternator, power steering pump, air conditioning compressor, and tensioner. Pay special attention to the direction of rotation for each component to prevent misalignment.

To replace the belt, first, locate the tensioner pulley. Use a socket wrench to relieve tension and remove the old belt. Compare the new belt’s length and specifications to the old one to ensure proper fit. Follow the diagram carefully, starting from the crankshaft pulley and working your way through the various pulleys. Make sure the belt sits firmly in the grooves of each pulley without any twists. Once the belt is in place, check for proper tension by pressing down on the belt with your fingers–it should give slightly but not feel loose.

After installing the new belt, rotate the engine by hand to verify the belt is running smoothly across all pulleys. Double-check that the belt remains aligned and correctly tensioned. If you hear any unusual noises, inspect the belt again to ensure it is properly routed and not slipping.

If the diagram is missing or unclear, consult the vehicle’s service manual for an accurate reference. Keeping the belt system in good condition is crucial for the smooth operation of your vehicle, so regular inspections are recommended.

Identifying Belt Routes in the 2011 Pilot Engine Compartment

To accurately identify the belt routes in the 2011 Honda Pilot engine compartment, start by locating the serpentine belt. This is the primary belt that powers various accessories, such as the alternator, power steering pump, and air conditioning compressor. It is routed around several pulleys in the engine bay.

• Locate the tensioner pulley near the top of the engine. This is the part that maintains proper tension on the belt.
• Follow the serpentine belt from the crankshaft pulley, which is located at the bottom of the engine, up toward the alternator and power steering pump.
• Ensure the belt runs smoothly over the idler pulleys, which guide it along its path without direct power transmission.
• The air conditioning compressor will be towards the passenger side, connected by the same belt.
• Examine the belt routing diagram, typically found on the engine compartment’s underside of the hood, to verify the correct path of the belt.

If you’re replacing the belt, ensure the new belt follows the exact same route as shown in the diagram. Misrouting the belt can cause damage to engine components or lead to improper function of accessories.

Always check the condition of each pulley, particularly the tensioner and idler pulleys, to ensure they are functioning properly before installing a new belt.

Step-by-Step Guide to Replacing the Timing Belt in the 2011 Pilot

To replace the timing belt in your 2011 Pilot, begin by ensuring you have the correct tools: a ratchet, socket set, pulley puller, torque wrench, and the new timing belt kit with all necessary components.

Start by disconnecting the negative battery terminal to avoid any electrical hazards. Remove any engine covers or components blocking access to the timing belt area, such as the air intake or the engine mount. Make sure the engine is cool before proceeding.

Next, remove the front passenger side wheel and the plastic fender liner to gain access to the crankshaft pulley. Use a socket wrench to loosen the crankshaft bolt and remove the pulley. This will expose the timing cover bolts. Unscrew and remove the cover to reveal the timing belt and pulleys.

Before removing the old timing belt, align the timing marks on the crankshaft and camshaft pulleys with their respective marks on the engine block. This ensures proper timing when you install the new belt. Use a wrench to hold the crankshaft in place while you remove the tensioner. Once the tensioner is loose, you can take off the old timing belt.

Install the new timing belt by first fitting it over the camshaft and crankshaft pulleys. Make sure the belt is tight around the sprockets but not over-tightened. Reinstall the tensioner and adjust it according to the manufacturer’s specifications. Double-check the timing marks to ensure they align correctly.

Once the timing belt is secured, replace the timing cover and reinstall the crankshaft pulley. Torque the crankshaft bolt to the recommended specifications. Reassemble the fender liner and wheel, then reconnect the negative battery terminal.

Start the engine and listen for any unusual noises. If everything runs smoothly, you’ve successfully replaced the timing belt in your 2011 Pilot.

Troubleshooting Common Belt Issues in the 2011 Honda Pilot

If your 2011 Honda Pilot is showing signs of belt issues, the first step is to check for visible wear or damage. Look for cracks, fraying, or excessive glazing on the serpentine or timing belts. These could be signs that the belt is approaching the end of its lifespan and needs to be replaced.

Ensure the tension on the serpentine belt is correct. A loose belt can cause squealing noises and poor performance in various engine systems, including the alternator and power steering pump. Use a belt tension gauge to verify proper tension, and adjust or replace the tensioner if necessary.

If you notice a whining or high-pitched noise from the engine, the issue may be related to misalignment of the pulleys. Inspect the alignment of the pulleys and ensure they are all properly aligned. Misalignment can cause uneven wear on the belt, leading to early failure.

In some cases, the belt may slip due to contamination from oil, coolant, or other fluids. Check the engine compartment for any fluid leaks and address the source of the leak before replacing the belt. A contaminated belt will not grip the pulleys properly, resulting in poor performance and potential belt failure.

Finally, if your vehicle is experiencing overheating, the issue could be linked to the water pump belt. Inspect the water pump and its associated components to ensure proper operation. A malfunctioning water pump can cause engine overheating and further belt damage.
