2011 Nissan Maxima Serpentine Belt Diagram and Routing Guide

The 2011 Nissan Maxima belt diagram is a vital tool for ensuring proper belt routing during maintenance or repair. It shows the correct placement of the serpentine belt, which drives components like the alternator, air conditioning, and power steering pump. Following this diagram will help you avoid common installation errors and prevent unnecessary wear on the belt.

Before starting, check if the belt needs replacing. A worn or cracked belt can cause squealing noises and affect vehicle performance. If you’re replacing the serpentine belt, use the diagram to ensure correct tensioner positioning and proper routing. Incorrect alignment can lead to belt slippage and inefficient operation of engine accessories.

Having access to the correct diagram can also help diagnose issues such as power loss to accessories or unusual engine noises. Keep the diagram handy during repairs to guarantee that all components are connected and functioning as designed, improving the reliability and performance of your vehicle.

2011 Maxima Belt Diagram

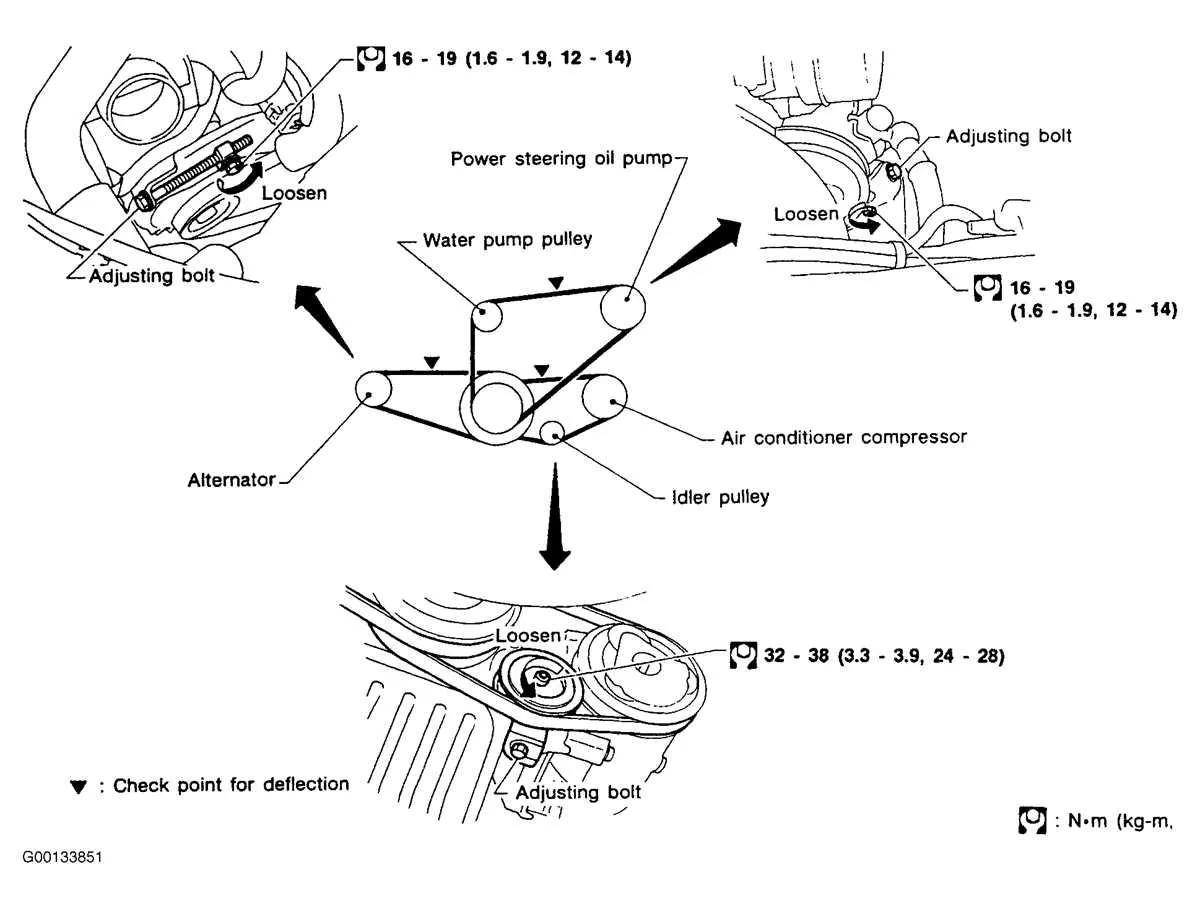

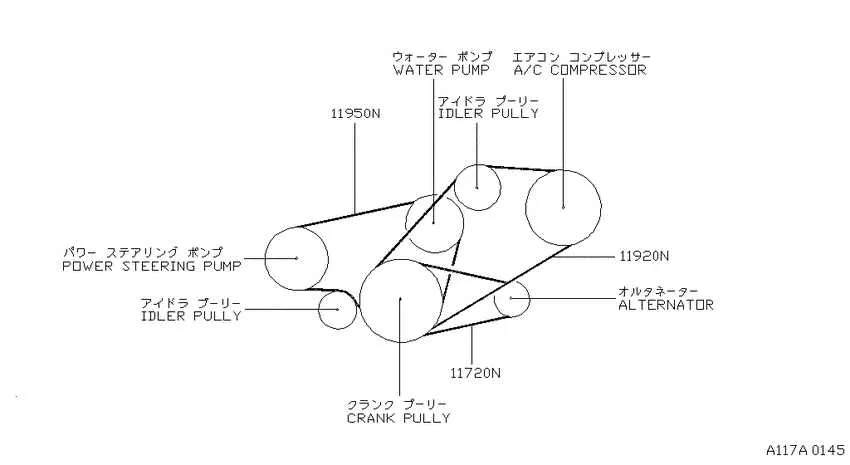

To replace the serpentine belt on a 2011 Nissan Maxima, you will need a clear understanding of its layout. The diagram shows the routing of the belt around various pulleys, including the alternator, power steering pump, and air conditioning compressor. Make sure the tensioner is correctly adjusted to avoid excessive slack or tightness. Use a socket or wrench to relieve tension on the tensioner pulley and remove the old belt. Pay attention to the belt’s directional arrows for proper installation. Always check for any signs of wear, such as cracks or fraying, before installing a new belt.

Locate the tensioner pulley to release tension. The belt should be routed in the correct direction, with grooves on the pulley matching the grooves on the belt. Double-check the diagram to ensure the correct path and alignment for optimal performance. If any pulleys are misaligned or damaged, replace them before installing the new belt.

After replacing the belt, rotate the engine manually to confirm the belt seats properly and runs smoothly without slipping. A correctly installed belt should be taut but not overly tight. Lastly, test the vehicle for any unusual sounds or issues with the belt system once the engine is started.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Maxima

Begin by disconnecting the negative terminal from the battery to avoid electrical hazards. Once that’s done, locate the serpentine belt on the front of the engine. Use a 3/8-inch drive ratchet to loosen the tensioner pulley. Turn it counterclockwise to relieve tension from the belt. Slide the belt off the pulleys while ensuring you remember the routing pattern for reinstallation.

Next, remove the old serpentine belt from the engine. Inspect the belt for any signs of wear such as cracks or fraying. Place the new belt onto the pulleys, following the original routing path you noted earlier. Ensure the belt sits correctly in all grooves and aligns with each pulley.

Once the new belt is in place, use the ratchet to move the tensioner pulley again, this time clockwise, to apply tension to the new belt. Double-check the alignment of the belt across all pulleys to make sure it’s seated properly.

Reconnect the battery terminal and start the engine. Listen for any unusual sounds that could indicate improper installation or belt misalignment. If everything runs smoothly, the replacement is complete.

Troubleshooting Common Belt-Related Issues in the 2011 Maxima

If you notice unusual noises or your engine performance declines, check the serpentine belt and related components. A worn or damaged belt can lead to poor power delivery and engine strain.

First, inspect the belt for cracks, frays, or glazing. If any of these signs are present, replace the belt. Pay attention to the belt tensioner as well. A loose or failing tensioner can cause the belt to slip, resulting in abnormal noise or engine malfunction. Ensure the tensioner is providing proper tension by checking the resistance during rotation.

Listen for squealing sounds, which may indicate a misaligned pulley or a worn-out belt. Inspect all pulleys for signs of wear, misalignment, or corrosion. If the pulleys are not running smoothly, they could cause the belt to wear prematurely. Lubricate pulleys and replace damaged ones as necessary.

For belts that squeal only when the engine starts, the problem may be related to cold weather causing the belt to stiffen. In such cases, ensure the belt is properly adjusted and free from excessive moisture or ice.

If the car has trouble starting or stalls, the problem could stem from the alternator belt. A failing alternator belt can result in the alternator not charging the battery properly. Check the alternator’s voltage output to confirm whether the belt is functioning correctly.

Regularly inspect the belt’s condition and the surrounding components to avoid unexpected breakdowns and maintain your vehicle’s reliability.

Understanding the Layout of the 2011 Maxima Belt System

The 2011 Nissan Maxima’s belt system is a complex assembly designed to ensure the proper operation of key engine components. It is important to recognize how each belt interacts with various pulleys, ensuring smooth functionality across the engine. Pay attention to the serpentine belt, the timing belt, and their respective roles in powering different systems within the vehicle.

The serpentine belt is the main driver for the alternator, power steering, air conditioning, and water pump. This single, continuous belt loops around multiple pulleys, providing power to these systems. Over time, this belt can stretch or wear, leading to squeaks or potential failure. Inspect the belt periodically for cracks or fraying, and replace it according to manufacturer guidelines.

The timing belt is another critical component, responsible for synchronizing the rotation of the engine’s camshaft and crankshaft. This ensures that the valves open and close at the correct times during the engine cycle. If the timing belt breaks, it can cause severe engine damage, so it is vital to replace it at the recommended interval to avoid costly repairs.

Proper tension is key for both the serpentine and timing belts. Tensioners maintain the correct pressure, preventing slippage or over-tightening, both of which can lead to system failures. Regularly check for proper alignment of these belts to ensure that the pulleys and tensioners are functioning as designed.

• Inspect belts every 30,000-60,000 miles or as recommended.
• Replace the serpentine belt at the first signs of wear.
• Follow the recommended timing belt replacement interval, typically between 60,000-100,000 miles.
• Check for any belt misalignment or unusual noise as signs of tension problems.

Understanding the layout of the 2011 Maxima’s belt system and maintaining the belts in good condition can prevent unexpected breakdowns and extend the engine’s lifespan.
