2010 Scion XB Serpentine Belt Routing Diagram and Installation Guide

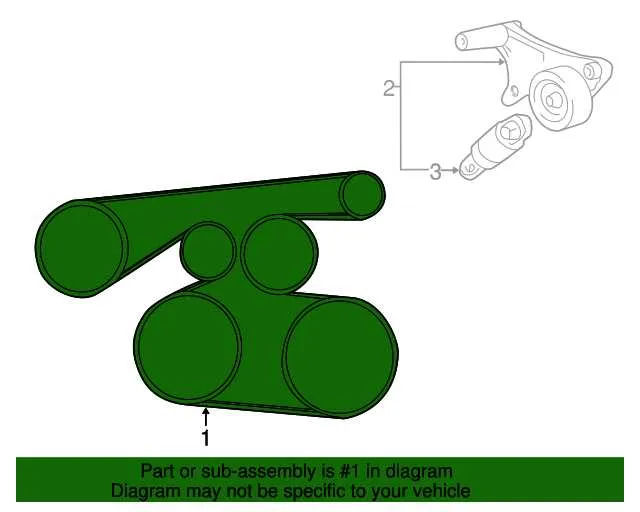

To replace or inspect the serpentine belt on a 2010 Scion XB, it’s crucial to understand the exact routing and components involved. Start by checking the diagram to ensure proper alignment of the belt across the engine. This diagram shows the precise positioning of the belt around pulleys, tensioners, and the alternator, which is key to avoiding misalignment and unnecessary wear.

The belt runs through several critical engine parts, including the alternator, power steering pump, and air conditioning compressor. It’s a continuous loop that keeps these components powered, so accurate placement is a must. Using the belt diagram, you’ll notice how the tensioner plays a role in maintaining correct tension for optimal belt operation.

Before starting, make sure to inspect the belt for any cracks, fraying, or signs of wear. If replacing the belt, ensure you use the correct part number for a 2010 Scion XB, as using the wrong belt could lead to engine damage or failure. Once the new belt is installed, double-check that it follows the diagram precisely to prevent future issues.

2010 Scion xB Belt Diagram

To ensure smooth operation of your 2010 Scion xB’s engine, check the belt layout regularly. The accessory belts power critical components such as the alternator, power steering pump, and air conditioning compressor. An accurate belt diagram helps avoid mistakes during replacement or repairs.

The 2010 Scion xB uses a serpentine belt system. The diagram shows how the belt loops around pulleys for various engine components. It’s vital to follow the correct routing to avoid damage or reduced performance. The diagram also highlights pulley tensioners and idler pulleys that adjust the belt’s tightness for optimal operation.

For reference, locate the diagram on the engine bay’s plastic cover, or consult the vehicle’s manual for a detailed view. This guide also includes clear identification of each pulley, so you can match it with your replacement belt for the exact fit.

In case of belt failure, inspect for fraying, cracks, or wear on the belt’s surface. Replacing it promptly avoids the risk of engine failure. Regular inspection and proper tension adjustment prolong the belt’s lifespan and prevent costly repairs.

How to Identify the Correct Belt Routing for 2010 Scion xB

To correctly route the serpentine belt on a 2010 Scion xB, follow these steps:

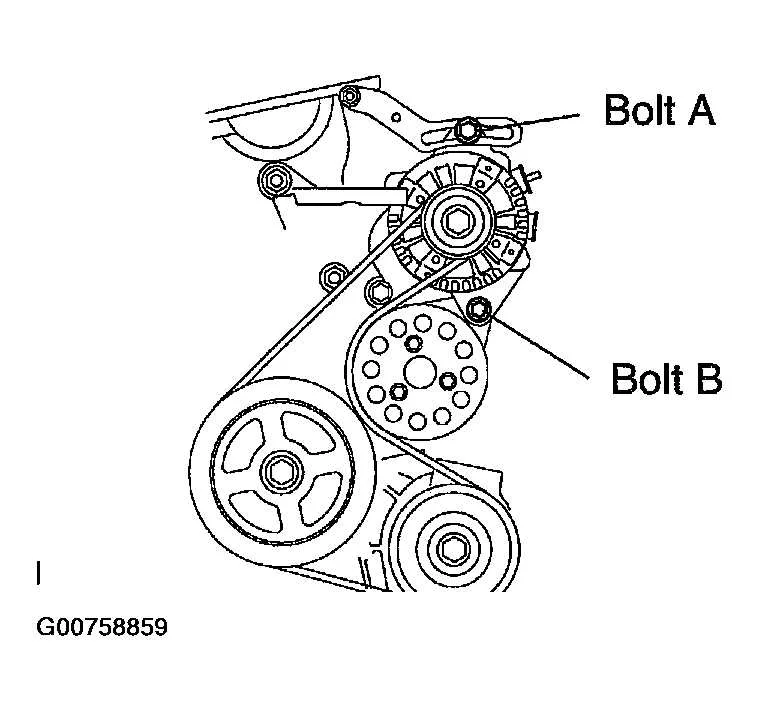

• Locate the Belt Routing Diagram: The first step is to find the belt routing diagram, which is usually printed on a label near the engine bay. Check near the radiator or on the hood for this information.
• Identify the Components: The diagram should clearly show the belt path around the alternator, power steering pump, AC compressor, and tensioner. Familiarize yourself with these components and their locations.
• Check for Belt Tensioner: The tensioner pulley ensures the correct belt tension. It must be positioned correctly within the diagram for the belt to function properly.
• Remove the Old Belt (if applicable): If replacing the belt, use a wrench or socket to rotate the tensioner and release tension on the old belt. Carefully remove the belt from the pulleys.
• Position the New Belt: Align the new belt according to the diagram. Start by threading the belt around the largest pulleys first, and ensure it fits snugly in the grooves.
• Double Check the Routing: Once the belt is in place, visually verify that it follows the correct path outlined in the diagram. Ensure it fits properly on each pulley, including the tensioner and idler pulley.
• Test the Belt: Rotate the tensioner back into place to secure the belt, and start the engine. Check for any unusual noises or signs of improper routing, such as squealing or slipping.

By following these steps, you ensure the serpentine belt on your 2010 Scion xB is correctly routed for optimal performance.

Step-by-Step Guide to Replacing the Serpentine Belt in a 2010 Scion xB

To replace the serpentine belt in a 2010 Scion xB, begin by disconnecting the vehicle’s negative battery terminal to ensure safety. With the car off, locate the belt tensioner, a pulley with a bolt in the center. Use a wrench or socket wrench to rotate the tensioner counterclockwise. This will loosen the tension on the serpentine belt. Carefully slide the belt off the pulleys, noting the routing path for reinstallation.

Next, remove the old belt and inspect the pulleys for wear or damage. If any pulley is damaged, replace it before installing the new belt. Compare the new serpentine belt to the old one to confirm the correct size and length.

Now, begin routing the new belt over the pulleys, following the same path as the old one. Be sure the belt is seated properly on all pulleys. Once the belt is in place, use the wrench or socket to rotate the tensioner again, allowing it to apply tension to the belt.

Finally, double-check that the belt is securely positioned on all pulleys. Reconnect the negative battery terminal and start the engine to verify that the belt is functioning correctly and there are no unusual sounds.

Troubleshooting Common Issues with the 2010 Scion xB Belt System

If the belt system in your 2010 Scion xB isn’t performing as expected, it’s important to check several key areas to ensure everything runs smoothly. Start by inspecting the serpentine belt for any visible signs of wear, such as cracks, fraying, or glazing. A damaged belt will often cause squealing noises or power steering failure.

Next, check the tensioner and idler pulleys. These parts can wear out over time, leading to poor belt alignment or tension. A malfunctioning tensioner can result in slippage or excessive belt wear. If you notice unusual sounds or slipping, it might be time to replace the tensioner or pulley.

The alternator pulley is another component to watch. A failing alternator pulley can cause the belt to misalign, making it harder for the belt to stay in place. Check the pulley’s condition and the alternator for smooth operation. If there’s any wobble or resistance, it may require replacement.

In cases where the AC compressor or power steering pump is involved, ensure their pulleys are turning freely without resistance. A seized pulley can put additional strain on the belt, leading to premature failure. If you notice overheating or a loss of power steering, inspect these components for proper function.

For more persistent issues, you may need to check the belt routing diagram. Ensure the belt is correctly aligned with the pulleys and hasn’t slipped out of position. Incorrect routing will cause uneven wear and poor engine performance.

Lastly, check the belt tension. A loose or overly tight belt can cause a range of issues, from poor engine performance to premature wear. Adjusting the tension properly is key to maintaining optimal performance.
