2010 Mitsubishi Galant Serpentine Belt Diagram and Routing Guide

To replace the serpentine belt on a 2010 Mitsubishi Galant, start by locating the belt routing diagram. This diagram is typically found on a sticker near the radiator or engine bay. It provides a clear view of how the belt loops around various pulleys and components.

Next, use a wrench or a belt tensioner tool to release the tension on the belt. This will allow you to remove the old belt with ease. Carefully observe the placement of the belt before removal so you can properly install the new one.

Once the old belt is removed, align the new belt according to the routing diagram. Double-check each pulley’s position and make sure the belt fits tightly but without excessive force. Tighten the tensioner to ensure the belt stays in place and operates smoothly.

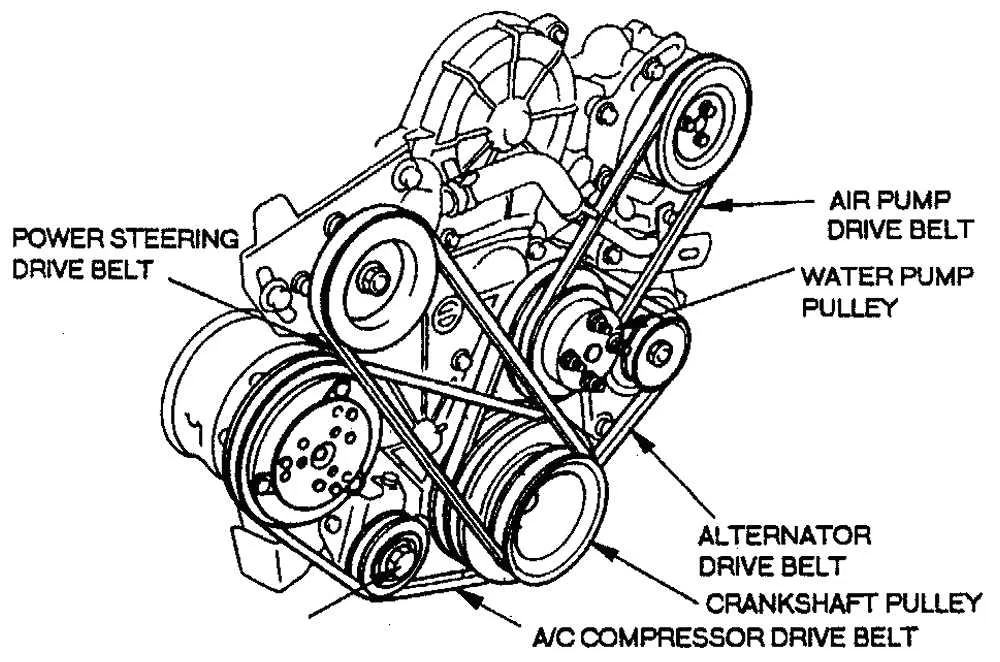

2010 Mitsubishi Galant Belt Diagram

Refer to the belt diagram for a clear layout of the serpentine belt system in the 2010 Mitsubishi Galant. This diagram shows the correct routing of the serpentine belt, ensuring all components like the alternator, power steering pump, air conditioning compressor, and water pump are connected properly.

The serpentine belt should be inspected regularly for wear and tension. Ensure the belt is aligned with the pulleys and there are no signs of fraying, cracking, or glazing. If you notice any of these issues, replacing the belt immediately will prevent further damage to engine components.

Use the diagram to guide you when installing a new belt. Start by routing the belt over the crankshaft pulley, and follow the path according to the diagram. Make sure the belt fits snugly and operates smoothly across all pulleys. Check the tension and adjust if necessary, using the automatic tensioner or a manual tool depending on your model.

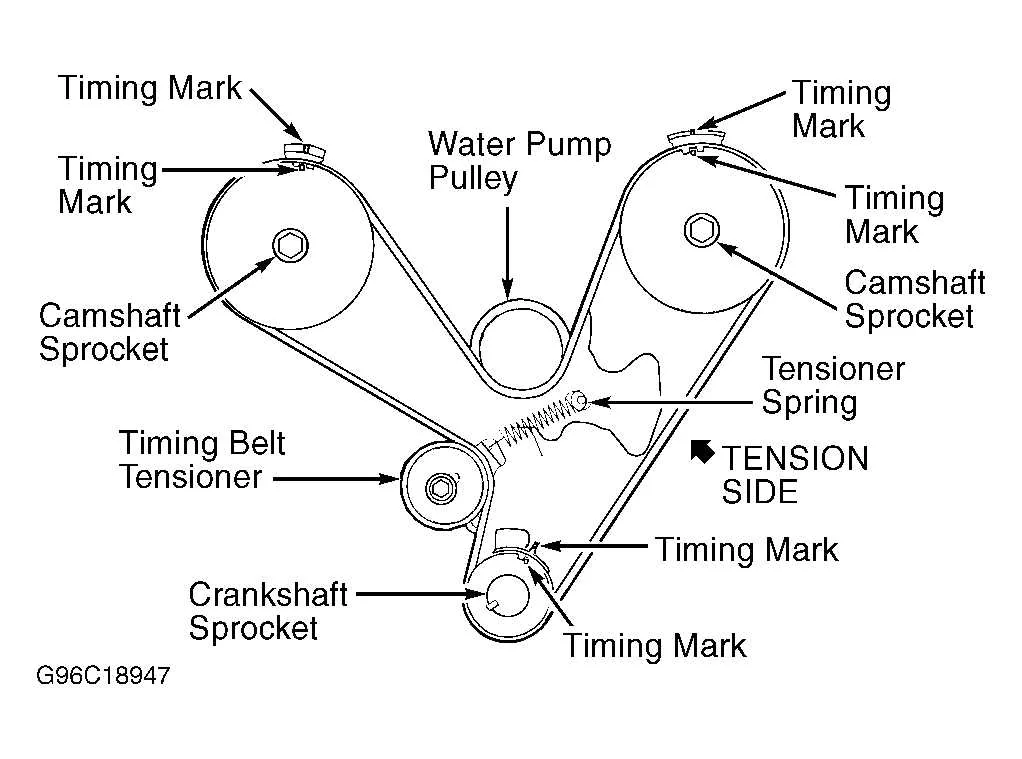

Locate the Key Components in the 2010 Mitsubishi Galant Belt System

Start by identifying the serpentine belt, which connects multiple components, including the alternator, power steering pump, and air conditioning compressor. This belt runs across various pulleys and guides, ensuring smooth operation of the engine accessories.

The tensioner pulley is a critical part of maintaining proper belt tension. It automatically adjusts to keep the serpentine belt tight, preventing slippage. Look for a small pulley with an adjustable arm near the belt’s path.

The idler pulley is another essential component. This pulley helps maintain the correct alignment of the belt and supports its overall routing. It is usually found in the middle of the serpentine belt’s path, functioning to reduce stress on other components.

The crankshaft pulley serves as the primary driver for the belt system. It is located at the bottom of the engine and connected to the engine’s crankshaft. This pulley drives the serpentine belt, allowing the power from the engine to be transferred to various accessories.

Check the water pump pulley. This component ensures the smooth operation of the engine’s cooling system by driving the water pump, which circulates coolant throughout the engine. It is often positioned towards the front of the engine block.

Lastly, inspect the air conditioning compressor pulley. Located near the serpentine belt path, it drives the compressor, enabling the air conditioning system to function effectively.

Step-by-Step Instructions for Removing and Replacing the Serpentine Belt

To remove the serpentine belt on your 2010 Mitsubishi Galant, start by disconnecting the negative terminal of the battery to avoid accidental electrical contact.

Locate the tensioner pulley. Use a socket wrench to rotate the tensioner counterclockwise, which will release the tension on the serpentine belt. Once the tension is released, slide the belt off the pulleys.

Inspect the belt for wear before removing it. If it’s worn or damaged, replace it with a new one that matches the specifications for your model.

When installing the new belt, ensure that it follows the correct routing. Refer to the belt diagram specific to the 2010 Galant, which can usually be found on a sticker near the engine bay or in the vehicle’s manual.

Place the new belt around all the pulleys, leaving the tensioner pulley for last. Rotate the tensioner counterclockwise again and slide the belt over the tensioner pulley. Once the belt is in place, slowly release the tensioner to apply the proper tension to the belt.

Double-check that the belt is properly aligned with all the pulleys and that there is no slack. Reconnect the battery and start the engine to verify that the belt is functioning correctly and making no abnormal noise.

Understanding the Proper Serpentine Belt Routing for 2010 Mitsubishi Galant

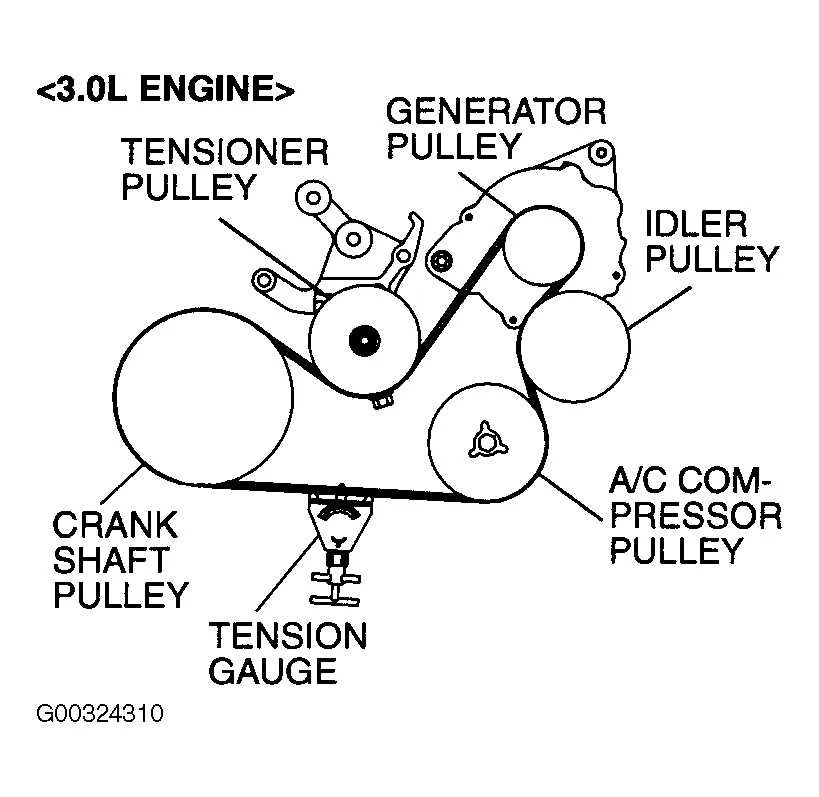

The serpentine belt routing in the 2010 Mitsubishi Galant follows a specific path around several components of the engine. Ensuring the correct routing is critical for the belt’s performance and longevity. Here’s how to correctly route the serpentine belt:

• Start by locating the tensioner pulley. This is where the belt is either loosened or tightened for adjustment.
• Next, route the belt around the crankshaft pulley at the bottom of the engine, following the direction indicated by the diagram for your specific engine model.
• Bring the belt up to the alternator, ensuring the groove fits tightly in the pulley. The alternator is crucial for charging the battery while the engine is running.
• Proceed by routing the belt over the power steering pump pulley. Make sure it fits snugly without twisting.
• Guide the belt around the water pump pulley, ensuring it aligns properly. This is vital for the engine’s cooling system.
• Make sure to route the belt around the AC compressor pulley. Verify that the belt is taut but not over-tightened.
• Finish by routing the belt back around the idler pulley if applicable, and verify its position on the tensioner pulley.

Double-check the belt’s tension once it’s in place. If necessary, use the tensioner to adjust it so it is neither too tight nor too loose. Incorrect tension can cause premature wear or slipping.

Refer to the belt diagram located near the engine compartment for exact routing, as different trim levels may have slightly varying configurations.
