2010 Mazda CX-7 Belt Diagram and Routing Guide
For proper maintenance and troubleshooting of your 2010 Mazda CX-7, understanding the belt diagram is crucial. The serpentine belt system drives key components such as the alternator, power steering pump, and air conditioning compressor. Accurate belt routing ensures smooth operation and prevents potential issues like premature wear or failure of connected parts.
Check the belt routing carefully before performing any maintenance tasks. A visual reference of the belt diagram will help you confirm correct placement, especially when replacing the serpentine belt. Incorrect routing may lead to improper tension and cause damage to the engine components over time.
Regularly inspect the belt for signs of wear or cracks. A damaged or loose belt can affect the vehicle’s performance and should be replaced immediately. Refer to the diagram when removing and installing the new belt to ensure it aligns properly with all pulleys.

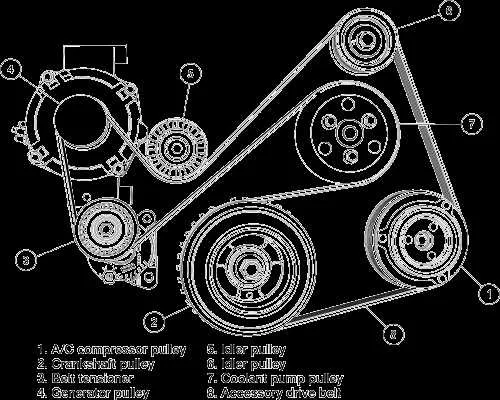

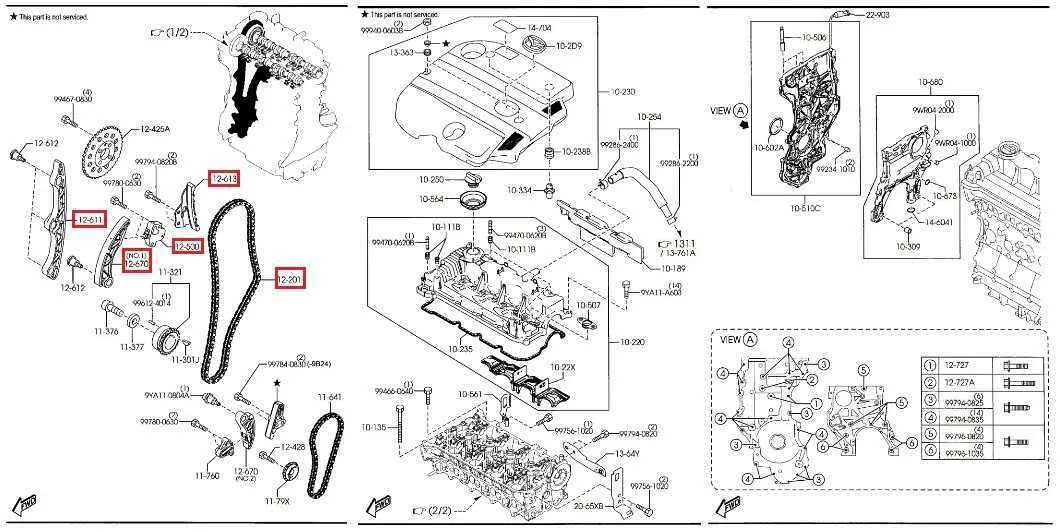

2010 Mazda CX-7 Belt Diagram
The 2010 Mazda CX-7 uses a serpentine belt to drive multiple engine accessories. Proper belt routing is crucial to ensure efficient operation and prevent component wear. Here’s a breakdown of the belt diagram and key details for replacing the belt:
- The serpentine belt runs around the alternator, power steering pump, air conditioning compressor, and the water pump.
- Ensure the belt is routed correctly around all pulleys as shown in the service manual to avoid misalignment.
- Check for proper tension when installing the new belt. A loose belt can cause slipping, while a tight belt can lead to excessive wear.
To replace the belt:
- Release tension from the tensioner pulley using a wrench.
- Remove the old belt carefully, noting the routing path.
- Install the new belt, ensuring it follows the correct path around each pulley.
- Check for proper belt tension once it’s in place.
Check the belt for signs of wear, such as cracks, fraying, or glazing. Replace the belt if necessary to maintain proper function of the vehicle’s systems.
Understanding the Belt Routing for 2010 Mazda CX-7
To correctly route the belt on the 2010 Mazda CX-7, follow these steps. The serpentine belt is responsible for driving various engine components like the alternator, power steering pump, and air conditioning compressor. Ensuring proper routing is vital for the engine’s performance and longevity.
| Component | Position |
|---|---|
| Alternator | Top-left of the engine |
| Power Steering Pump | Bottom-left of the engine |
| Air Conditioning Compressor | Right side, facing the engine |
| Crankshaft Pulley | Bottom center of the engine |
| Tensioner Pulley | Near the top-right side |
The routing should follow a specific path starting from the crankshaft pulley. The belt moves to the tensioner pulley, then routes around the alternator, power steering pump, and the air conditioning compressor. Ensure the belt is routed through the tensioner to maintain the correct tension for optimal performance.
Check the belt for any wear or damage before installing. If there’s visible cracking or fraying, replace the belt before re-routing it to avoid failure. Make sure the belt is aligned with all pulleys and not twisted. Incorrect routing or a misaligned belt can cause malfunction or even engine damage.
How to Identify Common Belt Issues in Mazda CX-7
Inspect the belt for visible signs of wear such as cracks, fraying, or glazing. These indicate that the belt is nearing the end of its lifespan and may need replacement. Regularly check the tension; a loose belt can cause slipping, while a belt that is too tight can damage surrounding components.
If you hear squealing or chirping noises from the engine bay, it may point to improper belt alignment or an issue with the tensioner. Listen for such sounds, especially when starting the engine or accelerating.
Check for irregular belt movement. If the belt appears to be wobbling or misaligned on the pulleys, this could indicate a misalignment of the pulleys or a failing tensioner. A properly aligned belt should track straight and smoothly.
Inspect the belt routing. If the belt is routed incorrectly, it can cause excessive wear on certain sections, leading to premature failure. Refer to the factory belt diagram for proper routing.
Examine the pulley system. Worn or damaged pulleys can also cause belt issues. If any pulleys are not spinning freely or appear damaged, they should be replaced as they can cause belt slippage or misalignment.
Monitor the performance of the alternator and other accessories. If electrical components or accessories like power steering are malfunctioning, the belt might not be transferring power properly, signaling an issue with belt tension or alignment.
Step-by-Step Guide for Replacing the Belt on 2010 Mazda CX-7
Begin by disconnecting the negative terminal of the battery to avoid electrical issues during the replacement process.
Use a socket wrench to loosen the tensioner pulley and relieve tension from the belt. Rotate the tensioner in a clockwise direction to create enough slack for removing the belt.
Remove the old belt from all pulleys. Pay attention to the routing and take note of the belt’s path for installation of the new one.
Install the new belt, following the routing diagram specific to the 2010 Mazda CX-7. Ensure that the belt sits properly on each pulley, without twisting.
Once the belt is in place, use the socket wrench to rotate the tensioner pulley back to its original position to apply tension to the new belt.
Check the alignment of the belt on all pulleys. Ensure the belt is seated correctly and doesn’t slip off during operation.
Reattach the negative terminal of the battery. Start the engine and check for any unusual noises or vibrations indicating improper belt installation.
Finally, inspect the belt periodically for signs of wear and tear to ensure long-lasting performance.
