2010 Mazda 6 Serpentine Belt Diagram and Routing Instructions

For the 2010 Mazda 6, understanding the belt routing is key to maintaining smooth engine performance. The accessory belts, including the serpentine belt, play a crucial role in powering components like the alternator, power steering pump, air conditioning compressor, and water pump. If any of these belts fail, you’ll experience immediate issues with engine performance or even complete breakdown.

Start by ensuring the proper belt tension and alignment. The 2010 Mazda 6 uses a serpentine belt system, which typically has a single continuous belt running over multiple pulleys. It’s essential to follow the exact routing shown in the diagram to avoid any issues with belt slippage or excessive wear. Always replace a damaged belt promptly to prevent further engine complications.

Refer to the belt diagram often found near the engine bay or consult your owner’s manual for specific details on pulley locations. If you’re replacing the belt yourself, use the correct size and type for your model. Double-check the routing as improper installation can lead to engine component failure or belt damage.

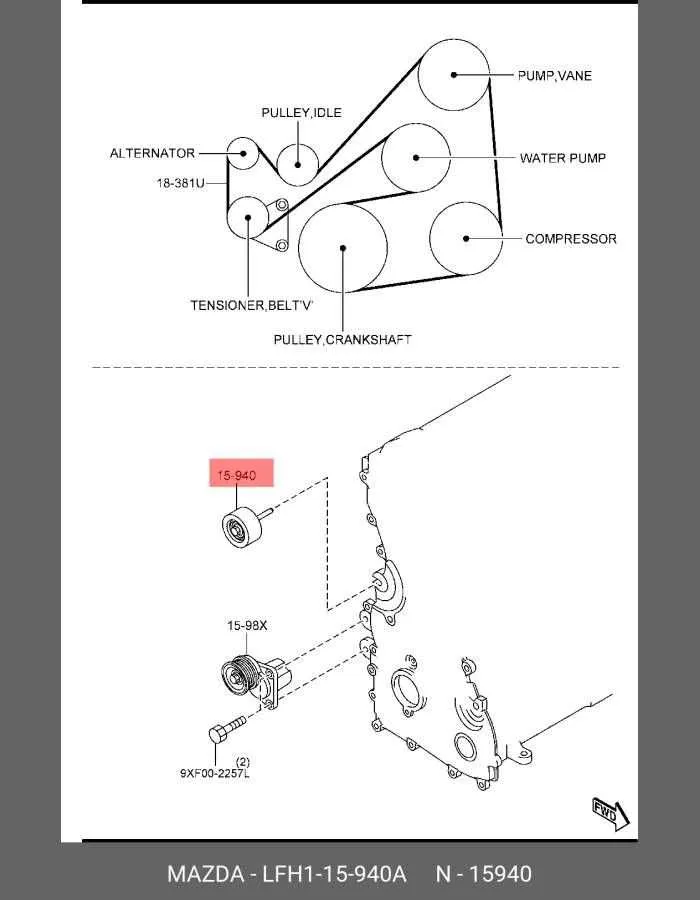

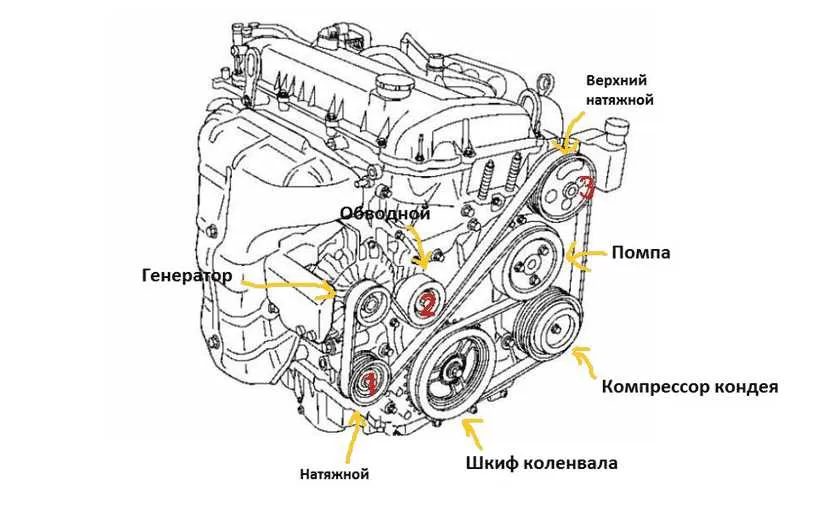

2010 Mazda 6 Belt Diagram

The 2010 Mazda 6 uses a serpentine belt system to drive several components, such as the alternator, power steering pump, water pump, and air conditioning compressor. Understanding the belt routing can help with belt replacement and maintenance. Here’s a step-by-step guide to help you visualize the correct belt configuration.

• The serpentine belt runs from the crankshaft pulley to various components. Ensure that it follows the path over the tensioner, alternator, and air conditioning compressor.
• The tensioner pulley keeps the belt tight, ensuring it doesn’t slip. It’s located between the alternator and the air conditioning compressor.
• Make sure the belt is routed through the power steering pump and the water pump before returning to the crankshaft pulley.
• If your vehicle has an additional component, like an idler pulley, ensure that it’s included in the belt path for proper alignment and tension.

For optimal performance, check the belt periodically for wear and tear. If there are cracks or fraying, replace it immediately to avoid engine damage or loss of power to critical systems.

Refer to the manufacturer’s service manual for detailed diagrams and belt tension specifications specific to your vehicle.

How to Identify the Correct Belt Routing for 2010 Mazda 6

To correctly identify the belt routing for a 2010 Mazda 6, first locate the serpentine belt diagram. This diagram is typically found on a sticker near the radiator or on the front of the engine bay. It provides a clear illustration of the path the belt should follow around pulleys and accessories.

Next, verify that the belt is positioned correctly by checking its alignment on each pulley. Ensure that the belt runs smoothly over the idler and tensioner pulleys, without slipping or misaligning. If the belt is off-track, it can cause premature wear or even damage other components.

If the diagram is worn or unclear, use a service manual for the specific pulley arrangement. Some online resources also provide downloadable diagrams for quick reference. Double-check the direction of the belt installation–serpentine belts usually follow a specific direction based on rib orientation.

For added accuracy, confirm that the tensioner is properly adjusted. An improperly tensioned belt can lead to malfunction, affecting the alternator, power steering pump, and air conditioning compressor.

Common Issues with the Belt System in 2010 Mazda 6

The 2010 Mazda 6 is known for its reliable performance, but the belt system can present several issues over time. One common problem is belt slippage, often caused by worn-out pulleys or improper tensioning. If the belt is slipping, it can lead to poor performance of engine accessories like the alternator and air conditioning, affecting overall driving comfort.

Cracked or damaged belts are another frequent issue. Over time, belts degrade due to heat and wear. If you notice squeaking or screeching noises from the engine, this could be a sign of a damaged belt. It’s crucial to replace any worn or cracked belts immediately to avoid potential engine damage.

Pulley misalignment can also cause the belts to wear unevenly. When the pulleys are not properly aligned, the belt may rub against parts of the engine, resulting in premature wear or even breaking. It’s important to have the pulleys inspected regularly and replaced if needed to keep the system running smoothly.

If you’re experiencing issues with the alternator, air conditioning, or other engine accessories, loose or faulty tensioners could be the culprit. A malfunctioning tensioner can cause the belt to lose proper tension, leading to slippage or belt failure. Tensioner problems are often accompanied by noticeable engine noise and poor accessory performance.

Lastly, keep an eye on the serpentine belt for signs of stretching or wear. A stretched belt can lose its grip on pulleys, affecting engine performance and accessory function. Regular belt inspections and prompt replacements will help prevent more serious issues down the line.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Mazda 6

1. Gather the Necessary Tools and Parts: Ensure you have a new serpentine belt, a wrench set, a socket set, a ratchet, and a belt tensioner tool. Check the belt size and part number to match your vehicle’s specifications.

2. Locate the Serpentine Belt: Open the hood and identify the serpentine belt, which runs across several pulleys in the engine compartment. You can find a belt routing diagram either on the engine bay or in the vehicle manual.

3. Release Tension from the Belt: Using a wrench or belt tensioner tool, rotate the tensioner pulley counterclockwise to relieve tension on the belt. This will allow you to remove the old belt with ease.

4. Remove the Old Serpentine Belt: Once the tension is released, slide the belt off the pulleys. Take note of how it is routed around each pulley before removing it completely. This will help you install the new belt in the same way.

5. Inspect the Pulleys: Before installing the new belt, check the pulleys for any damage or wear. Spin each pulley by hand to ensure they rotate freely. Replace any faulty pulleys before proceeding with the installation.

6. Install the New Serpentine Belt: Start by routing the new belt around the pulleys following the diagram. Be sure to follow the correct path for each pulley, ensuring the belt is properly seated in the grooves.

7. Apply Tension: Use the belt tensioner tool again to rotate the tensioner pulley and apply tension to the new belt. Ensure the belt is tight but not overly stretched.

8. Double-Check the Installation: Verify the belt is aligned correctly with all pulleys and that the tension is appropriate. Turn the engine on briefly to check for any unusual noises or slipping.

9. Final Checks: After the engine runs smoothly, close the hood and inspect the belt one last time. Make sure it is properly routed and remains tight during operation.
