2010 Infiniti G37 Serpentine Belt Diagram and Routing Guide

For proper maintenance of your 2010 Infiniti G37, understanding the belt system is crucial. The diagram below outlines the key components involved in the serpentine belt and timing belt routing, ensuring you can diagnose any potential issues with ease.

The serpentine belt on the 2010 Infiniti G37 is responsible for driving multiple components such as the alternator, power steering pump, water pump, and air conditioning compressor. It’s essential to check its condition regularly and replace it at the manufacturer’s recommended intervals to prevent unexpected failures.

Pay attention to the tensioner and idler pulleys as well. Over time, these parts can wear out, leading to belt slippage or even breakage. Always refer to the diagram to confirm the correct routing of the belt to avoid unnecessary damage to the engine components.

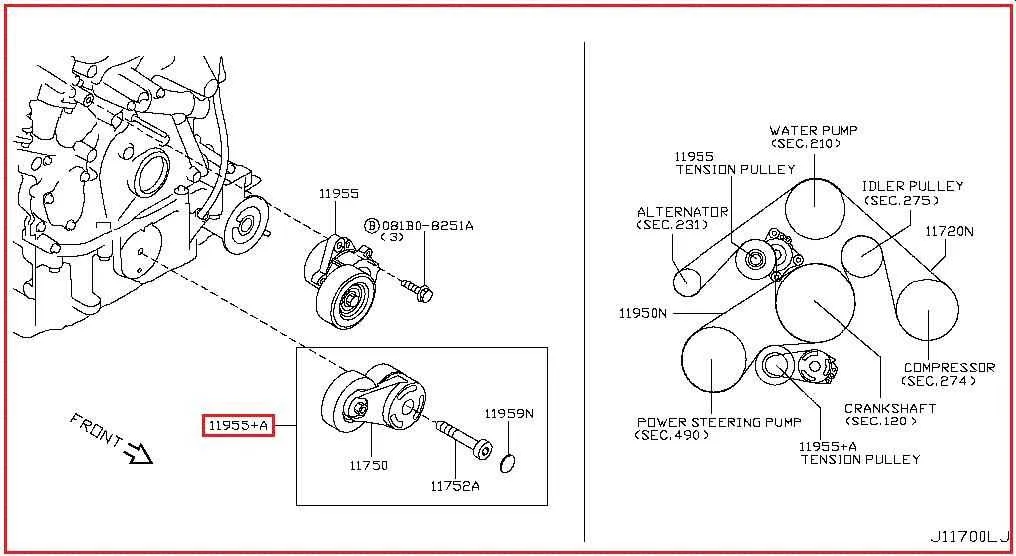

2010 Infiniti G37 Belt Diagram

The 2010 Infiniti G37 uses a serpentine belt system to power various engine components, including the alternator, power steering pump, air conditioning compressor, and water pump. Understanding the belt layout helps during maintenance or replacement. Below is the standard diagram for the 2010 Infiniti G37 belt routing:

The serpentine belt runs through a series of pulleys, with a tensioner pulley keeping the correct amount of tension on the belt. The belt starts from the crankshaft pulley and wraps around the alternator, power steering pump, air conditioning compressor, and finally the tensioner pulley. If you’re replacing the belt, ensure the routing matches the diagram to avoid misalignment or damage to the engine components.

It’s also important to check the condition of the belt for any signs of wear or cracking. Replacing a worn-out belt can prevent unnecessary engine damage and maintain optimal performance. If you’re unsure of the routing, consulting the vehicle’s manual or a professional mechanic is always a safe choice.

How to Locate the Serpentine Belt Routing on 2010 Infiniti G37

To locate the serpentine belt routing on the 2010 Infiniti G37, first open the hood and locate the front of the engine. The serpentine belt is positioned around multiple pulleys, driven by the crankshaft. You’ll find it passing over the alternator, power steering pump, air conditioning compressor, and water pump. The belt’s routing diagram is typically printed on a label attached to the engine bay, usually near the radiator or the fan shroud area.

If you can’t find the diagram in the engine compartment, consult the owner’s manual, as it will have a clear diagram for reference. Additionally, some engines have a plastic cover that hides the serpentine belt system; removing this cover will provide better visibility of the components and belt routing. Pay attention to the belt’s tensioner pulley, which is adjustable and is crucial for keeping the belt tight.

Check the routing carefully to ensure that each pulley is correctly aligned. This will help avoid any misalignment that could lead to premature wear or failure of the belt. If you’re replacing the belt, make sure the new one follows the same path as shown in the diagram, maintaining proper tension on the system.

Common Belt Issues and Troubleshooting for the 2010 Infiniti G37

If you notice unusual noises or performance issues in your 2010 Infiniti G37, it’s likely related to the serpentine or accessory belts. These belts are responsible for driving essential components like the alternator, power steering, and air conditioning compressor. Regular inspection and timely maintenance can prevent unexpected breakdowns.

• Slipping Belt: A slipping belt often causes squealing or squeaking noises. This usually happens if the belt has become worn or loose. To fix it, inspect the tensioner and adjust or replace it as needed. Check for any damage to the belt itself.
• Cracked or Frayed Belts: Cracks and frays on the belt surface are signs of wear and tear. Over time, heat and friction degrade the rubber, leading to visible damage. Replace the belt immediately if you notice cracks or frays to avoid sudden failure.
• Misaligned Pulleys: If the pulleys are not aligned correctly, the belt will wear unevenly, causing it to stretch, fray, or snap. Inspect the pulleys for any signs of misalignment or damage. Ensure the pulleys are clean and in proper condition.
• Worn Tensioner: A faulty tensioner can lead to improper tension on the belt, causing slipping or premature wear. If the belt doesn’t stay tight, replace the tensioner to ensure the belt functions properly.
• Belt Squealing in Cold Weather: When temperatures drop, the rubber in the belts can become stiff, resulting in squealing noises. If the sound disappears after a short time, it may be a sign of a minor issue. However, persistent squealing should prompt you to check belt tension and condition.

To avoid further damage, inspect your belts every 30,000 to 50,000 miles or according to the manufacturer’s recommendation. Keep an eye out for any visible wear and tear and address issues promptly. A functioning belt system is key to the smooth operation of your vehicle, so taking proactive steps can save you from more expensive repairs down the road.

Step-by-Step Guide to Replacing the Serpentine Belt on 2010 Infiniti G37

First, gather all the tools you’ll need: a 3/8-inch ratchet, serpentine belt tool (or breaker bar), socket set, and a new serpentine belt for the 2010 Infiniti G37. Make sure the car is off, with the parking brake engaged.

1. Open the hood and locate the serpentine belt routing diagram. It’s typically found on the radiator support or under the hood. This shows how the belt should run through the pulleys.

2. Identify the tensioner pulley. Use the serpentine belt tool or a ratchet with the appropriate socket to relieve tension from the belt. Turn the tensioner clockwise to loosen the belt. Once the tension is off, slip the belt off the pulleys.

3. Examine the old serpentine belt for any signs of wear, such as cracks, fraying, or glazing. If the belt appears damaged, it’s definitely time for a replacement.

4. Compare the new serpentine belt with the old one to ensure the correct size. Lay the new belt on a flat surface to prevent twists as you install it.

5. Begin routing the new belt according to the diagram. Start with the crankshaft pulley and follow the path shown in the diagram. Be sure to route it around each pulley correctly. Pay close attention to the direction of the ribbed side of the belt, which should face the pulleys with grooves.

6. Once the belt is in place, use the serpentine belt tool again to release tension from the tensioner pulley. This will allow the belt to slide into position. Double-check the routing one more time to confirm the belt is aligned properly with all the pulleys.

7. Carefully inspect the belt’s tension. The belt should be snug but not over-tightened. If everything looks good, run the engine briefly to verify that the belt runs smoothly and silently.

8. Finally, close the hood and clean up your tools. Check for any unusual sounds or vibrations during a short drive to make sure everything is functioning correctly.
