2010 Impala 3.5 Serpentine Belt Routing Diagram and Guide

To replace or inspect the serpentine belt on a 2010 Impala 3.5, start by locating the routing diagram, typically found on a sticker near the engine bay. This diagram will show the exact path the belt takes around the various pulleys, which is critical for proper installation and tension. Double-check that all pulleys and tensioners are in good condition before proceeding.

The serpentine belt in your 2010 Impala 3.5 runs multiple components, including the alternator, water pump, power steering pump, and air conditioning compressor. Make sure to align the new belt exactly as shown on the diagram to prevent slipping or improper tension, which can lead to premature wear or engine damage.

If you’re replacing the belt, it’s recommended to inspect the tensioner as well. A worn-out tensioner can cause the new belt to fail more quickly. Using a tool to relieve tension on the belt, remove the old one, and fit the new belt according to the diagram. Check that the belt is seated correctly on each pulley before reapplying tension.

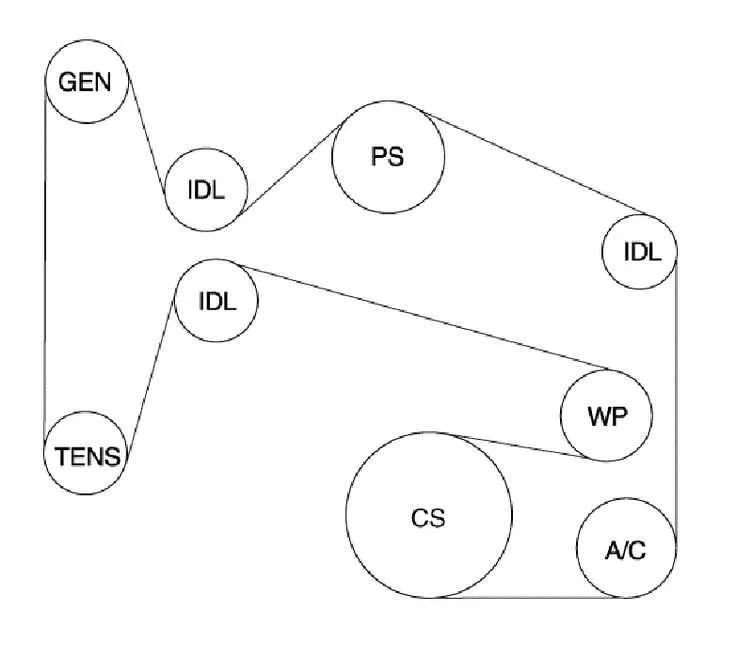

2010 Impala 3.5 Belt Diagram

For the 2010 Impala 3.5, the serpentine belt is a crucial component in powering various engine accessories like the alternator, power steering pump, water pump, and air conditioning compressor. Proper routing ensures the correct operation of these systems. The belt tensioner maintains appropriate tension, preventing slippage and wear.

Refer to the belt routing diagram located on the engine compartment or in the vehicle manual. The diagram shows the path of the serpentine belt around pulleys. Ensure the belt runs smoothly and doesn’t deviate from its proper course. Incorrect routing can lead to malfunction or damage to the belt and accessories.

When replacing the belt, check for wear signs like cracks, fraying, or glazing. It’s advisable to inspect the belt tensioner for any issues, as it can also wear over time. If the tensioner isn’t holding the correct tension, it may need replacement to avoid slipping or failure.

The recommended belt size for the 2010 Impala 3.5 is usually listed as 84.5 inches in length. Ensure you get the correct size before replacement. Always follow the manufacturer’s guidelines for tension specifications to avoid over-tightening, which can stress components, or under-tightening, which could lead to slippage.

Check the belt regularly during maintenance and replace it at intervals recommended by the manufacturer or if any issues arise to keep the engine running smoothly.

Understanding the Layout of the 2010 Impala 3.5 Serpentine Belt

The 2010 Impala 3.5 serpentine belt system plays a key role in driving several engine accessories, including the alternator, power steering pump, and air conditioning compressor. Knowing its layout is necessary for proper maintenance and belt replacement.

First, locate the serpentine belt diagram. It’s typically found near the front of the engine bay, on a label or sticker. This diagram illustrates the exact path the belt follows, helping to prevent any misrouting when replacing the belt.

To help you identify the belt’s routing, here’s a breakdown of the major components it connects:

• Crankshaft Pulley: This is the primary pulley that drives the serpentine belt. It’s located at the bottom front of the engine.
• Alternator: Positioned on the right side, the alternator gets powered by the belt to recharge the battery.
• Power Steering Pump: Located towards the top right, it ensures smooth steering by generating hydraulic pressure.
• Air Conditioning Compressor: Found on the driver’s side, the AC compressor uses the belt for power to cool the cabin.
• Water Pump: In some configurations, the water pump is driven by the serpentine belt, circulating coolant through the engine.

To remove or replace the belt, you need to release tension from the tensioner pulley. Use a ratchet or breaker bar to rotate the tensioner, which will allow the belt to be removed without damaging other components. It’s a good idea to check the condition of all pulleys while you have the belt off, as worn pulleys can cause excessive wear on the new belt.

After installing a new belt, double-check the routing against the diagram. Misrouting can lead to damage and poor engine performance.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Impala 3.5

Before you start, gather the tools you’ll need: a wrench set, a serpentine belt tool, and a new serpentine belt suitable for the 2010 Impala 3.5 model. Make sure the car is parked on a flat surface with the engine off and the keys removed from the ignition.

1. Locate the Serpentine Belt: Open the hood and find the serpentine belt. It runs across several engine components, including the alternator, power steering pump, and AC compressor.

2. Release Tension: The serpentine belt is under tension. Use a serpentine belt tool or a socket wrench to rotate the tensioner pulley counterclockwise. This will loosen the belt, allowing you to remove it. Keep track of how the belt is routed around the pulleys for easy installation later.

3. Remove the Old Belt: Once the tension is released, slide the old serpentine belt off the pulleys. Take a moment to inspect the belt for signs of wear like cracks or fraying, which could be why it needs replacement.

4. Prepare the New Belt: Compare the new belt to the old one, ensuring it matches in length and shape. If they’re not identical, double-check the model number to make sure the replacement is correct.

5. Install the New Belt: Begin by routing the new belt over the pulleys, following the same path as the old belt. Be sure the belt fits snugly on each pulley, especially around the grooves.

6. Apply Tension: Use the serpentine belt tool or socket wrench to rotate the tensioner pulley again and apply tension to the new belt. The belt should be tight but not overly strained. Ensure that it’s aligned properly on each pulley.

7. Double-Check the Installation: Before closing the hood, check the belt routing and tension one more time to ensure everything is correct. Make sure there are no twists or misalignments.

8. Test the Engine: Start the engine and observe the new belt in motion. Listen for any unusual sounds or squealing. If everything runs smoothly, the job is complete!

Replacing the serpentine belt on a 2010 Impala 3.5 is a straightforward task that can be completed with basic tools. Follow these steps carefully for a quick and successful replacement.

Troubleshooting Common Belt Issues on the 2010 Impala 3.5

If your 2010 Impala 3.5 is making squealing noises or showing signs of decreased performance, it’s likely an issue with the serpentine belt or its components. Start by checking the belt tension. A loose belt can cause slippage, leading to power loss in accessories like the alternator and power steering pump.

Inspect the belt for visible cracks, wear, or glazing. A cracked or frayed belt won’t grip properly and may slip, which can lead to overheating or damage to critical components. Replace the belt if it’s showing signs of wear. If the belt looks fine but still slips, it might be time to check the tensioner.

The belt tensioner ensures the belt stays tight. If it’s faulty, the belt can become loose, causing slippage. To check the tensioner, observe its movement while the engine is running. A vibrating or unevenly moving tensioner is a sign that it needs replacement. Also, test the pulley bearings for any unusual noise or resistance.

Sometimes, misalignment can also cause belt issues. If you notice the belt riding off-center or misaligned, inspect the pulleys for any signs of damage or wear. Damaged pulleys can cause uneven wear on the belt and lead to further complications.

Lastly, check the idler pulley. If it’s worn out or has excessive play, it can cause the belt to slip or become misaligned. Replacing the pulley may resolve tension and belt tracking problems.
