2010 Toyota Camry Belt Diagram and Routing Guide

If you’re working on the 2010 Toyota Camry and need to replace or inspect the serpentine belt, this diagram will guide you through the exact routing process. The serpentine belt in this model powers key components, including the alternator, air conditioning, and power steering pump. Knowing the correct path is crucial to ensure everything runs smoothly.

Start by locating the belt tensioner on the front of the engine. This component helps maintain the right tension on the serpentine belt, preventing it from slipping or wearing out prematurely. Next, note the specific routing around the pulleys: the alternator, idler pulleys, and the power steering pump should all be in their correct positions for optimal performance.

Be sure to check the belt for signs of wear or damage. If it shows cracks or frays, it’s time to replace it. Use the diagram to align the new belt accurately around the pulleys and tensioner. Proper installation ensures that all engine accessories continue to work effectively without causing unnecessary strain on the engine.

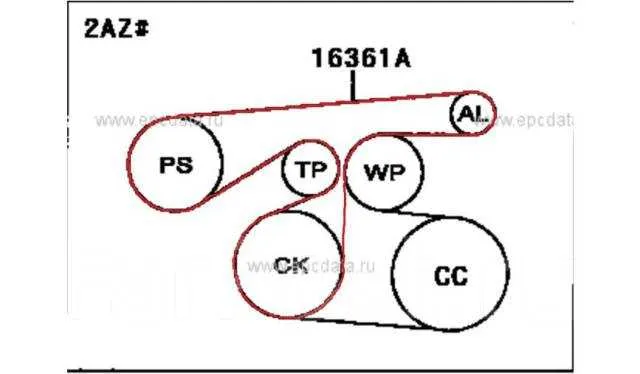

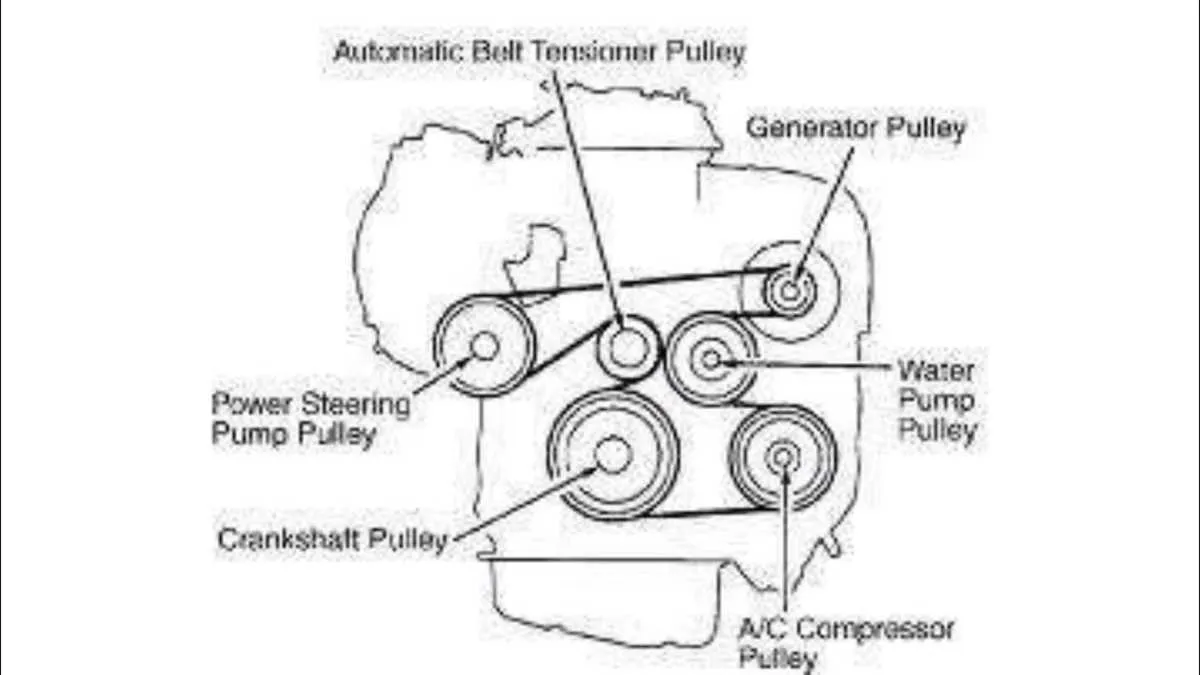

2010 Camry Belt Diagram

For the 2010 Toyota Camry, the serpentine belt diagram shows the proper routing and tensioning of the engine components. Start by locating the belt tensioner. This is a spring-loaded pulley that keeps the belt tight. Use a wrench to rotate the tensioner counterclockwise, which will release the tension on the belt. Once the tension is relieved, remove the old belt.

Refer to the diagram to follow the correct path of the new belt. The main components connected by the serpentine belt include the alternator, power steering pump, water pump, and air conditioning compressor. The routing is critical to ensure the belt functions properly and avoids wear or slipping.

After positioning the belt, release the tensioner to apply tension to the new belt. Make sure the belt sits securely in all the grooves of each pulley. Check for any misalignment or slack, as this could indicate an improper installation. It’s also a good idea to inspect the belt for wear and tear during this process.

For accurate installation, always refer to the 2010 Camry’s service manual for specific details on tensioning and routing. If you experience any issues with belt tension or squeaking after replacement, consider inspecting the tensioner and pulleys for wear, as these can affect the belt’s performance.

Identifying the Main Belts in the 2010 Toyota Camry

The 2010 Toyota Camry uses several key belts to drive essential components. Understanding their function and location can help you maintain your vehicle more effectively. The main belts in this model include the serpentine belt and the timing belt. Here’s how to identify and understand each one:

• Serpentine Belt: This is the primary belt, responsible for powering several accessories, such as the alternator, air conditioning compressor, and power steering pump. It’s located at the front of the engine, and runs across multiple pulleys. A worn-out serpentine belt can lead to the failure of these critical systems.
• Timing Belt: This belt synchronizes the rotation of the engine’s crankshaft and camshaft, ensuring the engine’s valves open and close at the correct times. In the 2010 Camry, the timing belt is crucial for the 2.4L engine, but not for the 3.5L engine, which uses a timing chain instead. Timing belt replacement is recommended around 90,000 to 100,000 miles to prevent engine damage.
• Drive Belts: These belts are also used for various components but are generally considered part of the serpentine belt system. Keep an eye on them, as they can wear over time, causing issues with engine performance.

Inspect these belts regularly for signs of wear, cracks, or fraying. Replacing them at the right time will help avoid costly repairs down the road.

Steps to Inspect and Replace the Serpentine Belt in the 2010 Camry

Start by lifting the hood and securing it. Use a flashlight to examine the serpentine belt for visible signs of wear, such as cracks, fraying, or glazing. If the belt appears damaged, it should be replaced immediately to avoid further issues.

Locate the serpentine belt tensioner pulley on the front of the engine. Use a wrench or ratchet to rotate the tensioner counterclockwise and relieve tension on the belt. Once the tension is released, carefully remove the belt from the pulleys.

Before installing the new belt, compare it to the old one to ensure the correct part. Refer to the vehicle’s manual or a diagram for proper routing instructions. Start by threading the new serpentine belt over the pulleys, following the correct path as shown in the diagram.

Once the belt is in place, rotate the tensioner pulley again to release tension and allow the belt to settle into its proper position. Double-check that the belt is aligned correctly on all pulleys.

Finally, start the engine and observe the belt in operation. Ensure it runs smoothly without slipping or making any unusual noises. If the belt seems to be misaligned, stop the engine and adjust the belt placement accordingly.

Troubleshooting Common Belt Issues in the 2010 Toyota Camry

Check for visible damage to the belts before driving. Cracks or fraying on the belt surface indicate that it needs replacement. Pay special attention to the serpentine belt, as it powers several critical systems like the alternator, air conditioning, and power steering. A worn-out belt will usually make a squealing noise when starting the engine, especially in cold weather.

If the belt is loose or slipping, inspect the tensioner. A faulty tensioner will cause the belt to loosen over time, affecting the performance of connected systems. Tighten the tensioner or replace it if necessary to prevent further damage. If the belt is too tight, it can cause premature wear on the tensioner, pulleys, and other components.

When the engine experiences overheating, check the water pump belt. If the water pump belt is damaged or broken, the engine will overheat quickly, as coolant won’t circulate properly. Replacing the belt and the pump might be needed in this case.

If the air conditioning system is malfunctioning, verify the A/C belt. A broken or loose A/C belt will prevent the compressor from functioning correctly, leading to a lack of cool air. Replace the belt and check the A/C system for leaks to resolve the issue.

Pay attention to the alignment of the belts. Misalignment of the serpentine or accessory belts could indicate worn-out pulleys or an issue with the belt path. Check each pulley for wear and ensure all components are aligned properly to prevent future belt failures.
