2009 Honda Civic Timing Belt and Serpentine Belt Diagram

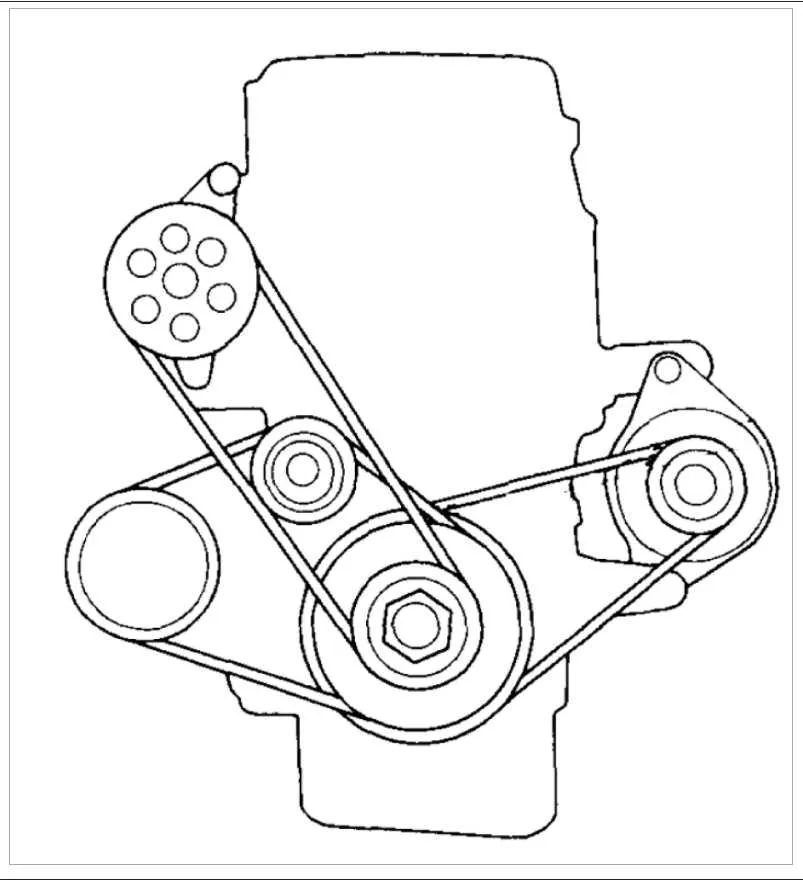

If you’re replacing or inspecting the belts in your 2009 Honda Civic, it’s crucial to have the correct belt diagram for reference. This diagram shows the routing of the serpentine belt and timing belt, ensuring that everything is installed properly and the engine operates smoothly. Start by locating the belt tensioner, as this is essential for proper tension adjustment during installation.

The serpentine belt in the 2009 Civic powers various accessories like the alternator, power steering pump, and air conditioning compressor. The diagram will guide you through the proper path around pulleys, ensuring that the belt fits securely. Pay attention to the correct routing to avoid any risk of slipping or misalignment.

The timing belt plays a critical role in synchronizing the engine’s camshaft and crankshaft. If you’re planning on replacing it, refer to the diagram for precise placement. This belt is vital for engine performance, so ensure it’s positioned exactly as the diagram suggests to avoid engine damage.

Consulting the diagram while performing maintenance is the most effective way to prevent costly mistakes. Double-check the belt routing, and always replace any worn-out or damaged belts promptly to maintain the reliability of your Civic.

2009 Civic Belt Diagram: A Practical Guide

For a smooth repair process, understanding the 2009 Honda Civic belt system is key. The timing belt and serpentine belt are the primary belts you need to check and maintain regularly.

The timing belt controls the synchronization between the engine’s crankshaft and camshaft. A failure of this belt can result in major engine damage. It is recommended to replace the timing belt every 60,000 to 100,000 miles, depending on your vehicle’s usage and the manufacturer’s recommendations.

The serpentine belt powers multiple engine components, including the alternator, power steering pump, and air conditioning compressor. Ensure it is checked regularly for wear, cracks, or fraying. Replace it every 60,000 miles or sooner if signs of damage are visible.

To replace the timing belt, first, remove the engine covers and locate the timing marks on the camshaft and crankshaft pulleys. Align these marks to ensure proper timing during reinstallation. The serpentine belt requires a tensioner tool to relieve pressure before removal. Be sure to route the new belt according to the diagram, which you can usually find on a label in the engine bay.

When replacing these belts, inspect the pulleys and tensioners for signs of wear. A worn pulley can cause the new belt to fail prematurely.

Having a clear understanding of the belt diagram will help avoid mistakes during replacement. Keep your vehicle’s belts in good condition, and you’ll ensure the longevity and performance of your engine.

How to Identify and Locate the Timing Belt in 2009 Honda Civic

Start by opening the hood of your 2009 Honda Civic. The timing belt is located on the front of the engine, behind the timing cover. To access it, you’ll need to remove the engine accessories, such as the alternator, power steering pump, and any other components that might obstruct the timing cover. Make sure to disconnect the battery before you begin any work on the engine.

Once you have clear access to the front of the engine, locate the timing cover. It is a plastic or metal cover that shields the timing components. Use a wrench to remove the bolts holding it in place. After removing the cover, you’ll see the timing belt running over pulleys and possibly a tensioner.

The timing belt itself is a wide rubber belt with teeth on the inside. It connects the crankshaft to the camshaft(s) and ensures the proper timing of the engine’s valves. Look for signs of wear or cracking along the belt. If it appears worn, it’s time to replace it.

If you’re unsure whether the timing belt needs replacement, inspect the belt for any visible damage or slack. If you notice any significant issues, consult your vehicle’s service manual for the recommended maintenance interval, or seek advice from a mechanic.

Step-by-Step Process for Replacing the Serpentine Belt in 2009 Civic

Start by loosening the tensioner pulley with a wrench or ratchet to relieve pressure on the serpentine belt. Turn the pulley clockwise to release tension and slide the belt off the pulleys.

Next, remove the old serpentine belt completely from the engine. Check its routing and position to ensure the new belt is installed correctly. The diagram for the 2009 Civic can be found under the hood for reference.

Before installing the new belt, inspect the pulleys and tensioner for wear. Ensure they move smoothly and show no signs of damage. Replace any faulty parts before continuing with the installation.

Place the new serpentine belt around the pulleys according to the belt routing diagram. Make sure it fits snugly around each pulley and is properly aligned with the grooves.

Re-engage the tensioner pulley by rotating it clockwise to apply tension to the new belt. Confirm that the belt is tight and properly seated on each pulley.

Double-check the belt routing one last time and make sure everything is in place. Start the engine and observe the belt in operation. If there are no unusual noises or issues, the installation is complete.

Troubleshooting Common Issues with the 2009 Civic Belt System

If the belt system in your 2009 Honda Civic is malfunctioning, you may notice unusual noises, performance issues, or even engine failure. Addressing these problems promptly can prevent further damage. Here are some common issues and solutions.

• Loose or Worn Belt

  If you hear squeaking or squealing noises from the engine area, it could be due to a loose or worn-out belt. Check the belt tension and adjust if necessary. Replace any frayed or cracked belts to avoid slipping.

• Misaligned Pulleys

  Misalignment of the pulleys can lead to excessive wear on the belt. Inspect the pulleys for proper alignment. If any pulleys are damaged, replace them to ensure smooth operation.

• Faulty Tensioner

  A malfunctioning tensioner can cause the belt to become loose or overly tight. If the tensioner is faulty, replace it to restore proper tension and prevent belt damage.

• Damaged Belt Pulley

  If the belt is damaged or shows signs of wear on the pulleys, the pulleys may need replacement. Check for cracks or rust and replace any pulleys that no longer function smoothly.

• Overheated Engine

  Excessive heat can cause the belt to deteriorate prematurely. Keep an eye on engine temperature. If overheating persists, inspect the cooling system and replace any faulty parts that may be contributing to the issue.

Regular inspection and maintenance can prevent most issues with the belt system. Pay attention to any signs of wear, and replace components as necessary to ensure the longevity of your Civic’s engine performance.
