2009 Acura MDX Serpentine Belt Diagram and Routing Guide
The 2009 Acura MDX belt diagram provides a clear view of the routing and arrangement of the vehicle’s serpentine and timing belts. If you’re looking to replace or inspect the belts, this diagram will guide you through the process with precision. The correct alignment of the belts is crucial to ensure the proper functioning of various components, like the alternator, power steering pump, and air conditioning compressor.
Start by identifying the serpentine belt, which is responsible for powering multiple accessories on the engine. It runs across pulleys and requires correct tension to function smoothly. Pay attention to the routing direction shown in the diagram to avoid errors during installation. For timing belts, follow the alignment markers indicated in the diagram, ensuring they match with the engine’s timing marks for accurate engine performance.
If you’re unfamiliar with belt replacement, remember that improper installation can lead to issues like slipping, misalignment, or damage to surrounding components. Use the 2009 Acura MDX belt diagram as your reference to minimize mistakes and optimize the lifespan of your engine parts. Accurate belt routing can prevent costly repairs down the road and keep your vehicle running smoothly.
2009 Acura MDX Belt Diagram

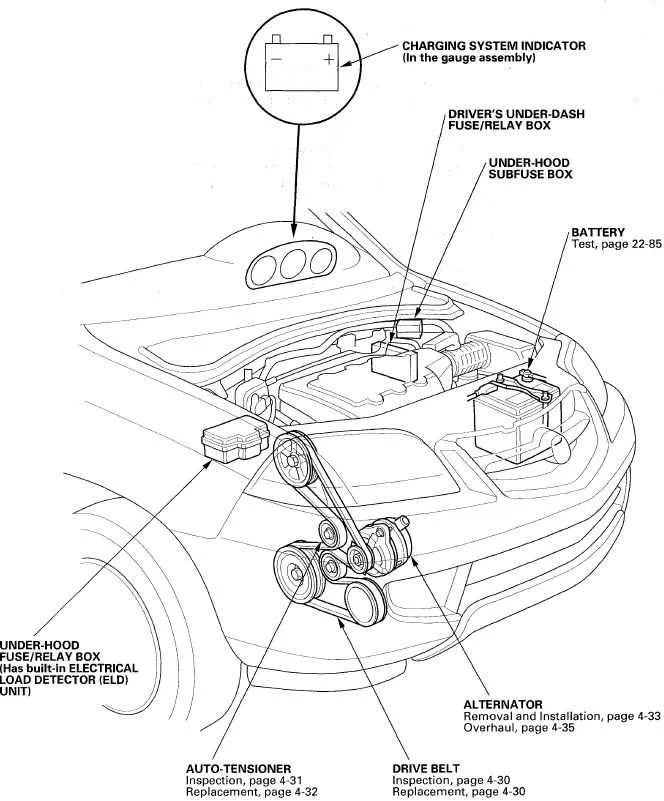

For the 2009 Acura MDX, the accessory drive belt system includes a serpentine belt, which drives multiple components such as the alternator, power steering pump, air conditioning compressor, and water pump. To maintain optimal function, it’s crucial to follow the correct routing of the belt, which ensures smooth operation and prevents premature wear of other engine parts.

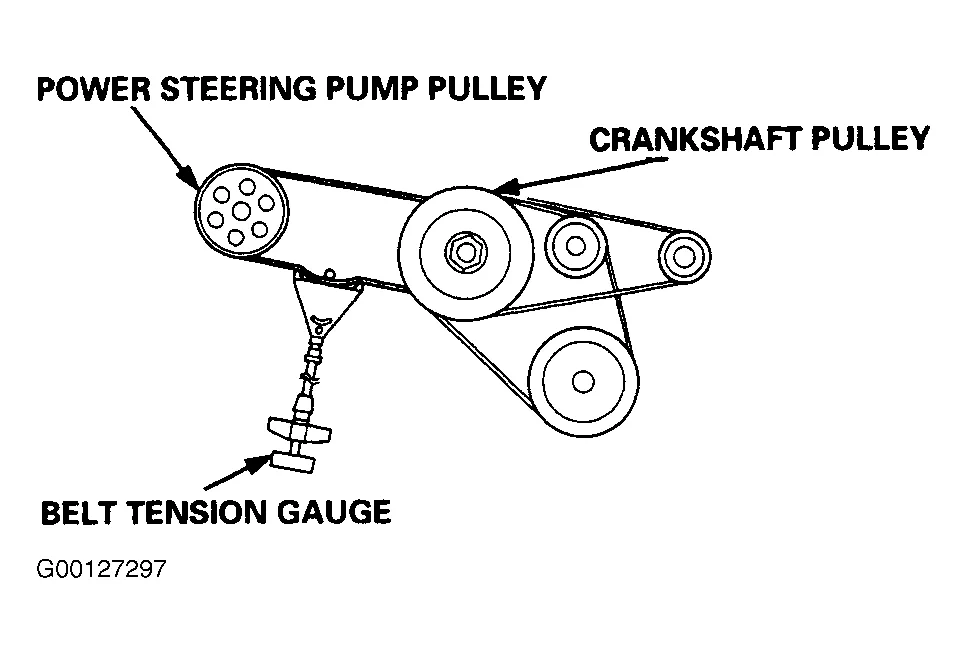

The diagram for the 2009 Acura MDX belt configuration shows the belt running over the crankshaft pulley, around the alternator, and passing through the tensioner. The tensioner plays an essential role in keeping the belt tight to prevent slippage. The diagram also illustrates the specific pulleys involved, including the power steering pump, air conditioning compressor, and idler pulleys.
When replacing the belt, ensure the new one matches the exact length and width specifications provided by the manufacturer. Misalignment or incorrect belt tension can lead to malfunctioning of critical engine components, including overheating or battery issues. Always double-check the belt routing before tightening the tensioner to secure the system.
For easy access, it’s recommended to remove the wheel well lining and any other obstructing parts to gain visibility of the belt system. If you experience issues like squealing noises or difficulty in steering, it may indicate a need for belt replacement or adjustment of the tensioner. Regular checks can help avoid further engine damage.
Understanding the Main Belt Components of the 2009 Acura MDX
The 2009 Acura MDX uses a serpentine belt system to drive various engine components like the alternator, power steering pump, water pump, and air conditioning compressor. Proper understanding of this system can help with maintenance and troubleshooting.
The main serpentine belt runs through a series of pulleys, all controlled by a tensioner. The belt should be replaced if it shows signs of wear like cracks, fraying, or excessive slack. A damaged belt can lead to engine overheating or loss of power steering, which can be dangerous.
Pay attention to the tensioner, as it helps maintain the correct tension on the belt. If the tensioner malfunctions, it can cause the belt to slip or wear out prematurely. Check for unusual noises or vibrations, which can indicate a failing tensioner or pulley.
When replacing the serpentine belt, verify the alignment of the pulleys to ensure the belt runs smoothly. Misalignment can cause excessive wear on the belt and the pulleys themselves. Follow the manufacturer’s recommended diagram to ensure proper routing of the belt around the pulleys.
Inspect the pulleys for any signs of damage or wear, such as wobbling or rough spinning. A damaged pulley can result in uneven belt wear or even belt failure. Make sure the pulleys are lubricated as needed to maintain their function.
In summary, regularly inspecting the serpentine belt system and components will help prevent issues that could affect the engine’s performance and reliability.
Step-by-Step Guide to Replacing the Serpentine Belt
Start by loosening the tensioner pulley using a ratchet or breaker bar. This will relieve the pressure on the serpentine belt. Once the tension is released, remove the old belt by carefully sliding it off the pulleys. Keep track of the routing, as you’ll need to install the new belt in the same pattern.
Before installing the new belt, inspect all pulleys for damage or wear. If any are faulty, replace them now to prevent further issues. Next, align the new serpentine belt with the pulleys, ensuring the ribs are properly seated on each one.
After positioning the belt, use the ratchet to release the tensioner pulley again, allowing it to apply pressure to the belt. Double-check that the belt is securely in place on all pulleys, and then test the belt by turning the engine over briefly, watching for any unusual noise or movement.
If everything looks good, the replacement is complete. Reassemble any parts removed for access, and test drive the vehicle to ensure proper function of the new belt system.
Troubleshooting Common Belt Issues in the 2009 Acura MDX
If you hear squealing noises or notice unusual vibrations from the engine, the problem could be with the serpentine or timing belts. Check for wear, cracks, or fraying, especially on the serpentine belt, which drives multiple components like the alternator, power steering pump, and air conditioning compressor.
First, inspect the belt for any visible damage. If the serpentine belt looks worn or is missing pieces, replace it immediately. Ensure the belt tension is correct; a loose belt can slip, causing issues with engine performance and accessory drive systems.
If you experience power steering failure or unusual engine behavior, the problem might be with the belt tensioner or pulley. Inspect the tensioner for wear or damage. A faulty tensioner will prevent the belt from maintaining the proper tension, leading to slipping and potential belt failure.
If the timing belt is your concern, listen for any knocking or clicking sounds coming from the engine. This could indicate misalignment or a problem with the timing components. Be aware that a damaged timing belt can lead to engine misfires or serious internal damage, so replace it according to the recommended maintenance schedule.
Another issue is improper alignment. Ensure that all pulleys are aligned properly to prevent unnecessary wear on the belt. Misaligned pulleys can cause the belt to rub against other engine components, leading to premature failure.
Finally, check the belt routing diagram to confirm everything is correctly installed. A misrouted belt can cause tension imbalances, leading to premature wear or even belt breakage.
