2008 Scion TC Timing Belt and Accessory Belt Routing Diagram and Instructions
If you’re working on the 2008 Scion tC and need to replace or inspect the timing belt, understanding the correct belt diagram is essential. This guide provides a clear visual layout for proper belt routing, ensuring everything aligns for smooth engine operation. The diagram illustrates the path of the timing, serpentine, and accessory belts, helping you avoid installation mistakes that could lead to engine issues.
The timing belt on the 2008 Scion tC plays a critical role in synchronizing the rotation of the crankshaft and camshaft. A misalignment can cause severe engine damage, so precise installation is a must. Refer to the diagram to see how the belt should loop over the pulleys and tensioners. Pay special attention to the orientation and placement of each pulley to ensure the belt moves with the correct tension.
The serpentine belt powers various engine components like the alternator, water pump, and air conditioning compressor. Make sure to replace this belt when necessary to avoid unexpected failures. Use the diagram to confirm the proper path and pulley connections. Tightening the belt correctly will prevent slippage and prolong the life of your vehicle’s components.
For the best results, double-check the belt routing after installation. If you’re uncertain, consult a mechanic or refer to your vehicle’s service manual for further guidance. By following this simple diagram, you’ll save time and ensure your 2008 Scion tC runs smoothly for years to come.
2008 Scion tC Belt Diagram
For a 2008 Scion tC, the timing belt plays a key role in synchronizing the engine’s camshaft and crankshaft. This is crucial for ensuring the engine operates smoothly without any misfires or timing issues. The correct belt routing is essential for proper engine function, and any deviations can lead to severe damage. Below is a guide to understanding the correct belt setup.

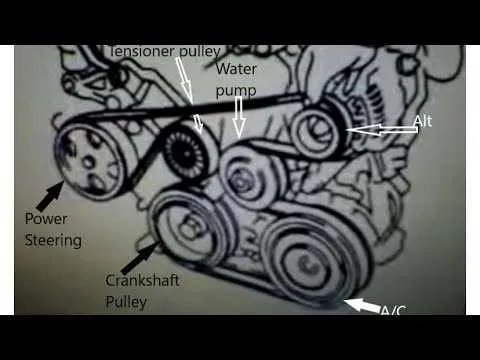

The 2008 Scion tC is equipped with a 2.4L 4-cylinder engine, and it uses a timing chain rather than a timing belt. However, there are also accessory belts (serpentine belts) that drive key components such as the alternator, power steering pump, and air conditioning compressor. The serpentine belt configuration is as follows:
1. The belt loops around the crankshaft pulley, power steering pump, water pump, and alternator pulley.
2. It then moves to the air conditioning compressor pulley and back to the tensioner pulley.
3. The belt should be routed through the tensioner, which is responsible for maintaining the proper belt tension.
If you’re replacing or inspecting the serpentine belt, ensure it is properly tensioned. A loose or worn belt can lead to inefficient power delivery, causing electrical issues, overheating, or steering problems. It’s also a good idea to replace the belt every 60,000 to 100,000 miles, depending on wear and driving conditions.
Consult your vehicle’s manual for the exact specifications and routing details, and always use OEM (Original Equipment Manufacturer) parts to maintain performance and reliability. Double-check the belt routing before starting the engine to avoid causing damage or improper operation.
How to Read the 2008 Scion tC Serpentine Belt Diagram
First, locate the serpentine belt diagram under the hood of your 2008 Scion tC, usually on a sticker or engraved plate near the radiator or on the underside of the hood. The diagram shows the correct routing of the belt around the engine’s pulleys. Take a moment to inspect the diagram for clarity, ensuring it’s legible and intact.
The diagram typically illustrates the various components the belt loops through: the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Start by identifying the crankshaft pulley, usually at the bottom of the diagram, as it’s the main drive source. Follow the path of the belt as it moves from this point and wraps around each of the pulleys. Pay attention to the direction of the belt as indicated by arrows or lines in the diagram.
If your diagram includes a tensioner, locate it as well. The tensioner keeps the belt tight and is typically positioned near the top or side of the diagram. Its role is to ensure the belt doesn’t slip or become too loose, leading to potential engine performance issues.
Verify that the belt diagram matches the configuration in your engine bay. If any parts have been replaced, such as the alternator or power steering pump, double-check their positions relative to the belt’s path. This helps avoid misrouting the belt, which could cause damage or system failure.
Once you understand the belt’s routing, replace the serpentine belt if necessary, following the diagram closely. Misrouting can lead to serious mechanical problems, so be sure everything is aligned correctly before starting the engine.
Common Issues with the 2008 Scion tC Belt System and How to Fix Them
If you notice squealing noises or poor engine performance, it might be time to check your Scion tC’s belt system. The most common issues include worn-out serpentine belts, misaligned components, and failed tensioners. Here’s how to fix them:
1. Worn Serpentine Belt
A worn or cracked serpentine belt can cause poor engine performance and squealing noises. Inspect the belt for signs of wear, such as cracks or fraying. If you find any, replace the belt. Make sure to use the correct size and model for the 2008 Scion tC to avoid further complications.
2. Misaligned Components
If the belt seems to be slipping or getting damaged quickly, the issue might lie with misaligned pulleys or other components in the system. Inspect each pulley for wear or improper alignment. Adjust or replace the pulleys if necessary. A pulley that’s out of alignment can cause excessive wear on the belt, shortening its lifespan.
3. Failed Tensioner
A faulty tensioner is a frequent cause of belt issues. When the tensioner fails, it doesn’t apply enough pressure on the belt, causing it to slip or become loose. Replace the tensioner if it fails to maintain proper tension. It’s essential to replace the tensioner when you replace the belt to avoid recurrent problems.
4. Oil or Fluid Leaks
Oil or coolant leaks can cause damage to the serpentine belt, as fluids can weaken the rubber and lead to premature wear. Inspect the engine for leaks, particularly around the water pump or oil filter. If you find any, fix the leak and replace the damaged belt immediately.
5. Damaged Pulleys
If any of the pulleys are damaged or wobbling, they will put extra stress on the belt and cause it to fail. Spin each pulley by hand to check for smooth operation. Replace any pulleys that show signs of damage or excessive wear. Be sure to replace any bearings as well if the pulley isn’t functioning properly.
Regular maintenance and early detection are key to avoiding serious issues with your belt system. Check the belt at regular intervals, and replace it as soon as signs of wear appear to keep your Scion tC running smoothly.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Scion tC
Replace the serpentine belt on your 2008 Scion tC by following these clear steps. The serpentine belt is essential for running various engine components, such as the alternator and air conditioning compressor. When it wears out, it needs to be replaced immediately to avoid engine damage or electrical issues.
- Gather Tools and Materials: You will need a new serpentine belt, a ratchet wrench, a socket set, a belt tensioner tool (or a 3/8″ drive ratchet), and a flashlight for better visibility.
- Locate the Serpentine Belt and Tensioner: Open the hood and find the serpentine belt. The tensioner is typically located near the top or side of the engine. Use a flashlight if needed to get a clear view.
- Release Tension on the Belt: Insert your tool into the belt tensioner and rotate it counterclockwise to relieve tension on the belt. This will loosen the belt enough to slide it off the pulleys.
- Remove the Old Belt: Once the tension is released, slide the belt off the pulleys, starting with the idler pulley or the last pulley the belt is attached to. Take note of the belt routing for installation of the new one.
- Compare the New Belt: Before installing the new serpentine belt, compare it with the old one to ensure they are the same size. The new belt should be identical to the old one in length and width.
- Install the New Belt: Starting from the crankshaft pulley, work your way around the pulleys according to the routing diagram. Make sure the belt sits properly in each groove.
- Check Tension: Ensure the belt is properly tensioned by releasing the tensioner slowly. The new belt should be tight enough but not overly stretched. Check for any slack or misalignment.
- Inspect the Belt Alignment: Rotate the engine manually using a wrench on the crankshaft bolt. Watch the belt as it moves to ensure it stays in place and runs smoothly over each pulley.
- Final Check: Before closing the hood, double-check the belt’s placement and the tensioner’s position. If everything looks correct, close the hood and start the engine.
- Test the Engine: Let the engine run for a few minutes and listen for any unusual noises. If the belt is installed correctly, you should hear no squeaks or squeals.
With these steps completed, your 2008 Scion tC should be ready to go with a fresh serpentine belt. Regular maintenance will keep the engine running smoothly and prevent future issues.
