2008 BMW X5 4.8 Belt Diagram and Component Layout for Maintenance
If you’re tackling a maintenance task on the 2008 BMW X5 4.8, understanding the belt system is key. The belt diagram provides a clear guide for proper installation, ensuring smooth engine performance. The serpentine belt, along with other components like the alternator, power steering pump, and air conditioning compressor, relies on precise alignment for optimal function. A quick reference to the diagram will help you identify the correct routing and tension specifications.
To replace the serpentine belt, start by locating the tensioner pulley. This part controls the belt’s tightness and must be moved to relieve tension. Use a socket wrench to turn the tensioner, allowing you to remove the old belt and install the new one without difficulty. The belt diagram will show the exact path, preventing unnecessary wear and tear on other engine parts. Always ensure the new belt is correctly routed, as an improper setup can cause malfunctioning or excessive friction, leading to premature failures.
Keep in mind that the 2008 BMW X5 4.8’s engine components are finely tuned, and slight misalignments can lead to bigger issues. Regular inspection of the belt and tensioner will save you time and money in the long run. Make sure to consult the belt diagram before each maintenance session to guarantee everything is in order.

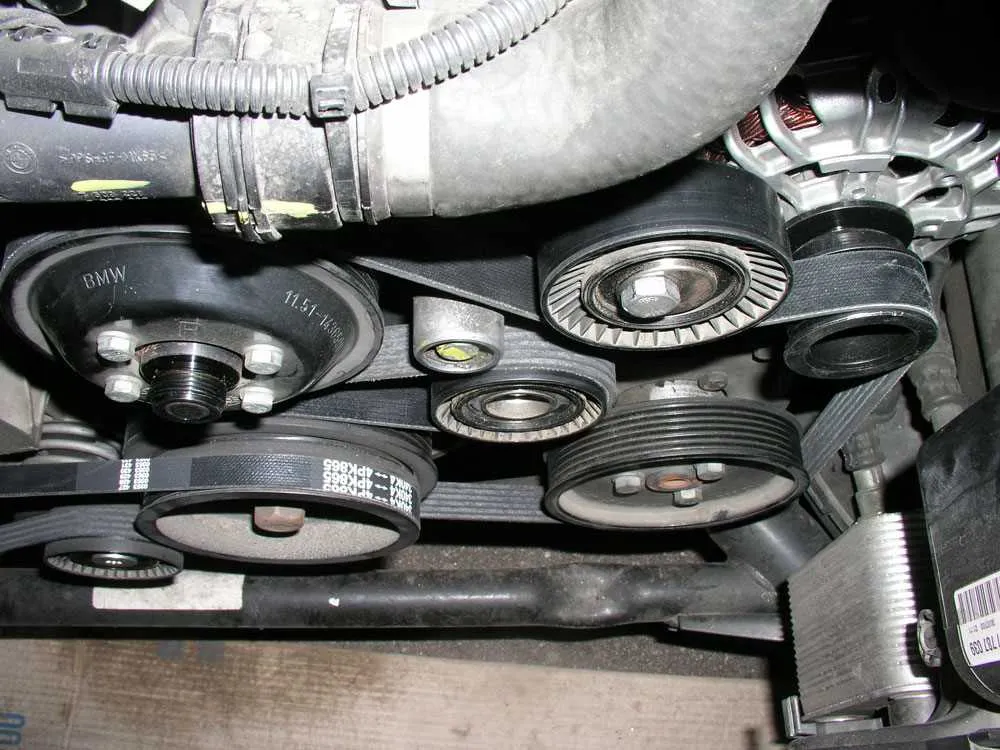

2008 BMW X5 4.8 Belt Diagram
For the 2008 BMW X5 4.8, it’s vital to follow the correct belt routing for proper engine function. This diagram ensures the proper tension and alignment of the belts, preventing issues like slippage or damage.
The serpentine belt on this model powers several critical components including the alternator, air conditioning compressor, power steering pump, and water pump. If the belt is misrouted, it can result in inefficient performance or complete failure of one or more accessories.
Check the tension regularly to avoid belt wear. The diagram shows the belt running over a series of pulleys, with the correct path ensuring that the components function smoothly. If replacing the belt, make sure it matches the original part number and quality.
Key Tips:
- Inspect the belt regularly for signs of wear, cracks, or glazing.
- Replace the belt every 60,000 to 100,000 miles to avoid premature failure.
- Ensure proper belt tension during installation to avoid slippage.
The tensioner pulley is spring-loaded, which helps maintain correct tension. If you notice any noise or decreased performance, it’s a sign that the belt or tensioner might need attention.
Referring to the diagram ensures that you’re following the correct routing for all pulleys. Always consult the vehicle’s manual or a professional for specific installation steps if unsure.
Understanding the Routing of the Serpentine Belt on the 2008 BMW X5 4.8
The serpentine belt on the 2008 BMW X5 4.8 plays a key role in driving multiple components like the alternator, power steering pump, water pump, and air conditioning compressor. Correct routing ensures that these components function properly. Follow this path for proper belt installation:
Start at the crankshaft pulley on the bottom left of the engine. The belt loops clockwise around the tensioner pulley, which is located just above the crankshaft. It then moves up and loops around the alternator pulley on the top left of the engine. From there, the belt heads down to the water pump pulley, positioned on the right side of the engine. The next step is a loop over the power steering pump pulley, followed by routing around the AC compressor pulley. Finally, the belt moves back towards the tensioner pulley to complete the circuit.
Ensure the belt is tensioned correctly by adjusting the tensioner pulley. Incorrect tension can lead to premature wear or slipping, affecting the efficiency of the engine’s accessories.
Check the belt’s condition regularly for signs of cracks, fraying, or wear. A damaged belt can cause serious engine issues and disrupt the operation of key components.
Common Issues with the Belt System and How to Troubleshoot Them
If you notice unusual sounds, loss of power, or warning lights on your 2008 BMW X5 4.8, the belt system could be the cause. Start by inspecting the serpentine belt for cracks, wear, or any visible damage. A damaged belt can slip, causing components like the alternator, power steering, and air conditioning to malfunction.
Check the tension of the belt. A loose or overly tight belt can cause poor performance and premature wear. Use a belt tension gauge to ensure the correct tension is maintained. If the belt seems too tight or too loose, adjust or replace the tensioner.
Listen for squealing sounds when the engine starts. This could indicate that the belt is slipping due to a worn-out pulley or tensioner. Inspect the pulleys for smooth operation. If any pulley feels rough or wobbles, replace it to avoid further damage.
Examine the alignment of the belt and pulleys. Misalignment can lead to uneven wear, and in severe cases, the belt may snap. Ensure that the pulleys are aligned properly, as any misalignment can cause the belt to run at an angle, increasing friction.
If the belt is worn out but not visibly damaged, it’s a good idea to replace it, as old belts are more likely to snap. A broken belt can leave you stranded, as it powers several critical components in your vehicle.
Finally, check for oil or coolant leaks around the belt. These fluids can degrade the belt material, making it brittle and more prone to breaking. If you find any leaks, address them before replacing the belt to prevent further damage.
Step-by-Step Guide to Replacing the Serpentine Belt on the 2008 BMW X5 4.8
To replace the serpentine belt on your 2008 BMW X5 4.8, follow these steps to ensure proper installation and functioning of the belt system.
- Gather Tools and Parts: You will need a 16mm socket wrench, a serpentine belt, a belt tensioner tool, and a ratchet. Make sure you have a replacement belt that matches the specifications for your model.
- Lift the Vehicle (if needed): If you find it easier to work from underneath, use a jack to lift the front end of the vehicle. Secure the car with jack stands for safety.
- Locate the Serpentine Belt: Open the hood and locate the serpentine belt on the front of the engine. The belt runs through multiple pulleys, including the alternator, power steering pump, and air conditioning compressor.
- Release Tension from the Belt: Use a belt tensioner tool or a ratchet with the appropriate socket to rotate the tensioner pulley counterclockwise. This will relieve tension on the belt, allowing you to remove it easily.
- Remove the Old Belt: Once the tension is released, slide the serpentine belt off the pulleys. Pay attention to the belt’s routing, as you will need to install the new one in the same manner. Take a picture or note the belt’s path before removing it.
- Inspect Components: While the belt is off, check the condition of the pulleys, tensioner, and other components for wear or damage. Replace any faulty parts before installing the new belt.
- Install the New Serpentine Belt: Begin by routing the new belt around the pulleys, following the exact path of the old one. Be sure the belt sits properly in the grooves of each pulley.
- Apply Tension: Use the tensioner tool again to rotate the tensioner pulley and slide the new belt into place. Ensure the belt is tight and properly seated on all pulleys.
- Double-Check the Installation: Before closing the hood, manually rotate the crankshaft pulley to verify the belt is correctly aligned and there is no slack. Make sure all pulleys rotate smoothly.
- Lower the Vehicle: If you lifted the car, lower it back to the ground and ensure the vehicle is secure.
- Start the Engine: Start the engine and observe the new belt in operation. Listen for any unusual noises and check for proper belt movement.
If everything functions correctly, the serpentine belt replacement is complete. Regularly inspect the belt for signs of wear to avoid future issues.
