2007 Infiniti G35 Serpentine Belt Diagram and Routing Guide
Understanding the belt system in the 2007 Infiniti G35 is key for maintaining the engine’s proper functioning. The serpentine belt drives essential components such as the alternator, air conditioning compressor, and power steering pump. If you’re replacing or inspecting the belt, it’s crucial to follow the correct routing to prevent damage to these parts.
The belt diagram for the 2007 Infiniti G35 ensures that the serpentine belt is routed properly around pulleys and tensioners. Misalignment can lead to premature wear or even failure, impacting vehicle performance. Be sure to double-check the diagram before making any adjustments or replacements.
To replace the serpentine belt, start by releasing the tension from the tensioner pulley. Then, remove the old belt, noting its routing path. Install the new belt following the diagram, ensuring it sits properly on each pulley. Regular checks of the belt’s condition can prevent future issues and keep your engine running smoothly.

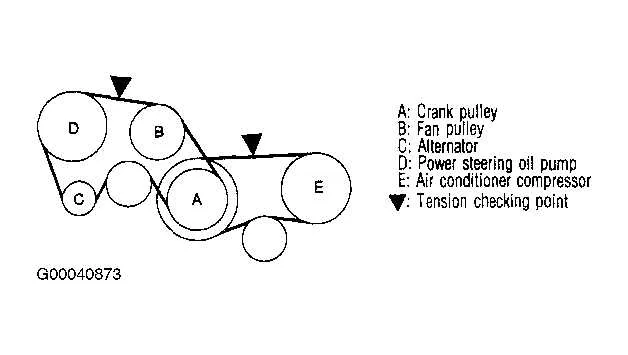

2007 Infiniti G35 Belt Diagram
For the 2007 Infiniti G35, the serpentine belt plays a critical role in driving multiple engine components, including the alternator, air conditioning compressor, and power steering pump. To ensure proper functionality, it’s important to follow the correct routing as outlined in the belt diagram.
The serpentine belt for the 2007 Infiniti G35 follows a specific path around various pulleys. Start by ensuring the tensioner pulley is properly adjusted before routing the belt. The diagram should show the correct path for the belt, including the orientation of each component it drives.
Key steps to follow:
- Position the belt around the crankshaft pulley first.
- Route the belt across the alternator, ensuring it is securely placed in the correct grooves.
- Fit the belt around the power steering pump, air conditioning compressor, and any other driven components in order as indicated by the diagram.
- Check that the belt is tight around all pulleys, with no slack.
- Once in place, use a tool to rotate the tensioner pulley, ensuring it applies the right tension to the belt.
Note: If the serpentine belt is cracked, frayed, or shows signs of wear, replace it immediately to avoid potential engine damage. Always use the recommended belt size and type specified in the owner’s manual for optimal performance.
How to Locate the Serpentine Belt Routing on 2007 Infiniti G35
To find the serpentine belt routing on the 2007 Infiniti G35, first ensure the engine is off and cool. Open the hood and locate the front of the engine. The serpentine belt wraps around multiple pulleys, including the alternator, power steering pump, and air conditioning compressor.
Look for the belt routing diagram, typically found on a label near the engine bay, often on the radiator support or the underside of the hood. If the label is missing or hard to read, refer to the service manual for the correct diagram. Alternatively, use an online resource to find the routing schematic.
Check the routing path to confirm the belt travels over each pulley correctly. The tensioner pulley should have the correct amount of tension to ensure the belt stays securely in place. Verify the belt’s alignment, ensuring no pulley is misaligned, which could cause premature wear or damage.
Common Issues with the Serpentine Belt on 2007 Infiniti G35
One of the most frequent issues with the serpentine belt on the 2007 Infiniti G35 is belt wear. Over time, the belt can become cracked, frayed, or stretched, leading to slipping. If you notice a squealing sound, it could be an early sign of a worn-out belt. Replace it before further damage occurs.
A second common problem is misalignment. The pulleys, tensioner, or alternator might shift, causing the belt to run at an angle. Misalignment leads to uneven wear and can cause the belt to come off completely. To prevent this, regularly inspect the pulleys for proper alignment and tension.
Another issue is a faulty tensioner. The tensioner keeps the belt at the right level of tightness. If the tensioner fails, the belt becomes too loose, causing it to slip. This issue can be noticed by a decrease in performance, such as dimming lights or a decrease in power steering responsiveness. Replace a worn tensioner to avoid further complications.
Finally, environmental factors like heat and moisture can degrade the serpentine belt. High engine temperatures or excessive humidity can accelerate the deterioration of the rubber, making it brittle and prone to breaking. Consider inspecting the belt regularly to catch any early signs of environmental damage.
Steps for Replacing the Serpentine Belt on 2007 Infiniti G35
1. Ensure the engine is cool and the ignition is off. Disconnect the battery to avoid any electrical hazards.
2. Locate the serpentine belt on the front of the engine. Refer to the vehicle’s belt diagram for proper routing.
3. Use a ratchet or breaker bar to relieve tension on the belt by turning the tensioner pulley counterclockwise. Hold the tensioner in place while you remove the belt from the pulleys.
4. Inspect the condition of the belt and pulleys. If any component appears worn or damaged, consider replacing it before installing the new belt.
5. Install the new serpentine belt by following the belt routing diagram. Make sure the belt sits properly on each pulley, with no twists or misalignments.
6. Use the ratchet or breaker bar again to relieve tension on the tensioner pulley. Slide the belt onto the tensioner pulley and slowly release the tensioner to apply pressure on the belt.
7. Check the belt’s tension by pressing on it. It should be tight but have a small amount of give. Adjust if necessary.
8. Reconnect the battery and start the engine. Observe the belt as it runs through the pulleys to ensure proper operation and alignment.
9. If the belt runs smoothly, turn off the engine and double-check the belt’s tension before closing the hood.
