2006 Acura TL Belt Diagram and Routing Information for Maintenance

For those working on the 2006 Acura TL, understanding the belt system is key for proper engine maintenance. This model uses a series of belts to drive essential components such as the alternator, power steering pump, air conditioning compressor, and water pump. If you’re replacing any of these belts, having the correct diagram ensures a smooth process and prevents mistakes during installation.

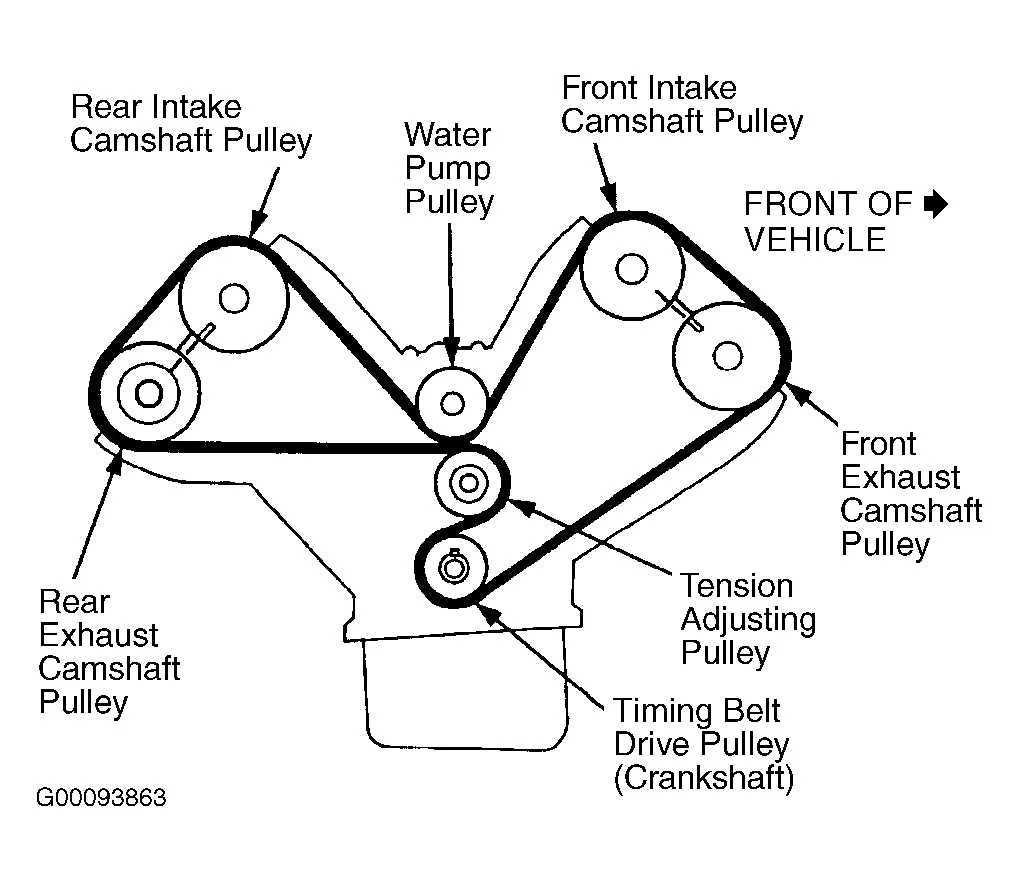

The timing belt on the 2006 Acura TL plays a crucial role in maintaining the engine’s timing. If you’re replacing this belt, be sure to follow the specific route shown in the diagram. Incorrect installation can lead to severe engine damage. Pay close attention to the belt tensioner and idler pulley positions as well.

Additionally, the accessory belts should be checked for proper tension. These belts are often neglected but are essential for smooth engine operation. Replacing them according to the diagram ensures that they run at the correct tension, preventing wear and tear on components driven by these belts.

Ensure you have the right tools for the job, especially a torque wrench to tighten the tensioner bolts to the manufacturer’s specifications. Once the belts are installed, double-check their alignment and tension before starting the engine.

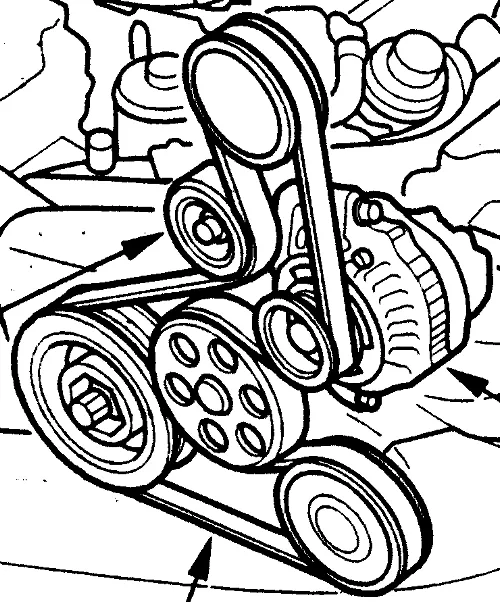

2006 Acura TL Belt Diagram

If you’re looking for the belt diagram for a 2006 Acura TL, refer to the following key details to ensure proper installation and alignment of the belts.

The 2006 Acura TL uses a serpentine belt system that drives several components including the alternator, power steering pump, air conditioning compressor, and water pump. The exact layout of the belt system can vary slightly depending on whether your vehicle has a 3.2L V6 engine or specific aftermarket modifications.

Here’s the general routing:

• The alternator pulley is located on the upper right side of the engine block.
• The power steering pump pulley is positioned just below the alternator pulley.
• The AC compressor pulley sits toward the bottom-left of the engine.
• The water pump pulley is centrally located near the front of the engine block.
• The crankshaft pulley is located at the bottom-center of the engine, from where the belt starts and loops around the components.

To install the serpentine belt, begin by aligning the belt over the crankshaft pulley. From there, loop it around the power steering pump, AC compressor, and water pump. The belt should be routed under the tensioner pulley for the correct tightness. Double-check all the pulleys are aligned and the belt is sitting properly on each one.

If you’re replacing the belt, it’s a good idea to inspect the condition of the pulleys and the tensioner. Worn-out pulleys or a loose tensioner can cause premature wear on the new belt.

For reference, you can find a visual diagram in your vehicle’s repair manual, or you may consult a certified mechanic for a detailed inspection and replacement process.

How to Identify the Serpentine Belt Layout on a 2006 Acura TL

To identify the serpentine belt layout on your 2006 Acura TL, locate the diagram usually found on a sticker near the engine bay. This diagram will clearly show the routing path for the serpentine belt, illustrating how it loops around pulleys and components such as the alternator, power steering pump, and air conditioning compressor.

Here’s how to proceed:

• Open the hood and look at the front of the engine, around the radiator area.
• Search for a sticker or label that includes the serpentine belt routing diagram. This is commonly placed near the radiator support or on the underside of the hood.
• If the diagram is not visible, check the service manual for the exact layout.

The serpentine belt runs through several components:

• Alternator
• Power Steering Pump
• Air Conditioning Compressor
• Water Pump
• Crankshaft Pulley

Use the diagram to ensure that the belt runs in the correct order around these parts. This will help you replace or adjust the serpentine belt if necessary, ensuring that all systems function smoothly.

Step-by-Step Guide to Replacing the Serpentine Belt on Your 2006 Acura TL

Begin by ensuring the engine is off and cool to avoid any injuries. Open the hood and locate the serpentine belt. You’ll need a socket wrench and the proper belt tensioner tool to release the tension on the belt.

Next, find the belt tensioner, which is usually on the front of the engine. Use the wrench or tool to rotate the tensioner counterclockwise, which will relieve the tension from the belt. This will allow you to remove the belt from the pulleys.

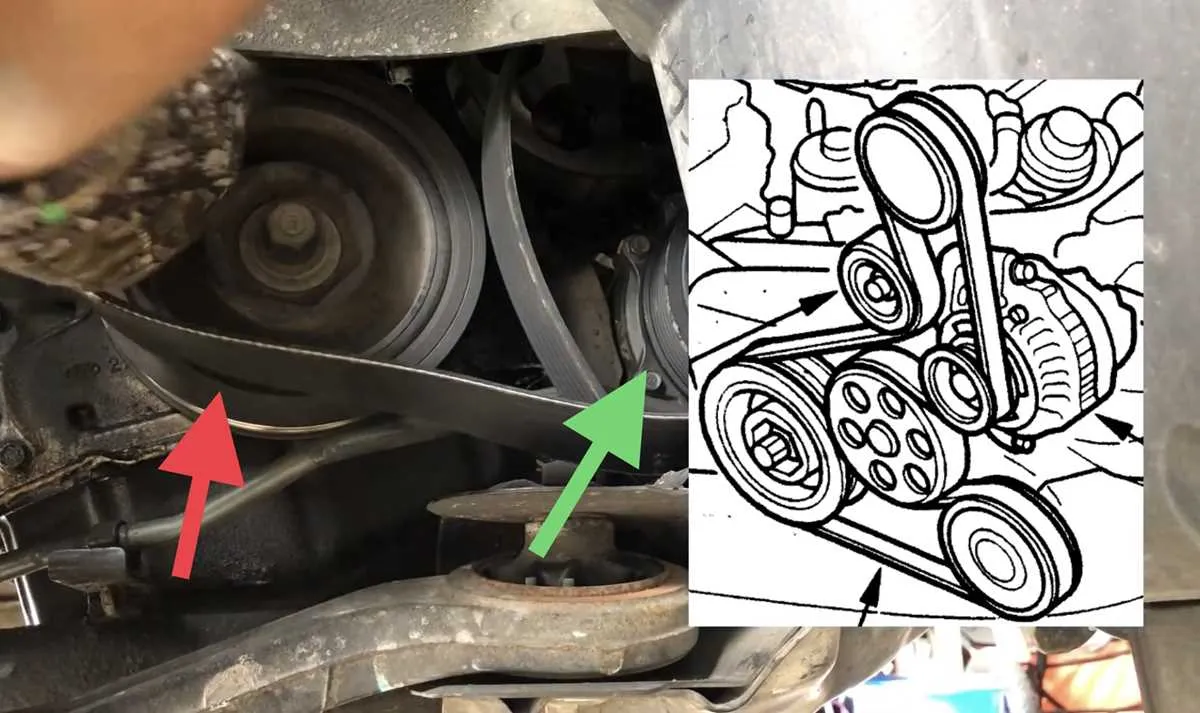

Before removing the old belt, take note of its routing. You can either take a picture or refer to the belt diagram located under the hood for reference. This step ensures you’ll be able to correctly install the new belt.

Now, remove the old serpentine belt by carefully pulling it off the pulleys. Set it aside for disposal or comparison with the new one. Compare the old belt with the replacement to ensure they are identical in length and width.

Position the new serpentine belt according to the diagram or your reference picture. Begin threading it over the pulleys one by one. Make sure it sits correctly on each pulley and is not twisted or misaligned.

Once the belt is properly placed, rotate the tensioner again to relieve pressure, and carefully slide the belt into place. Once the belt is in position, release the tensioner to apply tension to the belt.

Finally, check the belt’s tension. It should be tight but not overly stretched. Start the engine to verify the belt is running smoothly without any unusual noises. If everything looks good, close the hood and you’re done.

Common Issues with the Belt System in a 2006 Acura TL and How to Fix Them

One of the most common issues with the belt system in a 2006 Acura TL is belt wear. Over time, the serpentine belt or timing belt can show signs of cracking, fraying, or glazing. This is usually a result of high heat, age, and constant friction. Replacing the belt as soon as you notice these signs can prevent a failure that might damage other engine components.

If you hear squealing or chirping noises coming from the engine area, the problem could be with the tensioner or idler pulleys. These components maintain the correct tension in the belt. When they wear out or fail, they can cause the belt to slip, leading to performance issues. Replacing the faulty pulley is a quick fix and will restore proper tension to the system.

Another issue to watch for is misalignment. If the pulleys are not properly aligned, the belt can wear unevenly or even snap. This misalignment may be caused by a damaged pulley or bracket. Checking the alignment of the pulleys and replacing any damaged components will resolve this issue and prevent further damage to the belt system.

Leaks from the water pump or power steering pump can also impact the belt system. If fluid drips onto the belt, it can cause slippage and premature wear. Fix any leaks immediately and replace the contaminated belt. Make sure to inspect the fluid levels to ensure the issue doesn’t recur.

Lastly, regular maintenance is key to preventing these problems. Checking the condition of the belt, pulleys, and tensioners during routine oil changes can help catch issues early, saving you time and money in the long run.
