2005 Mazda Tribute 3.0 Belt Diagram and Routing Information
To properly replace or inspect the belts on a 2005 Mazda Tribute 3.0, it’s crucial to follow the correct belt routing diagram. The serpentine belt plays an integral role in powering various components like the alternator, power steering pump, and air conditioning compressor. Without proper tension or alignment, these components can malfunction, causing engine performance issues.
Refer to the vehicle’s official service manual or this detailed belt diagram to ensure the proper placement and routing of the serpentine belt. Pay close attention to the routing path, as incorrect placement can lead to damage or belt wear, resulting in costly repairs.
Before starting, inspect the belt for signs of wear or cracking. If any damage is found, replace the belt immediately to avoid further complications. Make sure the belt tension is optimal to prevent slipping or premature wear. This will ensure that all components connected to the serpentine belt function efficiently for the long term.

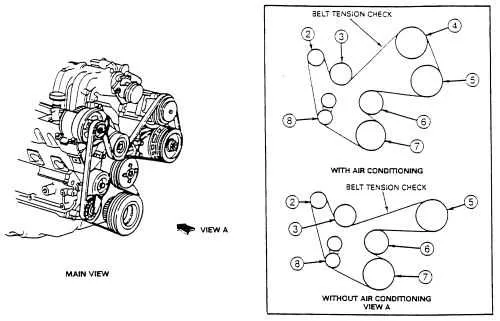

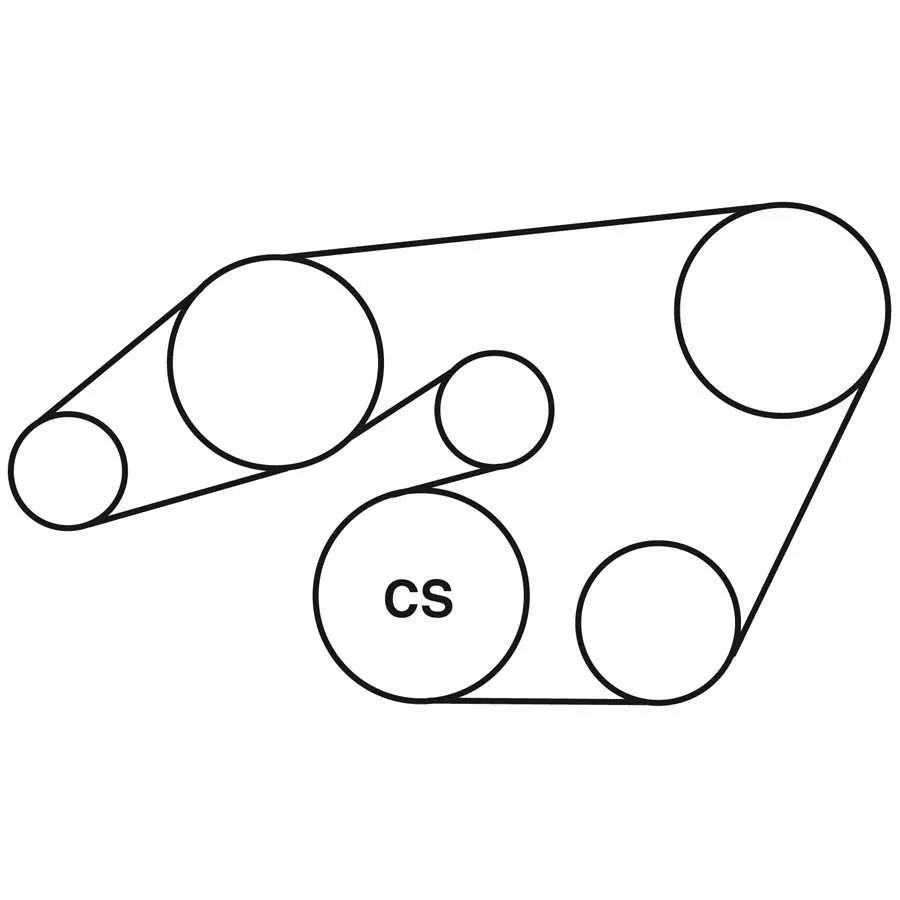

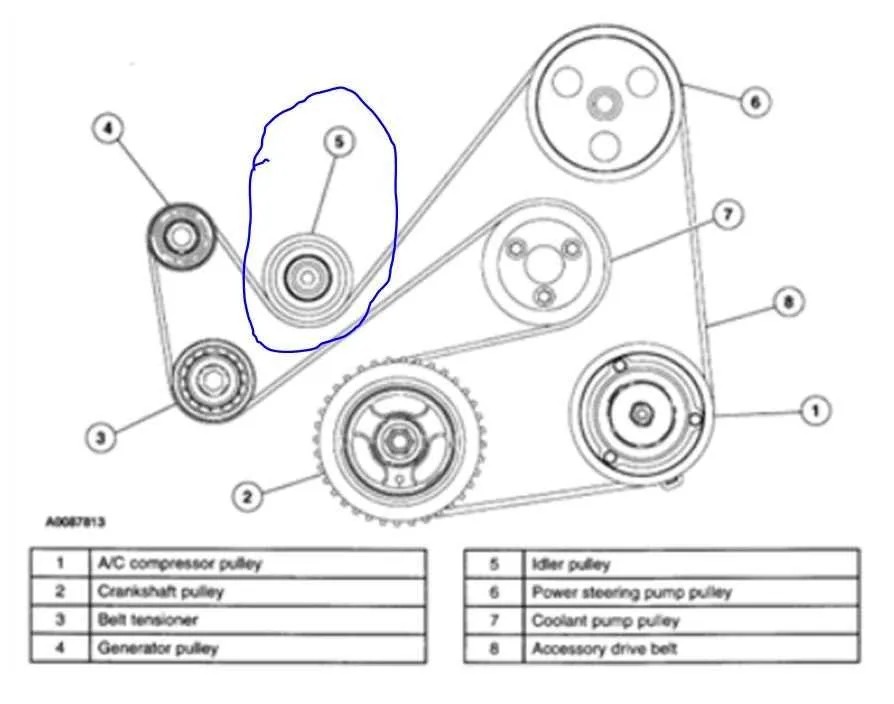

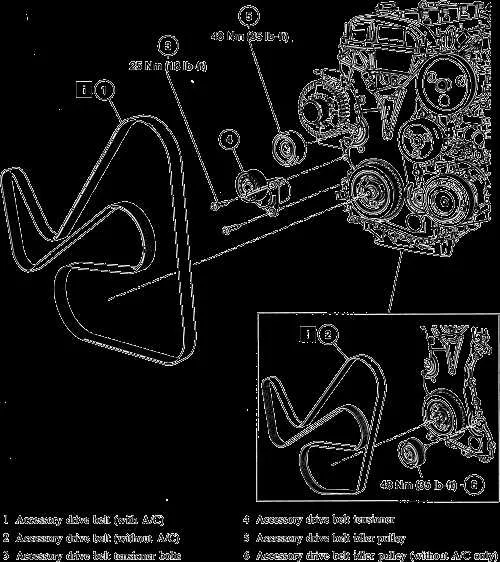

2005 Mazda Tribute 3.0 Belt Diagram
The belt diagram for the 2005 Mazda Tribute 3.0 is crucial for correct belt routing and maintenance. The serpentine belt, also known as the accessory belt, plays a vital role in driving multiple components like the alternator, power steering pump, and air conditioning compressor. Incorrect routing or belt wear can cause system failures and significant engine damage.
Refer to the vehicle’s owner manual or service guide to locate the exact belt diagram. The belt is routed around pulleys, ensuring proper tension and alignment. It is important to check the belt’s condition regularly for signs of wear such as cracking or fraying. If the belt is loose or has visible damage, replacement is necessary to avoid breakdowns.
For proper belt replacement, begin by locating the tensioner pulley. Use a ratchet to relieve tension, allowing the belt to be removed and replaced with a new one. Follow the routing pattern shown in the diagram to install the new belt, ensuring the grooves align with the pulleys. After installation, verify that the belt is properly tensioned and free of slippage.
Regular maintenance and timely replacement of the serpentine belt ensure the smooth functioning of essential components in the 2005 Mazda Tribute 3.0. Keeping the belt in good condition prevents unexpected breakdowns and prolongs the lifespan of the vehicle’s engine components.
How to Identify the Serpentine Belt Routing on the 2005 Mazda Tribute
Locate the serpentine belt routing diagram on the engine bay. This diagram is typically found near the radiator or on the front of the engine. It provides a visual representation of how the belt should loop around the pulleys.
Ensure the engine is off and cool before inspecting the belt. Start by examining the belt path to confirm that it follows the correct routing shown on the diagram. Check that the belt is properly aligned on all pulleys and there are no signs of slipping or misalignment.
If the belt has slipped off or is misaligned, loosen the tensioner pulley and adjust the belt’s position according to the diagram. Once the belt is correctly placed, tighten the tensioner to the appropriate pressure. Always check that the belt is seated well in each groove of the pulleys to prevent further issues.
For an added step, manually rotate the crankshaft pulley with a wrench to verify that the belt moves smoothly without slipping or tension issues. If the belt doesn’t align properly or is worn, it may need replacement.
Common Issues with the Belt on the 2005 Mazda Tribute and How to Address Them
One common issue with the serpentine belt on the 2005 Mazda Tribute is belt wear. Over time, the belt can become cracked or frayed, which leads to poor performance. To address this, visually inspect the belt for any visible signs of wear. If you notice any cracks or frays, it’s time to replace the belt.
Another issue is belt slippage, which occurs when the belt does not maintain proper tension. This can be caused by a loose tensioner or worn pulleys. To solve this, check the tensioner for proper tension. If the tensioner is not functioning correctly, it may need replacement.
Sometimes the belt may squeal when the engine starts or during acceleration. This could indicate a misalignment of the belt or pulleys. Inspect the alignment by checking the pulleys for damage or wear. If they appear damaged, replace them to prevent further issues.
In rare cases, the serpentine belt can snap unexpectedly. This usually happens due to prolonged wear or if the belt was not properly maintained. Prevent this by replacing the belt at regular intervals and addressing any early signs of wear before they worsen.
Steps to Replace the Serpentine Belt on the 2005 Mazda Tribute
To replace the serpentine belt on your 2005 Mazda Tribute, follow these steps carefully for a smooth replacement process.
- Prepare your tools: Gather a new serpentine belt, a ratchet wrench, a serpentine belt tool or a 3/8″ drive ratchet, and a socket set.
- Lift the vehicle (if necessary): Use a jack to lift the front of the vehicle for easier access to the engine components. Secure it with jack stands for safety.
- Locate the belt tensioner: The serpentine belt tensioner is located on the front of the engine. Identify it by the pulley that is spring-loaded.
- Release tension on the belt: Insert the serpentine belt tool or a 3/8″ drive ratchet into the tensioner’s square hole. Rotate the tensioner counterclockwise to relieve tension and allow the belt to be removed.
- Remove the old belt: Once the tension is released, slide the belt off the pulleys. Be sure to note the belt’s routing to ensure the new belt goes on correctly.
- Install the new serpentine belt: Route the new serpentine belt around the pulleys according to the diagram on the engine bay. Double-check that the belt sits properly in the grooves of each pulley.
- Reapply tension: Use the serpentine belt tool to rotate the tensioner again and slip the new belt over the tensioner pulley. Ensure the belt is snug and correctly positioned on all pulleys.
- Check alignment: Inspect the new belt to make sure it’s properly aligned and sits evenly across all pulleys.
- Test the engine: Start the engine and observe the belt’s operation. Listen for any unusual noises and confirm the belt runs smoothly.
If the belt is not running smoothly or there are any unusual noises, double-check the belt alignment and recheck the tensioner for proper adjustment.
