2005 Grand Prix Belt Diagram and Component Layout
Accurate belt placement in the 2005 Grand Prix is critical for ensuring optimal engine performance. Incorrect alignment can lead to unnecessary wear and damage to the engine components. This diagram serves as a reliable reference for both routine maintenance and troubleshooting.
To properly follow the diagram, make sure you identify each belt component–timing, serpentine, and accessory belts. Refer to the engine specifications for detailed measurements and installation guides to avoid complications during reassembly.
Always double-check belt tension after installation. Incorrect tension can cause premature belt failure, leading to expensive repairs. Use a tension gauge to ensure proper fitment, as outlined in the factory manual.
2005 Grand Prix Belt Diagram
Ensure the proper alignment and tension of the serpentine belt in your 2005 Grand Prix by following these guidelines. A misaligned or loose belt can lead to premature wear and cause malfunction of engine components.

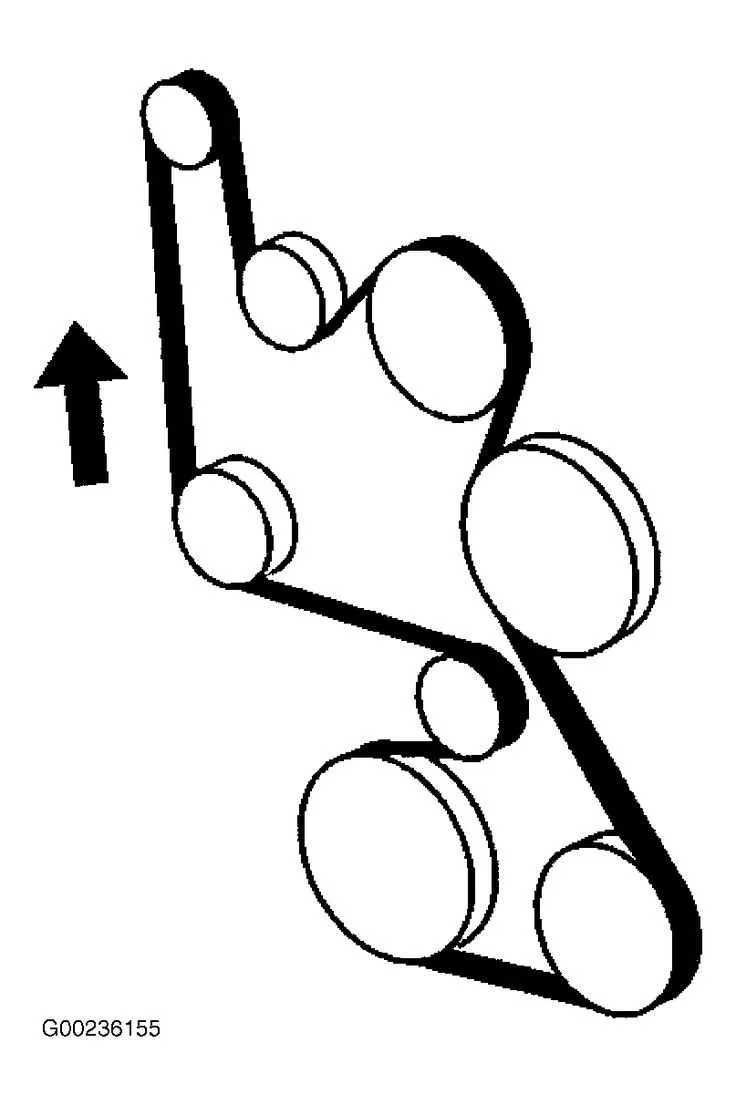

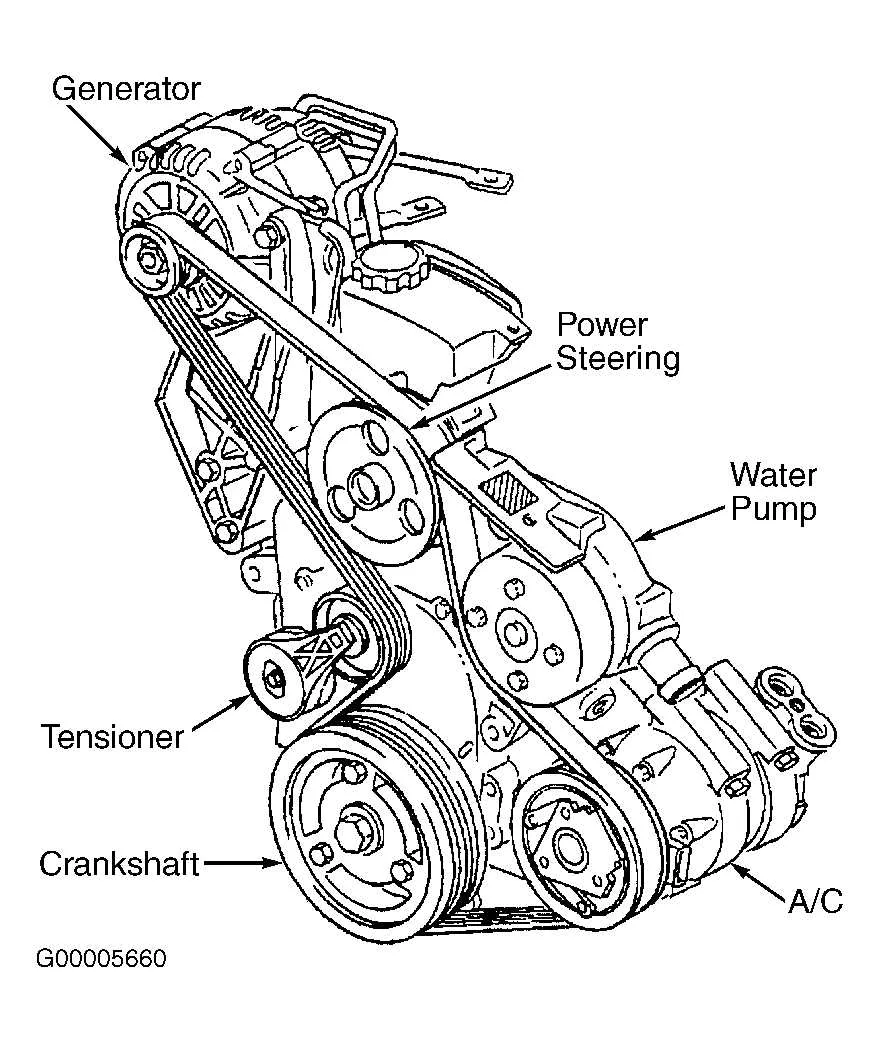

Refer to the diagram below for accurate belt routing and component placement. It’s crucial to follow the manufacturer’s instructions when replacing or adjusting the belt.
| Component | Description |
|---|---|
| Alternator | Supplies electrical power to the car’s systems. Ensure proper belt tension to avoid undercharging issues. |
| Power Steering Pump | Provides hydraulic pressure for steering assistance. The belt must be securely routed around the pump to avoid steering problems. |
| Air Conditioning Compressor | Drives the air conditioning system. A worn belt can result in poor air conditioning performance. |
| Water Pump | Circulates coolant through the engine to prevent overheating. Ensure the belt maintains proper tension to avoid engine damage. |
| Crankshaft Pulley | The primary drive for all accessories. Make sure the belt is properly aligned with the crankshaft pulley to prevent misalignment issues. |
When replacing the belt, check each component for signs of wear or damage. A worn pulley or tensioner can also lead to improper belt operation. Inspect the tensioner for smooth operation and adjust the belt’s tightness accordingly.
Make sure to follow the correct routing pattern shown in the diagram to ensure all components function properly without undue strain on the belt. A mistake in routing could cause the belt to slip or break prematurely.
Understanding the Belt Routing for 2005 Grand Prix
The 2005 Grand Prix uses a serpentine belt system to power various engine components. Correct routing of this belt is crucial to ensure proper operation and avoid damage to critical parts. Follow these steps to ensure proper belt installation:
- Locate the tensioner pulley, which is used to maintain the correct tension on the belt. It should be positioned in a way that it can freely adjust the belt’s tightness.
- Identify the alternator, power steering pump, and air conditioning compressor–these are the key components driven by the belt. Each of these should be connected in sequence with the belt’s routing.
- Ensure the belt wraps around the crankshaft pulley, which serves as the main power source for the system. The belt should loop around it in the correct direction for the system to work.
- Check that the belt follows the correct path around the idler pulleys and the other components to avoid misalignment, which could lead to premature wear or damage.
If you are replacing the serpentine belt, check the manufacturer’s recommended routing diagram. The diagram typically includes a clear visual of the belt’s path to ensure you follow it correctly. Incorrect routing can result in insufficient power transfer or over-tightening, potentially leading to component failure.
Before reassembling the system, confirm that the belt is properly seated on all pulleys and that there are no gaps or slack. The belt should be snug but not overly tight.
Step-by-Step Guide for Belt Replacement on 2005 Grand Prix
Begin by disconnecting the negative battery terminal to avoid accidental electrical contact.
Locate the serpentine belt routing diagram on the engine bay. This will guide you through the correct path for the belt installation.
Use a socket wrench to relieve tension on the tensioner pulley. Rotate the tensioner counterclockwise to slacken the belt.
Remove the old belt carefully from all pulleys, starting with the tensioner pulley, then move to the idler pulley and other components.
Inspect the pulleys and components for wear or damage before installing the new belt. Clean the pulleys if necessary.
Position the new belt according to the routing diagram. Ensure it fits securely on all pulleys, making sure there are no twists or misalignments.
With the new belt in place, rotate the tensioner pulley again to allow the belt to slip into place on the tensioner.
Check the belt’s alignment and ensure it sits evenly on all pulleys, with no slack or tension problems.
Reconnect the battery and start the engine to verify that the belt operates smoothly without any unusual noises or vibrations.
Turn off the engine and double-check the belt’s alignment once more for safety.
Troubleshooting Common Belt Issues in 2005 Grand Prix
If you notice unusual sounds or performance issues in your 2005 Grand Prix, the serpentine belt could be the cause. Start by inspecting the belt for visible damage, such as cracks, frays, or signs of wear. If the belt appears worn, replace it immediately to prevent further damage to the engine components.
Check the belt tension. A loose or overly tight belt can cause slippage or excessive wear. Use a belt tension gauge to confirm the correct tension. If the tension is off, adjust or replace the tensioner pulley to maintain proper alignment and tension.
Inspect the pulleys for damage or misalignment. Damaged or misaligned pulleys can cause the belt to wear unevenly. Spin each pulley by hand to check for smooth operation. If you hear grinding or notice wobbling, replace the faulty pulley.
Ensure the alternator and other driven components are functioning correctly. A malfunctioning alternator, water pump, or AC compressor can strain the belt. If you suspect an issue with these components, test them individually and replace any defective parts.
If the belt makes a squealing noise, it could indicate that it’s slipping due to contamination. Clean the pulleys and belt surfaces with a degreaser to remove oil or dirt buildup. After cleaning, recheck the tension and alignment.
