2005 Honda CRV Serpentine Belt Diagram and Installation Guide
To ensure the proper functioning of your 2005 Honda CRV, regularly checking the belt system is a must. The serpentine belt plays a key role in driving multiple accessories like the alternator, air conditioning, and power steering. A damaged or worn belt can cause engine performance issues and may lead to costly repairs.

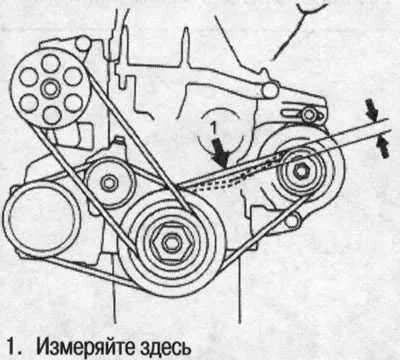

Refer to the 2005 CRV belt diagram to identify the correct belt routing and ensure proper installation. The diagram shows the path of the serpentine belt, as well as the location of components such as the tensioner, pulleys, and engine accessories. It’s crucial to match the diagram exactly to avoid misalignment or potential damage.
If you are replacing the belt, follow the diagram step-by-step to ensure the new belt fits properly and is tensioned correctly. Inspect each pulley for wear or damage, as faulty pulleys can shorten the lifespan of the new belt.
2005 CRV Belt Diagram
To replace or inspect the belts on the 2005 Honda CR-V, understanding the belt diagram is crucial. This diagram shows the correct routing of the serpentine and timing belts, which ensures all engine components receive power efficiently.
The serpentine belt drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. It’s located on the front of the engine, and its routing varies depending on the engine variant.
- The timing belt is crucial for synchronizing the engine’s internal components like the camshaft and crankshaft.
- Ensure the serpentine belt is tensioned correctly to avoid slippage or premature wear.
- Check the timing belt at regular intervals as specified in the vehicle’s maintenance schedule to avoid costly engine damage.
For the 2005 CR-V, the belt diagram typically includes the following routing for the serpentine belt:
- Start at the crankshaft pulley.
- Loop around the air conditioning compressor.
- Move to the power steering pump, then loop around the alternator pulley.
- Ensure the belt runs smoothly through each idler pulley, following the path shown in the diagram.
Regularly inspect both the serpentine and timing belts for wear, cracks, or fraying. Replace them immediately if any damage is found. For the timing belt, replace it at the manufacturer-recommended interval to prevent the risk of engine failure.
Understanding the Serpentine Belt Layout for 2005 CRV
The serpentine belt layout in the 2005 Honda CR-V ensures that critical engine components work together seamlessly. Proper understanding of this layout helps in diagnosing issues or replacing the belt efficiently.

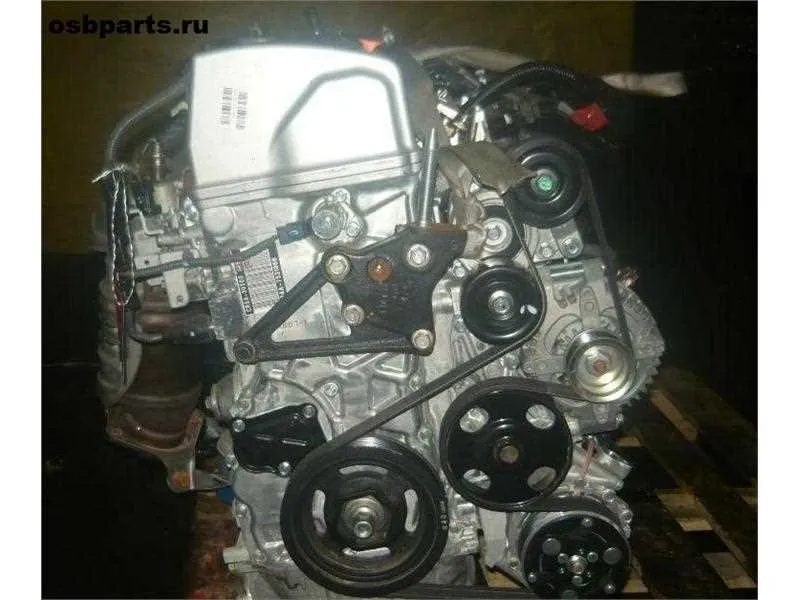

The serpentine belt runs over several pulleys: the crankshaft pulley, the alternator, the power steering pump, the AC compressor, and the water pump. It connects all these components, ensuring they operate in sync. If the belt slips or breaks, the engine’s cooling and electrical systems, along with other vital functions, can be severely impacted.
When replacing the serpentine belt, it’s crucial to ensure proper tension. A loose or excessively tight belt can cause operational problems. The layout for the 2005 CR-V typically includes a tensioner pulley that automatically adjusts the belt’s tightness. This tensioner should be inspected regularly for wear and replaced if necessary.
Inspect the belt itself for signs of cracks, fraying, or glazing, as these can all indicate potential failure. Pay attention to any squealing noises, which often signify a slipping belt. Replacing the serpentine belt at the recommended intervals, usually around 90,000 miles, is crucial for maintaining optimal engine performance.
Additionally, always follow the manufacturer’s guide when reinstalling the serpentine belt. Use the correct routing path for the belt to avoid misalignment, which could lead to premature wear or failure.
How to Identify and Troubleshoot Belt Tension Issues
Start by inspecting the serpentine belt for signs of wear or damage, such as cracking, fraying, or glazing. These can indicate that the belt is losing its tension or is misaligned. Use a tension gauge to measure the force exerted by the belt, ensuring it falls within the manufacturer’s recommended range.
If the tension is too loose, it could be caused by a worn-out tensioner or pulley. Check the tensioner for proper movement. It should not be stuck or showing signs of wear. If the tensioner is malfunctioning, replacing it can restore proper belt tension.
For over-tightened belts, listen for squealing sounds or feel for excessive resistance when turning the pulleys by hand. These can point to a problem with the tension adjustment or pulley misalignment. Verify the pulley alignment using a straight edge or a laser alignment tool to ensure it runs smoothly along the belt path.
If you’re still experiencing issues, check for any damaged pulleys that could cause the belt to slip. Excessive heat can degrade the tensioner, so inspect for signs of overheating. Also, make sure the belt routing follows the diagram to prevent any unnecessary strain on the components.
Steps to Replace the Serpentine Belt on a 2005 CRV
Begin by disconnecting the negative terminal from the battery to prevent any electrical issues. Locate the serpentine belt and inspect its condition to ensure it’s the source of the problem.
Next, use a ratchet and socket to rotate the tensioner pulley and relieve tension on the belt. Slide the belt off the pulleys, starting from the top or easiest access point. Take note of the belt routing to ensure proper installation of the new belt.
Once the belt is removed, compare it to the new one, checking for any length or design differences. Begin installing the new serpentine belt, following the correct routing. Make sure it fits snugly over all the pulleys, ensuring the tensioner pulley is properly aligned.
After the belt is in place, rotate the tensioner pulley once again to tighten the belt. Double-check the alignment and positioning of the belt on each pulley.
Reconnect the battery, start the engine, and observe the belt in action to ensure it runs smoothly without any slipping or noise. If everything looks good, the replacement is complete.
