2005 Toyota Camry Serpentine Belt Routing Diagram and Maintenance Tips

To maintain optimal performance of your 2005 Toyota Camry, understanding the belt configuration is a key step. This diagram shows you the exact routing of the serpentine and timing belts in your engine. If you’re tackling repairs or replacements, it’s essential to follow the correct belt path to avoid unnecessary damage and ensure smooth engine operation.

The serpentine belt drives several crucial components, such as the alternator, power steering pump, air conditioning compressor, and water pump. The timing belt controls the camshaft and crankshaft synchronization, allowing the engine to run smoothly. Getting the diagram right is critical to preventing issues like belt slipping or engine misalignment.

If you’re replacing a worn belt or performing routine maintenance, double-check the tension and alignment before reassembling the engine. Incorrectly routed or loose belts can cause premature wear and lead to costly repairs. Use the diagram as a guide to ensure that every part is properly installed and functioning as it should.

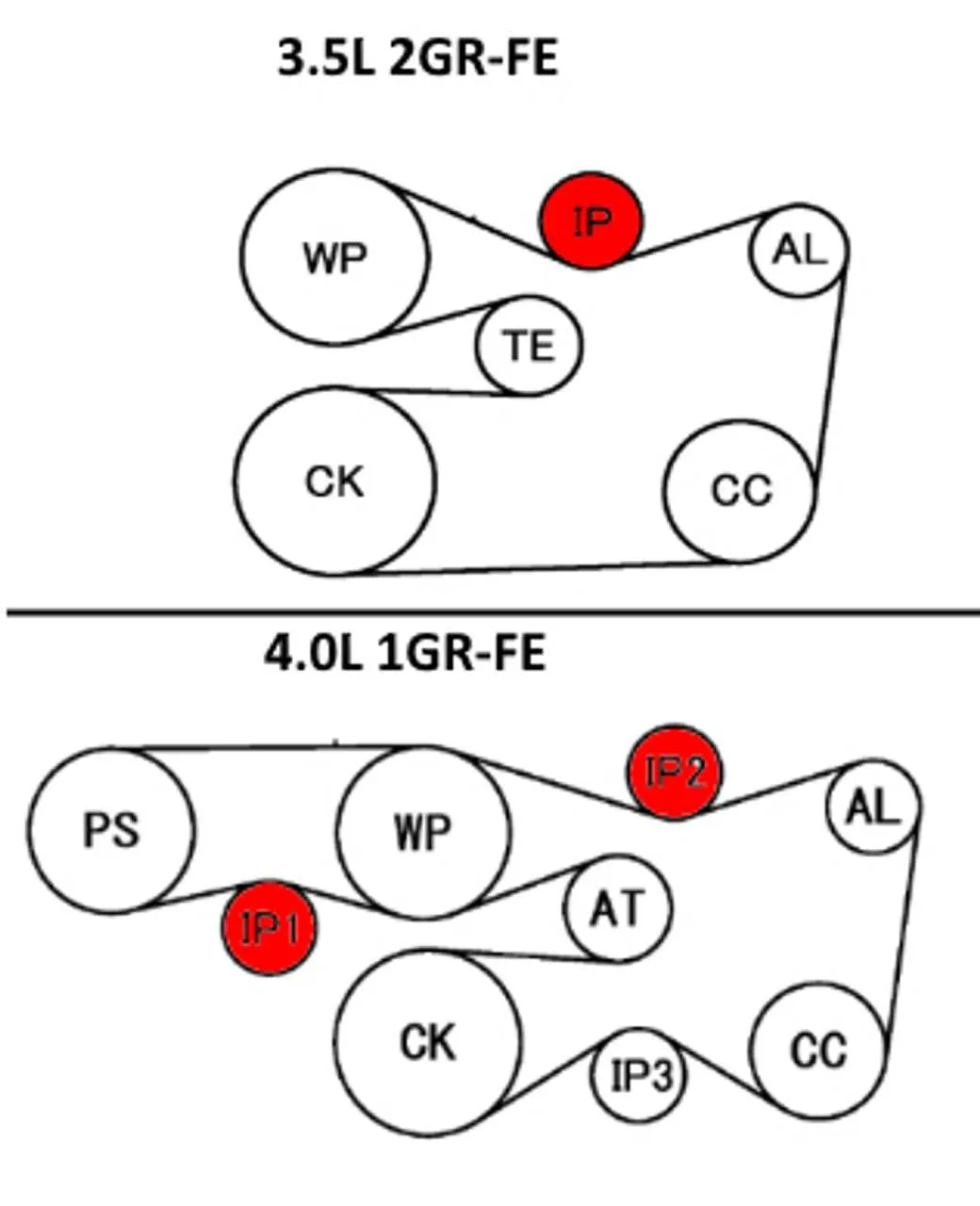

2005 Camry Belt Diagram

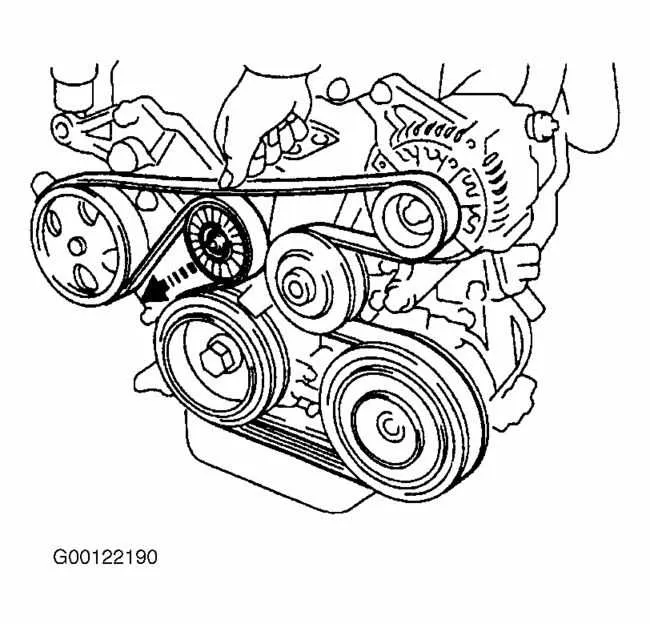

To replace or check the serpentine belt on a 2005 Toyota Camry, refer to the following belt diagram. This diagram illustrates the correct path for the serpentine belt around various pulleys and components in the engine bay. Ensure the belt is properly routed to avoid misalignment or damage to engine parts.

The belt follows a specific path, starting from the crankshaft pulley, running through the tensioner, alternator, air conditioning compressor, power steering pump, and then back to the crankshaft. Make sure the belt is tight and free from signs of wear like cracks or fraying. If the tensioner is not holding proper tension, it may need to be replaced as well.

For easier belt replacement, relieve the tension on the belt using a ratchet or a specific tool designed for the tensioner. After replacing the belt, manually rotate the crankshaft to ensure everything is aligned and operating smoothly. Double-check the belt routing against the diagram for any discrepancies.

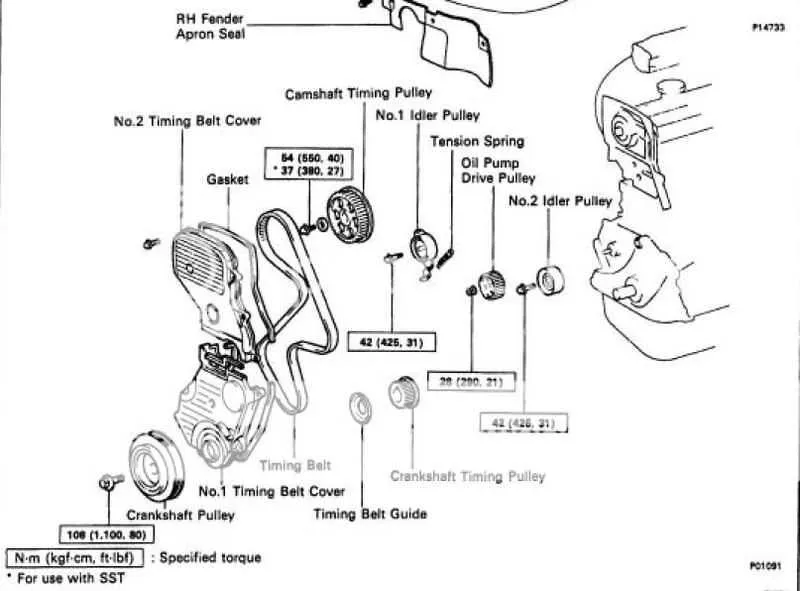

Understanding the Timing Belt Layout in a 2005 Camry

The timing belt layout in the 2005 Toyota Camry is a key component of the engine’s performance. The belt controls the synchronization between the crankshaft and camshaft, ensuring that the engine’s valves open and close at the correct time during each cylinder’s intake and exhaust cycle.

For the 2005 Camry, this layout includes several critical parts: the timing belt, camshaft gears, crankshaft gear, tensioner, and idler pulleys. Proper alignment of these components is necessary to prevent engine misfires or even catastrophic damage.

To help you understand how the timing belt fits into the overall system, here is the layout breakdown:

• Crankshaft Gear: This gear is connected to the bottom of the engine and turns the timing belt. It plays a central role in driving the timing of the camshafts.
• Camshaft Gear: Located at the top of the engine, it controls the intake and exhaust valves. The camshaft gear is driven by the timing belt, ensuring valves open and close in sync with the piston movements.
• Timing Belt: The timing belt itself is a rubber belt with teeth that mesh with the gears. It runs from the crankshaft gear to the camshaft gears, and often includes markings to help with proper installation and alignment.
• Tensioner: This component maintains the correct amount of tension on the timing belt. A worn or improperly adjusted tensioner can lead to skipped teeth or excessive wear on the belt.
• Idler Pulley: The idler pulley helps guide the timing belt along its path, ensuring the belt remains aligned with the gears and the tension is kept in check.

If you’re replacing the timing belt, make sure to follow the service manual’s specifications for proper alignment and tension. Timing belt failure can cause significant engine damage, often resulting in costly repairs. It’s also a good idea to replace the water pump at the same time, as the labor involved is nearly identical, and a worn water pump could lead to further engine issues down the road.

Lastly, check for any signs of wear or cracking on the belt. If your 2005 Camry has high mileage (over 100,000 miles), the timing belt might need replacement, even if it’s not showing visible damage.

How to Identify and Replace the Serpentine Belt in a 2005 Camry

Check for visible signs of wear on the serpentine belt, such as cracks, fraying, or glazing. If you notice any damage, replace the belt immediately. To access the belt, locate the belt tensioner and use a socket wrench to release its tension. This will allow you to slide the belt off the pulleys.

Before removing the old belt, take note of the belt routing by either referring to the belt diagram under the hood or drawing a quick sketch. This step ensures you’ll reinstall the new belt correctly.

Inspect the pulleys and tensioner for any damage or signs of wear. If any component feels loose or rough, replace it along with the belt. A damaged tensioner can cause the new belt to wear out prematurely.

Place the new belt over the pulleys, following the belt routing diagram. Use the socket wrench to relieve tension on the tensioner, then slide the belt into place. Double-check the belt for proper alignment on each pulley before releasing the tensioner fully.

Start the engine and listen for any unusual noises. If the belt operates quietly and smoothly, the replacement was successful. Regularly check the belt condition every 30,000 to 50,000 miles to ensure it continues to function properly.

Troubleshooting Belt Issues in the 2005 Camry: Common Problems and Fixes

Inspect the serpentine belt regularly for cracks, fraying, or wear. If the belt appears worn out or damaged, replace it immediately to prevent further engine damage.

Strange noises like squealing or squeaking often point to a loose or misaligned belt. Tighten or adjust the belt tensioner to resolve this issue. Check the alignment of the pulleys to ensure they are not causing friction against the belt.

If your steering feels heavier than usual, or if the air conditioning and alternator are not working properly, the issue may lie with the belt or tensioner. A worn-out belt or faulty tensioner can cause these problems. Replace both components if necessary.

Loss of power steering or overheating can indicate a failure in the serpentine belt or one of the pulleys. Check the belt for proper tension and alignment. A faulty water pump pulley can also prevent the belt from turning smoothly, leading to overheating.

For belt squeal under acceleration, check for oil or fluid contamination on the belt, which can cause slipping. Clean the belt and pulleys, and replace the belt if contamination persists.

If the belt is cracking, check the belt tensioner. A faulty tensioner can allow the belt to become too loose, causing slippage and damage. Replacing the tensioner will restore proper tension and prevent future issues.

For any persistent issues, inspect the pulleys for wear. A damaged pulley may not rotate smoothly, putting undue stress on the belt. Replace any worn pulleys to avoid further belt-related issues.
