2004 Pontiac Grand Prix Serpentine Belt Diagram and Routing Guide

For accurate belt installation on your 2004 Pontiac Grand Prix, follow the diagram below to ensure proper belt routing and prevent issues like slipping or premature wear. This diagram illustrates the exact path the serpentine belt should take around key components such as the alternator, power steering pump, and air conditioning compressor.

Key tips for installation: Before starting, inspect the belt for any signs of wear or damage. If the belt shows cracks, fraying, or other visible issues, it’s best to replace it before installation. Always ensure that the tensioner is functioning correctly to maintain proper tension.

Refer to the diagram to double-check the positioning of the belt around each pulley. Pay attention to the direction the belt should be routed and the proper orientation of each pulley to avoid installation errors.

Note: If you’re unsure about the belt’s condition or installation, consider consulting the vehicle’s service manual or a professional mechanic for further guidance.

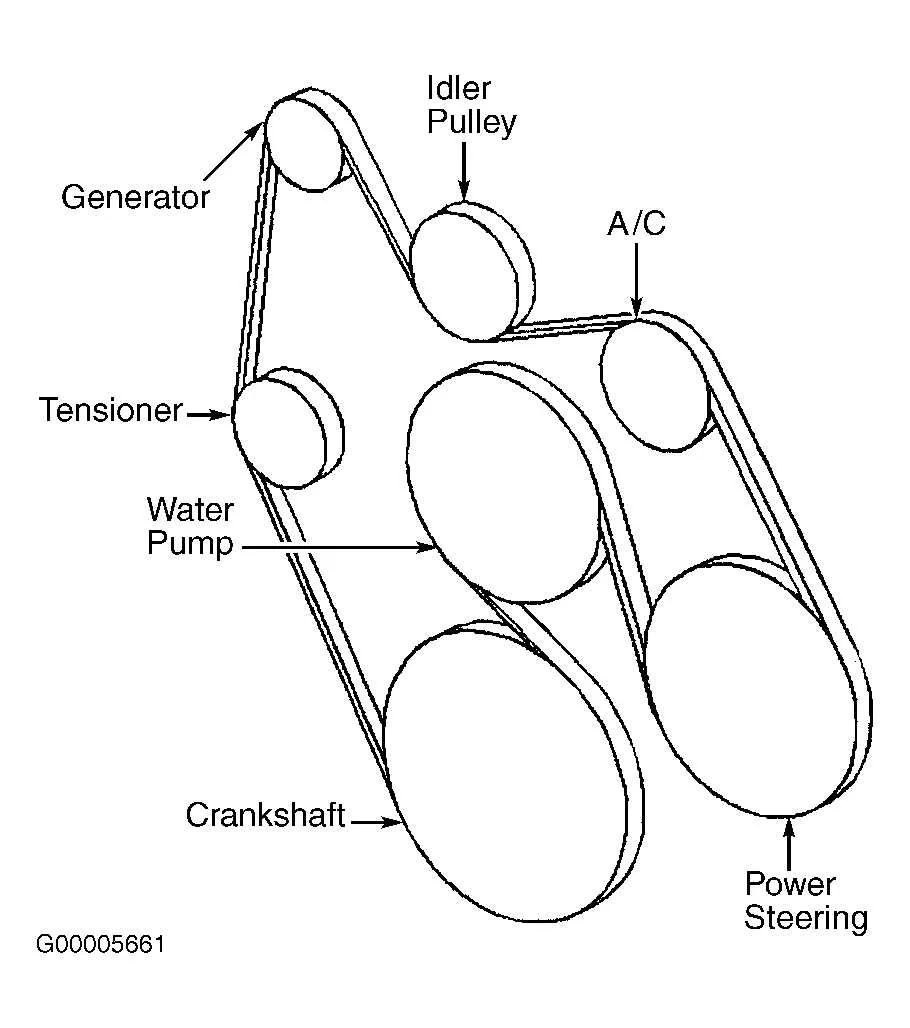

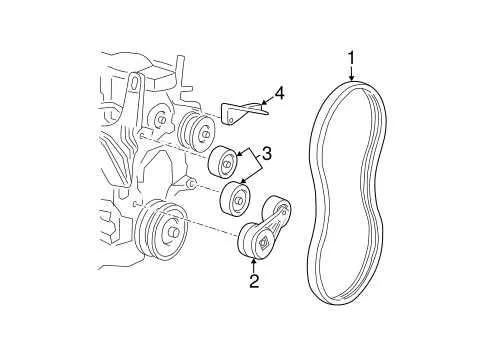

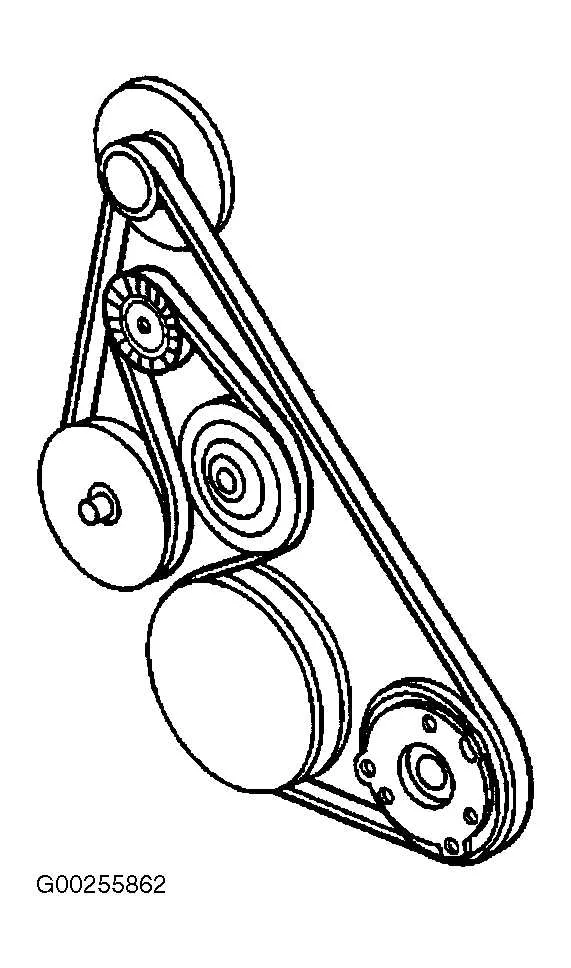

2004 Pontiac Grand Prix Belt Diagram

Check the following belt diagram to ensure proper installation of belts in your 2004 Pontiac Grand Prix. Incorrect installation can lead to poor engine performance or even serious damage. Follow the steps outlined in the diagram for a smooth-running engine.

Before starting, ensure that the car is turned off, the ignition is in the “off” position, and the battery is disconnected to avoid any electrical hazards.

The 2004 Pontiac Grand Prix typically has several belts, including the serpentine belt and individual accessory belts. The serpentine belt powers most of the car’s accessories. Below is the belt routing for different engine configurations:

• For the 3.1L engine:
  • Crankshaft pulley
  • Alternator
  • Power steering pump
  • Water pump
  • Air conditioning compressor
• For the 3.8L engine:
  • Crankshaft pulley
  • Alternator
  • Power steering pump
  • Water pump
  • Air conditioning compressor
  • Tensioner pulley

The belt tensioner plays a crucial role in keeping the belts tight. Make sure the tensioner is operating smoothly before replacing any belts. If your belts are cracked or worn, replace them immediately to avoid slipping or breaking.

For further guidance, consult the service manual for detailed instructions or professional help.

How to Read the 2004 Pontiac Grand Prix Serpentine Belt Diagram

Start by identifying the layout of the serpentine belt on the diagram. Locate the components the belt connects, such as the alternator, power steering pump, air conditioning compressor, and water pump. These components will appear as circles with arrows indicating the direction of the belt’s travel.

Look for any tensioner pulleys. These are typically shown with a specific symbol indicating they are adjustable or spring-loaded. If the diagram includes a spring or arrow near the tensioner, it means you will need to apply tension to the belt manually or with a tool.

Check the routing path of the belt. The diagram shows how the belt wraps around pulleys and the specific direction it follows. Pay attention to any loops or twists, as these indicate the path of the belt to ensure it fits correctly.

If the diagram includes multiple options, make sure to match the correct one to your vehicle’s specific model. Double-check the belt size and the number of ribs, as these are crucial for proper installation.

Once the belt is routed according to the diagram, verify the tensioner’s position. The belt should have slight tension but not be too tight. If in doubt, consult the vehicle’s manual for the recommended belt tensioning specifications.

Common Issues with the 2004 Pontiac Grand Prix Belt and How to Fix Them

Check for belt wear regularly. If you notice cracks, fraying, or glazing, replace the belt immediately to prevent further damage. A worn belt can lead to poor performance and potential engine damage.

Check the belt tensioner. If the belt is too loose or too tight, it can cause premature wear or even break. A faulty tensioner should be replaced to ensure proper belt tension. A loose belt might cause squealing noises or erratic power steering performance.

Inspect the pulleys for damage or corrosion. A damaged pulley can misalign the belt, leading to uneven wear and potential failure. Replace any damaged pulleys to keep the belt running smoothly.

If you hear unusual squealing or grinding sounds, it could indicate that one of the accessories is failing. This is often linked to a failing alternator, power steering pump, or A/C compressor. Address the issue by replacing the faulty component to avoid further stress on the belt.

For proper alignment, use a belt diagram to ensure the belt is routed correctly. Incorrect installation can cause slippage and uneven wear, making it crucial to follow the proper routing pattern.

Lastly, regularly check the serpentine belt for proper tension. Over time, the belt might stretch or become loose, affecting its performance. If you’re unsure, replace the belt every 60,000 to 100,000 miles as part of your regular maintenance routine.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2004 Pontiac Grand Prix

Begin by ensuring the engine is turned off and completely cool. Disconnect the negative battery terminal to prevent any electrical accidents.

Locate the serpentine belt tensioner on the engine. It’s usually near the bottom of the engine, on the front. Using a socket wrench, rotate the tensioner pulley counterclockwise to release tension from the belt. Be sure to relieve the pressure slowly to avoid snapping the belt or damaging components.

Remove the old serpentine belt from the pulleys. Take note of the routing path, either by looking at the belt diagram (found under the hood) or by taking a photo. This will ensure you install the new belt correctly.

Check the condition of all pulleys and components that the belt rides on. If any pulleys feel rough, or if there is visible damage, replace them before installing the new belt. A worn-out pulley can quickly wear down the new belt.

Install the new serpentine belt following the routing pattern. Start by threading it over the pulleys, ensuring it fits securely in each groove. Keep the belt tight and make sure it’s aligned properly on the tensioner and other pulleys.

Rotate the tensioner again using the socket wrench to relieve enough tension to slide the belt over the tensioner pulley. Let the tensioner return slowly to apply the correct pressure on the belt.

Double-check that the belt is properly aligned on all pulleys and that it’s snug but not overly tight. Start the engine and observe the belt’s movement. If the belt runs smoothly without slipping, you’ve successfully replaced it.

Reconnect the negative battery terminal, and you’re all set.
