06 Scion TC Serpentine Belt Diagram and Maintenance Guide
Understanding the belt diagram of the 06 Scion TC is crucial for maintaining the vehicle’s performance. By knowing the correct belt routing and component placement, you can prevent unnecessary wear and tear on the serpentine belt, ensuring smooth engine operation. If you’re planning to replace or inspect the belt, familiarize yourself with the diagram before starting any repairs.
The serpentine belt system in the 06 Scion TC connects multiple components like the alternator, power steering pump, and air conditioning compressor. Ensuring it follows the correct routing can save you time and prevent damage to these parts. Be sure to check the tension regularly as a loose or worn-out belt can lead to overheating or loss of power to critical systems.
To replace the belt, locate the tensioner pulley and use a wrench to release tension. After the belt is removed, examine all pulleys for damage or wear. If any component is faulty, replace it immediately to avoid further complications. A properly installed belt will ensure that your 06 Scion TC runs at peak efficiency.
06 Scion TC Belt Diagram
The 2006 Scion TC uses a serpentine belt that drives multiple components, including the alternator, power steering pump, and air conditioning compressor. When inspecting the belt, look for any signs of wear such as cracks or fraying. A worn-out belt can cause engine performance issues or even a breakdown.
To ensure proper function, replace the belt at recommended intervals or sooner if you notice any damage. The belt tension should be checked regularly, as too much slack can lead to poor performance. Also, ensure the pulleys are aligned correctly to avoid unnecessary wear.
Below is a basic guide to the belt routing for the 2006 Scion TC, which will help during installation or replacement:
| Component | Location |
|---|---|
| Alternator | Front left of engine bay |
| Power Steering Pump | Front right of engine bay |
| Air Conditioning Compressor | Right side of engine bay |
| Crankshaft Pulley | Lower center of engine bay |
| Idler Pulley | Near the top center of engine bay |
| Tensioner Pulley | Near the top left of engine bay |
When replacing the belt, make sure all pulleys are in good condition and rotate smoothly. Replacing the tensioner or idler pulleys may be necessary if they show signs of damage or wear. Always follow the manufacturer’s instructions for routing the new belt to ensure it functions properly.
How to Identify the Correct Serpentine Belt Layout for 06 Scion TC
First, locate the belt routing diagram. For the 06 Scion TC, it’s typically found on a sticker in the engine compartment, near the radiator or on the underside of the hood. This diagram will provide a detailed illustration of how the serpentine belt should be routed around the various pulleys and components.
Verify the number of grooves on the replacement serpentine belt. The 06 Scion TC requires a belt with 6 grooves. Ensure the length and width of the belt match the original specifications to avoid over-tensioning or slippage.
Check the position of each pulley in relation to the belt layout. Make sure the belt is aligned properly with each pulley, avoiding any misrouting that could lead to increased wear or failure. The alternator, power steering pump, air conditioning compressor, and tensioner should all be included in the layout.
Use a tension gauge to ensure proper tension after installation. A belt that is too loose or too tight can cause premature wear or even damage to the engine components.
Step-by-Step Guide to Replacing the Serpentine Belt in 06 Scion TC
To replace the serpentine belt in your 06 Scion TC, follow these steps for a smooth and efficient process.
-
Lift the front of your car using a jack and secure it with jack stands for safety.
-
Locate the serpentine belt on the front of the engine. You will find a belt routing diagram on a sticker near the radiator or under the hood.
-

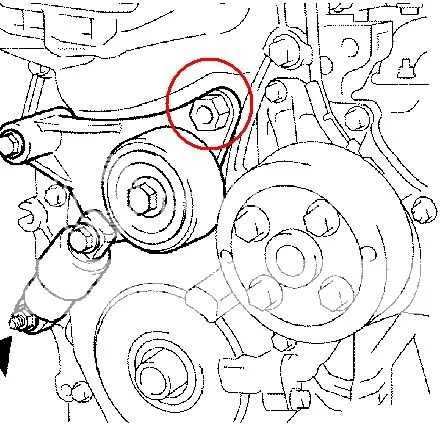

Release tension from the belt by using a ratchet and socket to turn the tensioner pulley. This will allow you to remove the belt from the pulleys.
-
Remove the old serpentine belt from the engine, ensuring it comes off all pulleys without damage.
-
Compare the new belt with the old one. Confirm that they are of the same length and width to avoid compatibility issues.
-
Install the new serpentine belt, following the routing diagram precisely. Ensure that the belt fits securely over all pulleys.
-
Reapply tension to the belt by turning the tensioner pulley again until the belt is tight.
-
Check the belt’s tension by pressing down on it. It should not deflect more than half an inch.
-
Start the engine and visually inspect the belt to ensure it runs smoothly without any slips or misalignments.
After replacing the serpentine belt, test your car to ensure that all components are functioning properly. If you hear unusual noises or see the belt misaligned, double-check the installation and adjust accordingly.
Troubleshooting Common Issues with the 06 Scion TC Serpentine Belt
If your serpentine belt makes squeaking or chirping sounds, it could indicate a loose or worn-out belt. Inspect the belt for cracks or fraying. If the belt appears damaged, it needs to be replaced immediately to prevent further issues.
A misaligned belt is another common problem. Check the pulleys for wear or misalignment. If any pulley is not aligned properly, it can cause the belt to slip, reducing its efficiency. You may need to adjust or replace the pulley to restore proper alignment.
If the engine is overheating, it might be due to the serpentine belt not properly turning the water pump or cooling fan. Inspect the belt for any signs of damage and ensure it’s tight enough to maintain proper tension on all components.
In some cases, the belt may appear to be in good condition but still isn’t functioning as expected. Check the belt tensioner. A faulty tensioner may fail to maintain the correct tension, causing the belt to slip. Replacing the tensioner may resolve the issue.
Another issue could be power steering failure, often due to the belt slipping or not driving the power steering pump effectively. If you notice a decrease in power steering performance, check the belt and the power steering pump. If necessary, replace the belt or the pump.
If you experience poor air conditioning performance, it could be related to the serpentine belt not turning the A/C compressor effectively. Inspect the belt and replace it if it’s not making the necessary contact to drive the compressor.
