05 Camry Belt Diagram and Replacement Guide

Ensure proper belt routing for your 2005 Toyota Camry to avoid unnecessary wear and prevent potential engine issues. The belt system in your Camry plays a key role in powering accessories like the alternator, power steering, and air conditioning. A correct setup ensures everything runs smoothly without unnecessary strain on the engine.

Locate the correct diagram before starting any maintenance. The diagram shows the precise routing of the serpentine belt, which is crucial for maintaining optimal engine performance. For the 2005 Camry, check the manufacturer’s service manual or the under-hood sticker, which typically includes a belt routing diagram tailored for your specific model.

Inspect the condition of the belt regularly to catch signs of wear early. Cracks, fraying, or any visible damage to the belt can lead to failure. If the belt is too loose or too tight, it can also cause problems. Replace the belt at the manufacturer’s recommended intervals to avoid costly repairs down the line.

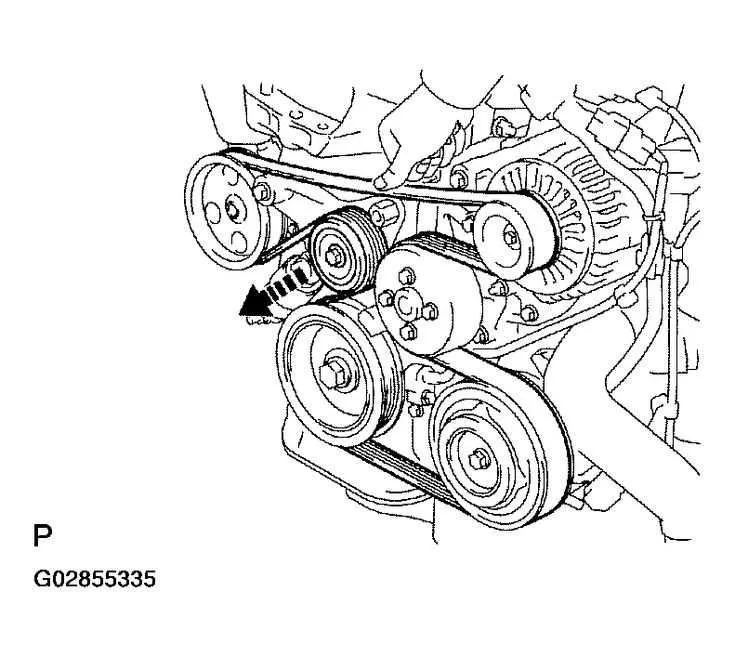

05 Camry Belt Diagram

The 2005 Toyota Camry is equipped with a serpentine belt that drives multiple components like the alternator, power steering pump, and air conditioning compressor. To ensure proper belt function, it’s critical to follow the correct routing diagram. First, locate the tensioner pulley, which keeps the belt tight. You’ll need to use a wrench or socket to move the tensioner and release pressure on the belt. Once the tension is off, remove the belt from the pulleys.

Check the belt for any signs of wear, such as cracks, fraying, or glazing. If any of these issues are present, it’s time for a replacement. When installing the new belt, make sure it follows the routing shown in the factory diagram. Pay close attention to the direction of the belt’s grooves, ensuring it fits into the pulleys properly. The belt should align evenly with the pulleys to avoid slippage or premature wear.

The belt routing for the 2005 Camry can vary slightly depending on whether the car is equipped with a 4-cylinder or V6 engine. For the 4-cylinder, the serpentine belt passes over several pulleys, including the alternator, water pump, and power steering pump. In the V6 version, the routing includes additional pulleys for the air conditioning system and other accessories. Always refer to the vehicle’s service manual for the exact diagram specific to your engine type.

Once the new belt is installed, check its tension and ensure it runs smoothly over the pulleys. Replacing the belt correctly can prevent common issues like engine overheating, loss of power steering, or electrical failures. Regular inspection of the belt will extend its life and keep your engine running at its best.

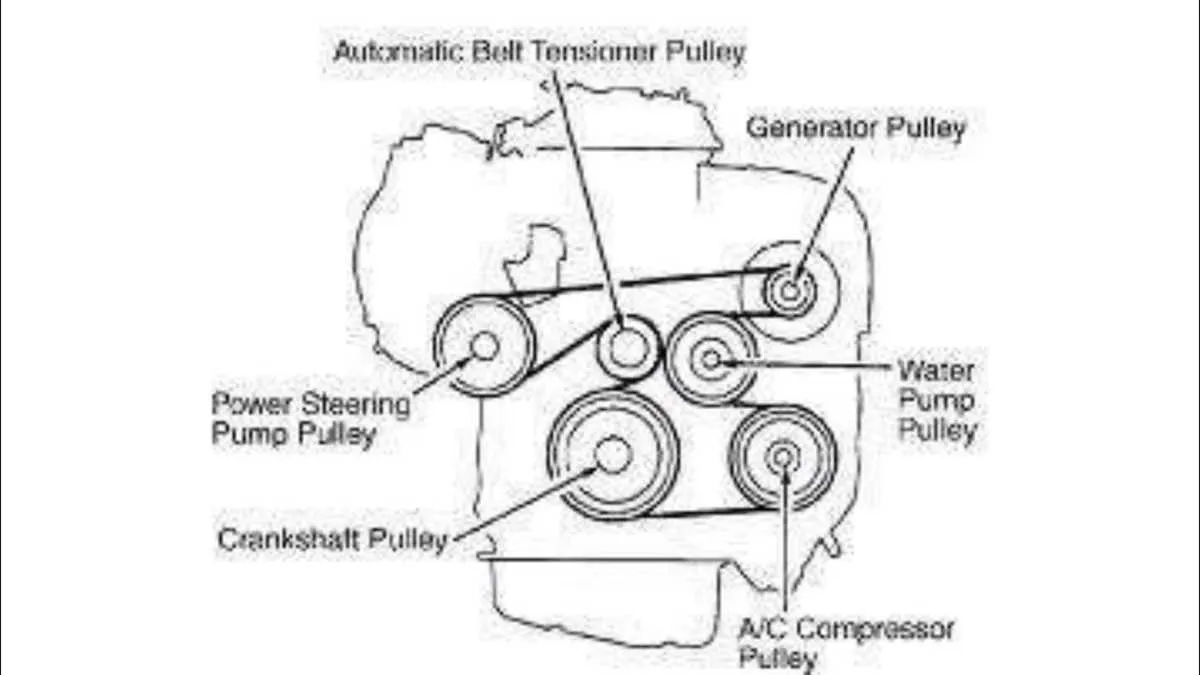

Identifying Belt Components in 2005 Toyota Camry

To identify the key components of the belt system in the 2005 Toyota Camry, start by locating the serpentine belt, which powers various accessories like the alternator, power steering pump, and air conditioning compressor. The belt runs over several pulleys and is tensioned by an automatic tensioner.

• Serpentine Belt: The main belt that connects the engine’s accessory pulleys. It is a long, continuous belt that runs across multiple components.
• Alternator Pulley: This pulley is driven by the serpentine belt and powers the alternator, which charges the car battery.
• Power Steering Pulley: Responsible for powering the power steering pump, which makes it easier to steer the vehicle.
• Air Conditioning Pulley: This pulley drives the A/C compressor, allowing the air conditioning system to function properly.
• Tensioner Pulley: A pulley that maintains the correct tension on the serpentine belt. It is spring-loaded or hydraulic and adjusts automatically to keep the belt tight.
• Idler Pulley: A pulley that helps guide the belt without driving any component. It also helps maintain the proper belt routing.

Check the condition of these components regularly. A worn or cracked serpentine belt can cause various engine accessories to fail, leading to loss of power steering, charging issues, or HVAC system malfunctions.

If you are replacing the belt, ensure it is routed correctly across each pulley and that the tensioner maintains the proper belt tension. The belt should sit flush in the grooves of the pulleys without being overly tight or loose.

Step-by-Step Guide to Replacing the Serpentine Belt on 05 Camry

To replace the serpentine belt on a 2005 Toyota Camry, begin by ensuring the car is parked on a level surface, the engine is off, and the parking brake is engaged. Gather the necessary tools: a socket wrench, serpentine belt tool, and a replacement serpentine belt compatible with your vehicle model.

First, locate the serpentine belt routing diagram, typically found near the radiator or on the engine bay. This will guide you in properly installing the new belt in the same orientation as the old one.

Next, relieve tension from the belt. Use a serpentine belt tool or a socket wrench to rotate the tensioner pulley counterclockwise. This will loosen the belt, allowing you to remove it easily from the pulleys.

Once the old belt is removed, inspect all pulleys for any wear or damage. It’s important to ensure they spin freely and are in good condition before installing the new belt. If there are any issues, replace the affected pulleys before proceeding.

Install the new serpentine belt by following the routing diagram. Begin by looping the belt around the largest pulleys first, then move to the smaller ones. Ensure the belt is seated properly in each pulley groove and is aligned correctly throughout.

Once the belt is in place, use the serpentine belt tool to rotate the tensioner pulley back into position. This will tighten the belt. Check the belt tension by pressing down on the belt with your fingers. It should be snug, but you should be able to press it down slightly in the middle of the longest section.

Finally, double-check the alignment of the belt and the routing diagram to confirm everything is correctly installed. Start the engine and observe the belt to ensure it’s running smoothly. If the belt appears to be slipping or making noise, turn off the engine and recheck the installation.

Troubleshooting Common Belt Issues in 2005 Camry Models

If you notice unusual noises, poor air conditioning, or a drop in engine performance, the serpentine belt could be the issue. Check for cracks, frays, or significant wear. These are signs that the belt may need replacement.

In cases of squealing or screeching sounds, inspect the belt tension. A loose or misaligned belt can cause such sounds. You may need to adjust the tension or replace the tensioner if it’s faulty.

If the belt is slipping or shows signs of uneven wear, inspect the pulleys for damage or obstruction. Misaligned pulleys or a malfunctioning alternator can cause the belt to slip, leading to performance issues.

For belts that are cracked, brittle, or missing chunks, immediate replacement is necessary. Failure to address this can result in complete belt failure, which might leave you stranded or cause engine overheating.

To test the belt, run the engine and visually inspect it for movement. If the belt stops moving or slips under load, there could be an issue with the tensioner, pulley alignment, or a worn-out belt.

Regular inspections every 30,000 to 50,000 miles are recommended to ensure the belt is functioning properly. If you detect any abnormalities during your inspection, replacing the belt immediately can help avoid more costly repairs down the line.
