2005 Buick LaCrosse Belt Diagram and Routing Guide
To replace the serpentine belt on a 2005 Buick LaCrosse, it’s critical to understand the exact routing pattern for the belt. The diagram shows the positioning of the belt around various pulleys, including the alternator, power steering pump, and water pump.
Start by locating the tensioner pulley, which plays a key role in keeping the belt tight. Use a socket wrench to relieve the tension, then slide the belt off the pulleys. Refer to the diagram to ensure proper installation, paying attention to the direction of the belt and the pulleys it loops around.
Once the new belt is in place, check for proper alignment and make sure it’s firmly seated on all pulleys. A correctly installed serpentine belt ensures smooth operation of essential engine components, preventing premature wear and damage.
2005 Buick LaCrosse Belt Diagram
The 2005 Buick LaCrosse uses a serpentine belt system to drive multiple engine components like the alternator, power steering pump, and air conditioning compressor. To ensure proper function, follow the belt routing diagram for accurate installation. The diagram can typically be found on a sticker on the engine compartment or in the owner’s manual. If not, it is crucial to refer to the service manual for specific belt routing instructions.
Begin by locating the belt tensioner, which allows for easy belt removal and installation. You’ll need to use a wrench or a socket to relieve the tension before removing the old belt. When installing the new belt, make sure it follows the correct routing path. The belt should sit snugly in all pulleys without being too tight or loose. After installation, rotate the belt by hand to ensure it moves freely without any binding.
If the belt is difficult to install, check for any misalignment of the pulleys or tensioner. The 2005 LaCrosse uses a single serpentine belt, so any deviation from the correct routing can lead to malfunction. Regular inspection of the belt for wear and tear can prevent sudden failures, ensuring the vehicle continues to perform optimally.
Understanding the Serpentine Belt Configuration for 2005 Buick LaCrosse
The serpentine belt configuration in the 2005 Buick LaCrosse is designed to power multiple engine accessories using a single continuous belt. This belt drives components like the alternator, power steering pump, air conditioning compressor, and the water pump. Proper alignment and tension are critical to ensure all these components function correctly.

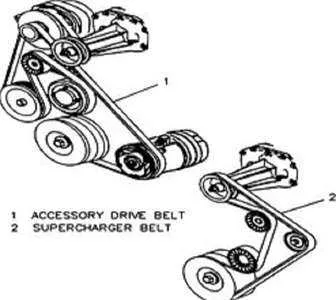

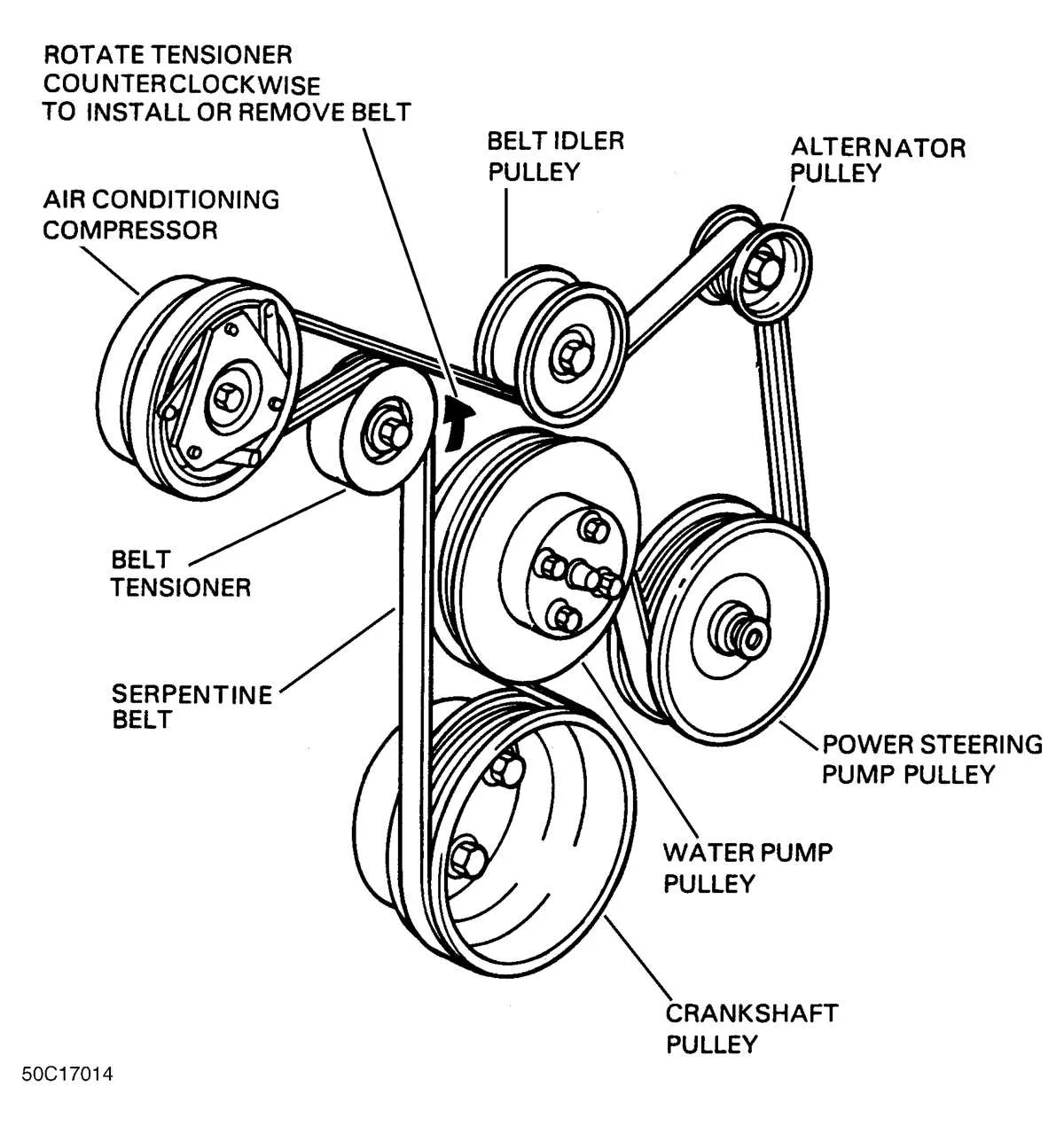

The belt routing diagram for the 2005 LaCrosse provides a clear visual representation of how the belt loops around various pulleys. Familiarizing yourself with this diagram will help in troubleshooting belt-related issues or when replacing the serpentine belt. The diagram typically shows the belt’s path, along with the placement of each component it drives.
When replacing the serpentine belt, it is important to inspect the condition of each pulley and tensioner. A worn or misaligned pulley can cause premature wear on the belt, leading to potential failure. Replacing the belt at regular intervals is recommended to prevent unexpected breakdowns.
If you notice any squeaking or squealing sounds coming from the belt area, it’s often a sign of wear or improper tension. Tightening or replacing the belt may resolve this issue. Always ensure the replacement belt matches the manufacturer’s specifications for correct length and width to maintain optimal performance.
How to Replace the Serpentine Belt on a 2005 Buick LaCrosse
To replace the serpentine belt on a 2005 Buick LaCrosse, follow these steps:
- Gather the necessary tools: You will need a socket wrench, a ratchet, and a serpentine belt tool or breaker bar.
- Locate the tensioner pulley: Find the tensioner pulley on the front of the engine. This pulley maintains the proper tension on the belt and needs to be loosened.
- Release tension: Use a serpentine belt tool or breaker bar to rotate the tensioner pulley counterclockwise. This will relieve the tension on the serpentine belt. While holding the tensioner in place, slide the belt off the pulleys.
- Remove the old belt: Once the belt is off the pulleys, remove it from the engine bay. Take note of the belt routing for reinstallation.
- Install the new serpentine belt: Position the new belt according to the diagram. Make sure it aligns properly with all pulleys. Be sure to route the belt around the tensioner pulley last, ensuring the tensioner is in the correct position before releasing it.
- Check alignment: Double-check the belt to ensure it’s properly routed and sits correctly in all grooves on the pulleys.
- Test the tension: Slowly release the tensioner pulley and confirm the belt is properly tensioned. The belt should be snug but not overly tight.
- Inspect the belt: Once installed, inspect the new serpentine belt for proper alignment and secure placement. Start the engine to verify the belt runs smoothly without slipping or making noise.
By following these steps, you can replace the serpentine belt on your 2005 Buick LaCrosse. Regularly inspect the belt for signs of wear to prevent future issues.
Common Problems with the Serpentine Belt in 2005 Buick LaCrosse
One of the most frequent issues with the serpentine belt in the 2005 Buick LaCrosse is wear and tear over time. As the belt ages, it can develop cracks or fraying, which compromises its ability to function properly. It’s important to regularly inspect the belt for any signs of damage to avoid sudden failure.
Another common problem is slipping. This usually happens when the belt becomes loose due to a worn-out tensioner or misalignment. A slipping serpentine belt may lead to poor engine performance, affecting the power steering, air conditioning, and alternator.
Noise is another indicator of a problem with the serpentine belt. Squealing or chirping sounds often occur when the belt is misaligned or when there’s excessive wear. If you hear these sounds, it’s crucial to inspect the belt and surrounding components for any issues that could affect performance.
Overheating is also a risk if the serpentine belt is not functioning properly. If the belt is slipping or too loose, it may cause the engine components to run inefficiently, leading to excessive heat. This can put additional strain on the engine and increase the risk of a breakdown.
Lastly, improper installation can lead to premature wear or even damage to the belt. Always ensure that the belt is installed according to the manufacturer’s specifications to avoid issues that may arise from incorrect tension or routing.
