03 Buick LeSabre Serpentine Belt Diagram and Replacement Guide

To replace or inspect the serpentine belt on a 2003 Buick LeSabre, start by identifying the correct routing. A precise diagram will help prevent mistakes during installation. Make sure the belt follows the manufacturer’s specifications for proper tension and alignment.

Locate the diagram: The serpentine belt routing diagram is typically found on the underside of the hood, near the radiator or on a label near the belt itself. If you can’t find it, refer to the owner’s manual for the correct routing information.

Inspect belt condition: Before installing the new belt, check for any signs of wear, such as cracks or fraying. If the belt is worn out, replace it immediately to avoid potential engine damage.

Proper installation: Align the belt following the diagram. Ensure it fits snugly over each pulley. Double-check that it is seated correctly to avoid slipping or misalignment during operation.

03 Buick LeSabre Belt Diagram

The 2003 Buick LeSabre uses a serpentine belt system to drive several components of the engine, including the alternator, power steering pump, air conditioning compressor, and water pump. The correct installation and maintenance of this belt are crucial for the proper functioning of the vehicle’s engine.

To replace the serpentine belt, begin by locating the tensioner pulley. Use a wrench or ratchet to relieve tension from the belt by rotating the tensioner in the direction indicated on the pulley. Once the tension is released, remove the belt and inspect it for any signs of wear, cracks, or fraying. If the belt appears damaged, replace it with a new one of the same size and specifications.

Refer to the diagram for the precise routing of the belt. The path is crucial for ensuring proper belt alignment and tension. Make sure that the new belt follows the exact route as shown, ensuring that it runs over all pulleys without skipping any. After installing the new belt, apply tension to the tensioner pulley and check that the belt sits correctly on all pulleys. It should run smoothly without any signs of slipping or misalignment.

Routine inspection of the belt should be done every 30,000 to 50,000 miles, or sooner if you hear squealing sounds from the engine. If the belt is too loose, it can cause poor performance of the accessories, while an overly tight belt may put excess stress on the engine components.

How to Identify the Correct Belt Routing for the 03 Buick LeSabre

Start by locating the belt routing diagram on the engine bay. This is usually found on a decal near the radiator or on the underside of the hood. If the diagram is missing or unreadable, consult the vehicle’s manual for the correct routing.

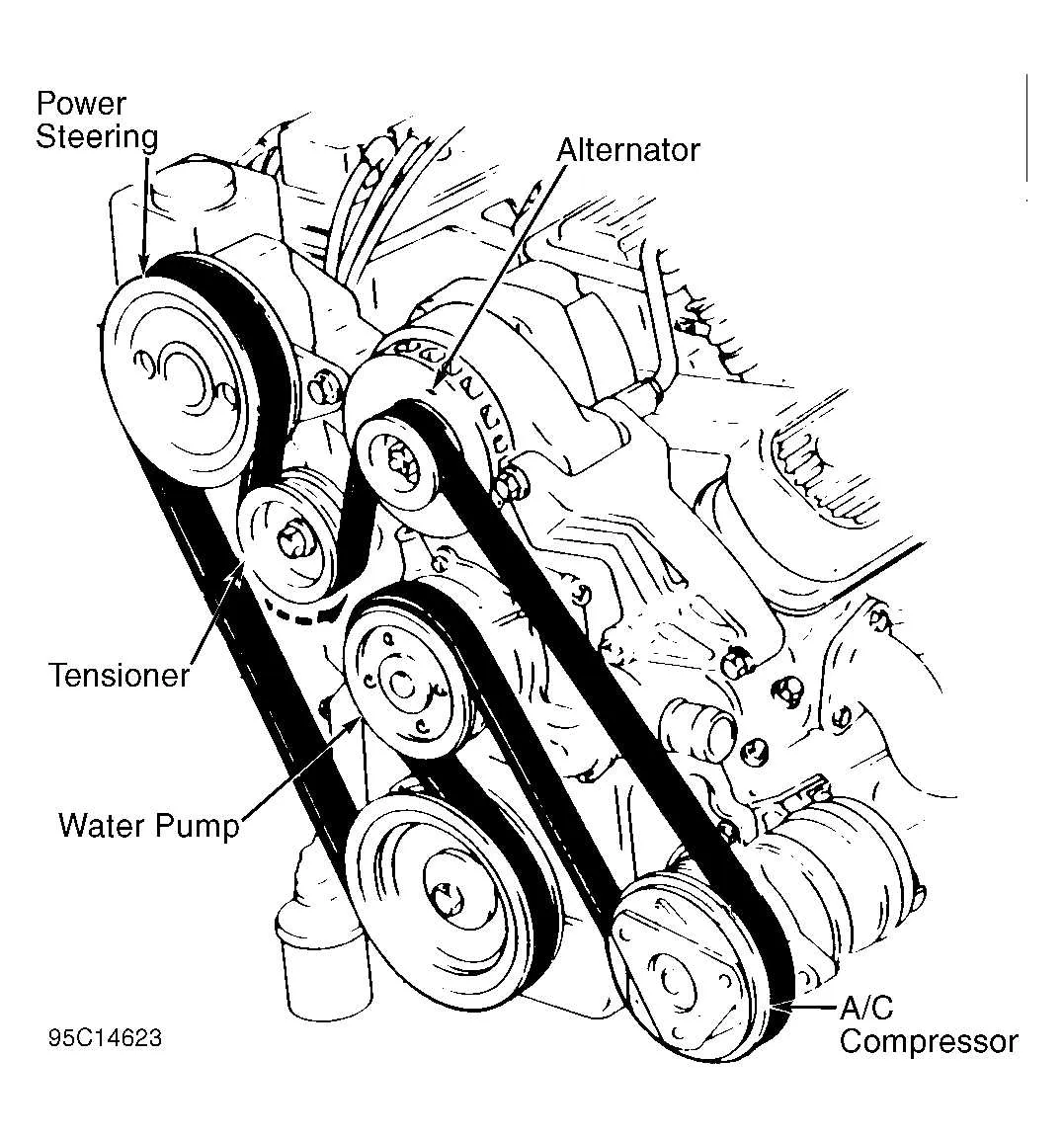

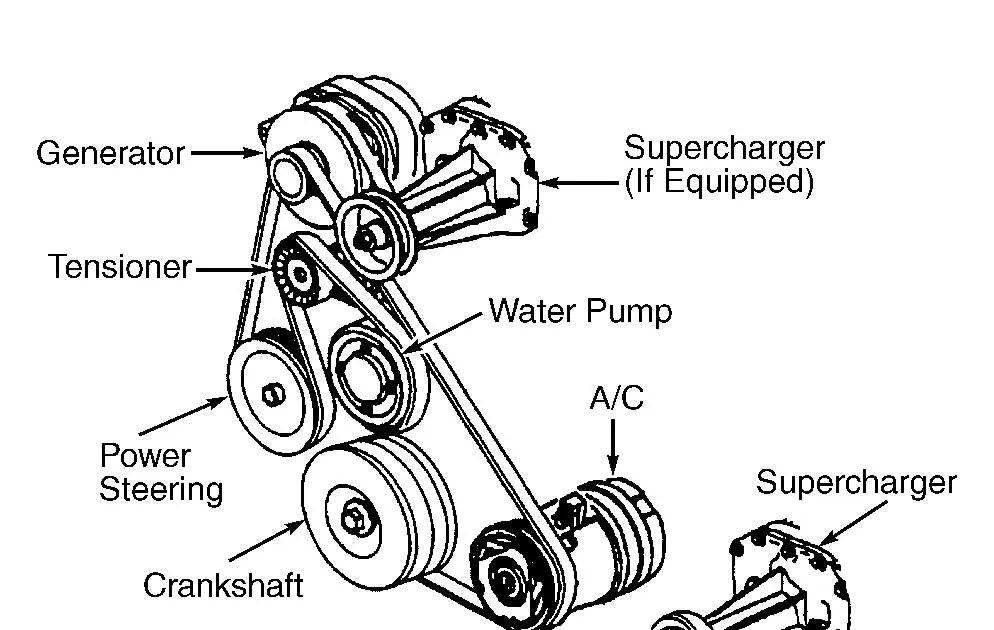

Examine the routing pattern: the serpentine belt on the 03 Buick LeSabre typically follows a continuous loop around the crankshaft, alternator, power steering pump, and air conditioning compressor. The diagram shows each pulley and how the belt must be threaded through them.

Ensure that the belt is properly aligned on each pulley. Check for smooth transitions across idler and tensioner pulleys to prevent slipping. A belt that’s not properly routed can cause wear or even failure of engine components.

Pay close attention to the tensioner pulley. It applies constant pressure to the belt, and improper routing can cause it to wear unevenly. The tensioner arm should be in a relaxed position when the belt is correctly routed.

If you’re replacing the belt, make sure to compare the new one with the old one to verify the correct length and fit. A mismatch in size can result in incorrect routing or tension, leading to operational issues.

For additional assistance, search for online forums or instructional videos specific to the 03 Buick LeSabre belt replacement. These resources may provide a step-by-step visual guide to help confirm the correct routing.

Common Issues with the Belt System on the 03 Buick LeSabre

The 03 Buick LeSabre’s belt system is prone to several issues that can affect vehicle performance. Understanding these problems can help prevent breakdowns and unnecessary repairs.

• Wear and Tear: Over time, the drive belts can become cracked, frayed, or brittle due to constant exposure to heat and friction. Inspect the belts regularly for signs of damage.
• Slipping Belt: A loose or worn-out belt can cause slipping, leading to poor performance. If the belt is too loose, it may not properly drive accessories such as the alternator or power steering pump.
• Squealing Noise: A squealing sound, especially after starting the engine, often indicates that the belt is slipping or misaligned. It can also be a sign that the tensioner is failing.
• Tensioner Issues: The tensioner plays a crucial role in maintaining the correct tension on the belt. If it fails, the belt can either become too loose or too tight, both of which can lead to premature wear or failure.
• Cracked or Broken Belts: If the belt is cracked or breaks completely, it can cause the engine to overheat, as it drives important components like the water pump and radiator fan.
• Incorrect Routing: Improper belt routing is another common issue. If the belt isn’t routed correctly, it can cause excessive wear, misalignment, or damage to surrounding components.

To avoid these issues, replace worn belts promptly and inspect them during regular maintenance. Keeping the belt system in good condition ensures smooth engine operation and prevents costly repairs.

Step-by-Step Instructions for Replacing the Belt on the 03 Buick LeSabre

Start by securing the vehicle with the parking brake engaged. Open the hood and locate the serpentine belt routing diagram, usually found near the front of the engine compartment.

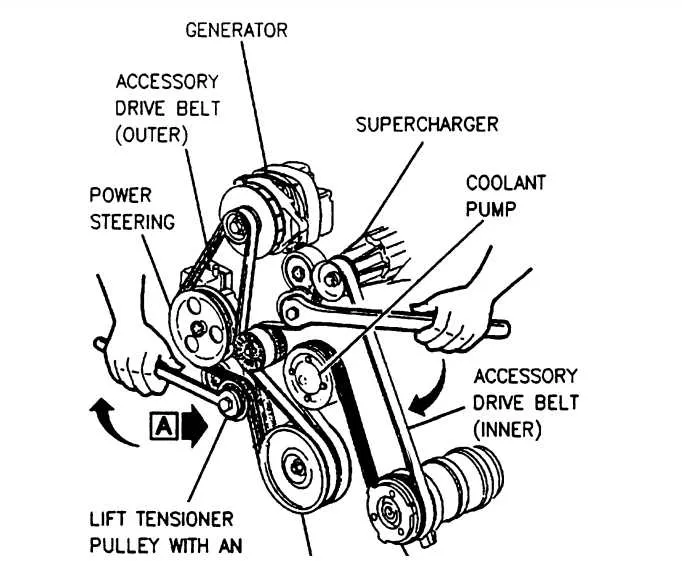

Using a ratchet wrench, loosen the tensioner pulley. Rotate the wrench in the appropriate direction to relieve tension from the belt. Once the tension is released, remove the belt from the pulleys, noting its route for reinstallation.

Inspect the belt for signs of wear such as cracks, fraying, or glazing. If any of these are present, replace the belt with a new one. Ensure the new belt is the correct size and model for the 2003 Buick LeSabre.

Place the new belt over the pulleys, following the diagram. Start by positioning the belt around the crankshaft pulley, then work your way around each pulley, ensuring the belt is properly aligned.

Once the belt is in place, rotate the tensioner pulley again with the ratchet wrench to apply tension to the belt. Double-check the alignment of the belt on all pulleys before releasing the tensioner fully.

Start the engine and observe the belt in operation. Ensure the belt runs smoothly without slipping or making any unusual noises. If everything looks good, close the hood and test drive the vehicle.
