Nissan Rogue Serpentine Belt Diagram and Installation Guide
The Nissan Rogue belt diagram is a helpful reference for understanding the vehicle’s serpentine belt system. Knowing the exact routing and configuration can save time during maintenance or replacement. If you’re working on your vehicle, it’s important to follow the diagram closely to avoid misalignment or damage to other components.
The diagram typically outlines the path the belt follows, detailing each pulley, tensioner, and accessory driven by the belt. By identifying these key parts, you can ensure the new belt fits correctly, preventing premature wear or improper operation. Always check the belt’s condition and ensure the pulleys are aligned to avoid future issues.
When replacing the serpentine belt, it’s crucial to use a diagram specific to your vehicle’s model year. While the general configuration remains similar, slight differences in tensioner placement or pulley design can occur. A correct belt replacement will extend the life of the engine components and improve overall vehicle performance.
Nissan Rogue Belt Diagram
When working on the Nissan Rogue, understanding the belt diagram is critical for proper maintenance and repair. The serpentine belt, located at the front of the engine, powers several important components such as the alternator, power steering pump, and air conditioning compressor. Refer to the vehicle’s manual for specific routing instructions, but generally, the belt follows a continuous loop from the crankshaft pulley to each accessory pulley. Make sure the belt is properly tensioned and free of cracks, wear, or excessive slack. A damaged or worn belt can lead to engine performance issues or, in some cases, engine failure if left unaddressed.
Start by inspecting the belt’s condition regularly, especially if you hear squeaking or notice any irregularities in engine operation. If the belt appears worn or cracked, it is recommended to replace it to prevent further complications. The correct replacement belt size can be found in the service manual or by checking the current belt’s dimensions. When replacing, ensure the new belt is routed correctly and tensioned properly to avoid premature wear or misalignment of components.
If the belt is misaligned or slips off, this could indicate a malfunctioning pulley or improper tensioning. Inspect each pulley for smooth operation and replace any defective parts immediately. Regular maintenance and careful monitoring of the belt will ensure the longevity and reliability of the vehicle’s engine components.

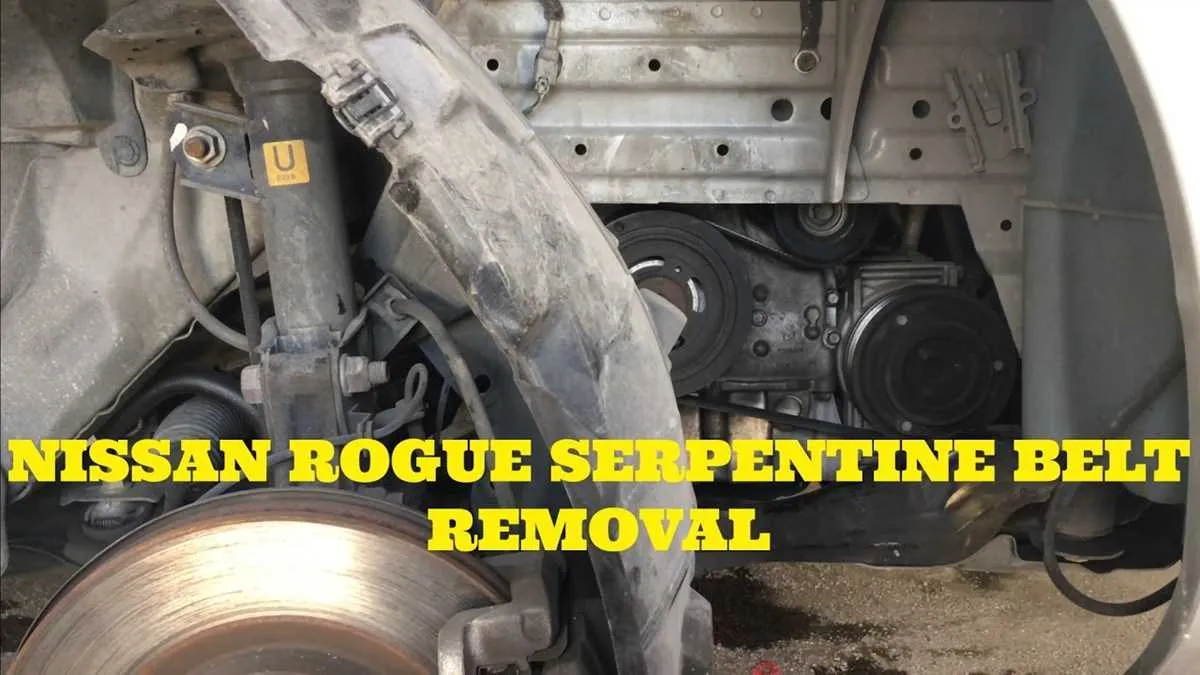

How to Locate the Serpentine Belt on a Nissan Rogue
To locate the serpentine belt on your Nissan Rogue, follow these steps:
- Open the hood and secure it with the hood prop.
- Find the engine cover and remove it if necessary. Some models may have an engine cover that needs to be detached for better access.
- Look towards the front of the engine, just below the alternator. The serpentine belt runs around several pulleys, including the alternator, power steering pump, air conditioning compressor, and water pump.
- Check for the belt routing diagram, typically located on a label near the radiator support or on the engine compartment’s inner fender. This diagram will show you the exact path the belt takes around the pulleys.
- If the belt is visible and intact, inspect it for any wear or damage.
The serpentine belt is usually located on the driver’s side of the engine bay, just in front of the engine. For some Nissan Rogue models, the belt may also be accessible from underneath the vehicle, depending on the specific year and configuration.
If you have trouble locating the belt, refer to the vehicle’s owner manual for more detailed instructions based on your specific model year.
Step-by-Step Guide for Replacing the Nissan Rogue Belt
1. Begin by disconnecting the vehicle’s battery to prevent accidental electrical shorts while working on the belt system.
2. Locate the serpentine belt. You can find it on the front of the engine, looping around various pulleys and accessories.
3. Identify the belt tensioner. Use a wrench or socket to relieve tension from the belt by rotating the tensioner pulley counterclockwise.
4. Remove the serpentine belt from the pulleys once the tension is released. Take note of the routing, as it will help during installation.
5. Check the condition of the belt and pulleys. Look for any signs of wear or damage such as cracks or fraying. Replace any damaged components before proceeding.
6. Install the new serpentine belt following the same routing pattern. Ensure the belt is properly aligned with all pulleys.
7. Reapply tension by rotating the belt tensioner back to its original position, securing the belt in place.
8. Reconnect the vehicle’s battery and start the engine to ensure the new belt is functioning correctly. Listen for any unusual noises and check for proper belt alignment.
Common Issues with Nissan Rogue Belt and How to Resolve Them
If the serpentine belt on your Nissan Rogue is showing signs of wear, such as squeaking noises, cracks, or fraying, it’s crucial to address it immediately. These issues typically indicate a worn-out belt that may eventually break, causing a complete loss of power to essential systems like the alternator, power steering, and air conditioning.
A common problem is belt slippage, which leads to poor performance and reduced engine efficiency. This issue can be resolved by inspecting the tensioner pulley. If it’s loose or damaged, replacing the tensioner will restore proper tension and belt alignment. Ensure the new belt is properly adjusted to avoid further slippage.
Another issue is uneven wear. This can happen if the pulleys or idler bearings are misaligned, causing the belt to wear unevenly. To fix this, inspect the pulleys for any signs of damage or misalignment. If necessary, replace them and ensure the new parts are properly aligned to prevent future problems.
Overheating belts are often caused by a lack of lubrication or an improperly functioning tensioner. Overheated belts can lose their elasticity, leading to cracks and breakage. Check for signs of wear, and if you notice overheating, replace the tensioner and belt to restore optimal function.
For belts with visible cracks, it’s best to replace them immediately. Cracks can grow over time, compromising the belt’s ability to function properly. Avoid driving with a cracked belt to prevent a complete failure that could damage other components.
