Complete Nissan Frontier Belt Diagram for Accurate Installation and Maintenance
Refer to the Nissan Frontier belt diagram to identify the exact routing of the serpentine and accessory belts. Proper alignment prevents premature wear on the alternator, power steering pump, and air conditioning compressor.
Check belt tension using a calibrated gauge or by pressing the belt midpoint; a deflection of 1/2 inch is typical for most Frontier models. Adjusting tension reduces slippage and maintains consistent engine performance.
Follow the labeled pulleys on the diagram when replacing or reinstalling belts. Ensure the ribbed side of the serpentine belt matches the grooves on each pulley, and inspect for cracks, fraying, or glazing before installation.
Inspect belt routing during every service interval to confirm that idler pulleys and tensioners move smoothly. Worn tensioners can misalign the belt, causing noise and loss of accessory function, which the diagram helps prevent.
Use the diagram to plan replacements for multiple belts at once. Coordinating timing and accessory belt replacements minimizes labor and ensures all components operate correctly without unnecessary strain.
Nissan Frontier Belt Diagram Practical Guide for Accurate Installation and Maintenance
Align the belt according to the exact routing shown in the Nissan Frontier belt diagram to prevent misalignment and premature wear. Ensure the engine is off and cool before beginning installation. Use a wrench to release the tensioner pulley slowly, allowing the belt to slip on smoothly across all accessory pulleys.
Inspect each pulley for cracks, rust, or wobble before installing the new belt. Replace any damaged pulleys to maintain proper tension and smooth rotation. Verify the belt width and type match the diagram specifications for your specific model year and engine configuration.
After routing the belt, release the tensioner gradually, ensuring it applies consistent pressure. Rotate the crankshaft manually two full turns to confirm the belt seats correctly and aligns with all pulley grooves. Check for noise, slippage, or visible misalignment before starting the engine.
Regularly inspect the belt for fraying, glazing, or oil contamination. Clean the pulleys and surrounding areas to avoid debris interfering with belt operation. Replace the belt according to mileage intervals recommended in the service manual or immediately if any damage is observed.
Keep a reference copy of the Nissan Frontier belt diagram in the engine bay or service folder. Follow this diagram precisely during maintenance or replacement to avoid mistakes and ensure optimal performance of the serpentine belt system.

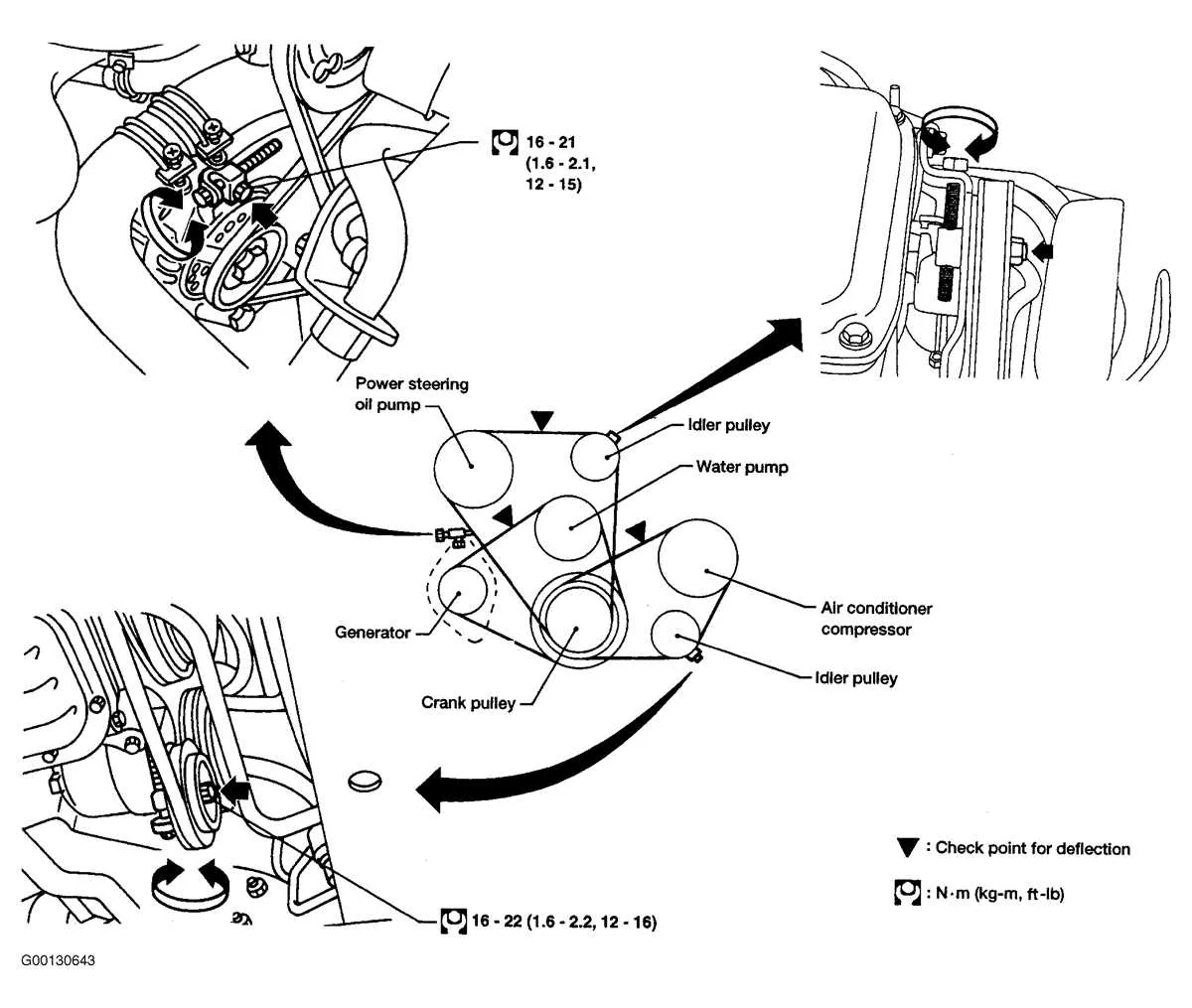

Visual Layout of Front and Accessory Belts for Nissan Frontier
Align the serpentine belt carefully with each pulley to avoid misalignment and premature wear. Start at the crankshaft pulley and follow the routing indicated on the diagram for your specific engine year and model.
- Crankshaft Pulley: The main driving pulley, located at the bottom center, transfers motion to all accessories.
- Alternator: Positioned on the upper left, ensure the belt wraps clockwise around its pulley for correct tension.
- Power Steering Pump: Upper right placement, the belt should contour the pulley grooves without slack.
- Water Pump: Typically next to the crankshaft, belt routing must engage all grooves to maintain proper coolant circulation.
- Air Conditioning Compressor: Belt should pass under the compressor pulley, keeping smooth contact with tensioner.
- Idler Pulleys and Tensioner: Verify correct routing over idlers; the tensioner should maintain a deflection of 10–15 mm under finger pressure.
Follow this sequence for accurate belt installation:
- Place the belt around the crankshaft pulley first.
- Route the belt to the alternator, ensuring it sits fully in pulley grooves.
- Loop around the power steering pump, keeping belt taut.
- Pass the belt over the water pump pulley carefully.
- Guide the belt under the A/C compressor pulley, checking alignment with idlers.
- Pull the belt onto the tensioner pulley and use a wrench to apply proper tension.
- Inspect all pulleys for full contact and no twisting along the belt path.
Regularly compare the belt path to the factory diagram, especially after maintenance or component replacement, to maintain optimal performance and prevent slippage.
Step-by-Step Procedure for Removing and Replacing Drive Belts
Loosen the tensioner pulley by inserting a wrench into the designated slot and rotating it to relieve pressure on the belt. Ensure the engine is off and cooled to prevent injury.
Carefully slide the belt off each pulley, following the exact routing path illustrated in the belt diagram for your Nissan Frontier model. Keep track of the belt’s orientation to match the replacement precisely.
Inspect all pulleys, tensioners, and idler components for wear or damage. Replace any parts that show cracks, glazing, or excessive play before installing the new belt.
Position the new belt around the pulleys, leaving the tensioner for last. Align it according to the belt diagram to prevent misrouting that could cause engine damage or abnormal noise.
Rotate the tensioner again to allow the belt to slip over it smoothly, then release the tensioner slowly to apply correct tension. Verify the belt sits evenly in each pulley groove and runs without twisting.
Manually turn the engine by hand for one full rotation to confirm the belt moves smoothly and maintains proper alignment. Recheck tension and adjust if necessary before starting the engine.
Tips for Inspecting Belt Condition and Adjusting Tension Correctly
Check the belt for cracks, fraying, or glazing along the ribs. A smooth, shiny surface or visible splits indicates the belt needs replacement. Inspect the edges for uneven wear, which can signal misalignment of pulleys or a faulty tensioner.
Use your fingers to press on the longest span of the belt. A properly tensioned belt should deflect about 1/2 inch (12 mm) for standard accessory belts. For serpentine belts, follow the manufacturer’s manual, as deflection ranges vary by model and engine type.
Ensure the belt sits fully in each pulley groove without twisting. Misaligned belts produce noise and accelerate wear. Rotate the crankshaft by hand to verify smooth tracking through all pulleys.
Adjust tension using the tensioner mechanism. For automatic tensioners, confirm the indicator aligns within the marked zone. For manual tensioners, loosen the mounting bolt, apply steady force, then retighten while maintaining correct deflection.
After adjustment, start the engine and observe the belt at idle. Listen for squealing or chirping sounds and check that the belt maintains proper contact with pulleys under load. Recheck tension after a short test drive to confirm stability.
