2017 Nissan Rogue Serpentine Belt Diagram and Routing Instructions
If you’re working on the 2017 Nissan Rogue’s engine, knowing the correct belt routing is key for smooth repairs. The serpentine belt is essential for driving various engine components like the alternator, air conditioning compressor, and power steering pump. Refer to the belt diagram to ensure that the belt is installed correctly and tensioned properly.
The diagram shows the exact path the belt follows around the pulleys and tensioners. Pay close attention to the orientation of the belt and the position of each pulley to avoid any mistakes during installation. It’s recommended to check for wear and tear on the belt regularly to prevent premature failures.
If the belt appears worn, cracked, or damaged, replace it promptly to avoid engine overheating or power loss. Keep in mind that using the correct belt size is crucial for maintaining proper tension and ensuring the system runs smoothly. Always cross-reference the part numbers and specifications in the owner’s manual or service guide.

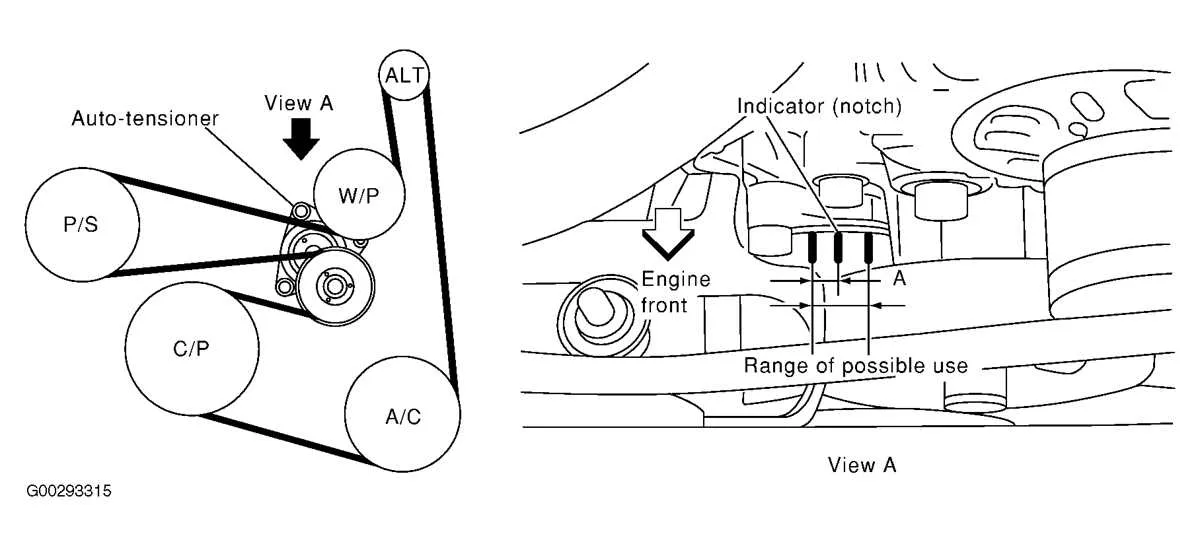

2017 Nissan Rogue Belt Diagram
The 2017 Nissan Rogue uses a serpentine belt to drive multiple components, including the alternator, power steering pump, and air conditioning compressor. The belt is routed through various pulleys, ensuring smooth operation of key systems. Knowing the correct belt routing is crucial for proper function and avoiding damage.
The diagram includes the main components like the crankshaft pulley, idler pulley, tensioner pulley, alternator, and power steering pump. The serpentine belt is routed around these pulleys in a specific pattern, making sure it has the right tension to power all driven accessories.
In the event of a belt failure, replace it with a new belt of the same size and specifications. Pay attention to the pulley grooves and ensure the belt is installed in the correct sequence. Double-check the tensioner to ensure proper belt tension. Regular inspections are recommended to avoid potential damage to the engine components.
For DIY maintenance, refer to the factory belt diagram often found under the hood or in the owner’s manual for precise guidance. Using the wrong routing can cause the belt to slip or wear out prematurely. The belt should be inspected for signs of cracking, fraying, or any visible wear at regular intervals.
How to Locate and Identify the Belt Routing for a 2017 Nissan Rogue
Locate the serpentine belt routing diagram on the radiator support or the engine bay. This is typically a printed label placed near the engine for easy access. If the label is missing or damaged, consult the vehicle’s owner’s manual or service manual for the routing details.
Identify the components the belt interacts with: the alternator, power steering pump, air conditioning compressor, and the tensioner. The belt should loop around each of these components in a specific order, with the tensioner ensuring the belt stays tight. The tensioner itself is usually a spring-loaded pulley located on the front of the engine.
Examine the routing sequence by tracing the belt’s path from one pulley to the next, ensuring the path matches the diagram. The belt should be routed in a manner that it consistently runs in a clockwise or counterclockwise direction, depending on the engine layout.
If replacing the belt, ensure it is properly aligned with all pulleys before re-engaging the tensioner. Check for any signs of wear on the pulleys themselves, and make sure there are no obstructions along the belt’s path.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2017 Nissan Rogue
To replace the serpentine belt on your 2017 Nissan Rogue, follow these straightforward steps for a smooth process.
- Prepare the tools and replacement parts: Ensure you have the new serpentine belt, a 3/8″ ratchet wrench, a belt tensioner tool or a socket wrench, and safety gloves. A belt diagram can be found on the engine bay or in the owner’s manual.
- Locate the serpentine belt and tensioner: The serpentine belt is visible in the engine bay, running around several pulleys. Find the belt tensioner, which will be near the front of the engine, typically on the left side.
- Release the tension on the belt: Use the belt tensioner tool or socket wrench to turn the tensioner pulley counterclockwise. This will relieve the tension on the belt, allowing you to remove it easily.
- Remove the old serpentine belt: Once the tension is released, slip the belt off the pulleys carefully. Make sure to observe the belt’s routing for installation.
- Install the new serpentine belt: Route the new belt following the exact path of the old one. Double-check the routing diagram to avoid any mistakes. Place the belt over the pulleys and make sure it’s aligned correctly.
- Reapply tension: Use the tensioner tool again to rotate the tensioner pulley and allow the belt to fit snugly into place. Make sure the belt is centered on all pulleys.
- Inspect the installation: Manually rotate the crankshaft pulley to ensure the belt moves freely. Check for any misalignments and adjust if needed.
- Test the system: Start the engine and observe the serpentine belt’s operation. Listen for any unusual noises or signs of slipping. If everything is working smoothly, you’re done.
Now you have successfully replaced the serpentine belt on your 2017 Nissan Rogue!
Troubleshooting Common Belt Issues in the 2017 Nissan Rogue
If you hear a squealing or chirping noise coming from the engine area, the serpentine belt is likely the culprit. This belt powers essential accessories like the alternator, air conditioning, and power steering. The noise usually indicates wear or misalignment, so start by checking the tension and alignment of the belt. Tighten or replace the belt if necessary.
Inspect the belt for visible signs of cracking, fraying, or glazing. These issues typically point to aging or a lack of proper tension. If the belt appears worn, replace it immediately to avoid further engine damage. If the belt has become too loose, adjust the tensioner or replace the tensioner itself if it’s malfunctioning.
Another common problem is the belt slipping off the pulleys. This can occur if the pulleys are misaligned or if the belt is stretched beyond its useful life. Ensure all pulleys are correctly aligned and inspect for any damage. If the belt has stretched, replace it with a new one that matches the vehicle’s specifications.
Sometimes, belt noise or slipping can also result from a faulty idler pulley or tensioner. These components help maintain the proper belt tension. If you suspect an issue, inspect these parts for wear or damage. Replacing a worn pulley or tensioner will often resolve the problem.
Don’t ignore any signs of belt trouble. A malfunctioning belt can lead to engine overheating or failure of critical systems. Regular belt inspections and timely replacements will keep your Nissan Rogue running smoothly.
