2016 Nissan Sentra Serpentine Belt Diagram and Routing Guide

The serpentine belt on the 2016 Nissan Sentra plays a crucial role in powering various engine components like the alternator, power steering, and air conditioning. Understanding the correct routing of the belt is important for maintaining proper functionality and avoiding damage. This diagram will help you identify the correct alignment and tension of the serpentine belt.

Before attempting any repair or replacement, make sure the engine is off and cooled down. Always double-check the routing of the belt against the diagram. Misalignment can lead to premature wear or even failure of the belt, impacting engine performance.

The serpentine belt in the 2016 Sentra follows a specific path around pulleys and tensioners. A detailed diagram will indicate the correct positioning and help you avoid mistakes when replacing or adjusting the belt. Pay attention to the condition of the belt and pulleys, as any signs of wear or damage should be addressed promptly.

In case you need to replace the belt, it’s recommended to use a genuine part for the best fit and performance. If the diagram is unclear, consult the vehicle’s manual for more detailed instructions or seek professional assistance.

2016 Nissan Sentra Serpentine Belt Diagram

The serpentine belt in a 2016 Nissan Sentra is responsible for driving multiple components such as the alternator, air conditioning compressor, power steering pump, and more. A proper understanding of the belt diagram ensures that the system functions smoothly and that replacements are made correctly. Below are the key components and their corresponding positions on the serpentine belt path.

• Alternator: Located near the top of the engine, it is the first component driven by the serpentine belt.
• Power Steering Pump: Positioned towards the lower left side of the engine, this component assists in steering by making the process easier.
• Air Conditioning Compressor: Found on the front of the engine, it plays a key role in cooling the cabin air by circulating refrigerant.
• Crankshaft Pulley: Located at the bottom of the engine, the crankshaft pulley is where the serpentine belt gets its rotational power.

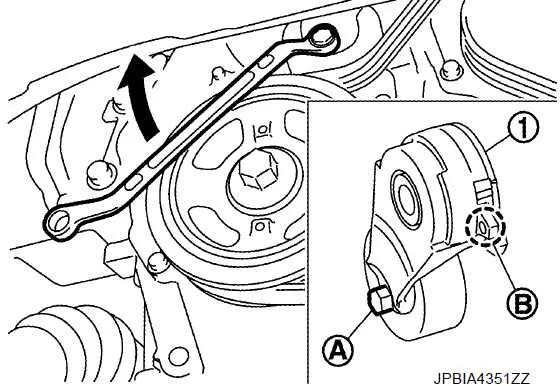

To replace the serpentine belt or check for wear, follow the diagram closely. Start by locating the tensioner pulley. It is crucial to relieve tension from the belt before removing it, which can be done by using a wrench to rotate the tensioner pulley clockwise.

Ensure the new belt matches the diagram and is correctly aligned with all pulleys to prevent any misalignment, which can cause excessive wear or damage to the belt and components. Regular checks and timely replacements are key to maintaining the health of the engine.

How to Identify the Serpentine Belt Routing on a 2016 Nissan Sentra

Check the belt routing diagram located near the front of the engine bay on the 2016 Nissan Sentra. This diagram provides the correct belt path and routing for all pulleys, tensioners, and accessories. It is essential to reference this diagram to ensure proper installation.

If the diagram is missing or unreadable, you can consult the service manual for detailed instructions or use online resources such as official Nissan websites or automotive forums. Typically, the serpentine belt wraps around the alternator, power steering pump, air conditioning compressor, and the tensioner pulley. Make sure the belt follows this specific path for smooth operation.

When inspecting the routing, confirm the belt runs over the crankshaft pulley, directing movement to the necessary components. Pay attention to the direction the belt should turn around each pulley and ensure the belt tension is correct once installed. Using a belt tension gauge can assist in verifying the proper tightness.

Common Issues with the Serpentine Belt on a 2016 Nissan Sentra

The serpentine belt on a 2016 Nissan Sentra is a key component that powers multiple engine accessories. If the belt wears out or fails, it can lead to several mechanical problems. One common issue is belt slippage, which happens when the belt doesn’t maintain proper tension. This can cause squealing noises and reduce the effectiveness of power steering or the alternator. Regular inspection for any signs of wear, such as cracks or fraying, is essential to prevent this issue.

Another problem is misalignment of the serpentine belt. This occurs when one of the pulleys or tensioners becomes damaged or worn, causing the belt to shift out of place. Misalignment can lead to uneven wear on the belt and cause it to snap. Keep an eye on the pulleys to ensure they are all spinning smoothly, without wobbling or making unusual sounds.

Oil or coolant leaks onto the serpentine belt can also create issues. These fluids can degrade the rubber, leading to premature wear and potentially causing the belt to break. If you notice any leaks near the belt area, address them immediately to prevent damage to the serpentine belt.

If the serpentine belt is not replaced in time, it can lead to more severe issues, such as the failure of critical engine components. Inspect the belt every 30,000 to 60,000 miles and replace it if any damage is evident. Proper maintenance can avoid costly repairs and ensure the smooth operation of your Sentra’s engine accessories.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2016 Nissan Sentra

First, lift the front of the car using a jack and secure it with jack stands. This will give you enough space to work underneath the engine.

Locate the serpentine belt. It runs around various engine components such as the alternator, power steering pump, and air conditioning compressor. Use the diagram from the owner’s manual for reference.

Loosen the tensioner pulley. This can be done with a ratchet wrench and a socket that fits the tensioner bolt. Turn the bolt counterclockwise to relieve tension on the belt. Carefully remove the belt from the pulleys.

Before installing the new belt, compare it to the old one to ensure it’s the correct size. Lay the new belt on the pulleys, following the same path as the original one.

Once the belt is in place, use the ratchet to move the tensioner pulley back into position, tightening the belt. Make sure the belt is seated properly on each pulley and that it has the right tension.

Finally, lower the car back to the ground. Start the engine and check the belt’s operation. Listen for any unusual noises and inspect for any signs of slippage or misalignment.
