2016 Nissan Sentra Serpentine Belt Diagram and Routing Guide
For a quick reference, the belt diagram for the 2016 Nissan Sentra is straightforward to follow, providing a clear route for installing and maintaining the engine belts. Begin by identifying the serpentine belt layout, which drives key components like the alternator, power steering pump, air conditioning compressor, and water pump.
The diagram shows how the serpentine belt loops around various pulleys, with the tensioner being a critical part to check during routine maintenance. Make sure to verify the direction of the belt’s routing, as incorrect installation could lead to engine malfunctions or premature wear.
When replacing the belt, check for any signs of wear such as cracks or fraying. The tensioner also plays a crucial role, so inspect it for proper function to avoid slippage. If the diagram is unclear or missing from the engine bay, it is recommended to consult the owner’s manual or refer to trusted online resources to confirm the correct routing sequence.

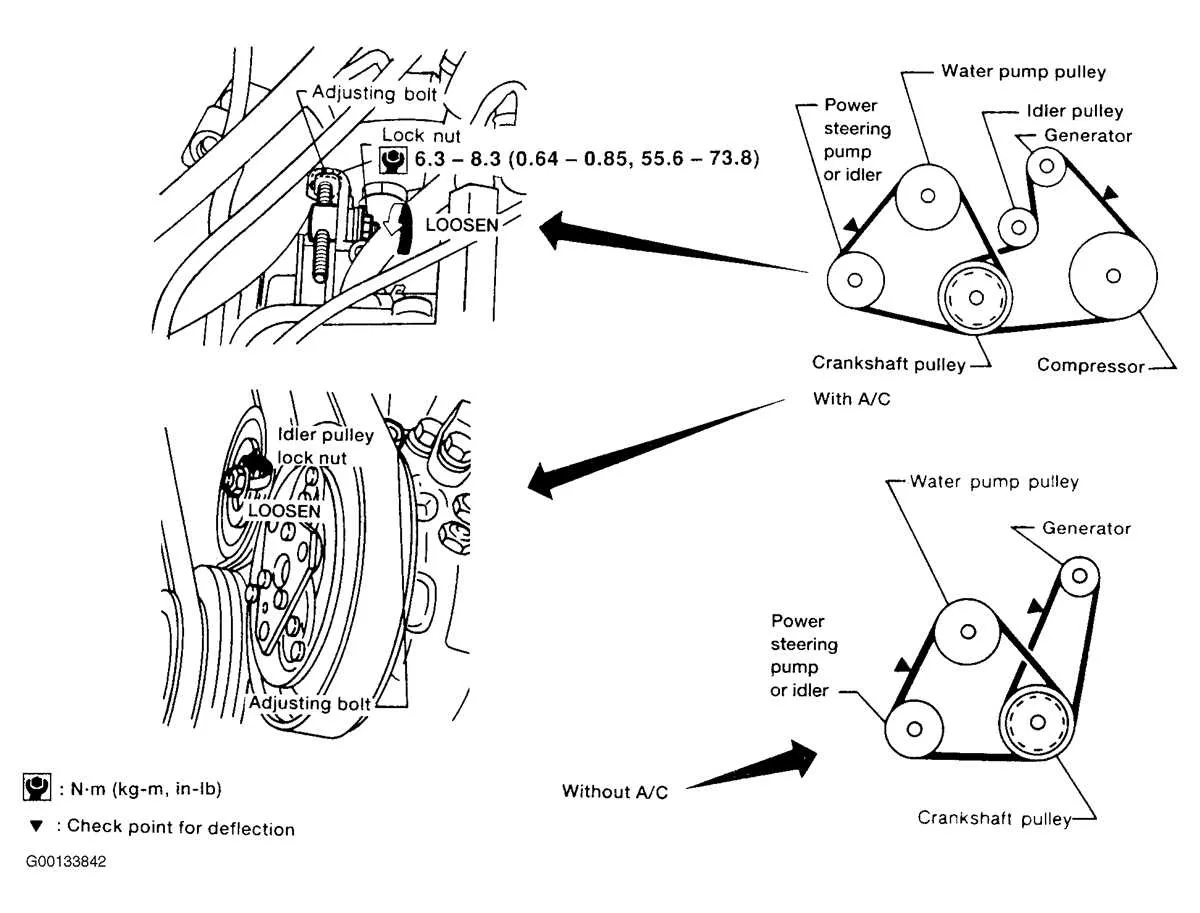

2016 Nissan Sentra Belt Diagram

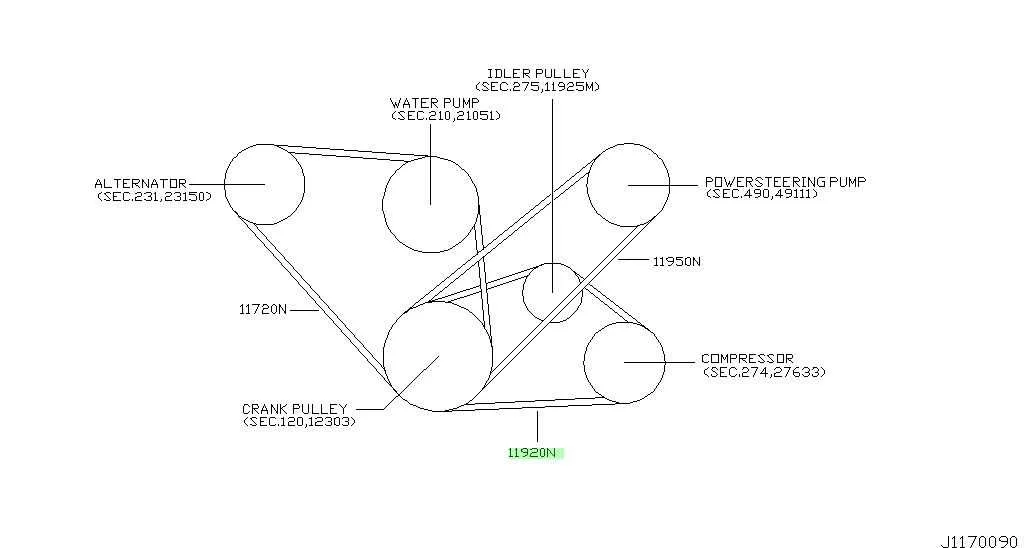

For accurate belt routing on your 2016 Nissan Sentra, refer to the serpentine belt diagram that matches the specific engine configuration. The diagram shows the path the belt follows around the various pulleys, such as the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Ensuring correct installation is key to avoiding damage to the engine components.
When replacing the serpentine belt, double-check the tension. Over-tightening can lead to premature wear on both the belt and pulleys. Use a belt tensioner tool to ensure proper tightness.
For visual reference, locate the belt diagram on the engine bay’s underside or near the radiator support. If it’s missing or unreadable, refer to the owner’s manual or repair manual for the detailed diagram specific to your engine type.
Make sure to inspect the belt regularly for signs of wear like cracking, fraying, or glazing. A worn belt can slip or break, leading to failure of critical components. Replacing it as soon as these signs appear will help prevent further damage.
How to Locate the Serpentine Belt Routing on 2016 Nissan Sentra
To locate the serpentine belt routing on the 2016 Nissan Sentra, start by opening the hood and locating the engine compartment. The serpentine belt is positioned on the front of the engine, and its path can be traced by following the grooves on the belt itself.
Find the tensioner pulley, which is usually spring-loaded. The routing diagram is often printed directly on the radiator support or the underside of the hood. If you can’t find a diagram in those places, refer to the belt routing guide in the owner’s manual.
Once you identify the components involved in the serpentine belt system, trace the belt from the crankshaft pulley, through the alternator, power steering pump, and any other accessories connected to the system. The belt must pass over the various pulleys in a specific order to maintain proper tension and functionality.
If you’re unsure about the routing, it’s helpful to take a photo of the existing belt layout before removal, or consult with a professional to avoid any misalignment.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2016 Nissan Sentra
Follow these steps to replace the serpentine belt on a 2016 Nissan Sentra:
- Prepare Your Tools: You’ll need a socket wrench set, a serpentine belt tool or a breaker bar, and a new serpentine belt compatible with the 2016 Nissan Sentra.
- Locate the Serpentine Belt: Open the hood and locate the serpentine belt. It runs across multiple pulleys, such as the alternator, water pump, and power steering pump.
- Release Tension from the Belt: Use the serpentine belt tool or a breaker bar to rotate the tensioner pulley. This will loosen the belt, allowing you to remove it. Make sure to turn the tensioner in the direction specified in the vehicle manual.
- Remove the Old Belt: Once the tension is released, slide the belt off the pulleys and remove it from the engine bay.
- Install the New Belt: Refer to the belt routing diagram, usually found near the engine bay or in the vehicle manual. Start by placing the new belt over the pulleys, following the proper path.
- Reapply Tension: Use the serpentine belt tool or breaker bar to rotate the tensioner pulley again. This will allow you to slide the new belt into position. Ensure the belt is properly seated on each pulley.
- Check the Installation: Verify that the new belt is aligned correctly and sits flush against each pulley. Rotate the engine by hand to check for smooth movement.
- Close the Hood and Test the Engine: Close the hood and start the engine. Listen for any unusual sounds or squealing. If the new belt is correctly installed, the engine should run smoothly.
Replacing the serpentine belt on a 2016 Nissan Sentra is straightforward if you follow these steps carefully. Make sure to double-check the routing and tension before finishing the job.
Troubleshooting Common Belt Issues in the 2016 Nissan Sentra
If the serpentine belt in your 2016 Nissan Sentra shows signs of wear, such as squealing or slipping, it’s time to inspect it. The first step is to check the belt for cracks, fraying, or signs of stretching. A belt in poor condition should be replaced immediately to prevent further damage to engine components.
Excessive squealing noise typically indicates either a loose belt or worn-out pulleys. Tightening the tensioner or replacing the pulley can resolve this. Always ensure the belt is properly aligned with the pulleys; misalignment may cause uneven wear.
If the engine temperature rises unexpectedly, it could be due to a malfunctioning water pump pulley or serpentine belt. Check for loose connections or belt slippage that might prevent the water pump from functioning correctly. If the pump or pulley is faulty, replace them to avoid overheating.
For the alternator belt, any issue with electrical charging can be traced back to a worn or slipping belt. Test the belt tension, as a loose belt will prevent the alternator from charging properly. If the alternator is not charging, replace the belt and check the alternator’s operation.
If the belt appears to be in good condition but the car still experiences power steering issues, inspect the power steering pump pulley. A slipping belt on this pulley will reduce the effectiveness of the power steering system. Tighten or replace the pulley if necessary.
Lastly, when replacing belts, always verify the tension is correct. A belt that is too tight or too loose will lead to premature wear. Use a tension gauge to ensure the proper tension for both the serpentine and alternator belts.
