2015 Nissan Rogue Serpentine Belt Diagram Layout and Pulley Routing Guide

Locate the belt routing immediately to ensure proper engine accessory function. The 2015 Nissan Rogue uses a single serpentine belt that drives the alternator, power steering pump, and air conditioning compressor, all critical for smooth operation.

Check pulley alignment before installation to prevent premature belt wear. Misaligned pulleys can lead to squealing noises, slipping, or even damage to the belt. Compare the actual setup with the factory diagram to verify exact positioning.

Use the correct tensioning method when replacing the belt. The Rogue requires a tensioner tool to maintain proper tension, avoiding over-tightening which can stress bearings or under-tightening which can cause slippage.

Inspect the belt for signs of wear such as cracks, fraying, or glazing. Replacing a worn belt promptly reduces the risk of engine accessory failure and maintains consistent vehicle performance.

2015 Nissan Rogue Serpentine Belt Diagram Detailed Guide for Accurate Installation

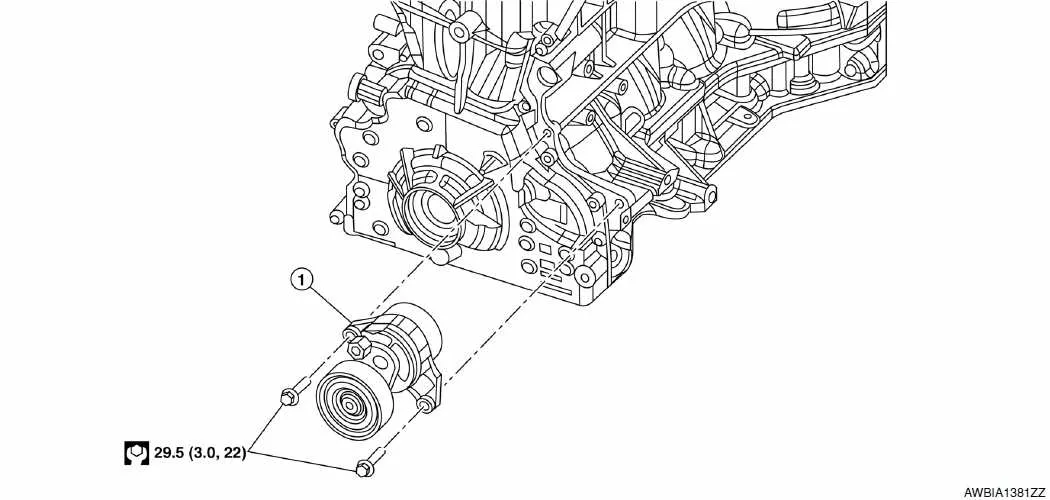

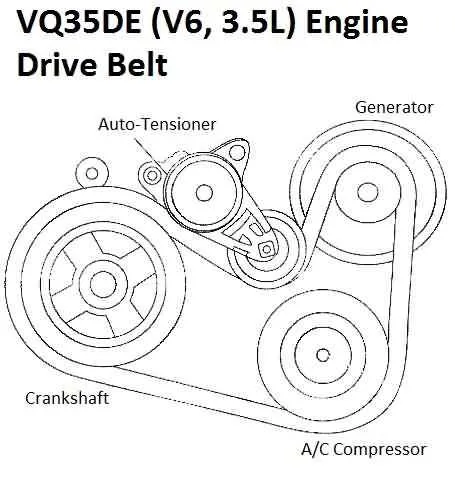

Begin by ensuring the engine is off and cool. Disconnect the negative battery terminal to prevent accidental startup. Locate the serpentine belt routing diagram on the engine compartment sticker or in the vehicle manual for reference.

Release the belt tensioner using a wrench or ratchet, moving it away from the belt. Carefully remove the old belt from all pulleys, noting its path to prevent misrouting. Inspect each pulley for wear, debris, or misalignment, rotating them manually to detect rough movement or unusual noise.

Position the new serpentine belt according to the diagram. Start with the crankshaft pulley, then route the belt around the alternator, power steering pump, and A/C compressor pulleys. Maintain proper alignment on the pulley grooves, ensuring the belt sits fully without twisting.

Reapply tension using the tensioner, confirming the belt maintains firm contact across all pulleys. Rotate the crankshaft by hand for one full turn to verify smooth movement and alignment. Reconnect the negative battery terminal and start the engine, observing the belt for consistent tracking and absence of slipping or noise.

Double-check that the belt edges remain within pulley grooves during operation. Adjust tension or realign pulleys immediately if any deviation occurs. Proper installation preserves component lifespan and prevents operational issues such as overheating, electrical failure, or power steering loss.

Locate All Pulleys and Confirm Belt Routing on 2015 Nissan Rogue

Begin by identifying each pulley connected to the serpentine belt: the crankshaft pulley at the engine base, the alternator pulley on the upper left, the power steering pump pulley on the upper right, the water pump pulley near the center, and the A/C compressor pulley toward the lower right.

Trace the belt path around each pulley using the factory routing diagram. Ensure the belt sits fully in the grooves of every pulley without twisting or overlapping. Verify that the tensioner pulley maintains proper tension and aligns perpendicular to the belt surface.

Check for alignment by spinning each pulley by hand. Confirm the belt moves smoothly and does not jump between grooves. Inspect for worn edges, fraying, or glazing that could indicate improper routing.

Reconfirm the routing by comparing it with the diagram specific to the 2015 Nissan Rogue. Adjust the belt as needed, ensuring all pulleys rotate freely and the belt maintains consistent contact across all surfaces before completing installation.

Step-by-Step Replacement Procedure for the Serpentine Belt

Begin by locating the serpentine belt routing diagram under the hood or in the owner’s manual to ensure proper alignment. Gather a wrench or ratchet suitable for the belt tensioner.

1. Disconnect the negative battery terminal to prevent accidental electrical contact.

2. Identify the belt tensioner and insert the wrench into its square hole or bolt. Rotate the tensioner to relieve tension on the belt.

3. Slide the old belt off the pulleys carefully, noting its exact path for reference if a diagram is unavailable.

4. Inspect all pulleys for wear, wobble, or debris. Clean any dirt and ensure pulleys spin freely.

5. Compare the new serpentine belt with the old one to confirm correct length and rib alignment.

6. Route the new belt according to the diagram, starting with the crankshaft pulley and continuing around the alternator, A/C compressor, power steering, and idler pulleys.

7. Rotate the tensioner again and slide the belt fully onto its final pulley. Slowly release the tensioner to apply proper tension.

8. Double-check the belt position on all pulleys to ensure it sits fully in the grooves and matches the routing diagram.

9. Reconnect the negative battery terminal.

10. Start the engine and observe the belt in motion. Listen for unusual noises and inspect alignment under load.

Verify proper tension and adjust if necessary using the tensioner. The belt should move smoothly without slipping or vibration.

Check Tension and Alignment After Installing the Serpentine Belt

Immediately after installing the serpentine belt, apply pressure on the tensioner using a wrench or breaker bar to confirm the belt sits correctly on all pulleys. The belt should deflect about 1/2 inch (12–13 mm) when pressed midway between the alternator and crankshaft pulleys. Excessive deflection indicates loose tension; minimal or no deflection indicates overtightening.

Visually inspect each pulley, ensuring the belt sits in the pulley grooves without twisting or misalignment. The edges of the belt must align with the pulley flanges consistently along the entire path. Misalignment can cause premature wear or belt slippage.

Rotate the engine manually by turning the crankshaft pulley two full revolutions and observe the belt tracking. Confirm that the belt remains seated on all pulleys and maintains uniform tension throughout rotation. Listen for unusual noises or feel for vibrations that indicate incorrect placement.

Recheck tension using a belt tension gauge if available, comparing the reading to the manufacturer specification of 120–160 pounds of tension. Adjust the tensioner as needed to achieve proper tension while maintaining pulley alignment. Secure the tensioner fully and verify that all mounting bolts are tight.

Finally, start the engine at idle and monitor the belt under operating conditions. Observe for smooth rotation, correct alignment, and absence of squealing. Perform a final inspection after 5–10 minutes of running to ensure tension remains stable and the belt tracks properly across all pulleys.
