2014 Nissan Altima Serpentine Belt Diagram and Routing Instructions
To replace or inspect the serpentine belt on your 2014 Nissan Altima, it’s critical to first understand the belt routing. The diagram for this model shows a straightforward path for the serpentine belt, which powers the alternator, power steering pump, water pump, and air conditioning compressor. Make sure to check the belt for any wear, cracks, or fraying before attempting any repairs.

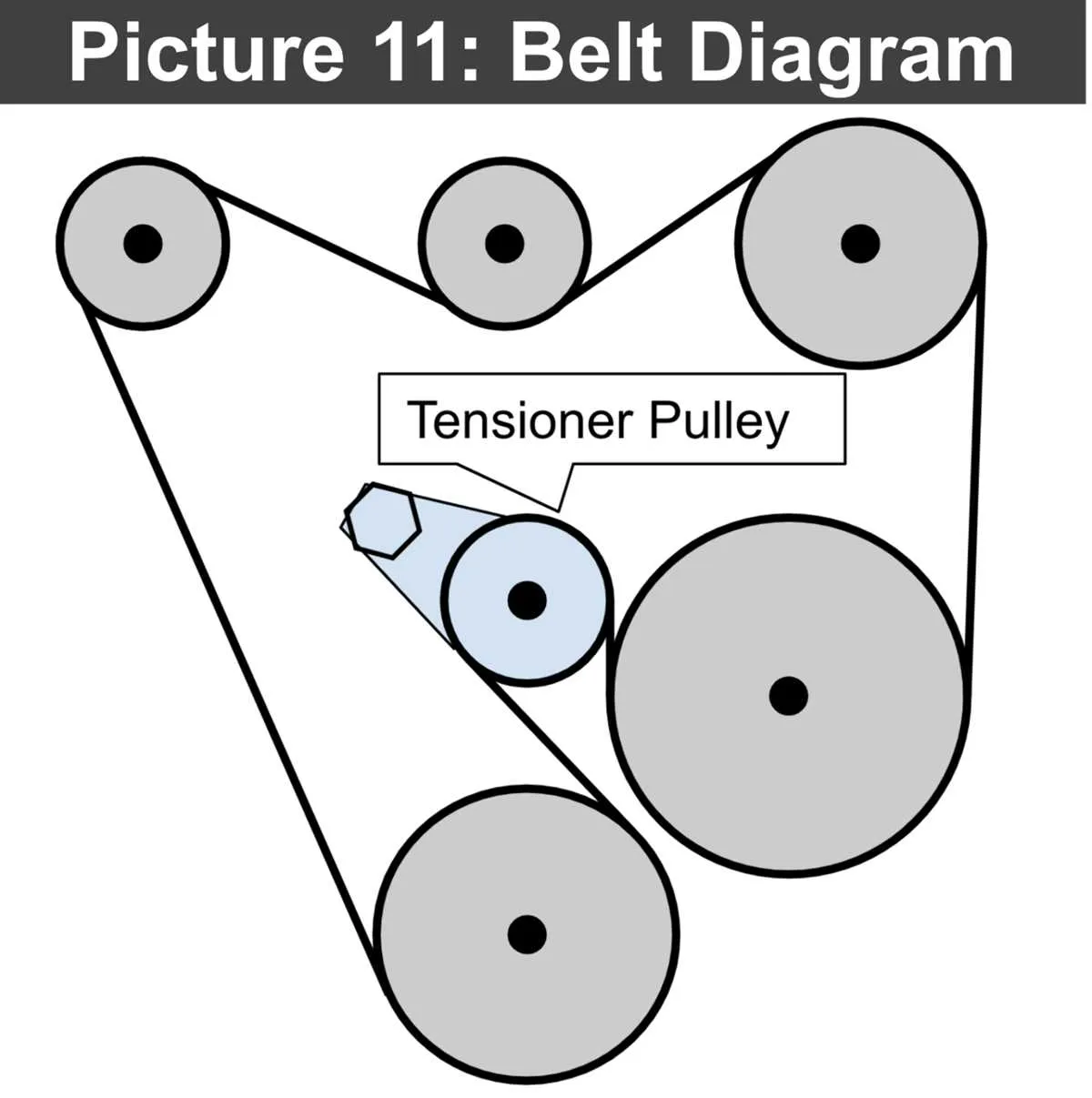

The belt routing diagram helps ensure proper installation. Start by locating the tensioner pulley, which is responsible for maintaining the correct tension on the belt. It’s usually located near the top of the engine bay and can be adjusted using a wrench to loosen the tension when replacing the belt. The diagram outlines the exact path of the belt around the pulleys, which will vary depending on whether your vehicle has a 4-cylinder or 6-cylinder engine.
If you’re unfamiliar with the procedure, following the diagram is key to avoiding misalignment. A misaligned belt can lead to significant engine damage or cause essential systems to malfunction. Refer to the diagram whenever you are changing or adjusting the belt, and ensure the routing matches the original configuration.
2014 Nissan Altima Belt Diagram
Check the serpentine belt on your 2014 Nissan Altima regularly to ensure it’s correctly routed and in good condition. The serpentine belt powers important accessories such as the alternator, water pump, air conditioning compressor, and power steering pump. A worn or misaligned belt can cause these components to fail, so inspect for signs of wear, like cracking or fraying.
The belt follows a precise path through various pulleys, including a tensioner pulley that maintains the correct tension. If you’re replacing the serpentine belt, always use a new one that matches the original specifications. Refer to the diagram to ensure the correct routing when installing the new belt.
For the timing belt, inspect its condition and alignment with the camshaft and crankshaft gears. Misalignment can lead to serious engine problems. Replace the timing belt at recommended intervals, typically between 60,000 and 100,000 miles, depending on driving conditions.
Consult the belt diagram before performing any maintenance. If you’re not sure about the replacement process, consider seeking professional assistance to avoid installation errors.
Understanding the Serpentine Belt Routing for 2014 Nissan Altima
The serpentine belt in the 2014 Nissan Altima plays a key role in driving various engine components, such as the alternator, power steering pump, and air conditioning compressor. A clear understanding of the belt routing ensures smooth engine operation and prevents unexpected breakdowns.

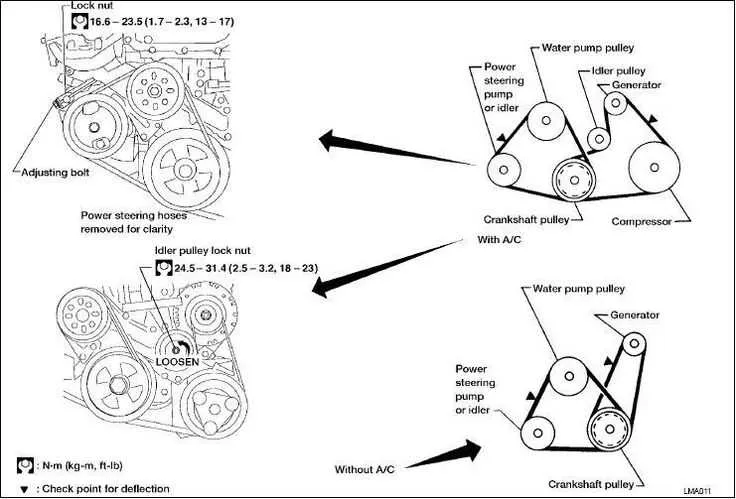

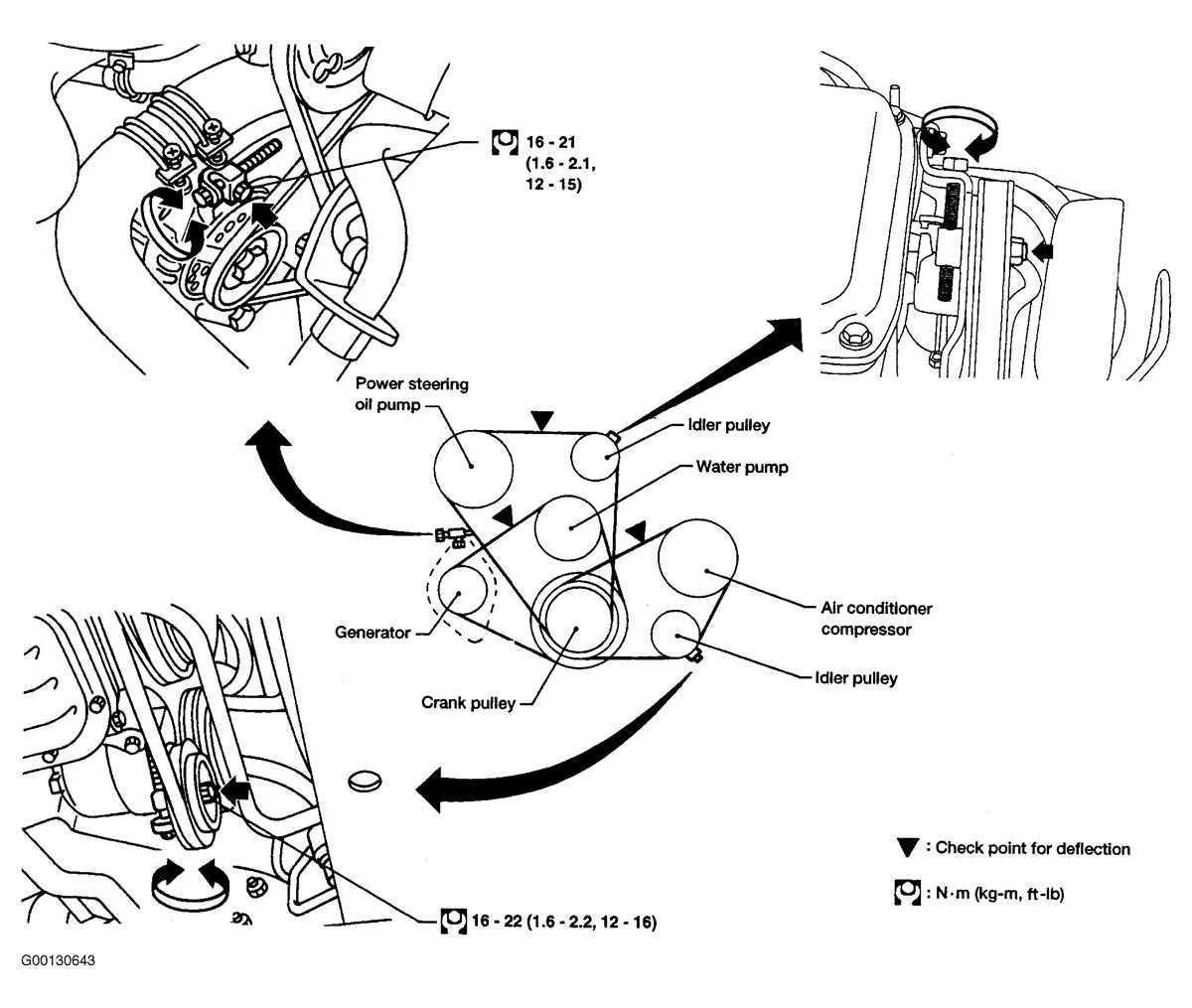

The routing starts from the crankshaft pulley, passing over the alternator pulley and the power steering pulley. It then loops around the tensioner and idler pulleys before reaching the air conditioning compressor. The diagram can be found in your vehicle’s service manual for reference, but it’s important to ensure that the belt is routed properly to avoid damage or malfunction.

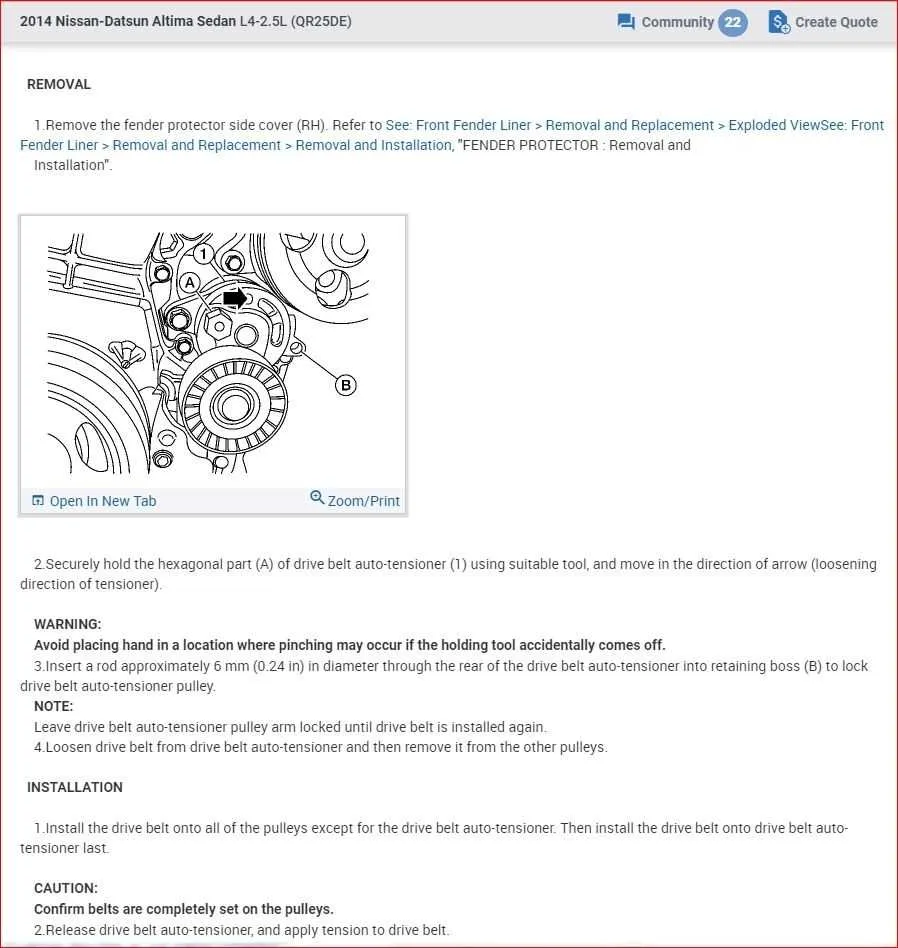

If replacing the serpentine belt, use a belt tool to release the tension on the tensioner pulley, allowing you to remove the old belt. Carefully install the new belt, ensuring it fits snugly into the grooves of all pulleys. Double-check the routing before tightening the tensioner, as an incorrectly routed belt can lead to performance issues.
Regular inspection of the serpentine belt for signs of wear, such as cracks or fraying, can prevent unexpected failures. If you notice any issues, it’s recommended to replace the belt as soon as possible to avoid costly repairs.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2014 Nissan Altima
Replacing the serpentine belt on a 2014 Nissan Altima requires basic tools and a few careful steps. Follow these instructions to ensure a smooth replacement process.
- Prepare your workspace: Park the vehicle on a flat surface, turn off the ignition, and engage the parking brake. Let the engine cool down before proceeding.
- Locate the serpentine belt diagram: Find the belt routing diagram. It’s usually on a sticker near the engine bay or in the vehicle’s manual. This will be essential to correctly install the new belt.
- Lift the car (if necessary): Use a jack to lift the front of the car if you need more space to work, and secure it with jack stands for safety.
- Remove the engine cover: If the engine cover obstructs access to the belt, remove it by unscrewing the fasteners. Keep the screws in a safe place for reinstallation.
- Release tension from the serpentine belt: Use a wrench or serpentine belt tool to rotate the tensioner pulley in a counter-clockwise direction. This will loosen the belt enough to remove it.
- Remove the old serpentine belt: With the tension released, slide the belt off the pulleys. Take note of the belt’s routing as you remove it.
- Install the new serpentine belt: Align the new belt following the diagram and carefully thread it over the pulleys. Make sure it’s seated properly in each groove.
- Apply tension to the new belt: Rotate the tensioner pulley again using the wrench to tighten the new belt. Check that the belt is tight and has no slack.
- Double-check the installation: Inspect the new belt’s position to ensure it is correctly aligned with all pulleys and components.
- Reinstall the engine cover: If you removed the engine cover earlier, replace it by securing the screws back into place.
- Test the belt: Start the engine and observe the belt. It should run smoothly without any squealing or slippage. Listen for any unusual noises, indicating a potential problem.
That’s it! You’ve successfully replaced the serpentine belt on your 2014 Nissan Altima. Regular maintenance can prevent issues down the road and keep your vehicle running smoothly.
Common Issues with the 2014 Nissan Altima Belt System and How to Diagnose Them
If you hear squealing noises or notice a sudden drop in engine performance, your Nissan Altima’s belt system may be the culprit. A worn, cracked, or loose belt can affect multiple engine components, so diagnosing the issue early is crucial to avoiding further damage.
One common problem is a cracked serpentine belt. The serpentine belt in the 2014 Altima can wear out due to age, high temperatures, or exposure to debris. A visible crack or missing pieces is an immediate sign that the belt needs replacing. You can inspect the belt by turning the engine off and visually examining it for any noticeable damage.
Another frequent issue is belt slippage. If the serpentine belt becomes loose or the tensioner malfunctions, the belt may not grip properly, causing slipping. This can lead to an undercharged battery or poor air conditioning performance. To test for slippage, check the tensioner’s spring pressure. A weak or faulty tensioner should be replaced.
Belt alignment is also a potential problem. Misalignment happens when a pulley is damaged or the belt is improperly routed. This can result in uneven wear on the belt and may cause it to come off entirely. Check the alignment by ensuring the belt runs straight across all pulleys without deviations.
Lastly, a noisy or faulty pulley can contribute to belt system issues. Pulleys wear down over time, causing them to seize up or become misaligned. To diagnose pulley problems, listen for grinding or squealing noises coming from the engine bay. You can also manually rotate the pulleys to check for smooth movement. If a pulley feels rough or difficult to turn, it’s likely time for a replacement.
Regular inspection of the belt and related components is the key to avoiding these issues. If any of these problems are detected, take immediate action to prevent further damage to the engine. Be sure to replace worn belts and pulleys before they compromise the performance of your 2014 Altima.
