2013 Nissan Murano Serpentine Belt Diagram and Routing Guide

If you’re tackling belt maintenance or replacement on a 2013 Nissan Murano, knowing the exact layout of the serpentine and timing belts is crucial. The diagram for the 2013 model can simplify this process and ensure that each component is properly aligned for optimal performance.

The serpentine belt in the Murano drives essential accessories like the alternator, power steering pump, and air conditioning compressor. A clear belt diagram helps you identify the correct routing and prevent costly mistakes. Be sure to double-check the belt tension after installation to avoid slippage or premature wear.

The timing belt, although less visible, plays a key role in synchronizing the engine’s camshaft and crankshaft. A properly maintained timing belt ensures your engine runs smoothly. Refer to the diagram for exact positioning to avoid misalignment, which can lead to engine damage.

Having the belt diagram on hand while working on the Murano will save time and reduce confusion. Keep the diagram visible during the process to cross-check each step. With a little attention to detail, the task will be straightforward, keeping your vehicle running at its best.

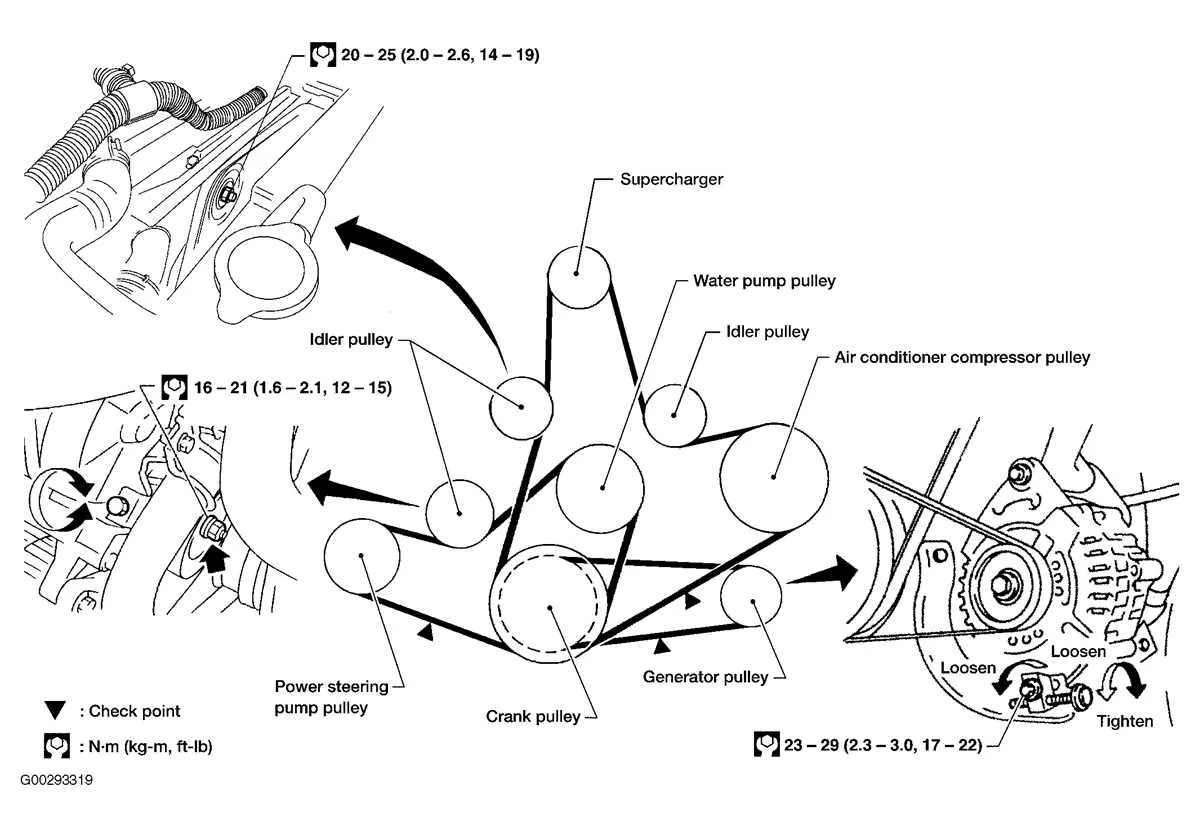

2013 Nissan Murano Belt Diagram

The 2013 Nissan Murano features a serpentine belt system that drives multiple components, such as the alternator, power steering pump, air conditioning compressor, and water pump. If you’re replacing or inspecting the belt, make sure to follow the exact routing as specified in the vehicle’s service manual.

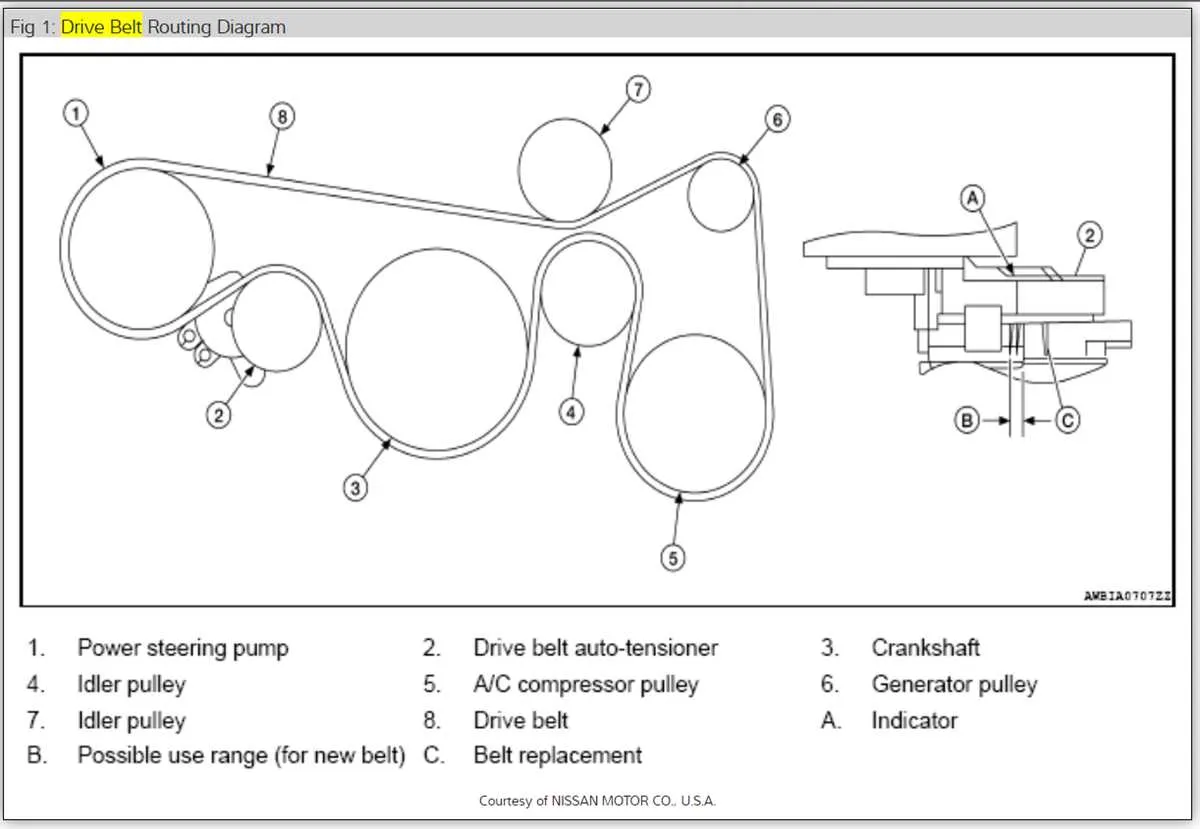

The diagram for the belt routing is essential for proper installation and ensuring all components are powered correctly. The belt is routed around several pulleys, including the crankshaft, alternator, power steering, air conditioner, and idler pulleys. It’s crucial that the tension on the belt is adequate to prevent slipping or premature wear.

If you are replacing the serpentine belt, take note of the following: The belt must be installed in the correct direction and ensure the correct tension is applied. A misrouted or improperly tensioned belt can lead to damage to various components or belt failure.

For a quick guide: Start by positioning the belt over the crankshaft pulley, then route it around the alternator pulley, followed by the power steering pump, and air conditioning compressor. Ensure the belt aligns with each pulley groove, keeping it snug but not too tight. Once the belt is in place, check the tension by pressing down on it–if it moves more than 1/2 inch, the tension might need adjusting.

For the exact belt routing and any additional specifications, always refer to the vehicle’s manual or consult a certified technician to avoid mistakes during installation.

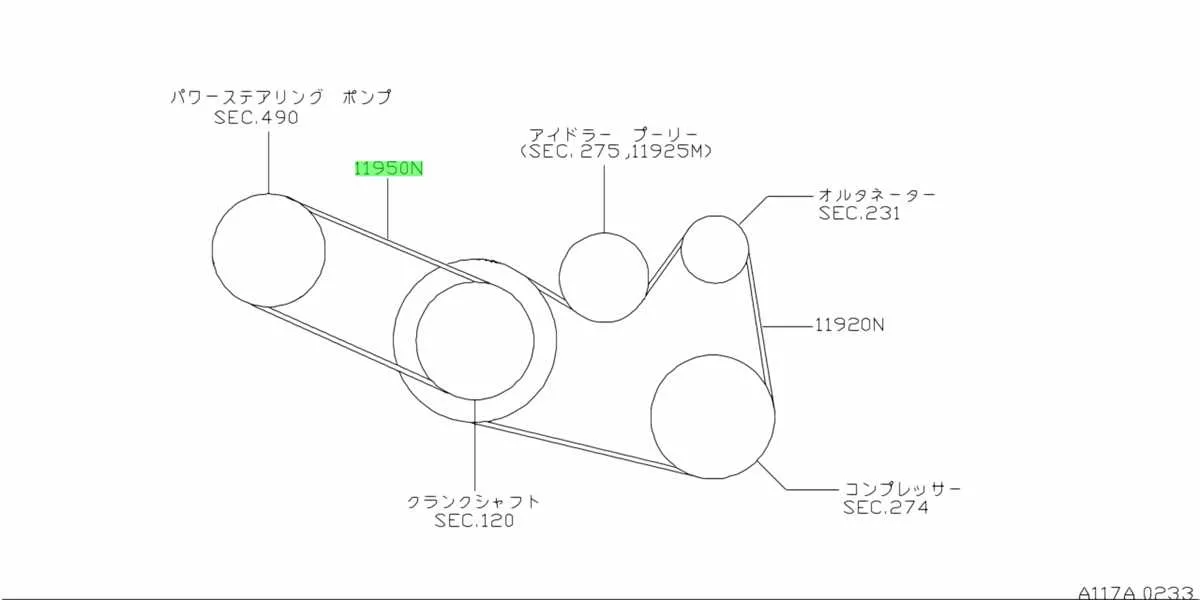

How to Read and Interpret the 2013 Nissan Murano Belt Diagram

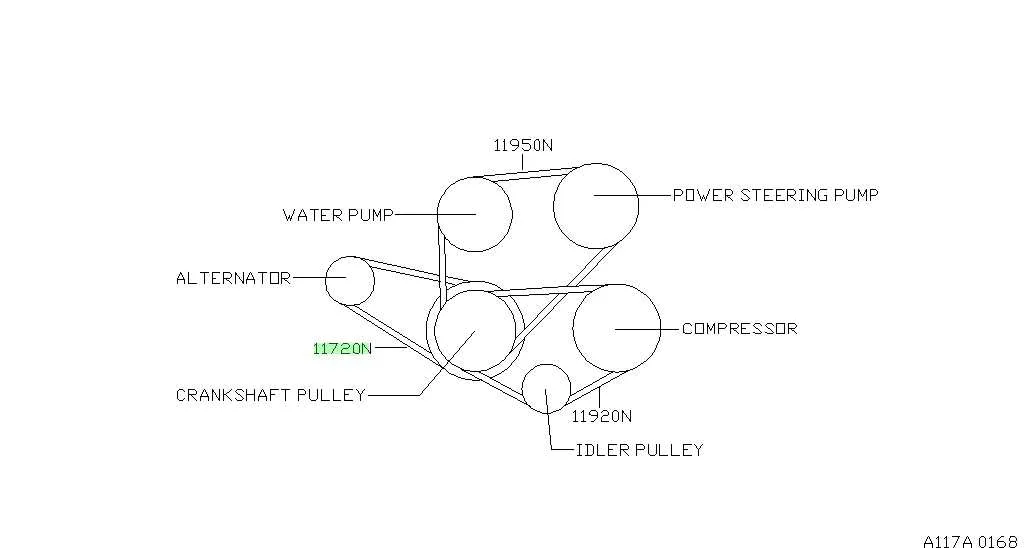

To interpret the 2013 Nissan Murano belt diagram, focus on the routing paths, tensioners, and the components each belt is connected to. The diagram typically illustrates the serpentine and accessory belts. These belts connect the engine’s pulleys to power various components like the alternator, air conditioning, power steering, and water pump. Understanding each element’s function helps in identifying potential issues or when replacing a belt.

The diagram shows the direction of belt travel, which is crucial for installation. Arrows indicate the clockwise or counterclockwise movement, ensuring correct positioning and tension. Pay attention to the tensioners, as they adjust the belt’s tightness. These should be checked regularly to prevent slippage or excessive wear.

The diagram may also include numbers or labels identifying each component. These numbers correspond to the parts in the service manual, helping you quickly locate the parts you need to inspect or replace. Make sure the belts align with the corresponding pulleys, and ensure that no parts are misaligned, which could cause premature wear.

Check for any additional diagrams if your Murano has multiple belts or specific models with variations. These belts are integral to engine function, and reading the diagram correctly can save you time and prevent unnecessary repairs.

Common Issues with Belt Alignment in 2013 Nissan Murano

Misaligned belts in the 2013 Nissan Murano often lead to performance issues, such as squealing noises or poor engine performance. The most common reasons for belt alignment problems include worn pulleys, a faulty tensioner, or incorrect belt routing. These issues can cause the belt to slip or wear unevenly, reducing its lifespan and affecting vehicle functionality.

Here are some specific issues to look out for:

• Worn or Damaged Pulleys: Pulleys that are cracked or worn can cause the belt to misalign, leading to increased wear and poor performance. Inspect the pulleys for damage or uneven wear.
• Faulty Tensioner: A malfunctioning tensioner can lead to improper belt tension, causing it to slip or misalign. If the tensioner is faulty, it may fail to keep the belt taut, leading to performance issues.
• Incorrect Belt Routing: If the belt is routed incorrectly, it may not sit properly on the pulleys, causing uneven wear and belt slippage. Always refer to the vehicle’s belt diagram to ensure proper routing.
• Worn or Loose Serpentine Belt: A serpentine belt that is stretched or worn can easily slip out of alignment. Replace the belt if it shows signs of wear or damage.

To avoid these issues, inspect the belt and pulleys regularly. Addressing these problems early can prevent more severe damage and costly repairs.

Step-by-Step Guide to Replacing the Belt on 2013 Nissan Murano

To replace the belt on a 2013 Nissan Murano, first ensure the engine is off and cool. Disconnect the negative terminal of the battery to avoid any electrical issues. Next, locate the drive belt, which can be found near the front of the engine bay.

Using a socket wrench, release the tension from the tensioner pulley. This will allow you to remove the old belt. Take note of the belt’s routing path for reinstallation. It’s helpful to snap a photo or consult the belt diagram in your vehicle’s manual for accurate positioning.

Remove the old belt carefully, checking for any wear or damage to other components, such as the tensioner pulley or idler pulley. If any parts show signs of wear, replace them before proceeding with the new belt.

Position the new belt on the pulleys following the correct routing path. Ensure the belt fits snugly in place without twisting. Once in place, use the socket wrench to move the tensioner pulley back into its original position, allowing the belt to be tensioned properly.

Before starting the engine, manually rotate the crankshaft pulley to verify the belt is correctly seated. If everything looks good, reconnect the negative battery terminal and start the engine. Listen for any unusual noises and check the belt’s movement to confirm it’s functioning properly.

If you notice any issues, double-check the belt routing and tension. With the new belt installed, your Nissan Murano is ready for the road again.
